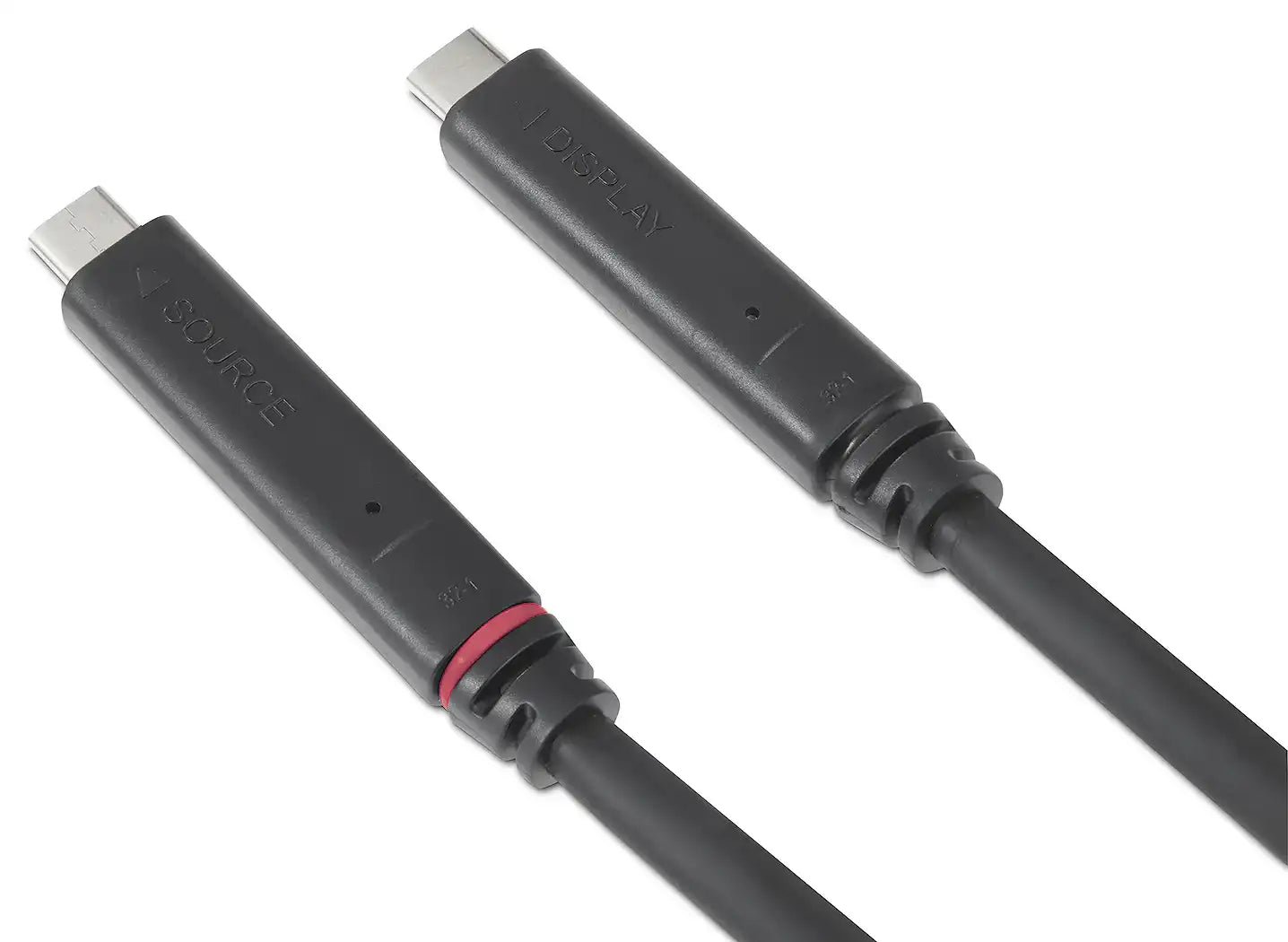

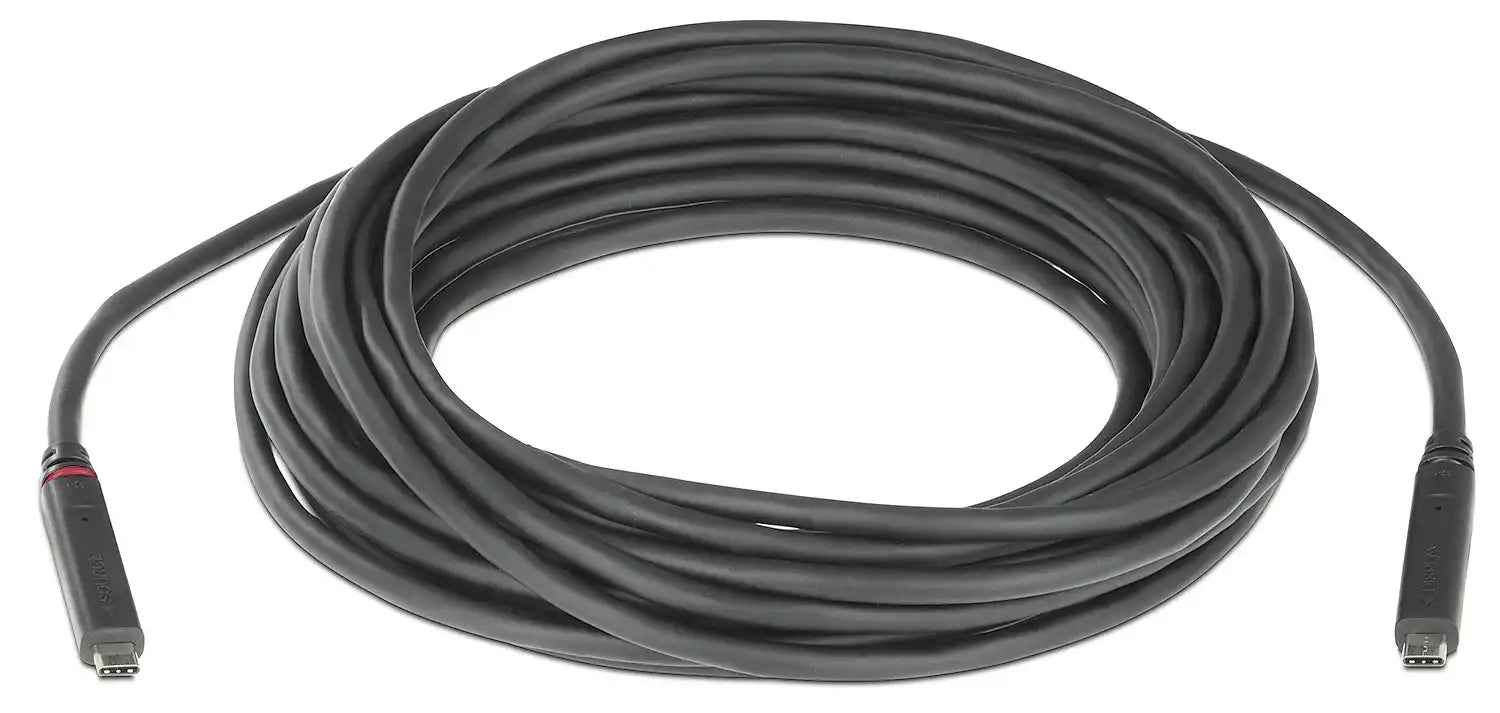

Extron USBC Pro USB-C 8K video cable - 25' (7.6 m) with USB Data and 60 W PD
Extron USBC Pro USB-C 8K video cable - 25' (7.6 m) with USB Data and 60 W PD is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron USBC Pro USB-C 8K video cable - 25' (7.6 m) with USB Dat...
The Extron USBC Pro 8K Series features active, hybrid optical-copper USB-C cables engineered for simultaneous transmission of high-resolution DisplayPort video/audio, USB High-Speed data, and bidirectional power over extended distances up to 30 feet (9.1 m). These unidirectional cables support 8K/30 video and embedded audio on four DisplayPort lanes, Multi-Stream Transport (MST) for multi-monitor setups, and USB Power Delivery up to 60 watts, enabling charging of laptops, phones, or other devices while extending signals. With no external power required—the cables draw from either connected USB device—they are ideal for USB-C-enabled sources and displays in professional AV environments like conference rooms, classrooms, control centers, digital signage, and high-end presentation systems requiring clean, long-reach 8K connectivity.
The ultra-flexible, ultra-thin 0.26" (6.5 mm) diameter and narrow bend radius allow easy routing through tight conduits, furniture, or confined spaces without signal degradation. Gold-plated contacts and robust construction ensure reliable, low-resistance connections resistant to EMI/RFI interference, making these cables a future-proof choice for integrators deploying USB-C Alt Mode setups with demanding video, data, and power needs.
Features Chart
| Feature | Benefit |
|---|---|
| Supports 8K/30 DisplayPort Video/Audio | Extends ultra-high-resolution content with embedded audio on four lanes |
| Multi-Stream Transport (MST) Support | Enables multi-monitor configurations from a single USB-C source |
| USB High-Speed Data Rates | Provides reliable data connectivity for peripherals alongside video |
| Bidirectional USB Power Delivery up to 60 W | Charges connected devices (laptops/phones) without external power |
| Active Hybrid Optical-Copper Construction | Achieves long-distance transmission with no external power needed |
| Ultra-Thin 0.26" (6.5 mm) Diameter | Facilitates installation in tight conduits and confined spaces |
| Narrow Bend Radius | Allows flexible routing without compromising performance |
| Unidirectional Design with Host Power Draw | Draws power from either end for simplified, bus-powered operation |
Specifications Table
| Specification | Details |
|---|---|
| Connectors | USB-C Male to USB-C Male (unidirectional) |
| Cable Type | Active hybrid optical-copper |
| Available Lengths | Up to 30' (9.1 m) |
| Maximum Video Resolution | 8K/30 (7680x4320 @ 30 Hz) on four DisplayPort lanes |
| Data Rate | USB High-Speed (USB 2.0 equivalent) |
| Power Delivery | Bidirectional up to 60 W |
| Cable Diameter | 0.26" (6.5 mm) |
| Additional Support | Embedded audio, MST, no external power required |
| Applications | USB-C Alt Mode extension for 8K video/data/power |
| Compatibility | USB-C devices supporting DisplayPort Alt Mode 8K/30 |
Compare Chart
| Aspect | Extron USBC Pro 8K Series | Extron USBC ProMax Series | Generic USB-C 8K Optical Cables |
|---|---|---|---|
| Video Support | 8K/30 (four lanes) | Up to 8K (dynamic lanes) | Varies, often 8K/30 or 8K/60 |
| Data Rate | USB High-Speed | Up to 20 Gbps | USB 2.0 to 3.2 typical |
| Power Delivery | Up to 60 W bidirectional | Up to 100 W | Varies, often 60-100 W |
| Max Length | 30' (9.1 m) | 30' (9.1 m) | 10-30' common |
| Cable Diameter | Ultra-thin 0.26" (6.5 mm) | Ultra-thin 0.26" (6.5 mm) | Thicker typical |
| MST Support | Yes | Yes | Varies |
| Primary Use | Pro AV 8K/30 extension | High-speed 8K/multi-monitor | Consumer/general AV |
| Power Source | Bus-powered from either end | Bus-powered | Bus-powered or external |
FAQ
- What is the maximum video resolution supported? These cables extend 8K/30 (7680x4320 @ 30 Hz) video and embedded audio on four DisplayPort lanes from USB-C Alt Mode sources.
- What lengths are available? The series supports lengths up to 30 feet (9.1 m) for reliable long-distance extension without external power.
- Does it support power delivery? Yes, bidirectional USB Power Delivery up to 60 watts allows charging of connected devices like laptops or phones.
- Is external power required? No, the active cables are bus-powered, drawing from either the source or display device.
- What data rates are supported? They transmit USB High-Speed data rates (USB 2.0 equivalent) alongside video and power.
- Are these cables suitable for tight installations? Yes, the ultra-thin 0.26" (6.5 mm) diameter and narrow bend radius make them highly flexible for conduits or confined spaces.
