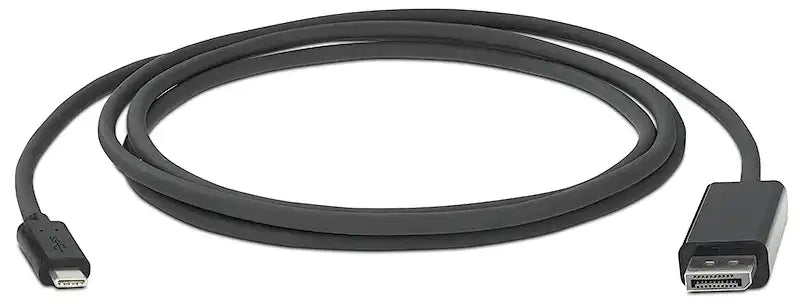

Extron USBC-DP USB-C to DisplayPort Adapter Cable 6' (1.8 m)
The Extron USBC-DP is a reliable adapter cable that connects USB-C equipped devices supporting DisplayPort Alt Mode to DisplayPort displays or devices. It transmits digital video and audio signals up to 4K/30 with full EDID pass-through from the display to the source for automatic resolution matching, HDCP compliance for protected content, and embedded audio support. This makes it an essential tool for integrating modern USB-C sources—like laptops, tablets, or media players—into existing DisplayPort-based AV systems in conference rooms, classrooms, boardrooms, control centers, and presentation environments.
Available in two practical variants: a compact 6-inch (15 cm) version with male USB-C to female DisplayPort connectors for direct plug-in to DisplayPort cables or inputs, and a 6-foot (1.8 m) version with male USB-C to male DisplayPort for extended reach. The passive design requires no external power, ensuring plug-and-play simplicity and seamless compatibility in professional AV setups.
Features Chart
| Feature | Benefit |
|---|---|
| USB-C to DisplayPort Connectivity | Bridges USB-C DisplayPort Alt Mode sources to DisplayPort displays |
| 4K/30 Verified Performance | Supports high-resolution video and embedded audio up to 4K/30 |
| EDID Pass-Through | Enables source to detect display capabilities for optimal settings |
| HDCP Compliant | Ensures secure transmission of protected digital content |
| Embedded Audio Support | Passes audio alongside video without additional cables |
| Compact 6" (15 cm) Variant | Ideal for short, direct connections with minimal clutter |
| Extended 6' (1.8 m) Variant | Provides practical reach for desktop or under-table setups |
| Plug-and-Play Design | No power or configuration required for quick integration |
Specifications Table
| Specification | Details |
|---|---|
| Connector Variants | 6" (15 cm): USB-C Male to DisplayPort Female; 6' (1.8 m): USB-C Male to DisplayPort Male |
| Cable Type | Passive USB-C to DisplayPort adapter cable |
| Maximum Resolution | 4K/30 (3840x2160 @ 30 Hz) |
| Signal Type | DisplayPort Alt Mode (video, audio) |
| Compliance | HDCP compliant; EDID pass-through |
| Applications | USB-C source to DisplayPort display/device connectivity |
| Compatibility | USB-C devices with DisplayPort Alt Mode; DisplayPort inputs |
| Power Requirement | None (passive) |
Compare Chart
| Aspect | Extron USBC-DP | Extron USBC Pro Series | Monoprice USB-C to DP Cable |
|---|---|---|---|
| Connector Variants | USB-C M to DP F (6"); USB-C M to DP M (6') | USB-C M to USB-C M | USB-C M to DP M typical |
| Max Resolution | 4K/30 | 4K/30 or higher in series | 4K/60 or 8K variants |
| Active/Passive | Passive | Active hybrid optical | Passive or active |
| Length Options | 6" and 6' | Up to 30' | Varies, often 3-6' |
| Power Delivery | None | Up to 60 W | Varies, often none |
| Primary Use | Basic USB-C to DP adaptation | Long-reach pro AV with data/PD | General consumer/pro bridging |
| EDID/HDCP Support | Yes | Yes | Yes |
| Installation Ease | Plug-and-play | Plug-and-play | Plug-and-play |
FAQ
- What is the purpose of the USBC-DP adapter cable? It connects USB-C devices with DisplayPort Alt Mode support to DisplayPort displays or equipment, transmitting video, audio, and control signals.
- What resolutions does it support? It is 4K verified, supporting up to 4K/30 (3840x2160 @ 30 Hz) with embedded audio.
- Are there different versions available? Yes, a 6-inch (15 cm) version with USB-C male to DisplayPort female, and a 6-foot (1.8 m) version with USB-C male to DisplayPort male.
- Does it pass EDID and HDCP? Yes, it passes EDID from the display to the source for proper resolution detection and is HDCP compliant for protected content.
- Is external power required? No, it is a passive adapter with no power needs.
- What equipment is compatible? It works with any USB-C device supporting DisplayPort Alt Mode and DisplayPort inputs on monitors, projectors, switchers, or AV systems.
