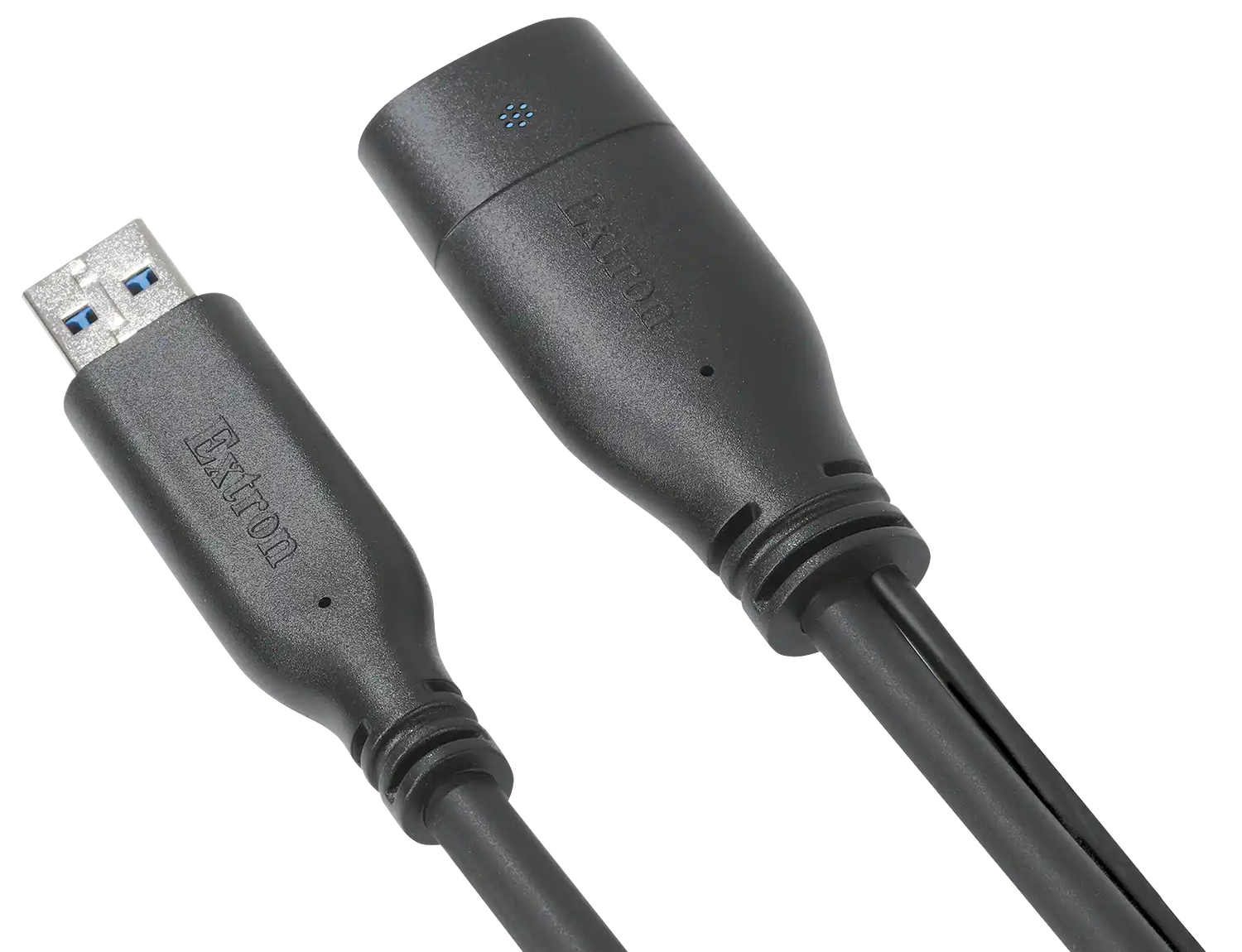

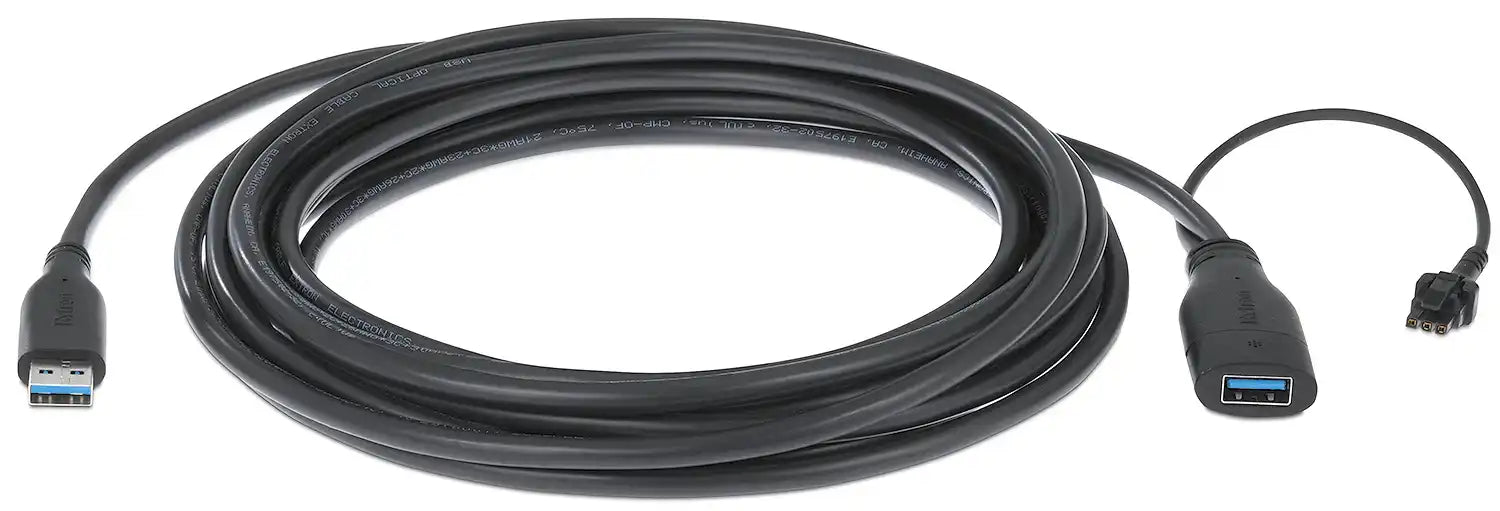

Extron USBA Pro Plenum USB-A 5 Gbps Optical Extension Cable 15' (4.5 m) Plenum
Extron USBA Pro Plenum USB-A 5 Gbps Optical Extension Cable 15' (4.5 m) Plenum is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron USBA Pro Plenum USB-A 5 Gbps Optical Extension Cable 15'...
The Extron USBA Pro Plenum Series consists of active, hybrid optical-copper extension cables that transmit USB-A signals and power over long distances up to 65 feet (19.8 m). These plenum-rated cables support USB data rates up to 5 Gbps while delivering 5 V and up to 900 mA of power to peripheral devices, enabling reliable extension of USB peripherals such as keyboards, mice, touch panels, cameras, or control interfaces from a host computer in professional AV installations. The ultra-thin 0.24" (6 mm) diameter and narrow bend radius facilitate easy routing through tight conduits, ceilings, and plenum air spaces without compromising performance or requiring external power supplies.
Built for code-compliant installations in air-handling spaces, the NEC CMP-rated jacket ensures safety and approval for plenum environments common in educational facilities, corporate boardrooms, auditoriums, and large presentation systems. The cables are highly resistant to EMI/RFI interference, include an LED indicator for host power status verification, and feature gold-plated contacts for durable, low-resistance connections. Available in lengths from 15 feet to 65 feet, they provide integrators with a future-proof, bus-powered solution for distributed USB connectivity in demanding AV setups.
Features Chart
| Feature | Benefit |
|---|---|
| USB-A Male to USB-A Female Configuration | Extends USB signals from host to peripheral devices |
| Supports USB Data Rates up to 5 Gbps | Handles high-speed USB peripherals reliably |
| Delivers 5 V / Up to 900 mA Power | Bus-powers connected devices without external supplies |
| Plenum, NEC CMP-Rated Jacket | Compliant for safe installation in air-handling plenum spaces |
| Ultra-Thin 0.24" (6 mm) Diameter | Enables easy pulling through tight conduits and confined areas |
| Narrow Bend Radius | Allows flexible routing without signal degradation |
| Highly Resistant to EMI/RFI Interference | Ensures stable performance in electrically noisy environments |
| LED Host Power Status Indicator | Provides visual confirmation of proper connection and power delivery |
Specifications Table
| Specification | Details |
|---|---|
| Connector A | USB-A Male |
| Connector B | USB-A Female |
| Cable Type | Active hybrid optical-copper |
| Available Lengths | 15' (4.5 m) to 65' (19.8 m) |
| Maximum Data Rate | 5 Gbps |
| Power Delivery | 5 V, up to 900 mA to peripheral |
| Cable Diameter | 0.24" (6 mm) |
| Jacket Rating | Plenum, NEC CMP |
| Power Source | Bus-powered from host (no external power required) |
| Applications | Long-distance USB peripheral extension in plenum spaces |
| Compatibility | USB 2.0/earlier peripherals; host computers with USB-A ports |
Compare Chart
| Aspect | Extron USBA Pro Plenum Series | Extron USBA-C ProMax Plenum | Generic Active USB Extension |
|---|---|---|---|
| Connectors | USB-A Male to USB-A Female | USB-A Male to USB-C Female | Varies (often USB-A to A/B) |
| Max Data Rate | 5 Gbps | 10 Gbps | 5 Gbps typical |
| Max Length | 65' (19.8 m) | 100' (30.4 m) | 30-50' common |
| Plenum Rating | NEC CMP | NEC CMP | Varies (often non-plenum) |
| Power Delivery | Up to 900 mA | Up to 4.5 W (length-dependent) | Varies, often limited |
| Cable Diameter | Ultra-thin 0.24" (6 mm) | Ultra-thin 0.24" (6 mm) | Thicker typical |
| Primary Use | USB-A peripheral extension | USB-A to USB-C extension | General USB extension |
| EMI/RFI Resistance | High | High | Standard |
FAQ
- What is the maximum extension distance for the USBA Pro Plenum Series? These cables support reliable extension up to 65 feet (19.8 m) for USB-A signals and power.
- What USB speeds do these cables support? They handle data rates up to 5 Gbps, compatible with USB 2.0 and earlier peripherals (backward compatible).
- Do these cables require external power? No, they are bus-powered by the host computer and deliver up to 900 mA to the connected peripheral.
- Are these cables plenum-rated? Yes, they feature an NEC CMP-rated plenum jacket, making them compliant for installation in air-handling spaces.
- What types of USB devices are compatible? They work with standard USB peripherals such as keyboards, mice, touch panels, cameras, or control interfaces that operate within USB 2.0 specs and power limits.
- How thin and flexible are these cables? With a 0.24" (6 mm) diameter and narrow bend radius, they are designed for easy installation in tight conduits or plenum environments.
