Extron USB Hub 4 AAP - 4-Port USB 2.0 Hub Architectural Adapter Plate

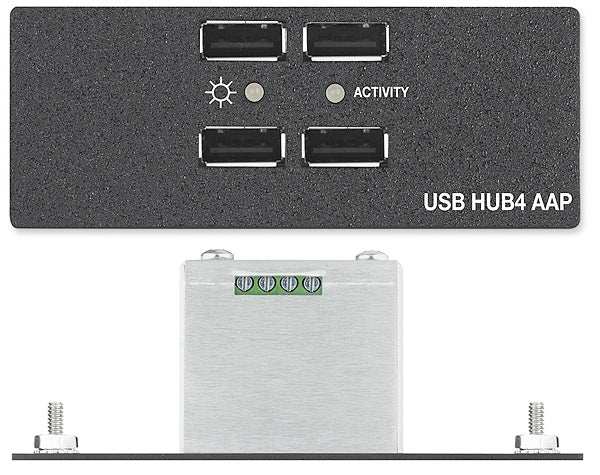

The Extron USB Hub 4 AAP is a 4-port USB 2.0 hub integrated into an architectural adapter plate (AAP) designed for Extron AAP enclosures, wall boxes, table boxes, and furniture-mount solutions. It provides a professional, flush-mounted interface for USB connectivity, allowing up to four USB peripherals (keyboards, mice, touch panels, document cameras, or other devices) to connect via a single upstream USB host connection.
Ideal for conference tables, lecterns, podiums, wall plates, or furniture installations in boardrooms, classrooms, lecture halls, huddle spaces, and corporate meeting rooms requiring reliable, integrated USB extension and peripheral support with cable management and strain relief. The hub supports Extron's modular AAP system for easy field changes, labeling, and compatibility with Extron AV extenders or control systems.
Features Chart
| Feature | Benefit |
|---|---|
| 4 USB 2.0 Ports | Connects multiple peripherals (keyboards, mice, cameras, touch panels) simultaneously |
| USB Hub Functionality | Single upstream USB connection expands to four downstream ports |
| Architectural Flush-Mount Design | Clean, professional appearance in tables, walls, or furniture |
| Modular AAP Compatibility | Fits standard Extron AAP enclosures and boxes for flexible installations |
| Cable Strain Relief | Secure connectors with built-in management to prevent pull-out damage |
| Labeling Area | Space for custom port labels for user-friendly operation |
| Durable Construction | High-quality metal/plastic build for long-term commercial use |
| Easy Installation | Mounts into Extron AAP frames with included hardware |
Specifications Table
| Specification | Details |
|---|---|
| Model | Extron USB Hub 4 AAP |
| USB Ports | 4 × USB 2.0 Type A female downstream |
| Upstream Connection | 1 × USB Type B (or integrated upstream) |
| Data Rate | USB 2.0 (up to 480 Mbps) |
| Mounting Type | Architectural adapter plate (AAP series) |
| Enclosure Compatibility | Extron AAP enclosures, wall boxes, table boxes |
| Material | Metal/plastic (durable finish) |
| Finish | Black or custom (typically black) |
| Dimensions | Standard AAP size (fits 2-gang AAP frames) |
| Weight | Approx. 0.3–0.5 kg |
| Operating Temperature | 0°C to +50°C |
Compare Chart
| Aspect | Extron USB Hub 4 AAP | Extron AAP 2USBAF2USBBF10 (Dual USB-A/B) | Generic USB Wall Plate/Hub |
|---|---|---|---|
| Compatibility | Extron AAP enclosures | Extron AAP enclosures | Universal USB hubs/plates |
| USB Ports | 4 USB-A downstream | Dual USB-A + dual USB-B | 2–4 USB ports |
| Mounting Type | Flush table/wall/furniture AAP | Flush table/wall/furniture AAP | Flush wall/table plate |
| Primary Use | Multi-peripheral USB hub | USB pass-through | Basic USB extension |
| Finish/Match | Black/custom | Black/custom | Varies (black/white) |
| Best For | AV tables with multiple USB needs | Basic USB-A/B pass-through | Simple USB wall plates |
FAQ
- What does the USB Hub 4 AAP do? It serves as a flush-mounted 4-port USB 2.0 hub in an architectural adapter plate for connecting multiple peripherals (keyboards, mice, cameras, touch panels) in conference tables, lecterns, or wall boxes.
- Is it customizable? Yes — Extron AAP plates are often built to order; this model focuses on a 4-port USB hub configuration.
- How is it installed? It mounts into an Extron AAP enclosure or compatible wall/table box using included hardware; professional AV installation recommended for cable management and upstream USB connection.
- What USB standard does it support? USB 2.0 (up to 480 Mbps) — suitable for keyboards, mice, touch panels, document cameras, or other peripherals.
- Is it suitable for outdoor use? No — indoor use only; for outdoor or exposed applications, use weatherproof enclosures.
