Extron USB-C AVPD 101 Flex55 (1) USB-C Female to Male on Pigtail; Black
Extron USB-C AVPD 101 Flex55 (1) USB-C Female to Male on Pigtail; Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron USB-C AVPD 101 Flex55 (1) USB-C Female to Male on Pigtail; B...

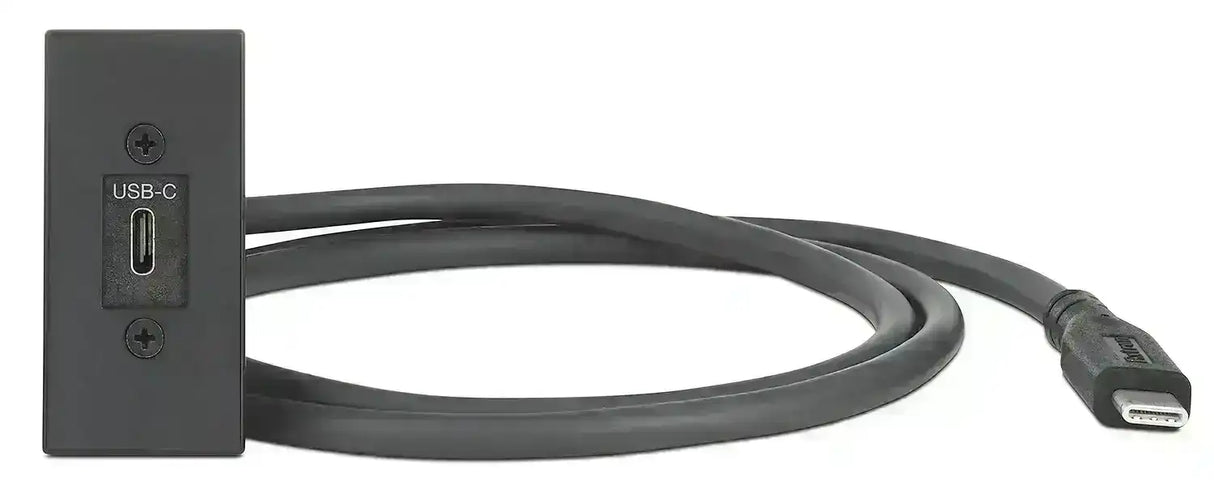

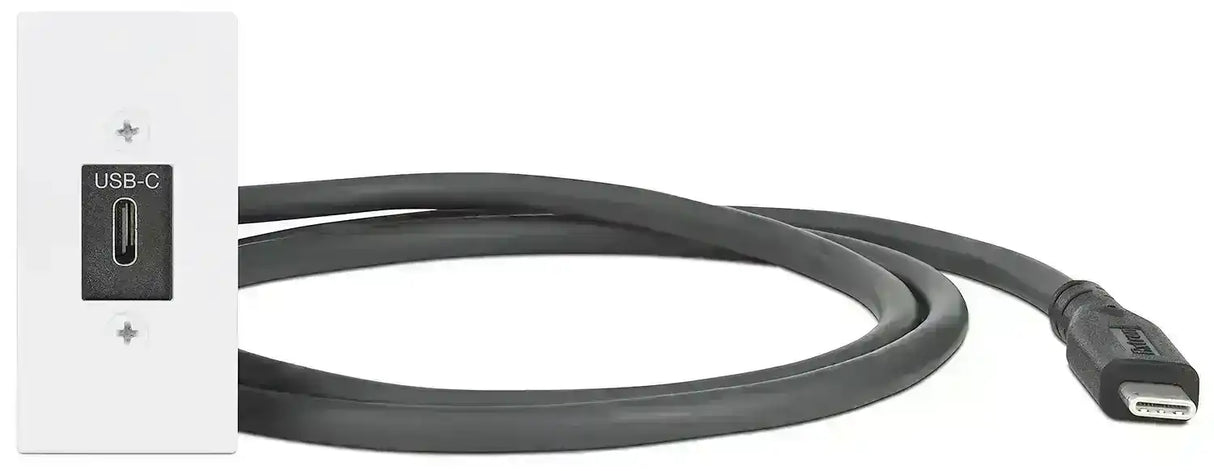

The ExtronUSB-C 100 Series of passive AV connectivity modules feature one USB-C® female socket to USB-C male plug on a 3’ (90 cm) cable for transmission of 4K/60 video, audio, and data signals, along with power. They support USB data rates up to 5 Gbps and deliver up to 60 watts of power to charge laptops, tablets, and other mobile devices. Hassle-free, reversible USB‑C connectivity simplifies use. The USB‑C 100 Series modules are an ideal solution for applications that require a reliable, high-performance connection between devices with USB‑C interfaces. Modules are available in a black and/or white finish.
Features

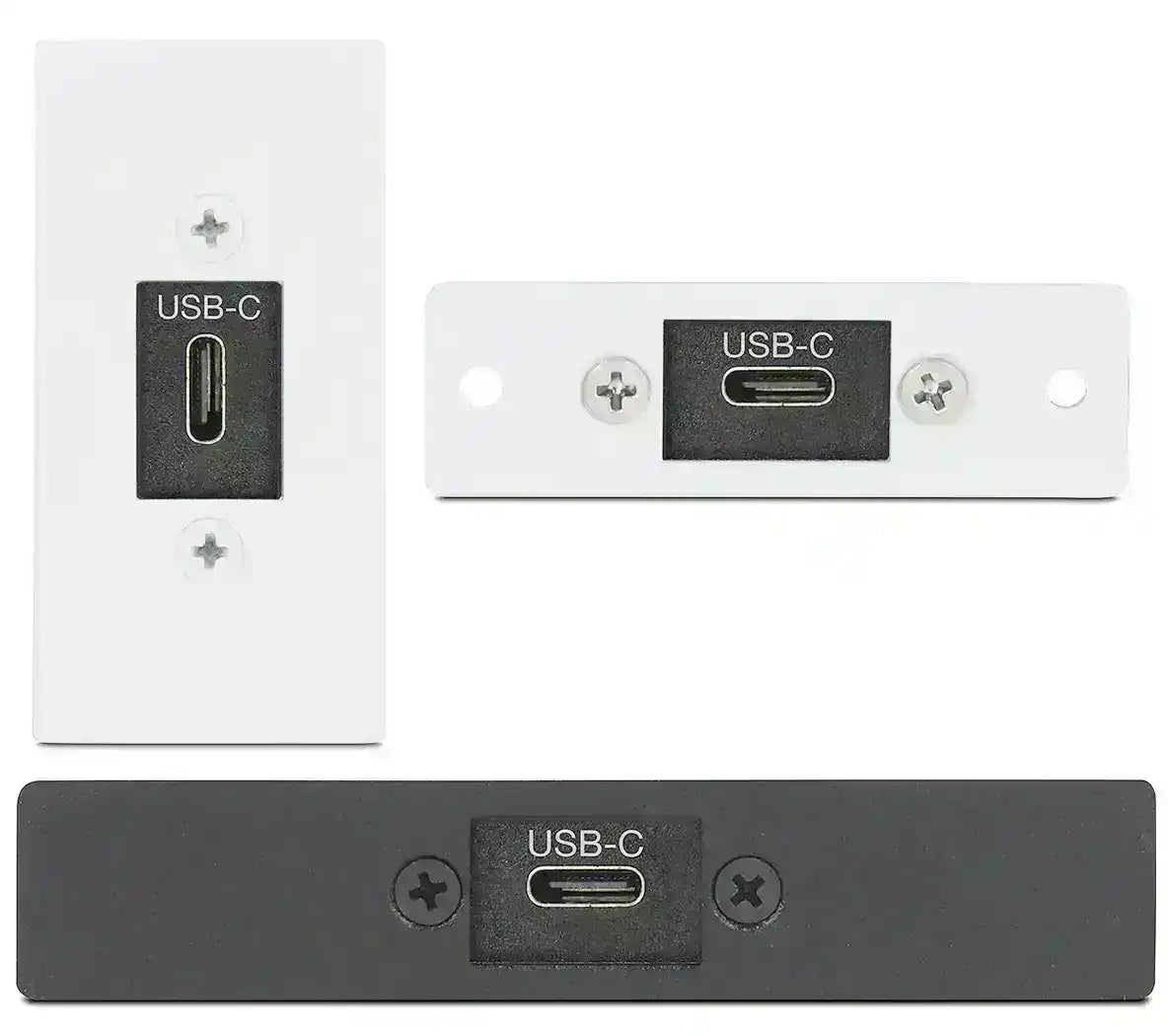

- Ideal for use in Extron-compatible AAP®, MAAP®, and Flex55™ enclosures and wallplates
- Features one USB-C female socket to a USB-C male plug on a 3’ (90 cm) cable— Hassle-free USB‑C connectivity simplifies use with a wide variety of devices and peripherals.
- Supports DisplayPort Alt Mode signals up to 4K/60
- USB Power Delivery of up to 60 W for charging laptops, tablets, and other mobile devices
- Supports USB data rates up to 5 Gbps
- HDCP compliant
- Compatible with Thunderbolt 3 devices
- Available in black and/or white
| USB-C 100 Series | |||
| specification | |||
|---|---|---|---|
| |
24, 25, 30, 50, or 60 fps | ||
| |
4:4:4, 4:2:2 | ||
| |
8, 10, or 12 bits per color | ||
| |
Up to DisplayPort 1.2 and HDCP 2.3 | ||
| |
21.6 Gbps (5.4 Gbps per lane) | ||
|
|||
| Video | |||
| |
DisplayPort Alt Mode, DP 1.2 (1, 2, or 4 lanes) | ||
| |
21.6 Gbps (5.4 Gbps per lane) | ||
| |
640x4808, 480p7,8, 576p6, 720p3,4,5,6,7,8,9, 1080i6,7,8, 1080p1,2,3,4,5,6,7,8,9, 2K1,2,3,4,5,6,7,8, 3840x21601,2,3,4,5, 4096x21601,2,3,4,5 | ||
| |
123.98 Hz, 224 Hz, 325 Hz, 429.97 Hz, 530 Hz, 650 Hz, 759.94 Hz, 860 Hz,9120 Hz (depending on resolution) |
||
| |
4:4:4, 4:2:2 | ||
| |
8, 10, and 12 bits per color (subject to maximum data rate) | ||
| |
RGB and YCbCr digital video | ||
| Data | |||
| |
USB 3.2 (Gen 1), 2.0, 1.1 compatible | ||
| |
Up to 5 Gbps | ||
| Power | |||
| |
60 watts | ||
| |
3 A | ||
| Mechanical | |||
| |
0.23" (5.7 mm) | ||
| General | |||
| |
|||
| |

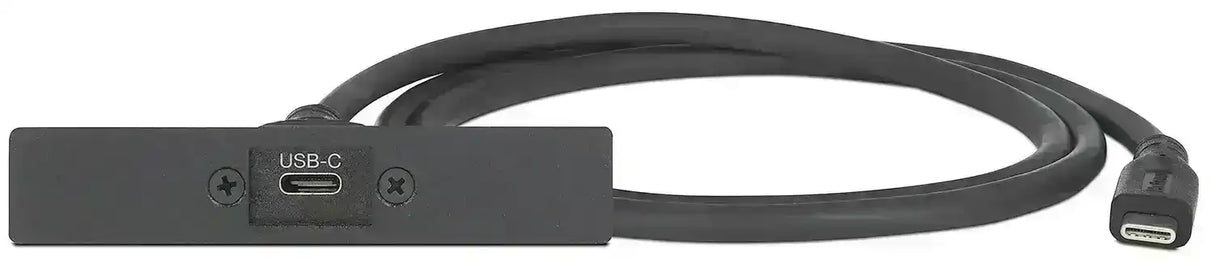

Mounts to AAP mounting frames | ||
| |
USB Type C female to USB Type C male | ||
| |
3' (0.91 m) | ||
| |
0.23" (5.7 mm) | ||
| |
0.69" H x 3.5" W x 0.05" D (single space AAP plate) (17 mm H x 89 mm W x 1.2 mm D) Allow 2" (51 mm) depth for cable management. |
||
| |
|||
|
|||
| |
Metal | ||
| |
0.1 lb (0.1 kg) | ||
| |
|||
| |

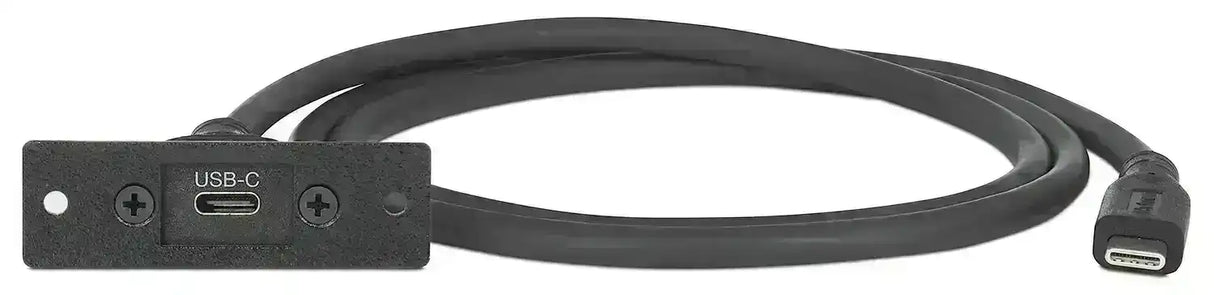

Mounts to MAAP mounting frames | ||
| |
USB Type C female to USB Type C male | ||
| |
3' (0.91 m) | ||
| |
0.23" (5.7 mm) | ||
| |
0.69" H x 2.2" W x 0.1" D (single space MAAP plate) (17 mm H x 56 mm W x 3 mm D) Allow 2" (51 mm) depth for cable management. |
||
| |
|||
|
|||
| |
Metal | ||
| |
<0.1 lb (<0.1 kg) | ||
| |
|||
| |

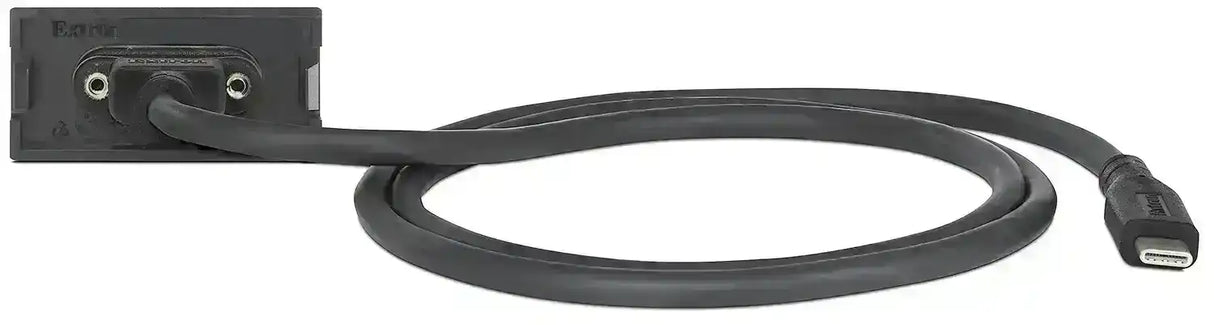

Mounts to Flex55 frames and enclosures. | ||
| |
USB Type C female to USB Type C male | ||
| |
3' (0.91 m) | ||
| |
0.23" (5.7 mm) | ||
| |
SuperSpeed (5 Gbps) | ||
| |
2.17" H x 1.08" W x 0.29" D (55.0 mm H x 28 mm W x 7.3 mm D) Allow up to 2" (51 mm) depth for cable management |
||
| |
|||
| |
High-impact plastic blend | ||
| |
0.09 lb (0.04 kg) | ||
| |
ROHS, WEEE | ||
| |
3 years parts and labor | ||
|
|||
| (5920-D3) | |||
| Shipping Dimensions and Weights | ||||
|---|---|---|---|---|
| Part # | Height | Width | Depth | Weight |
| 70-1241-02 | 0.5" (1.3 cm) | 5.0" (12.7 cm) | 8.0" (20.3 cm) | 0.1 lbs (0.05 kg) |
| 70-1242-02 | 0.5" (1.3 cm) | 5.0" (12.7 cm) | 8.0" (20.3 cm) | 0.1 lbs (0.05 kg) |
| 70-1242-03 | 0.5" (1.3 cm) | 5.0" (12.7 cm) | 8.0" (20.3 cm) | 0.1 lbs (0.05 kg) |
| 70-1243-02 | 0.5" (1.3 cm) | 5.0" (12.7 cm) | 8.0" (20.3 cm) | 0.1 lbs (0.05 kg) |
| 70-1243-03 | 0.5" (1.3 cm) | 5.0" (12.7 cm) | 8.0" (20.3 cm) | 0.1 lbs (0.05 kg) |
