Extron US (2) AC Outlets w 9' (2.74m) Power Cable – Black

Extron Dual AC AAP modules are double-space AV connectivity modules with two AC power outlets for installation in most Extron AV connectivity mounting panels, such as TMK 100 AAP Series table mounts and AAP 102 mounting frames. They are available for both the US and Japan. The module is offered in two models. One model includes an attached 9-foot (2.74-meter) AC power cord with one rotated outlet that improves compatibility with large AC chargers. The other model features an attached 6-foot (1.83-meter) length of 3/8" flexible conduit plus a 6" (15.24-cm) pigtail of three-wire cable. Each US module is UL/c-UL listed. The module for Japan is equipped with a detachable 8-foot (2.44-meter) AC power cord and is PSE certified.

Type: Barrel/Adapter
Size: Double Space
Color: Black

Features

• Two female Edison unswitched AC outlets on front
• Installs in products that accept a double-space AAP™ AV Connectivity Module
• Dual US AC AAP modules are available in multiple models

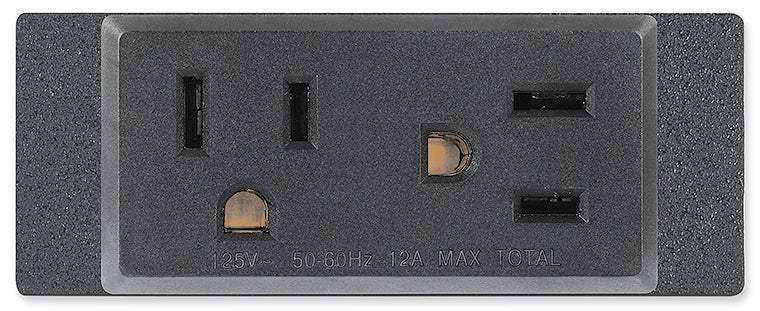

• New Features a rotated outlet for improved compatibility with large AC chargers, Part # 60‑1936‑02
• New Includes an attached 9' (2.74 m) power cord for quick and convenient installation, Part # 60‑1936‑02

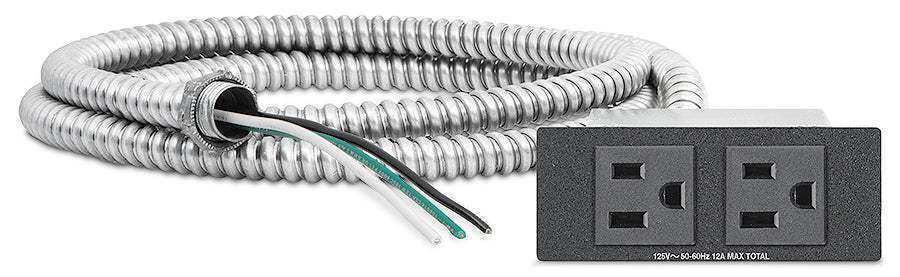

• US conduit module features an attached 6' (1.83 m) length of 3/8" flexible conduit with a 6" (15.24 cm) pigtail of three-wire cable
• Dual US AC AAP module is UL-listed
• Dual JP AC AAP module is PSE certified for use in Japan
• Available in black
• TAA Compliant version available — Please inform your local Extron representative if your order requires compliance with TAA regulations

Dual US and JP AC AAP
General
Power	125 VAC, 50-60 Hz, 12 A max. total
Mounting options	Rack or furniture mountable with optional AAP mounting frames
Enclosure dimensions
US AC cord model
Faceplate	1.39" H x 3.50" W (35 mm H x 89 mm W) (double space AAP plate) With AC power cord attached, allow at least 2.77" (70.4 mm) depth in the wall or furniture.
Connector type	2 NEMA 5-15 R, polarized, 3-pin to 1 NEMA 5-15 P, non-polarized, 3-pin
Cable length	9' (2.7 m)
Cable outer diameter	0.29" (7.4 mm)

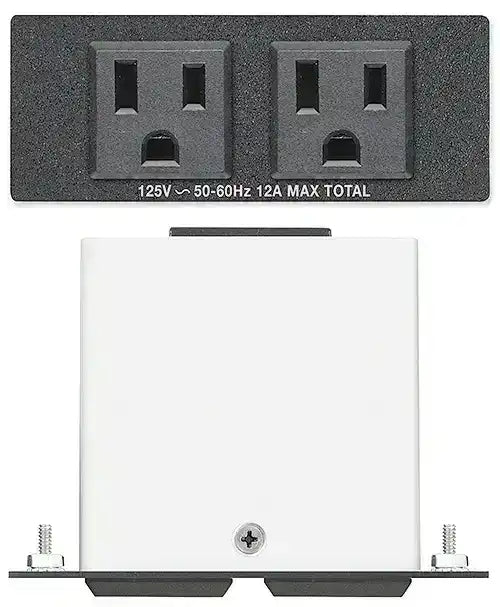

US and JP AC detachable cord models
Faceplate	1.39" H x 3.50" W (35 mm H x 89 mm) (double space AAP plate)
Isolation enclosure	1.33" H x 2.50" W x 2.63" D (34 mm H x 64 mm W x 67 mm D) Allow at least 4.50" (114 mm) depth in the wall or furniture.
Cable length	US AC model is 7.5' (2.3 m) JP AC model is 8' (2.4 m)
Cable outer diameter	0.29" (7.4 mm)
US AC conduit model
Faceplate	1.39" H x 3.50" W x 0.1" D (35 mm H x 89 mm W x 3 mm D) (double spaced AAP plate)
Isolation enclosure	1.33" H x 2.50" W x 2.63" D (34 mm H x 64 mm W x 67 mm D) Allow at least 6.50" (165 mm) of depth in the wall or furniture for conduit bend radius.
Conduit length	6' (1.8 m) with 6" (152 mm) three-wire cable pigtail
Conduit outer diameter	0.61" (15 mm)
Material	Cold-rolled steel
Product weight
US AC cord model	1.1 lbs (0.50 kg)
US and JP AC detachable cord models	0.7 lbs (0.3 kg)
US AC conduit model	2.3 lbs (1.0 kg)
Regulatory compliance
US models	UL, c-UL
Environmental	Complies with CE Mark in accordance to appropriate requirements of RoHS and WEEE.
Product warranty	3 years parts and labor
NOTE     Specifications are subject to change without notice.
(5223-D10)
