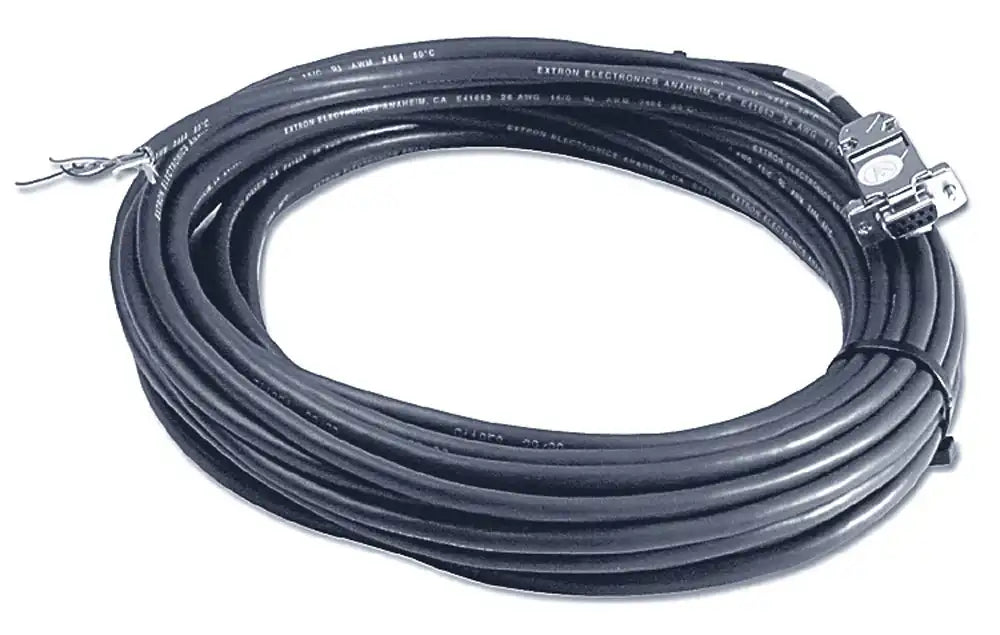

Extron Universal Projector Control Cables
Extron UC Cables are high-performance, male-to-male cable assemblies specifically engineered for connecting Extron Universal Controllers (UC Series) to AV equipment, control systems, and peripheral devices in professional installations. These cables support reliable RS-232, IR, digital I/O, and power connections, ensuring seamless communication and power delivery between the controller and controlled devices.
These cables address common integration challenges by providing pre-terminated, plug-and-play solutions that reduce on-site wiring time and eliminate the risk of improper pinouts or signal degradation. They maintain full signal integrity over typical installation lengths, supporting baud rates up to 115.2 kbps for RS-232 and accurate IR command transmission without interference.
Constructed with high-quality shielded cable and molded connectors, UC Cables feature robust strain relief and gold-plated contacts for long-term durability and corrosion resistance in high-traffic environments. Available in standard lengths with various connector combinations, the series includes options for captive screw, DB9, Phoenix, and IR emitter terminations to match common Extron UC Series ports and device interfaces.
Primary applications include under-table or wall-mounted controller setups in conference rooms, classrooms, boardrooms, training facilities, and control rooms. They are ideal for connecting UC controllers to projectors, displays, switchers, amplifiers, lighting controls, shades, or other RS-232/IR-enabled devices where clean, professional cabling is required for reliable system operation.
Compatibility focuses on Extron UC Series Universal Controllers (UC 400, UC 500, and variants) and their associated control ports (RS-232, IR, digital I/O). The cables integrate directly with Extron's control ecosystem, supporting standard pinouts for Extron devices while remaining versatile for third-party equipment using common serial and IR interfaces. They pair well with Extron UCM 100 mounts, under-table enclosures, and cable management solutions for complete hidden control installations.
Installation is straightforward: select the appropriate UC Cable length and connector type for the application, connect one end to the UC controller port, route the cable neatly to the target device, and secure the other end to the equipment's control port. The molded design and shielding minimize electromagnetic interference, while the captive screw or Phoenix options ensure secure, vibration-resistant connections in rack or furniture-integrated setups.
Features Chart
| Feature | Benefit |
|---|---|
| Pre-terminated male-to-male assemblies | Eliminates field termination errors and speeds installation |
| Shielded cable construction | Reduces electromagnetic interference for reliable RS-232/IR signals |
| Gold-plated contacts | Ensures low-resistance connections and corrosion resistance over time |
| Molded strain relief connectors | Provides durability and protection against cable pull-out |
| Multiple length and connector options | Matches common UC Series port configurations and installation distances |
| RS-232 support up to 115.2 kbps | Enables fast, accurate serial communication with AV devices |
| IR emitter and receiver compatibility | Supports precise infrared control of displays and sources |
| Professional black jacket | Blends discreetly in under-table or wall-mounted setups |
Specifications Table
| Specification | Details |
|---|---|
| Product Type | Universal Controller cable assemblies |
| Connector Types | Captive screw, DB9, Phoenix, IR emitter/receiver (varies by model) |
| Cable Construction | Shielded with molded connectors |
| Signal Support | RS-232 (up to 115.2 kbps), IR, digital I/O |
| Contact Plating | Gold-plated |
| Jacket Color | Black |
| Length Options | Standard lengths (e.g., 3 ft, 6 ft, 12 ft, custom available) |
| Compatibility | Extron UC Series controllers and common AV device control ports |
Compare Chart
| Aspect | Extron UC Cables | Generic RS-232/IR Control Cables | Competitor Controller Cable Assemblies |
|---|---|---|---|
| Connector Precision | Exact match to Extron UC ports | Universal pinouts, may require adapters | Often brand-specific or limited |
| Shielding | Full shielding for interference rejection | Varies, often basic or unshielded | Moderate shielding |
| Strain Relief | Molded with robust design | Basic or none | Varies, often standard molding |
| Length Flexibility | Standard and custom options | Fixed lengths common | Limited standard lengths |
| Signal Reliability | Optimized for 115.2 kbps RS-232/IR | General serial use | Good but less AV-tuned |
| Professional Finish | Black jacket, gold contacts | Basic black or gray | Functional but less refined |
| Extron Ecosystem Fit | Direct integration with UC Series | Limited or third-party | Less synergy with Extron hardware |
| Installation Ease | Plug-and-play, no termination | May require crimping | Comparable but less precise |
FAQ
- What are Extron UC Cables used for? They connect Extron Universal Controllers (UC Series) to AV devices via RS-232, IR, or digital I/O ports for reliable system control.
- What connector types are available? Options include captive screw, DB9, Phoenix, and IR emitter/receiver terminations to match UC ports and equipment.
- Do UC Cables support high-speed RS-232? Yes, they are designed for baud rates up to 115.2 kbps with full shielding for signal integrity.
- Are the cables shielded? Yes, all UC Cables feature shielded construction to minimize electromagnetic interference.
- What lengths are offered? Standard lengths include 3 ft, 6 ft, and 12 ft, with custom lengths available through Extron.
- Why choose Extron UC Cables over generic cables? They provide exact connector matching, gold-plated contacts, molded strain relief, and optimized performance for UC Series controllers.
