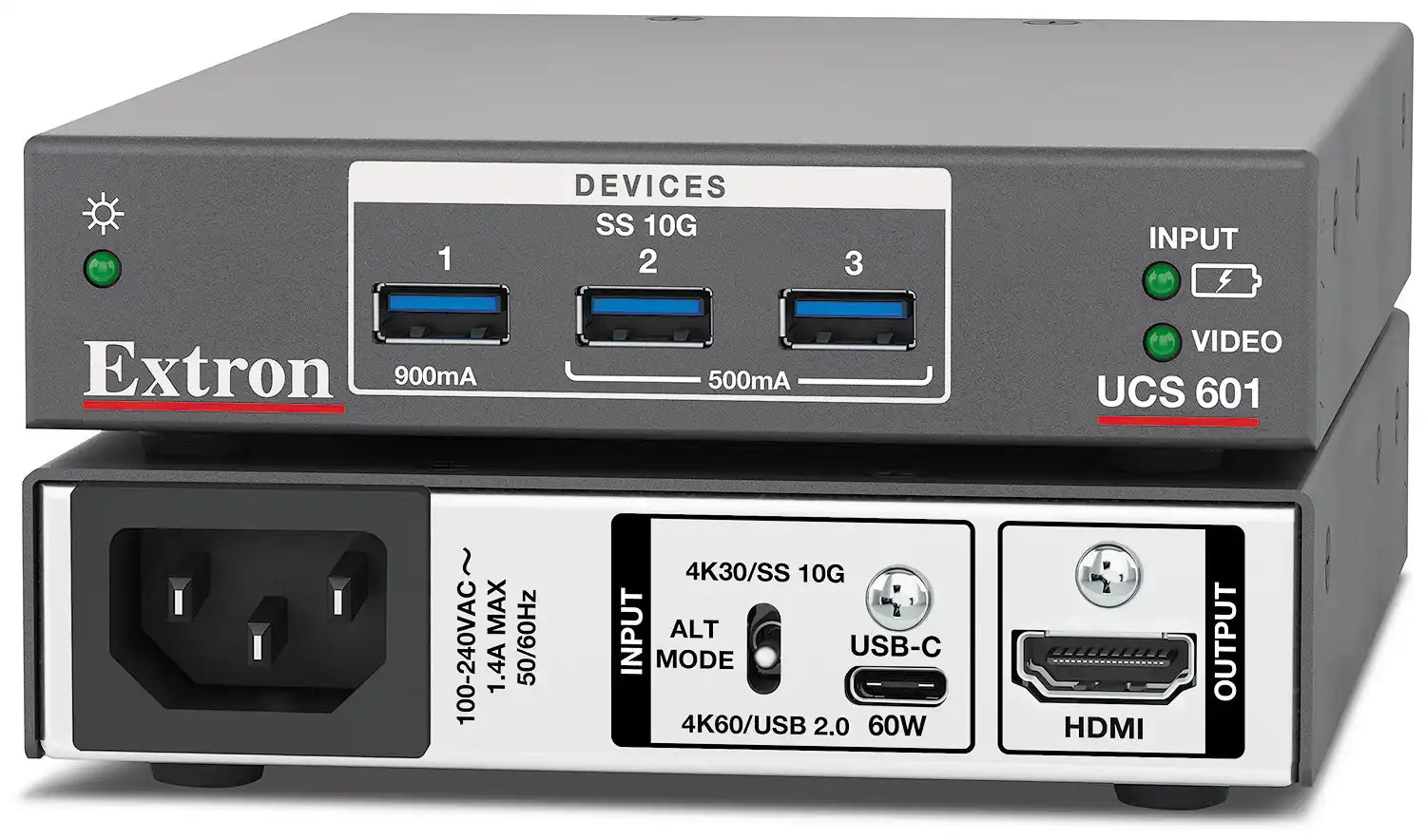

Extron UCS 601 Pro 4K USB-C 10G Dock

The UCS 601 is a Pro 4K USB‑C dock that connects a USB‑C laptop to an HDMI display and USB devices for use in Unified Communications spaces. The USB‑C input provides video/audio, USB data, and 60 watts of power from an internal power supply. Three USB peripheral connections support USB cameras or microphones. The HDMI output supports resolutions up to 4K and USB devices connect at rates up to USB 10Gbps. The unit can be mounted within furniture or under a table using the included ZipClip 200 mounting accessory. The compact one-quarter rack width 1” (2.5 cm) high metal enclosure can also be mounted in an equipment rack using an optional rack mounting shelf. The UCS 601 4K USB‑C Dock is ideal for Teams® and Zoom™ meetings in collaboration spaces wherever a full-featured Pro AV docking solution is needed.

With USB cameras, microphones, and other peripheral devices becoming more common in small meeting spaces, the ability to connect users' laptops to these devices has become critical to a successful meeting experience. The UCS 601 Pro 4K USB‑C Dock supports up to three USB room devices at rates up to USB 10Gbps while providing 5V, 900 mA power on one port and 5V, 500 mA power on the remaining ports. For additional flexibility, the UCS 601 features a rear panel switch to set the maximum HDMI output resolution and USB data rate between 4K/60 at rates up to High Speed (USB 2), and 4K/30 with rates up to USB 10Gbps. The UCS 601 unites traditional AV display content with USB peripheral devices into a single appliance, taking small collaboration spaces with local and remote users to a new level.

Intuitive Collaboration

The user-friendly UCS 601 is easy to use in BYOM spaces, including simple rooms without a control system. As the laptops are connected, the USB‑C dock will automatically connect each laptop to the room’s display as well as connect to USB cameras or other room devices for use in Teams or Zoom meetings. When a laptop is disconnected, the display will automatically go into standby mode, empowering users to collaborate intuitively, with minimal interaction with the AV hardware.

Comprehensive USB‑C

The UCS 601 utilizes the full capabilities of USB‑C connections, enabling transmission of all three primary AV functions, video/audio, USB data, and power, over a single cable. This all-in-one connection eliminates the need for laptops to have a separate power or USB data connection and streamlines the user experience with a single cable.

BYOM Convenience

Bring Your Own Meeting (BYOM) spaces offer collaborative spaces for local and remote users without the need for more complicated room setups that use dedicated computers, switching and control equipment. BYOM spaces can use USB cameras and microphones in conjunction with portable laptops brought by the users. A USB‑C dock allows users to operate USB-connected equipment in the room. These spaces are more convenient for users, less expensive to set up and maintain, and offer more flexibility. They also serve a dual function by operating as traditional presentation spaces when users want to present content locally and don’t need to run a UC meeting. BYOM spaces feature powerful and effective local and remote collaboration capabilities for today’s meeting and collaboration rooms.

Features

• Connects USB‑C^® laptops to AV USB peripheral devices and a display
• Input: One USB-C connector
• Output: One female HDMI type A connector
• Single connection for video, USB data, and power for USB-C source devices
• New Supports computer and video resolutions up to 4K/60 @ 4:4:4, including 5K — Resolutions up to 4096x2160/60 with 4:4:4 chroma sampling at 8 bits of color.
• New Supports ultra-wide aspect ratios, including 21:9 and 32:9 at 5K
• Provides USB device connections up to USB 10Gbps — For use with USB cameras or microphones.
• Provides up to 60 watts of power to the USB-C source — Supports USB Power Delivery to negotiate power to the USB-C device.
• Features DisplayPort Alt Mode switch — Configures output video and USB support between two lanes of DisplayPort and two lanes of USB, at rates up to USB 10Gbps, or four lanes of DisplayPort and USB, at rates up to High Speed (USB 2).
• HDCP 2.3 compliant — Ensures display of content-protected 4K video media and maintains interoperability with earlier versions of HDCP.
• Supported HDMI 2.0b specification features include data rates up to 18Gbps, Deep Color up to 12 bit, 3D, and HD lossless audio formats
• HDMI output can be extended up to 300’ with Extron HD Pro Plenum cables
• Compatible with USB-C four or two DisplayPort lane Active Optical Cables
• Extron recommends the USBC Pro 8K Series cable for video applications or the USBC Pro Series for data applications
• Extron recommends the USBC cable for video and data applications under 6 feet (1.8 m)
• Passes EDID, embedded audio, and HDCP signals between source and display
• Front panel LED indicators for signal presence, USB-C power, and unit power — Provides visual indication of system status for real-time feedback and monitoring of key performance parameters.
• Includes LockIt^® Plus cable lacing brackets — Securely fastens HDMI or USB-C^® cables to a device, eliminating risk of disconnection.
• Patented ZipClip^® 200 mounting kit included — Enables easy and secure mounting on a variety of surfaces.
• Compatible with Extron mounting solutions — Easy mounting with Extron low-profile and under-desk mounts, under-table kits, and rack-shelf options.
• 1” (2.5 cm) high, quarter rack width metal enclosure — Compact, low profile enclosure allows discreet installation within furniture or behind a flat panel display.
• Internal Extron Everlast™ power supply — Provides worldwide power compatibility, with high‑demonstrated reliability and low power consumption for reduced operating cost.
• Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty

UCS 601
Cable - Digital
specification
Max. 4K Capabilities Resolution and Refresh Rate Chroma Sampling Max. Bit Depth per Color 5120x1440 at 60 Hz 4:4:4 8 bit 5120x2880 at 30 Hz 4096x2160 at 60 Hz 3840x2160 at 60 Hz 4096x2160 at 30 Hz 12 bit 3840x2160 at 30 Hz 4096x2160 at 60 Hz 4:2:0 3840x2160 at 60 Hz
Frame rate1	24, 25, 30, 50, or 60 fps
Chroma sampling1	4:4:4, 4:2:2, or 4:2:0
Color bit depth1	8, 10, or 12 bits per color
Signal Type	HDMI 1.x, 2.0, DisplayPort 1.2, HDCP 2.3
Max. video data rate	18 Gbps (6 Gbps per color)
NOTE     1Subject to the maximum data rate limit. Use our calculator at www.extron.com/4Kdatarate to determine video parameters supported by this data rate.
Frame rate1	24, 25, 30, 50, or 60 fps
Chroma sampling1	4:4:4 or 4:2:0
Color bit depth1	8, 10, or 12 bits per color
Signal Type	HDMI 1.x, 2.0, DisplayPort 1.2, HDCP 2.3
Max. video data rate	18 Gbps (6 Gbps per color)
NOTE     1Subject to the maximum data rate limit. Use our calculator at www.extron.com/4Kdatarate to determine video parameters supported by this data rate.
NOTE     If an additional USB Hub (or a peripheral device with a built-in USB Hub) is connected to the receiver, it must be a USB 3.x Hub.
Video
Maximum data rate	18 Gbps (6 Gbps per color)
Maximum pixel clock	600 MHz
Resolution range	Up to 1080p @ 120 Hz or 4K @ 60 Hz (4:4:4 chroma subsampling)
Ultra Wide and 5K	2560x1080, 5120x1080, 5120x1440, 5120x2160*, 5120x2560*, 5120x2880* *Supported at 30 Hz only
Color bit depth	8, 10, or 12 bits
Formats	RGB and YCbCr digital video
Standards	HDMI 2.0, DisplayPort 1.2 (Alt Mode), DVI 1.0, HDCP 1.x, HDCP 2.3, CTA-861
Video input
Number/signal type	1 DisplayPort Alt Mode, DP 1.2 (2 or 4 lanes), RBR/1.62 Gbps, HBR/2.7 Gbps, HBR2/5.4 Gbps
Connector	Female USB type-C
Horizontal frequency range	15 kHz to 270 kHz for resolutions up to 18 Gbps
Vertical frequency range	24 Hz to 240 Hz for resolutions up to 18 Gbps
Video output
Number/signal type	1 HDMI (or single link DVI-D with appropriate DVI-HDMI adapters)
Connector	1 female HDMI type A
Video output power for active cables (HDMI pin 18)	1.25 W max for HDMI port
USB
USB specification	xHCl (USB 3.2 Gen 1/2, USB 3.1 Gen 1/2, USB 3.0), EHCl (USB 2.0), OHCl/UHCl (USB1.1) compatible
USB data rates	Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps), USB 5Gbps (5 Gbps), USB 10Gbps (10 Gbps)
Data transfer types	Bulk, Control, Interrupt, and Isochronous
USB host inputs
Number/signal type	1 USB
Connectors	1 female USB Type-C
USB device ports
Number/signal type	(1) 3-port USB Hub
Connectors	3 female USB 3.2 Type-A
Maximum built-in USB hubs	1
Minimum built-in USB hubs	1
Optional built-in USB hubs	0
Available USB power
Port 1	900 mA
Port 2	500 mA
Port 3	500 mA
NOTE     USB-C power delivery reduces to 45W when USB device(s) is connected.
General
Power	Internal Input: 100-240 VAC, 50-60 Hz
Power consumption	71.9 W
Temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, no vents
Thermal dissipation	43.5 BTU/hr
USB-C power delivery	Up to 60 W power delivery at the following power profiles: 5 VDC @ up to 3 A, 9 VDC @ up to 3 A, 12 VDC @ up to 3 A, 15 VDC @ up to 3 A 20 VDC @ up to 2.25 A or 20 VDC @ up to 3.0 A
Mounting
Rack mount	Yes, with optional rack shelf, with the included ZipClip 200 mounting clip
Enclosure type	Metal
Enclosure dimensions	1.125" H x 4.3" W x 6.0” D (1.125" high, one quarter rack wide) (2.86 cm H x 10.9 cm W x 15.2 cm D)
Regulatory compliance	CE, c-UL, UL, C-Tick, FCC Class A, ICES, VCCI, AS/NZS, RoHS, WEEE
Product warranty	3 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
