Extron Two XTP DTP Punch Down Jacks

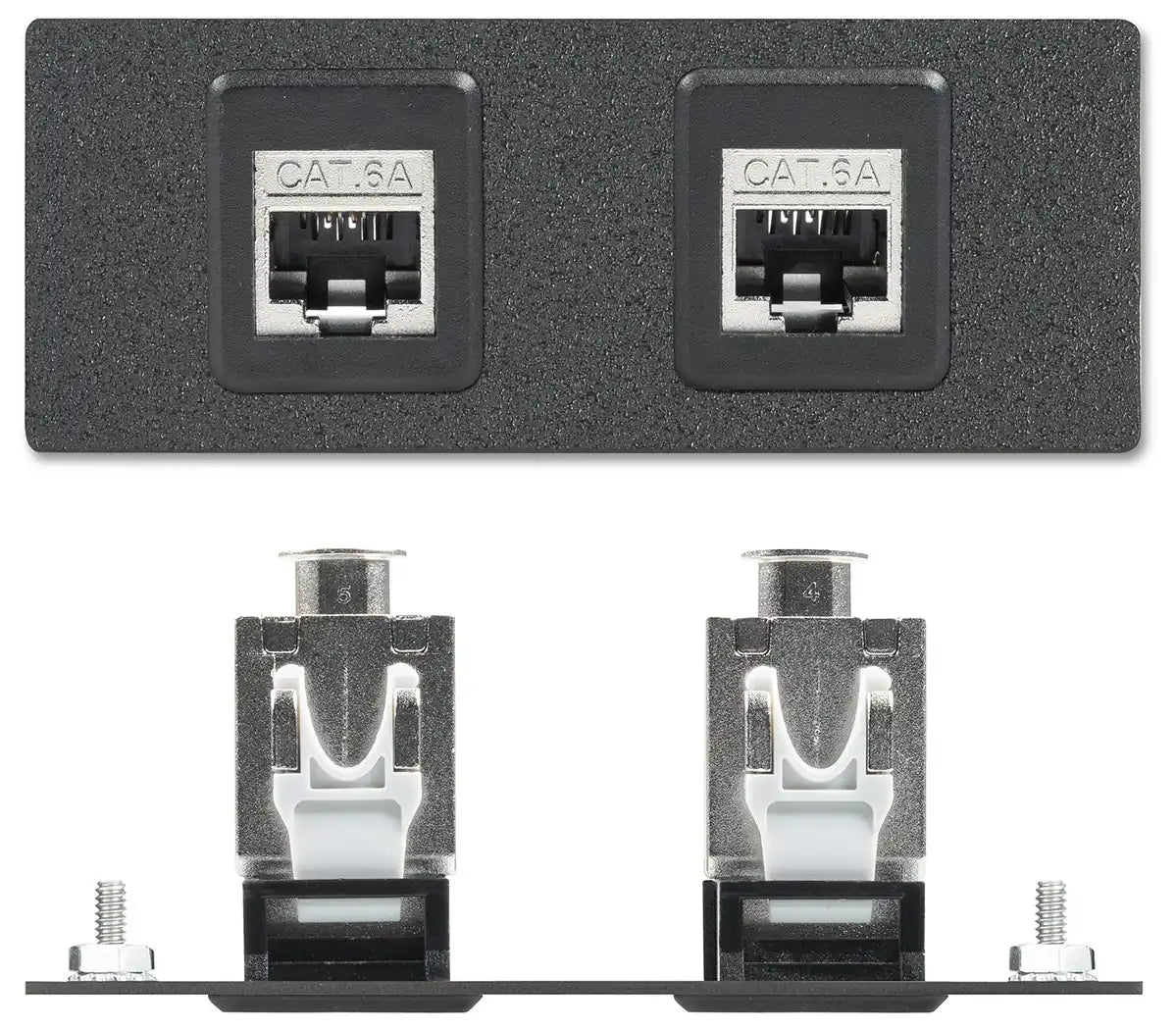

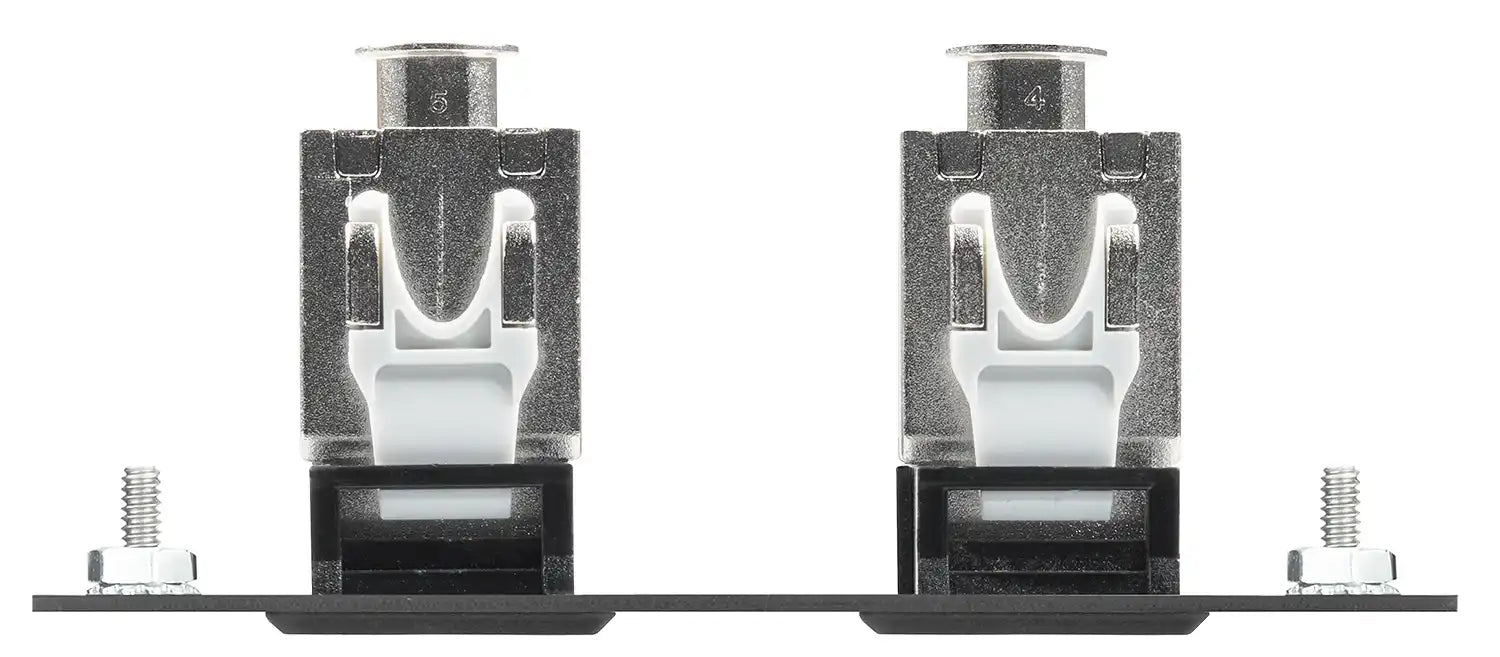

The Extron Two XTP DTP Punch Down Jacks is a double-space AV connectivity module featuring two punchdown jacks engineered for terminating Extron XTP DTP 22 and XTP DTP 24 shielded twisted pair cables. It provides a reliable, high-performance termination point within XTP Systems and DTP Systems infrastructure, ensuring optimal signal transmission for extended-distance AV, control, and data applications. The punchdown design allows secure, tool-based connections that minimize signal degradation and support high-speed requirements up to certified bandwidth levels.
Constructed as an Architectural Adapter Plate (AAP) style module, it installs easily into compatible Extron frames, enclosures, wall boxes, or mounting solutions like Cable Cubby or AVEdge series for clean integration in furniture, walls, or racks. The shielded jacks maintain cable shielding integrity to reduce interference, making it suitable for demanding professional environments requiring consistent 4K video, audio, Ethernet, and control extension over shielded CATx cable.
This module is ideal for installations in classrooms, conference rooms, boardrooms, auditoriums, and control centers where XTP or DTP transmitters/receivers need structured, permanent cable terminations for reliable long-distance signal distribution.
Features Chart
| Feature | Benefit |
|---|---|
| Two punchdown jacks per module | Terminates two separate shielded twisted pair runs in one compact space |
| Designed for XTP DTP 22 and XTP DTP 24 cables | Ensures compatibility and optimal performance with Extron shielded STP |
| Shielded termination design | Preserves shielding to minimize EMI/RFI interference |
| Double-space AAP form factor | Fits standard Extron AAP-compatible frames and enclosures |
| Punchdown IDC connections | Provides secure, gas-tight terminations for reliable long-term use |
| High-speed signal optimization | Supports certified bandwidth for 4K/60 video and other AV signals |
| Easy installation in AV mounts | Integrates into wall plates, lecterns, tables, or rack accessories |
| Part of XTP/DTP cable infrastructure | Enables structured cabling for extended DTP/XTP system deployments |
Specifications Table
| Specification | Details |
|---|---|
| Module Type | Double-space AAP AV Connectivity Module |
| Jacks | 2 x punchdown (IDC) for shielded twisted pair |
| Compatible Cables | Extron XTP DTP 22 and XTP DTP 24 shielded twisted pair (CAT 6A) |
| Cable Termination | Punchdown style for STP cables |
| Supported Systems | Extron XTP Systems and DTP Systems |
| Transmission Support | Up to distances certified for XTP/DTP (typically 330 ft / 100 m with recommended cable) |
| Mounting | Installs into Extron AAP frames, enclosures, wall boxes, or compatible mounts |
| Finish | Black (standard for Extron AAP modules) |
| Applications | Cable infrastructure termination for AV extension |
Compare Chart
| Aspect | Extron Two XTP DTP Punch Down Jacks | Extron XTP DTP Punch Down Jack (Single) | Extron Shielded RJ-45 Punch Down Jack Kit |
|---|---|---|---|
| Jack Count | 2 | 1 | Varies (kit-based) |
| Form Factor | Double-space AAP | Single (keystone or AAP style) | RJ-45 focused kits |
| Cable Compatibility | XTP DTP 22 / 24 shielded | XTP DTP 22 / 24 shielded | XTP DTP shielded |
| Termination Type | Punchdown IDC | Punchdown IDC | Punchdown or plug options |
| Shielding Support | Full shielded termination | Full shielded | Shielded |
| Installation Focus | AAP frames/enclosures | Wallplates, AAP, keystone mounts | General punchdown applications |
| Capacity per Module | Two connections | Single connection | Multiple in kit |
| Use Case | Dual-run terminations | Single-run terminations | Bulk or field terminations |
FAQ
- What cables are compatible with this module? It is specifically designed for Extron XTP DTP 22 and XTP DTP 24 shielded twisted pair cables optimized for XTP and DTP systems.
- How many connections does one module support? It includes two punchdown jacks, allowing termination of two separate shielded cable runs in a double-space AAP footprint.
- What type of termination does it use? Punchdown IDC (Insulation Displacement Contact) connections provide secure, reliable terminations for shielded cable.
- Where can this module be installed? It mounts into Extron AAP-compatible frames, enclosures, wall boxes, Cable Cubby series, or other AV connectivity mounts.
- Does it maintain cable shielding? Yes, the shielded punchdown jacks preserve the cable's shielding integrity to reduce interference in high-performance AV setups.
- Is it suitable for 4K video extension? When used with recommended XTP DTP cables, it supports infrastructure for systems capable of 4K/60 transmission up to certified distances.
