Extron TLP Pro 835M Black Wall Mount TouchLink Pro Touchpanel

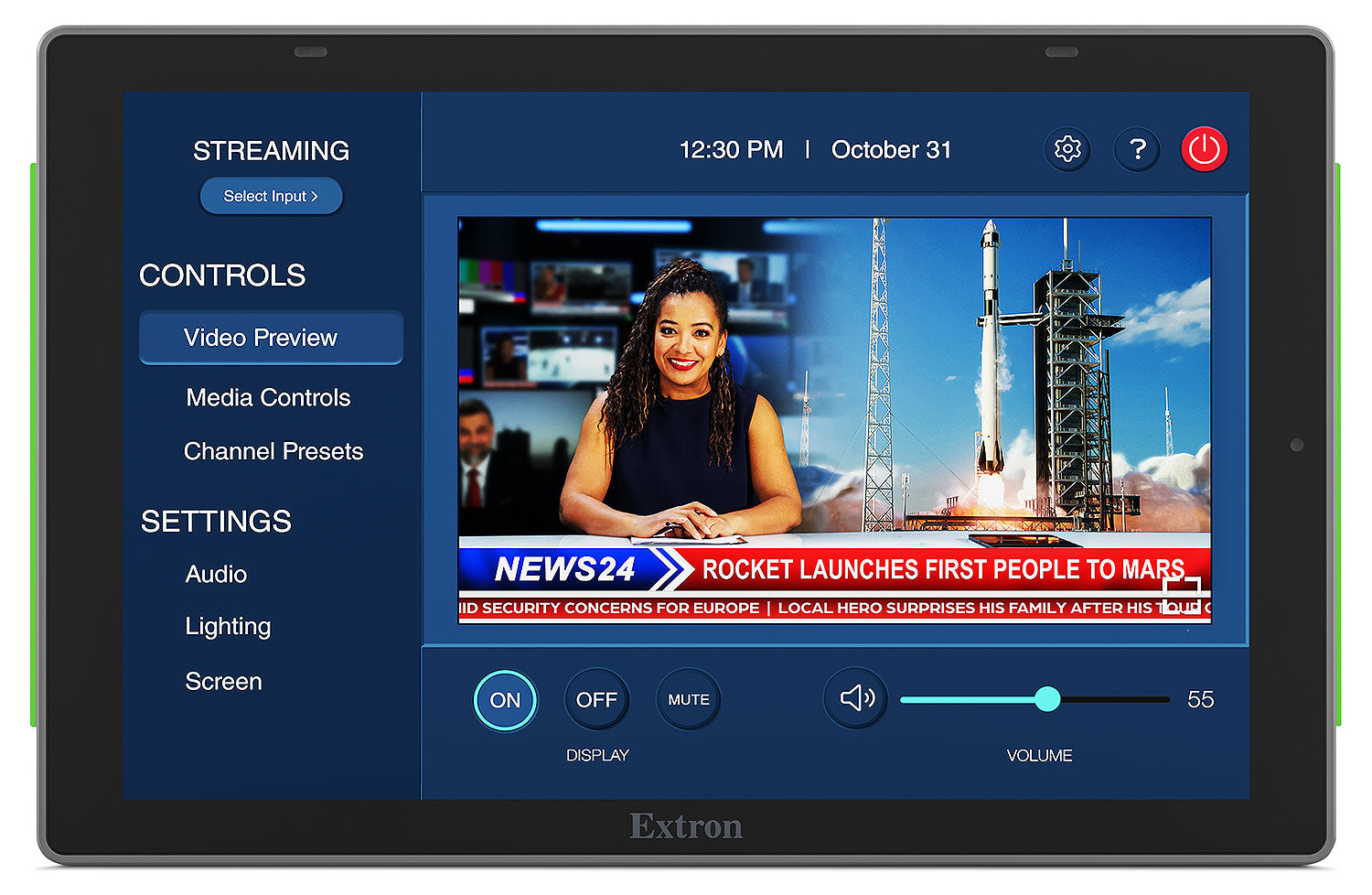

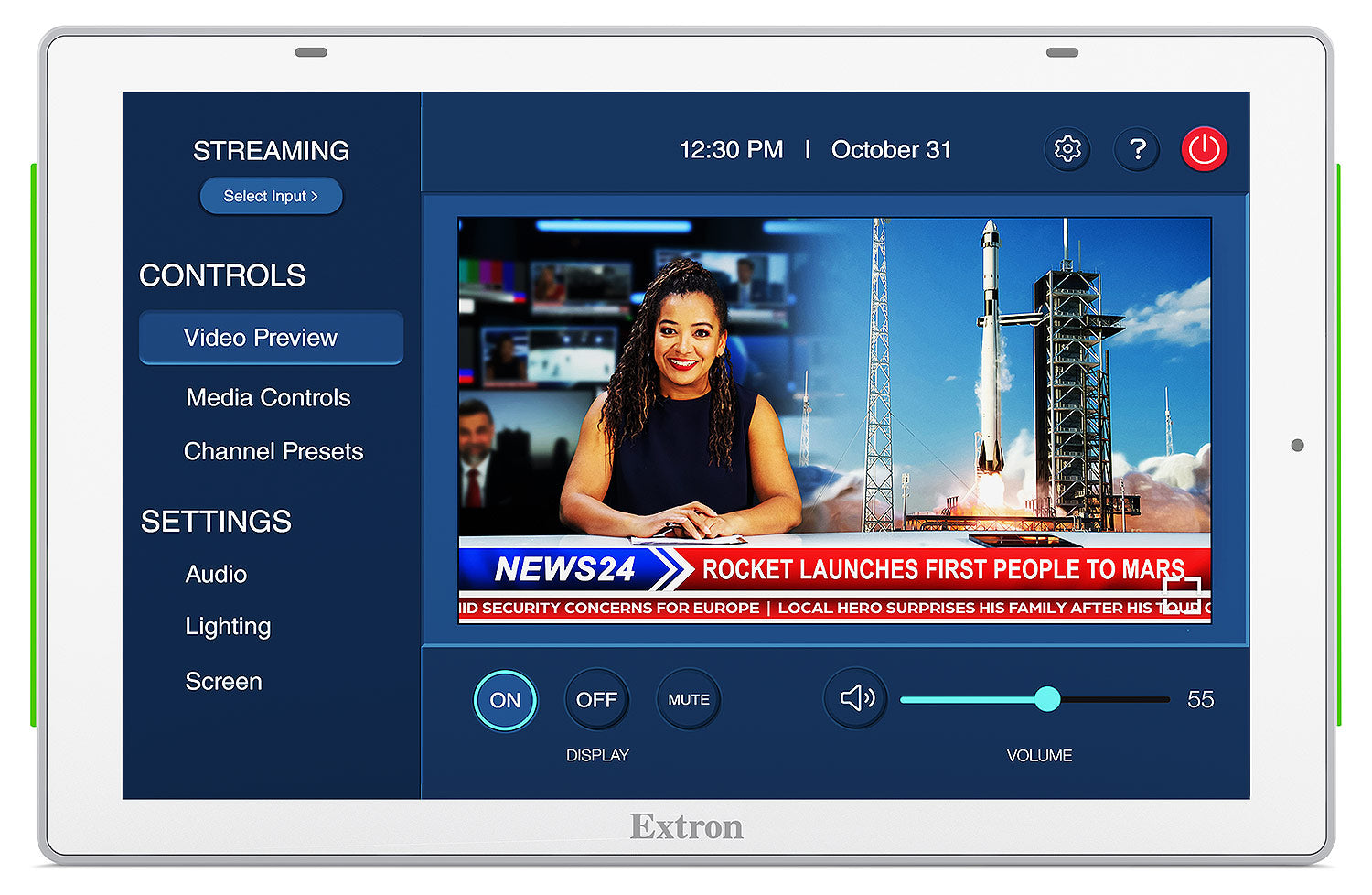

The Extron TLP Pro 835M is an 8-inch Wall Mount TouchLink Pro Touchpanel designed with advanced features and a fully customizable interface. A stunning IPS display with optically bonded Gorilla Glass provides enhanced brightness, wide viewing angles, and precise touch accuracy. Native H.264 streaming support enables convenient video previews with a single-cable PoE installation for power, network, and video.
Multi-color status indicators deliver immediate visual feedback for system states, alerts, or room availability. It works with any Extron IP Link Pro xi control processor and can transform into a standalone control system using LinkLicense for TLP Control Processor paired with the TLCA 2 adapter. Built-in motion and light sensors automate wake-up and brightness adjustment for optimal performance.
Ideal for conference rooms, classrooms, boardrooms, and corporate environments requiring a professional wall mount control interface for AV systems, lighting, shades, and environmental controls. It offers a refined, modern look with durable construction for daily use.
| Feature | Benefit |
|---|---|
| 8" IPS touchscreen | Delivers sharp 1280x800 resolution with 24-bit color and excellent viewing angles |
| Optically bonded Gorilla Glass | Provides scratch and smudge resistance with superior touch accuracy |
| H.264 streaming preview | Enables live video monitoring via single-cable PoE connection |
| Multi-color status indicators | Offers immediate visual feedback for system status and room availability |
| PoE power support | Simplifies installation with one cable for power, control, and video |

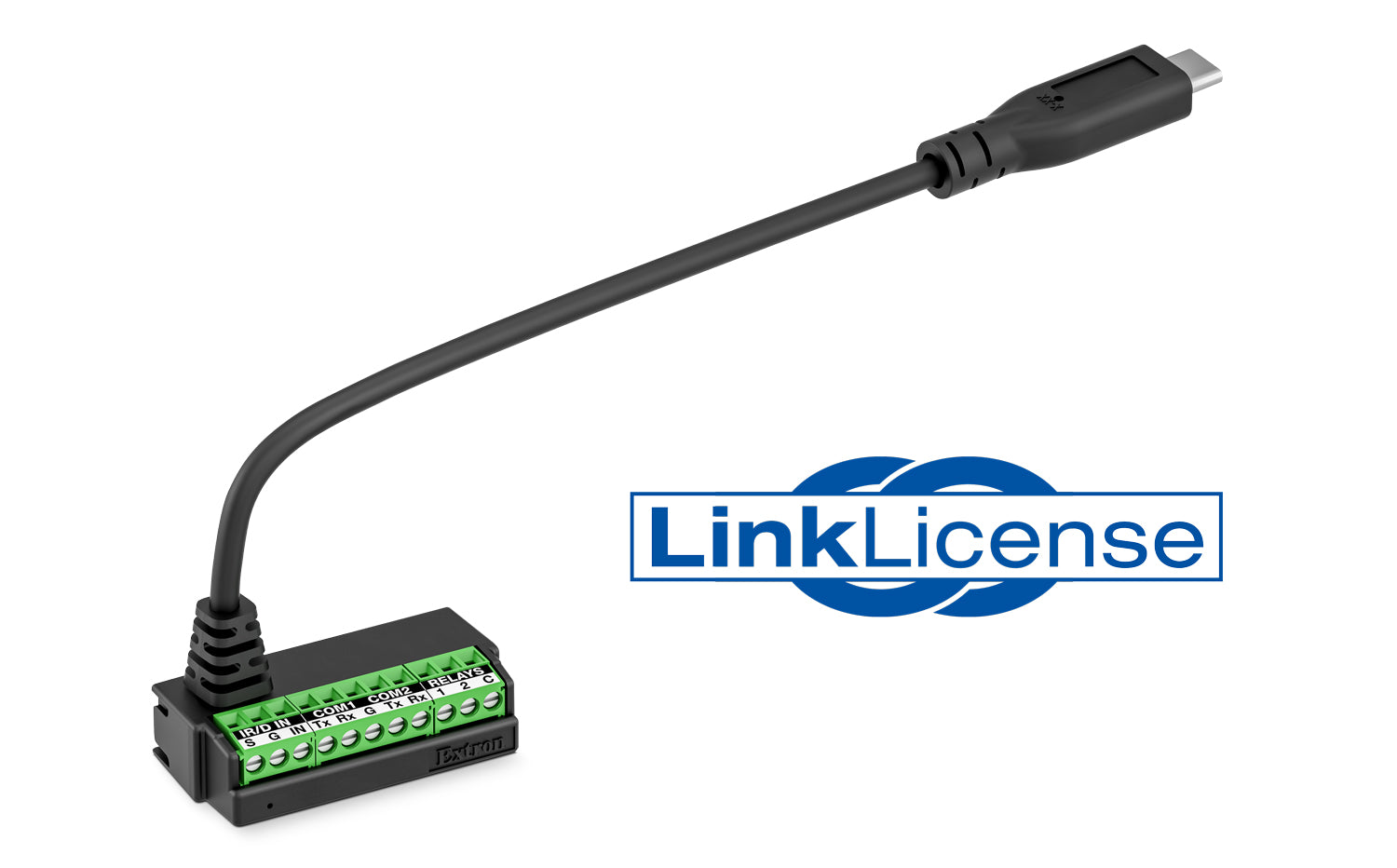

| LinkLicense compatibility | Transforms into standalone control system with TLCA 2 adapter |
| Built-in motion and light sensors | Automates wake-up and adjusts brightness based on ambient conditions |
| USB-C expansion port | Supports accessories and additional power options |
| Specification | Details |
|---|---|
| Display | 8" IPS capacitive touchscreen, 1280x800 resolution |
| Color | Black |

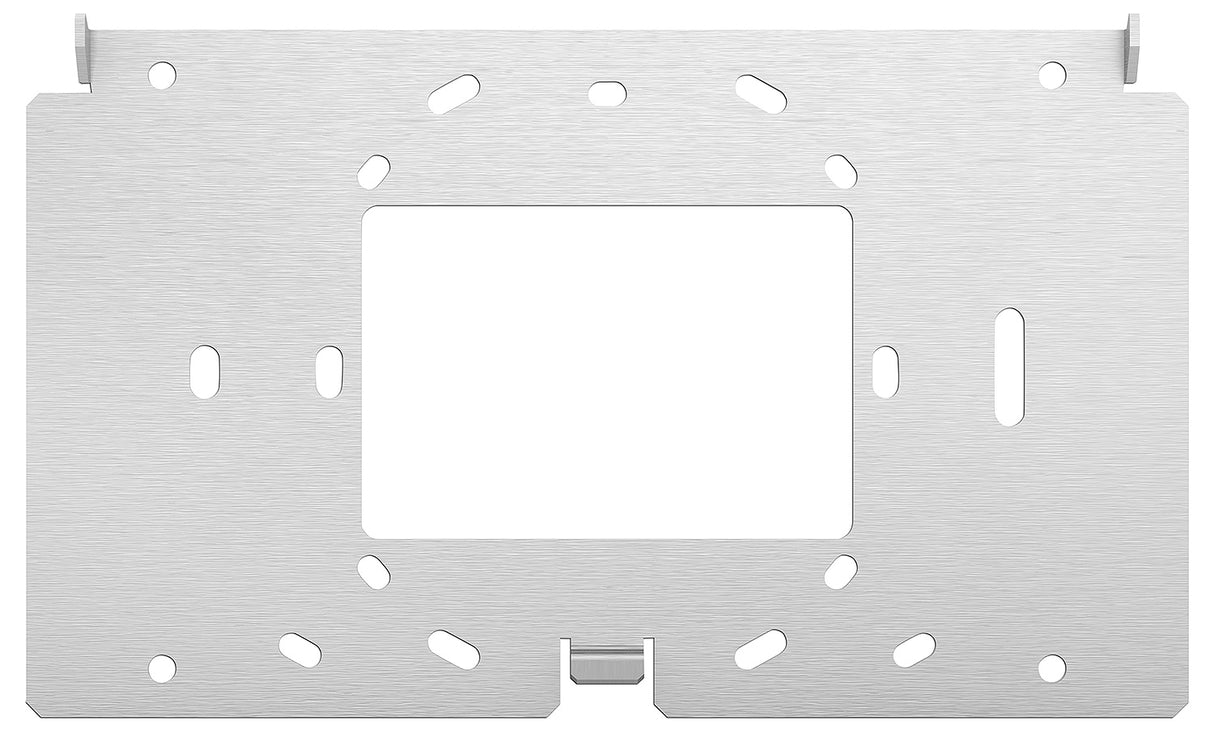

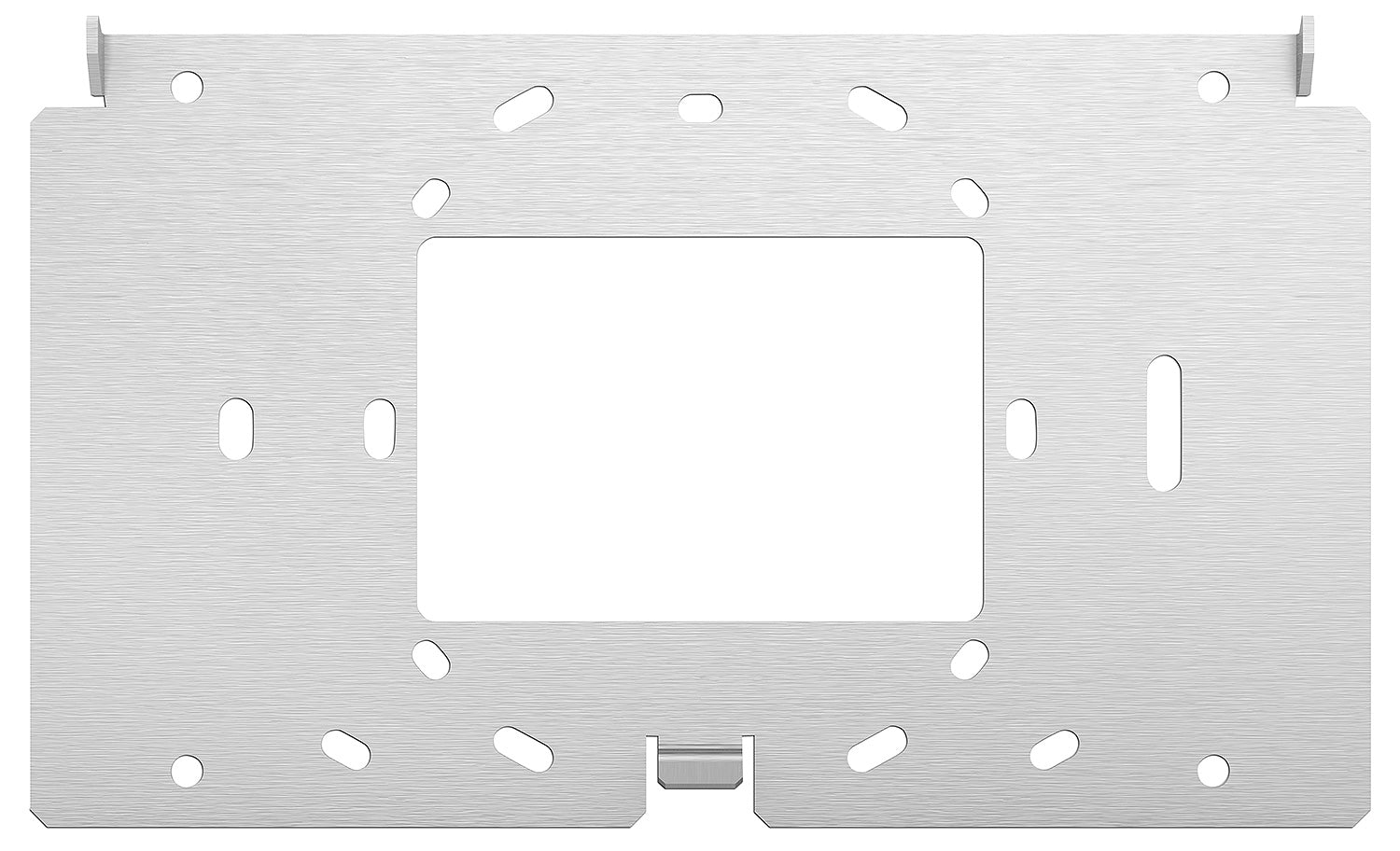

| Mounting | Wall mount (one-gang or multi-gang compatible) |
| Power | PoE 802.3af or local power |
| Network | 10/100/1000Base-T Ethernet with PoE |
| Memory | 4 GB SDRAM, 64 GB Flash |
| Audio | Built-in down-firing speaker |
| Sensors | Motion sensor and ambient light sensor |
| Construction | Durable enclosure with Gorilla Glass front |
| Aspect | Extron TLP Pro 835M | Extron TLP Pro 535M | Crestron TSW-760 |
|---|---|---|---|
| Screen Size | 8 inches | 5.5 inches | 7 inches |
| Resolution | 1280x800 IPS | 1280x720 IPS | 1280x720 |
| Glass Protection | Optically bonded Gorilla Glass | Optically bonded Gorilla Glass | Standard glass |
| Streaming Support | Native H.264 | Native H.264 | H.264 capable |
| Color Options | Black | Black and White | Multiple |
| Standalone Control | With LinkLicense + TLCA 2 | With LinkLicense + TLCA 2 | Requires processor |
| Installation | Wall mount, portrait/landscape | Wall mount, portrait/landscape | Wall mount |
| Sensors | Motion + light | Motion + light | Motion + light |
FAQ
- What is the screen size and resolution of the TLP Pro 835M? It features an 8-inch IPS touchscreen with 1280x800 resolution and 24-bit color depth.
- Is this the black wall mount version? Yes, designed specifically for wall mount installations.
- Does it support Power over Ethernet? Yes, it uses PoE 802.3af for simplified single-cable installation.
- Can it function as a standalone controller? Yes, when paired with the TLCA 2 adapter and appropriate LinkLicense.
- What video preview capabilities does it offer? Native H.264 streaming input for camera or source monitoring directly on the panel.
- Is it compatible with Extron control systems? It works with any Extron IP Link Pro xi control processor.
- Does it include built-in sensors? Yes, motion and ambient light sensors for automatic operation.
