Extron TLP Pro 835M 8" Wall Mount Touchpanel
Extron TLP Pro 835M 8" Wall Mount Touchpanel is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.

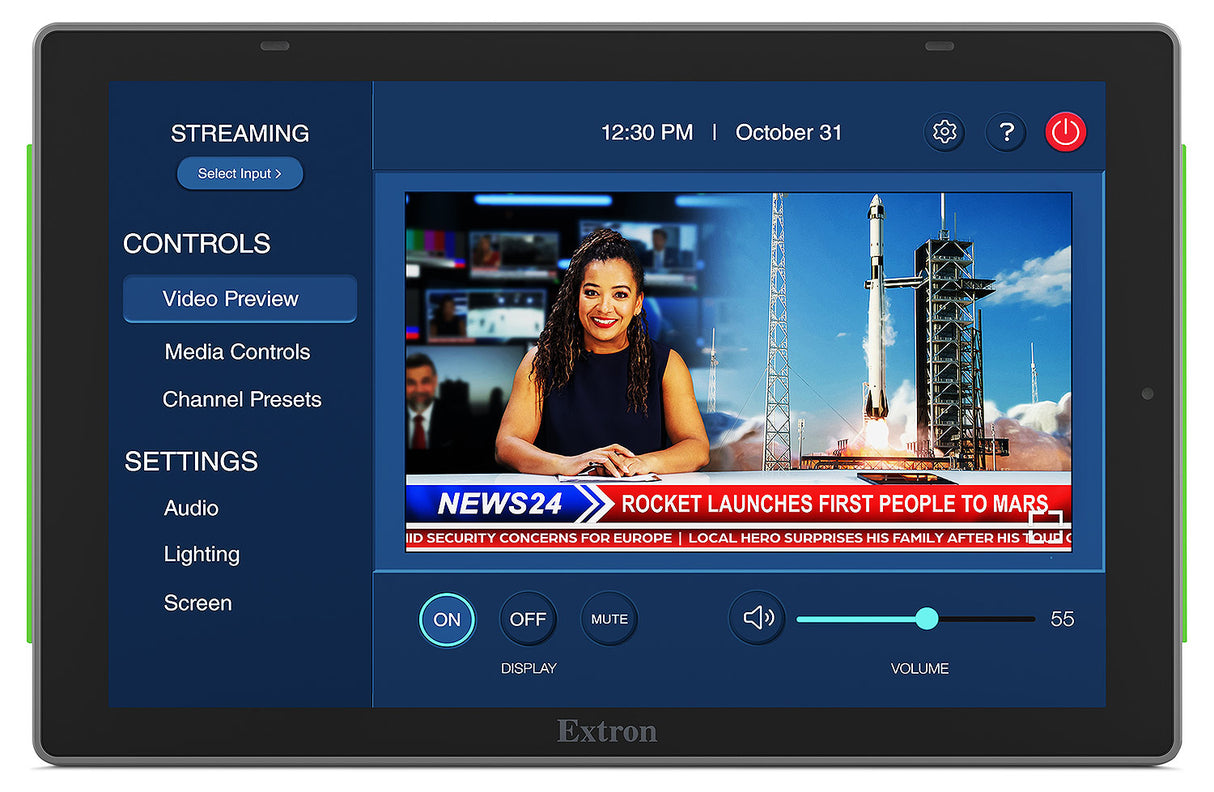

Extron TLP Pro 835M 8" Wall Mount Touchpanel
The Extron TLP Pro 835M is an advanced 8-inch wall mount TouchLink Pro touchpanel featuring a high-quality IPS touchscreen with 1280x800 resolution and 24-bit color depth for vibrant visuals, excellent contrast, and wide viewing angles. Built with an optically bonded Gorilla Glass surface, it offers superior durability, scratch resistance, and reduced smudging while maintaining precise touch accuracy. Key enhancements include a motion detector for wake-on-approach functionality, an ambient light sensor for automatic brightness adjustment, multi-color status indicators for instant visual feedback on system states or room availability, integrated speakers for button feedback and audio playback, and native H.264 streaming preview support for convenient live video monitoring over Ethernet.
This touchpanel delivers seamless single-cable PoE installation for power, network connectivity, and video streaming, simplifying deployment in professional AV environments. It integrates fully with any Extron IP Link Pro xi Series control processor and can be transformed into a standalone control system using the optional LinkLicense for TLP Control Processor and TLCA 2 expansion adapter. Ideal for conference rooms, collaboration spaces, and high-visibility installations requiring customizable, reliable control interfaces with a modern, professional appearance available in black or white finishes.
Features Chart
| Feature | Benefit |
|---|---|
| 8" IPS Touchscreen | Delivers sharp 1280x800 resolution with vibrant colors and wide viewing angles for clear, intuitive operation |
| Optically Bonded Gorilla Glass | Provides exceptional durability, scratch resistance, and smudge resistance for long-term reliability |
| Motion Detector | Automatically wakes the panel upon approach for energy-efficient, user-friendly activation |
| Ambient Light Sensor | Adjusts screen brightness dynamically to match room lighting for optimal visibility and reduced power use |
| Multi-Color Status Indicators | Offers immediate visual cues for system status, alerts, or room booking with customizable colors |
| Native H.264 Streaming Preview | Enables live video monitoring from IP cameras or encoders via single-cable Ethernet connection |
| PoE Single-Cable Installation | Simplifies setup by combining power, network, and video over one Ethernet cable |
| Integrated Speakers | Delivers audible button feedback and audio playback directly from the panel |
Specifications Table
| Specification | Details |
|---|---|
| Model | TLP Pro 835M |
| Display Size | 8 inches |
| Resolution | 1280 x 800 |
| Color Depth | 24-bit |
| Display Type | IPS capacitive touchscreen |
| Glass | Optically bonded Gorilla Glass (scratch-resistant, smudge-resistant) |
| Mounting | Wall mount (landscape or portrait orientation) |
| Power | Power over Ethernet (PoE); USB-C port for accessories and alternative power |
| Connectivity | Ethernet (for PoE, network, H.264 streaming); USB-C |
| Audio | Integrated speakers for feedback and playback |
| Sensors | Motion detector, ambient light sensor |
| Status Indicators | Multi-color (front-facing, customizable) |
| Compatibility | Any Extron IP Link Pro xi Series processor; optional standalone via LinkLicense + TLCA 2 adapter |
| Finishes | Black or white |
| Additional Options | TLCA 2 adapter adds RS-232 ports, digital input, IR, relays |
Compare Chart
| Aspect | Extron TLP Pro 835M | Crestron TSW-1070 | AMX Modero X Series (e.g. MXD-840) |
|---|---|---|---|
| Screen Size | 8 inches | 10 inches | 8 inches |
| Resolution | 1280x800 | 1280x800 | 1280x800 |
| Glass Type | Optically bonded Gorilla Glass | Standard capacitive | Gorilla Glass or similar |
| PoE Support | Yes (single-cable install) | Yes | Yes |
| H.264 Streaming | Native preview support | Limited or via add-ons | Varies by model |
| Sensors | Motion + light sensor | Light sensor (some models) | Light sensor |
| Standalone Capability | Yes (with LinkLicense + adapter) | Limited | Yes (with optional processor) |
| Status Indicators | Multi-color customizable | Basic LED | Multi-color |
FAQ
- What mounting options does the TLP Pro 835M support? It is designed for wall mounting and can be installed in landscape or portrait orientation for flexible placement in various environments.
- How does the panel handle varying room lighting? An integrated ambient light sensor automatically adjusts screen brightness to ensure optimal visibility and energy efficiency.
- Can this touchpanel function without a separate control processor? Yes, with the optional LinkLicense for TLP Control Processor and TLCA 2 adapter, it can operate as a standalone control system.
- What makes the screen durable for frequent use? The optically bonded Gorilla Glass provides toughness, scratch resistance, and smudge resistance ideal for high-traffic professional installations.
- Does it support video preview capabilities? Yes, native H.264 streaming preview allows monitoring of live feeds from IP cameras or encoders directly on the panel.
- Is installation straightforward in networked AV setups? PoE enables single-cable connectivity for power, network, and streaming, reducing complexity and cabling requirements.
