Extron TLP Pro 525M 5” Wall Mount TouchLink Pro Touchpanel

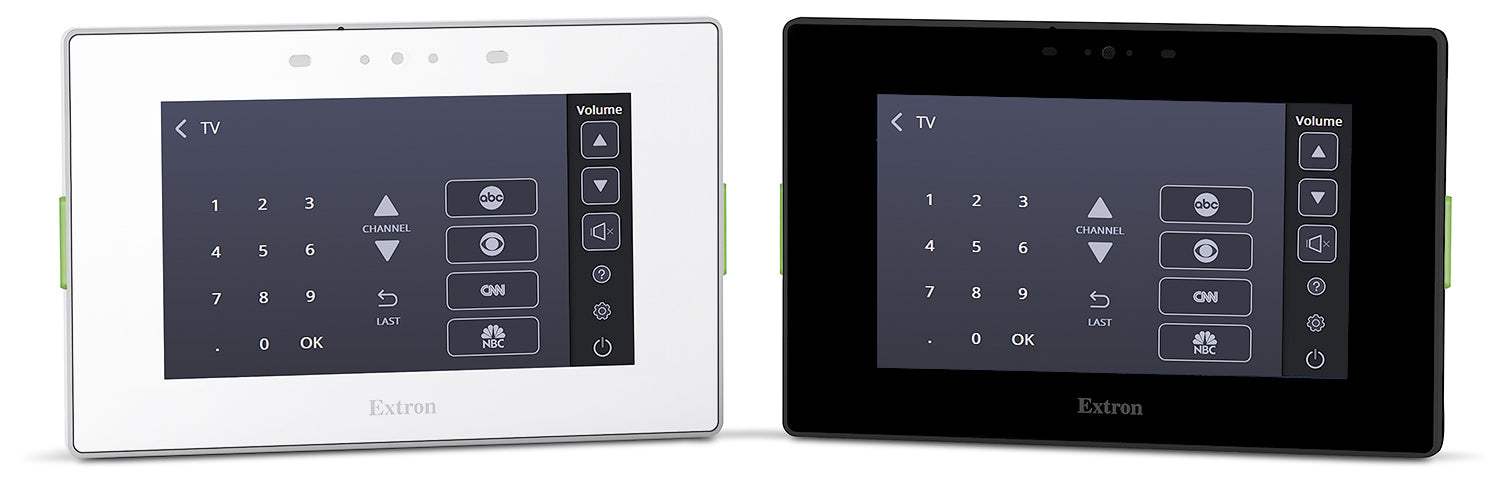

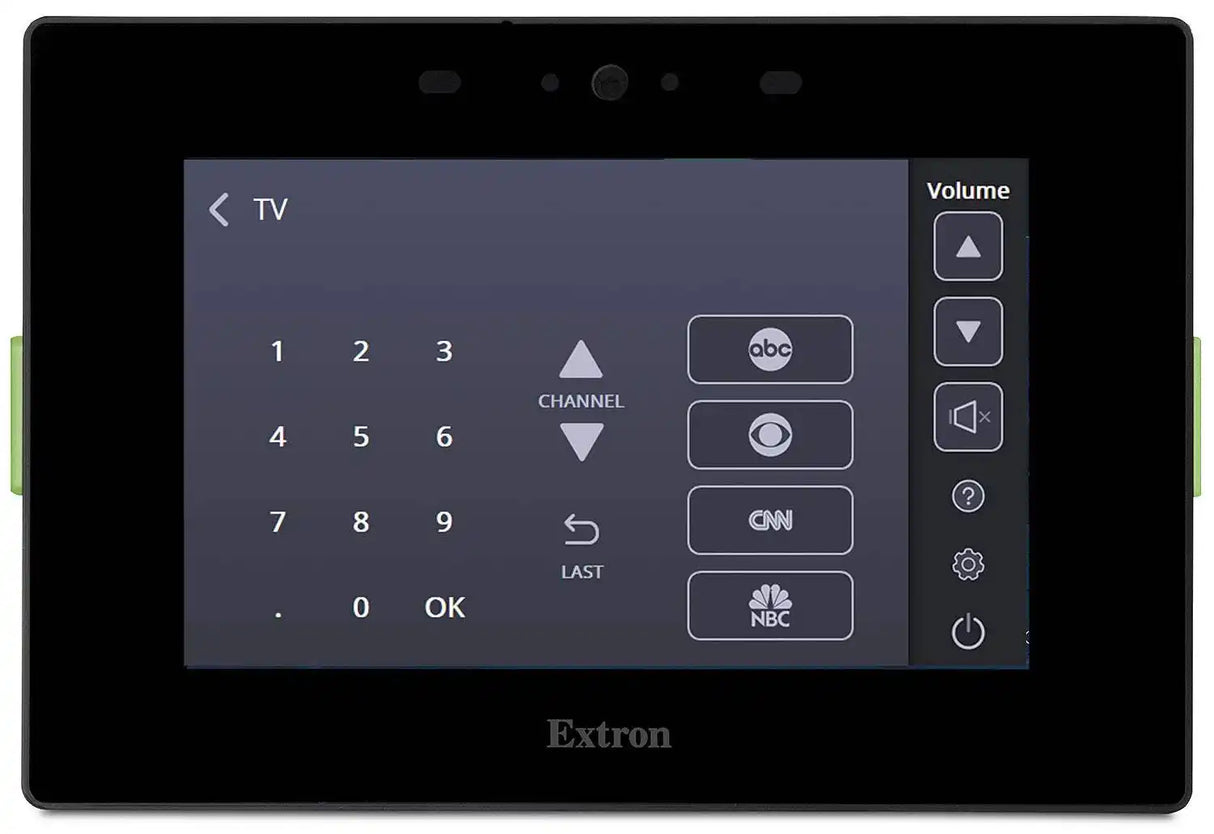

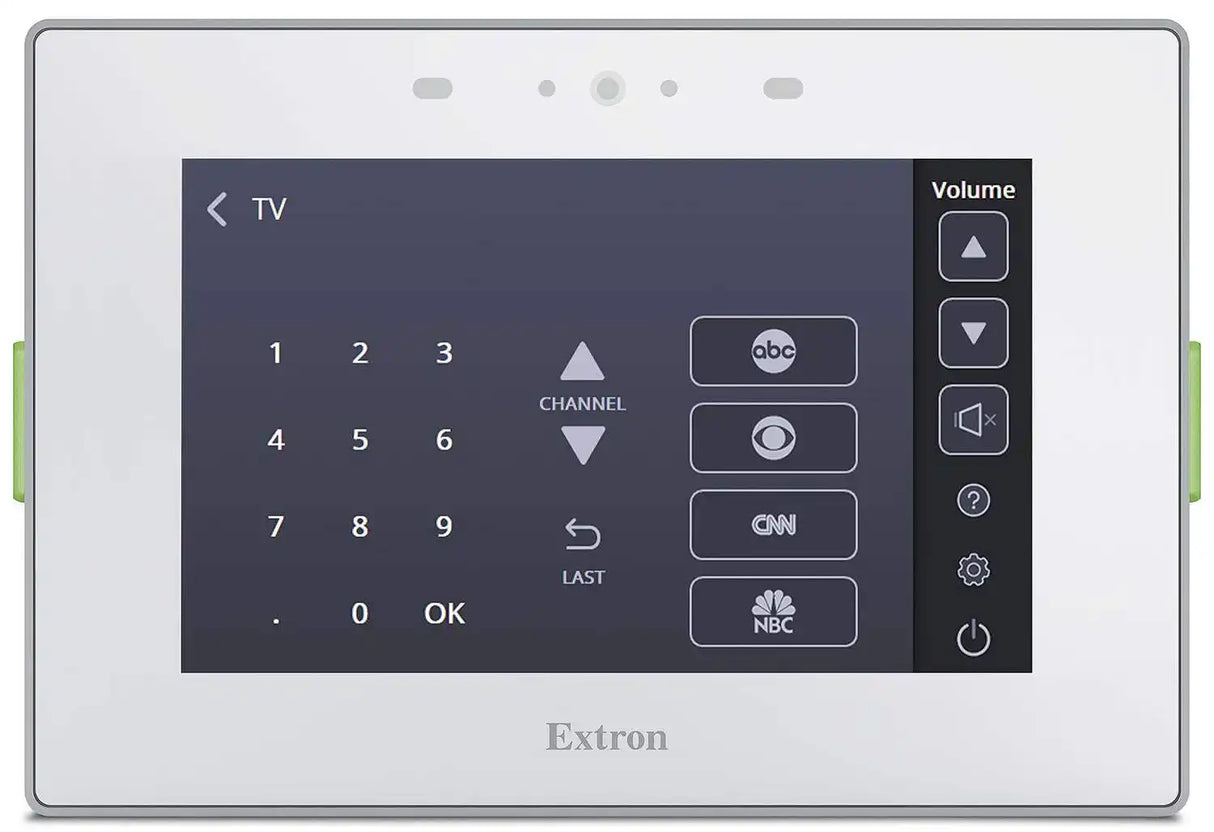

The Extron TLP Pro 525M is a 5” wall mount TouchLink® Pro Touchpanel with many enhanced features. We redesigned this latest TouchLink Pro Touchpanel inside and out with a new, high-performance quad-core processor, eight times more memory, and a high resolution, 800x480 capacitive touchscreen built with scratch and smudge-resistant Corning® Gorilla Glass®. The TLP Pro 525M also features the convenience of PoE - Power over Ethernet, which allows it to receive power and communication over a single Ethernet cable. It is ideal for any environment requiring a stylish, wall-mountable touchpanel with a fully-customizable interface.

The TLP Pro 525M works with any Extron control processor and HC 400 Series system and is designed for use in AV system applications that require complete, interactive control of a broad range of source devices. TouchLink Pro touchpanels operate using standard network infrastructure and are easy to install with reliable and cost effective Ethernet cable.

All TouchLink Pro touchpanels can be customized using Extron GUI Designer software. This powerful interface design software offers ready-to-use templates for a wide variety of rooms and presentation environments. These designs may be used as is, or customized for the application by simply changing individual graphic elements.

Transform this Touchpanel into an All-in-One Pro xi Series Control System

Extron LinkLicense for TLP Control Processor is a powerful, easy way to turn your TouchLink Pro touchpanel into a full-featured, standalone Pro xi Series control system. With this LinkLicense, you can control your AV devices via Ethernet directly from the Ethernet port on the touchpanel. And, by adding the optional TLCA 1 TouchLink Control Port Expansion Adapter, you can control a broad range of system devices directly from the touchpanel using the variety of ports on the control adapter.

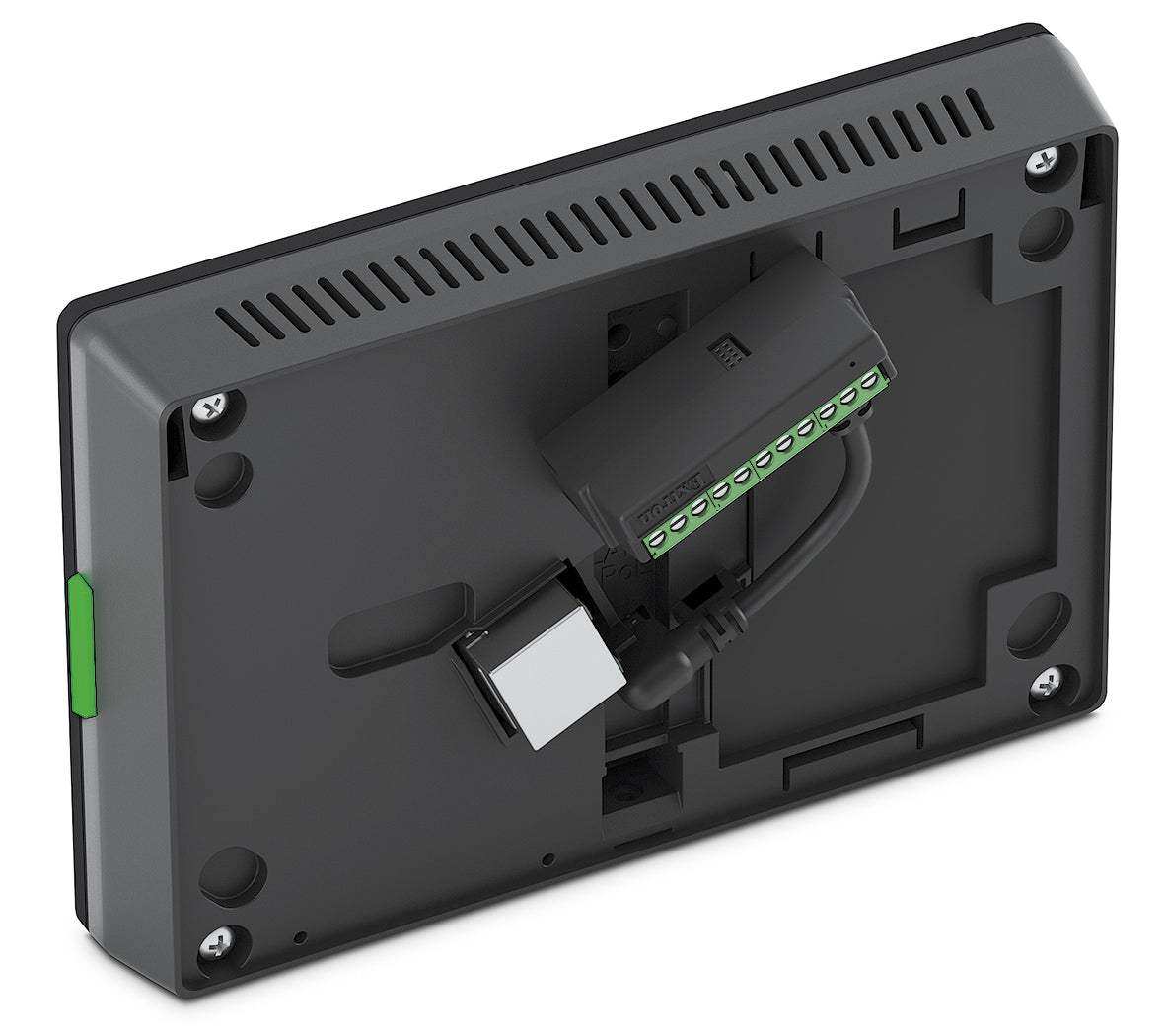

The Extron TLCA 1 is a TouchLink Control Port Expansion Adapter designed to add traditional control ports to your touchpanel installed with a LinkLicense for TLP Control Processor. It features two bidirectional serial ports, one digital input, one IR port, and two relays for control of sources, directly at the touchpanel.

Features

• 5” capacitive touchscreen with 800x480 resolution and 24-bit color depth — Vibrant edge-to-edge glass display with a more responsive control surface.
• Contemporary design that complements the aesthetics of any environment
• Gorilla Glass® screen is tough, scratch and smudge-resistant — Corning Gorilla Glass is stronger and more scratch-resistant than standard glass, while maintaining touch sensitivity, color saturation, and brightness.
• Faster, quad-core processing and eight times more memory — Drastically-enhanced response and overall user experience

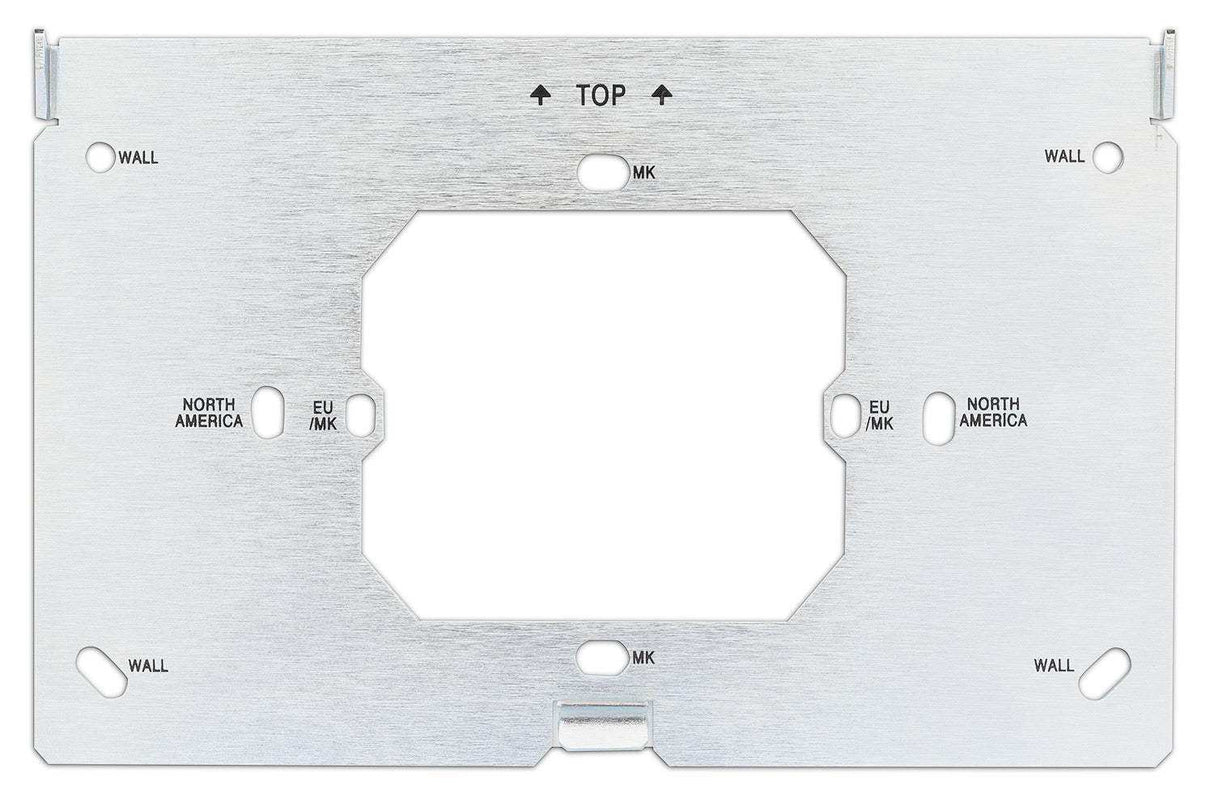

• Can be mounted in a one-gang junction box, or on a wall, lectern, or any flat surface, including glass
• Works with any Extron control processor and HC 400 Series system
• Transform your touchpanel into an all-in-one Pro xi Series control system using LinkLicense for TLP Control Processor and the TLCA 1 TouchLink Control Port Expansion Adapter — Supports up to four Ethernet-controllable devices using GC Plus and eight using GC Pro.
• Digital input allows for a connection with a variety of devices, such as sensors and switches
• Power over Ethernet provides power and communication over a single Ethernet cable
• Built-in speaker — Provides audible feedback from button presses.
• Light sensor adjusts screen brightness as the ambient room lighting changes
• Configurable red and green status lights indicate a room's availability or call status
• System connection status indicator provides visual feedback if the touchpanel is not communicating with a control processor
• High speed USB 2.0 port — For future expansion.
• Automatic clock synchronization allows touchpanel to display the accurate time and date
• Energy-saving features:
  - Adjustable sleep timer puts touchpanel into sleep mode
  - Motion detector wakes touchpanel
• Manage, monitor, and control this device remotely using GVE - GlobalViewer Enterprise Resource Management software
• Fully customizable using Extron control system software — GUI Designer combined with Global Configurator Plus, Global Configurator Professional, or ControlScript programming.
• TAA Compliant version available — Please inform your local Extron representative if your order requires compliance with TAA regulations.

Specs

Also see our  Specs in PDF format

TLP Pro 525M Series and TLS 525M
Display
Screen type	TFT Active matrix color LCD
Size	5" (12.7 cm), measured diagonally
Resolution	800x480 (WVGA)
Pixel density	186.6 PPI
Aspect ratio	5:3
Color depth	24 bit, 16.7 million colors
Transparency	8 bit
Brightness	850 nits (cd/m2)
Contrast	700:1
Backlight	LED
Viewing angle	±70° horizontal, ±70° vertical
Touch screen	Capacitive
Storage
SDRAM	2 GB
Flash	8 GB
Ethernet
Connectors	1 female RJ-45 connector
Data rate	10/100/1000Base-T, half/full duplex with autodetect
Protocols	DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1x, SFTP, SSH, TCP/IP, UDP/IP
Default settings	Link speed and duplex level = autodetected IP address = 192.168.254.251 Subnet mask = 255.255.255.0 Default gateway = 0.0.0.0 DHCP = off DNS = 127.0.0.1
Software
TLP Pro 525M
Configuration software	Global Configurator Plus and Professional, GUI Designer
Programming software	ControlScript Programing
Control apps	Extron Control
Resource management software	GlobalViewer Enterprise
Utilities	Toolbelt, Embedded web page
TLS 525M
Configuration software	Room Agent
Sensors
Motion sensor	On/off
Light sensor	Auto/manual
USB
Quantity/type	1 high-speed USB 2.0
Connectors	1 Micro-B receptacle
Standards	USB 2.0, USB 1.1, USB 1.0 compatible
Max. data rates	Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)
Digital input
Quantity/type	1 digital input (configurable)
Connectors	(1) 3.5 mm captive screw connector, 2 pole
Digital inputs
Input voltage range	0 to 24 VDC, clamped at +30 VDC
Input impedance	≥10k ohms
Programmable pullup	1k ohms to +5 VDC
Threshold low to high	2.8 VDC
Threshold high to low	2.0 VDC
Pin configuration	1 = Digital input, 1 = Gnd
Audio output
Speaker output	1 mono, 89 dB Max. SPL @ 0.1 m
Frequency response	750 Hz to 20 kHz, ±5 dB
Playback format(s)
Container format	WAV (Microsoft RIFF)
Encoding	LPCM (uncompressed)
Bit depth	Unsigned 8-bit Signed 16-bit Signed 24-bit Signed 32-bit
Sampling rate	Up to 192 kHz
Audio channels	Mono or stereo
General
Power supply	Not included
Power input requirements	Power over Ethernet (PoE 802.3af, class 3)
Power consumption — Power injector (XTP PI 100)
Device	6.5 watts
Device and power injector	9.3 watts
Auxiliary power output
USB	5 VDC, 275 mA
Ambient temperature/humidity	Storage: -4 to +140 °F (-20 to +60 °C) / 10% to 90%, noncondensing Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing
Cooling	Convection, vents on back
Thermal dissipation — Power injector (XTP PI 100)
Device	17.3 BTU/hr
Device and power injector	26.9 BTU/hr
Mounting	Wall, furniture, glass, or rack
Enclosure type	Plastic
Enclosure dimensions	4.03" H x 6.08" W x 1.22" D (102 mm H x 154 mm W x 31 mm D) Touchpanel projects 0.97" (25 mm) from the mounting surface
Product weight	0.80 lbs (0.36 kg)
Regulatory compliance	BIS, CE, C-Tick, c-UL,FCC Class B, ICES, RoHS, UL, VCCI, WEEE
Product warranty	3 years parts and labor; touchpanel display and overlay components are covered for 1 year
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
