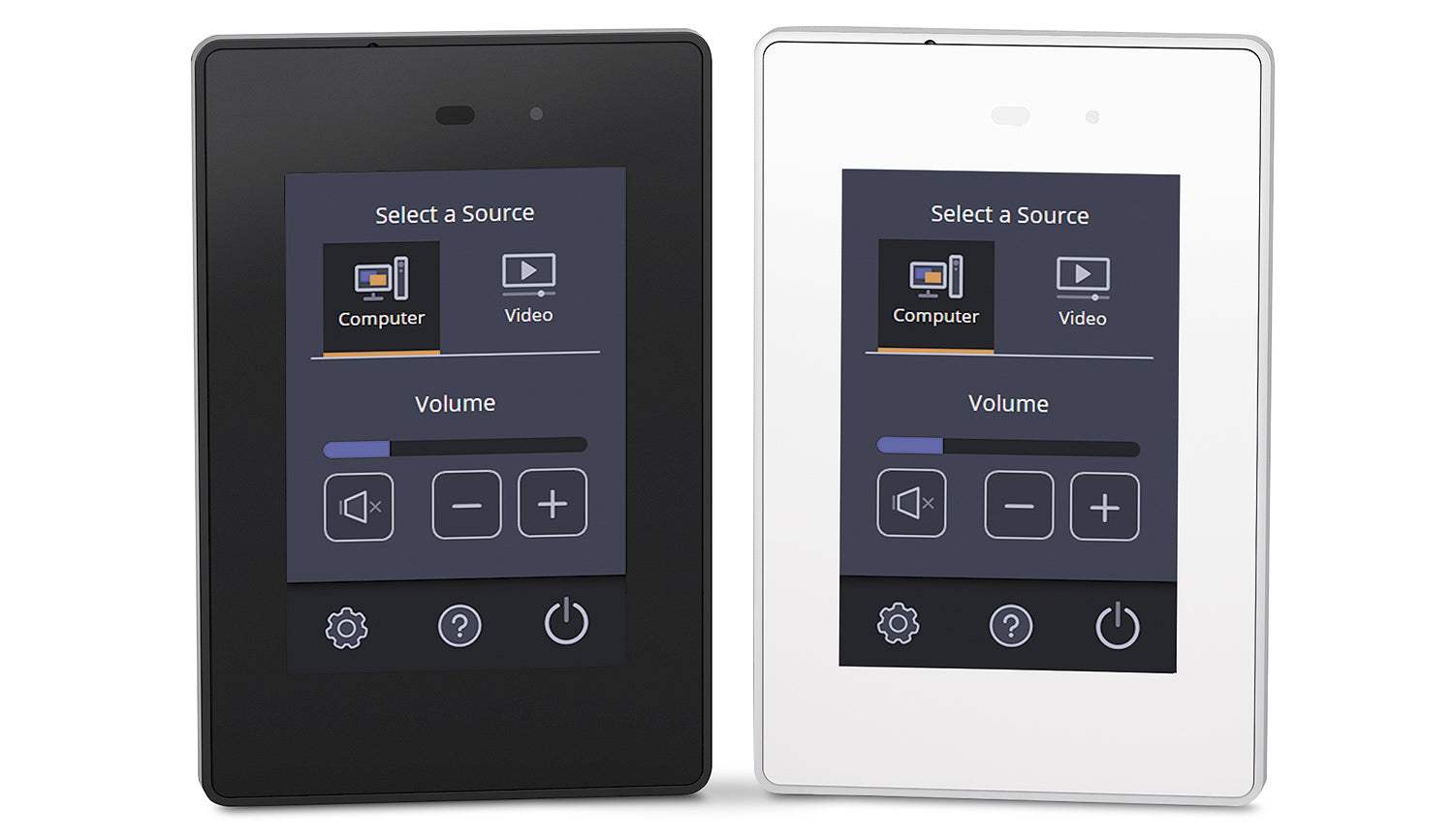

Extron TLP Pro 300M 3.5" Wall Mount TouchLink Pro Touchpanel

The Extron TLP Pro 300M is a 3.5" wall mount TouchLink® Pro Touchpanel. It is designed to control video, audio, lighting, shades, HVAC, security, and other systems within virtually any environment. This touchpanel is equipped with a 320x480 resolution capacitive touchscreen built with scratch and smudge-resistant Corning® Gorilla Glass®. The TLP Pro 300M can be conveniently mounted in portrait or landscape mode in a one-gang junction box without the need for additional mounting hardware. The TLP Pro 300M is ideal for any environment requiring a compact, wall-mountable touchpanel with a fully customizable interface.

The TLP Pro 300M works with any Extron control processor and HC 400 Series system and is designed for use in AV system applications that require complete, interactive control of a broad range of devices. TouchLink Pro touchpanels operate using standard network infrastructure and are easy to install with reliable and cost effective Ethernet cable.

All TouchLink Pro touchpanels can be customized using Extron GUI Designer software. This powerful interface design software offers ready-to-use templates for a wide variety of rooms and presentation environments. These designs may be used as is or customized for the application by simply changing individual graphic elements.

Transform this Touchpanel into an All-in-One Pro xi Series Control System

Extron LinkLicense for TLP Control Processor is a powerful, easy way to turn your TouchLink Pro touchpanel into a full-featured, standalone Pro xi Series control system. With this LinkLicense, you can control your AV devices via Ethernet directly from the Ethernet port on the touchpanel. And, by adding the optional TLCA 1 TouchLink Control Port Expansion Adapter, you can control a broad range of system devices directly from the touchpanel using the variety of ports on the control adapter.

The Extron TLCA 1 is a TouchLink Control Port Expansion Adapter designed to add traditional control ports to your touchpanel installed with a LinkLicense for TLP Control Processor. It features two bidirectional serial ports, one digital input, one IR port, and two relays for control of sources, directly at the touchpanel.

Features

• 3.5" capacitive touchscreen with a 320x480 resolution
• Contemporary design that complements the aesthetics of any environment
• Gorilla Glass® screen is tough, scratch and smudge-resistant — Corning Gorilla Glass is stronger and more scratch-resistant than standard glass, while maintaining touch sensitivity, color saturation, and brightness.
• Works with any Extron control processor and HC 400 Series system
• Transform your touchpanel into an all-in-one Pro xi Series control system using LinkLicense for TLP control processor and the TLCA 1 TouchLink Control Port Expansion Adapter — Supports up to four Ethernet-controllable devices using GC Plus and eight using GC Pro.
• Power over Ethernet provides power and communication over a single Ethernet cable
• Built-in speaker — Provides audible feedback from button presses.
• Light sensor adjusts screen brightness as the ambient room lighting changes
• Configurable red and green status light indicates a room's availability or call status
• USB 2.0 port — For future expansion.
• Automatic clock synchronization allows touchpanel to display the accurate time and date
• Energy-saving features:
  - Adjustable sleep timer puts touchpanel into sleep mode
  - Motion detector wakes touchpanel
• Fully customizable using Extron control system software — GUI Designer combined with Global Configurator Plus, Global Configurator Professional, or ControlScript programming.

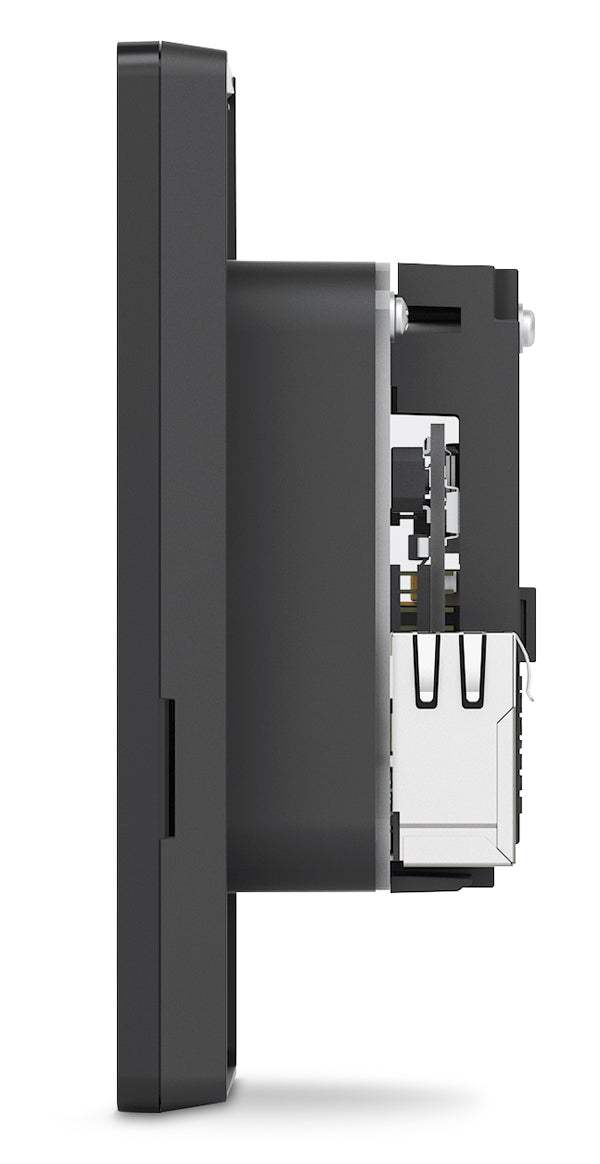

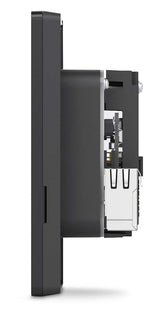

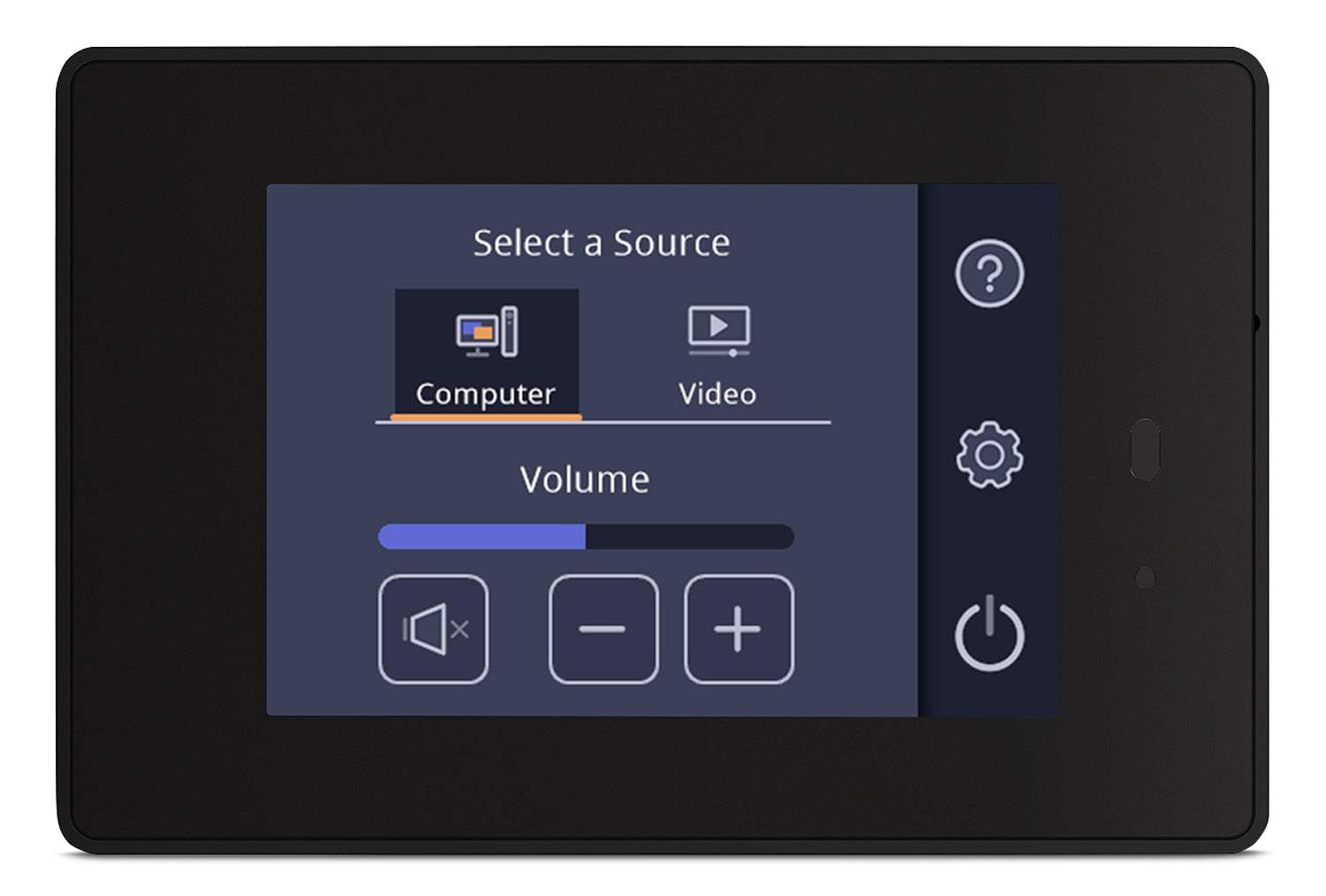

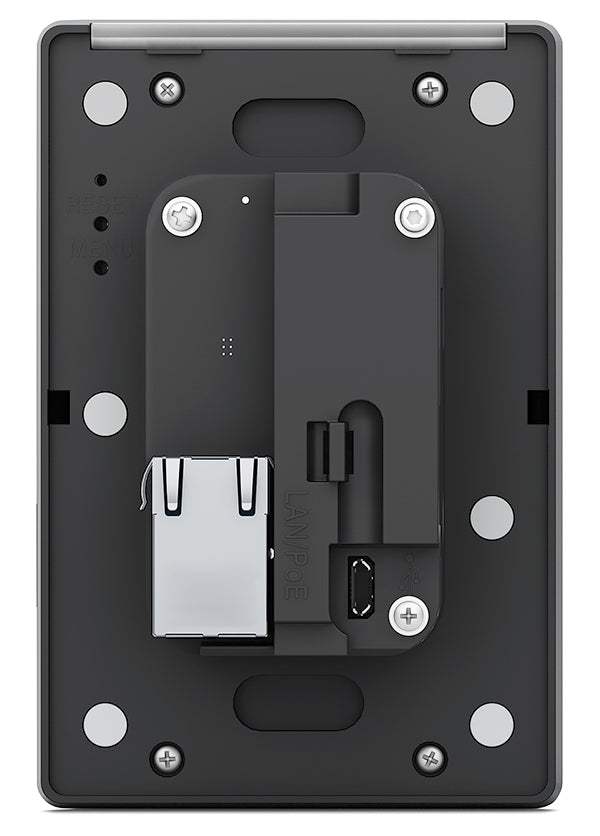

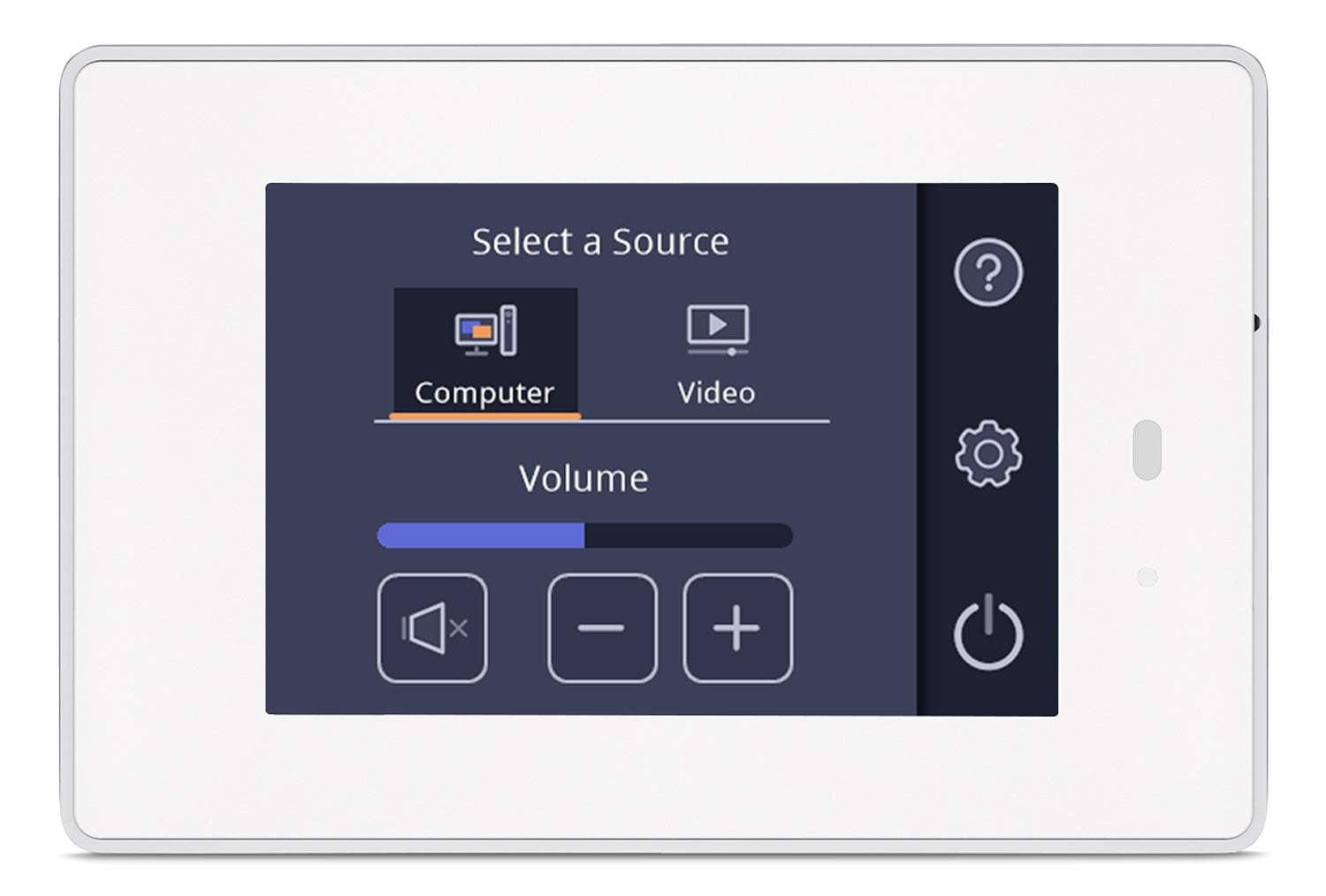

• Can be mounted in landscape or portrait orientation
• Can be mounted in a one-gang junction box, on a wall, or in a lectern

Specs

Also see our  Specs in PDF format

TLP Pro 300M
Display
Screen type	TFT Active matrix color LCD
Size	3.5" (89 mm), measured diagonally
Resolution	320x480 (HVGA)
Pixel density	165 PPI
Aspect ratio	2:3
Color depth	18 bit, 262k colors
Transparency	8 bit
Brightness	490 nits (cd/m2)
Contrast	500:1
Backlight	LED
Viewing angle	±80° horizontal, ±80° vertical
Touch screen	Capacitive
Storage
RAM	1 GB
Storage	8 GB
Ethernet
Connectors	1 female RJ-45 connector
Data rate	10/100Base-T, half/full duplex with autodetect
Protocols	DHCP, DNS, HTTP, HTTPS, ICMP, IEEE 802.1X, SFTP, SSH, TCP/IP, UDP/IP
Default settings	Link speed and duplex level = autodetected IP address = 192.168.254.251 Subnet mask = 255.255.255.0 Default gateway = 0.0.0.0 DHCP = off DNS = 127.0.0.1
Software
Configuration software	Global Configurator Plus and Professional, GUI Designer
Programming software	ControlScript Programing
Control apps	Extron Control
Resource management software	GlobalViewer Enterprise
Utilities	Toolbelt, embedded web page
Sensors
Motion sensor	On/off
Light sensor	Auto/manual
USB
Quantity/type	1 high-speed USB 2.0
Connectors	1 USB micro-B receptacle
Standards	USB 2.0, USB 1.1, USB 1.0 compatible
Max. data rates	Low speed (1.5 Mbps), full speed (12 Mbps), high speed (480 Mbps)
Audio output
Speaker output	1 mono, 86 dB Max. SPL @ 0.1 m
Frequency response	750 Hz to 20 kHz, ±5 dB
Playback format(s)
Container format	WAV (Microsoft RIFF)
Encoding	LPCM (uncompressed)
Bit depth	Unsigned 8-bit Signed 16-bit Signed 24-bit Signed 32-bit
Sampling rate	Up to 192 kHz
Audio channels	Mono or stereo
General
Power supply	Not included
Power input requirements	Power over Ethernet (PoE 802.3af, class 2)
Power consumption — Power over Ethernet injector
Device	4.0 watts
Device and power injector	7.3 watts
Auxiliary power output
USB	5 VDC, 275 mA
Temperature/humidity	Storage: -4 to +158 °F (-20 to +70 °C) / 5% to 90%, noncondensing Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing
Cooling	Convection, vents on rear
Thermal dissipation — Power over Ethernet injector
Device	9.0 BTU/hr
Device and power injector	20.0 BTU/hr
Mounting
Furniture or wall mount	Yes, in a standard US 1-gang electrical junction box or mud ring
Enclosure type	Plastic
Enclosure dimensions	4.52" H x 3.02" W x 1.70" D (115 mm H x 77 mm W x 43 mm D)
Product weight	0.4 lbs (0.2 kg)
Regulatory compliance	CE, C-Tick, c-UL,FCC Class A, ICES, RoHS, UL, VCCI, WEEE
Product warranty	3 years parts and labor; touchpanel display and overlay components are covered for 1 year
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
