Extron TLCA 1 TouchLink Control Port Expansion Adapter

The TLCA 1 TouchLink Control Port Expansion Adapter and Extron LinkLicense for TLP Control Processor are two powerful Pro Series control options that will transform your wall mount, tabletop, and Cable Cubby TouchLink Pro touchpanels into powerful, all-in-one control systems. These innovative tools add flexibility and power to our latest TouchLink Pro touchpanels, including the TLP Pro 525 Series, TLP Pro 725 Series, TLP Pro 1025 Series and TLP Pro 300M.

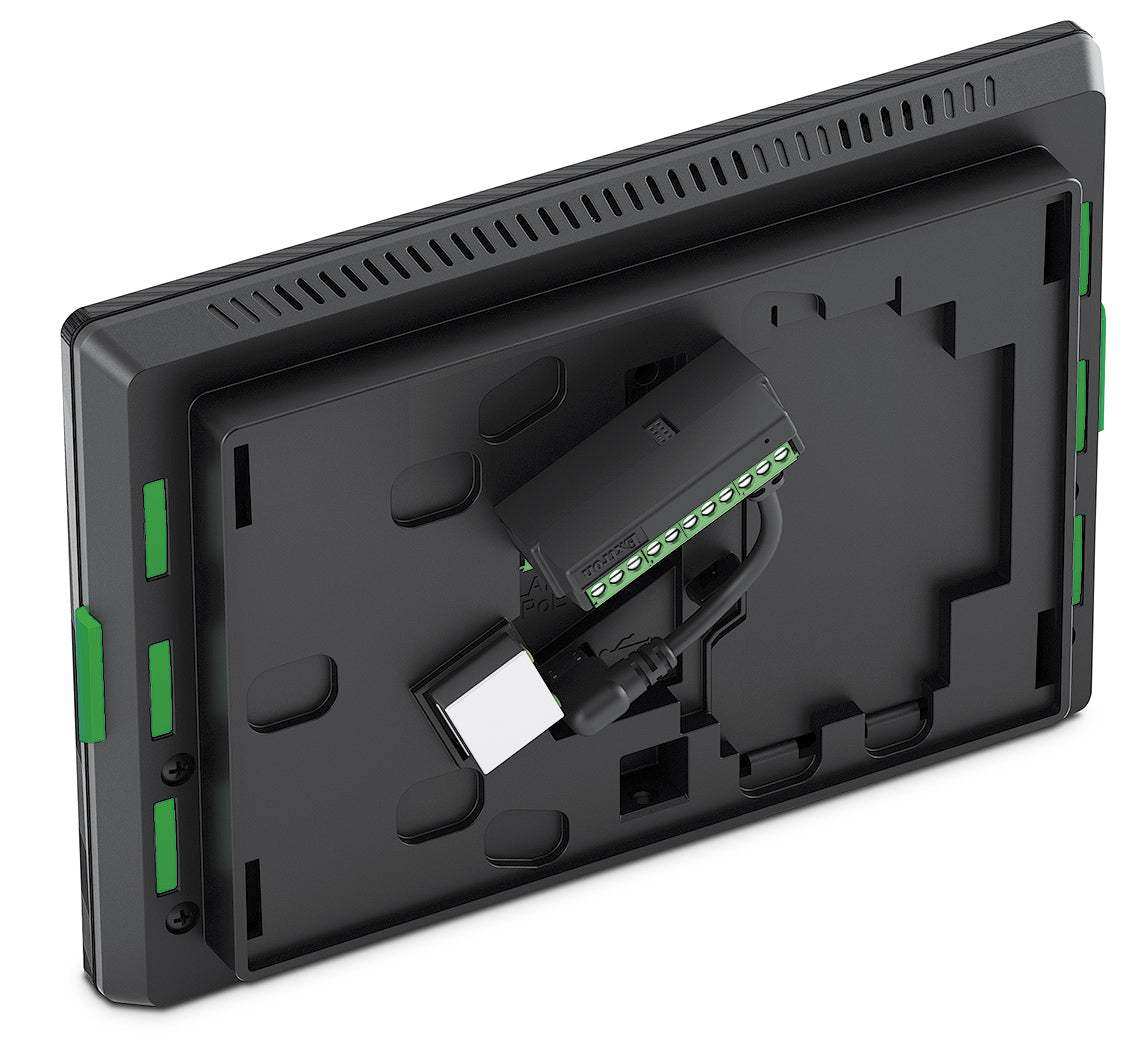

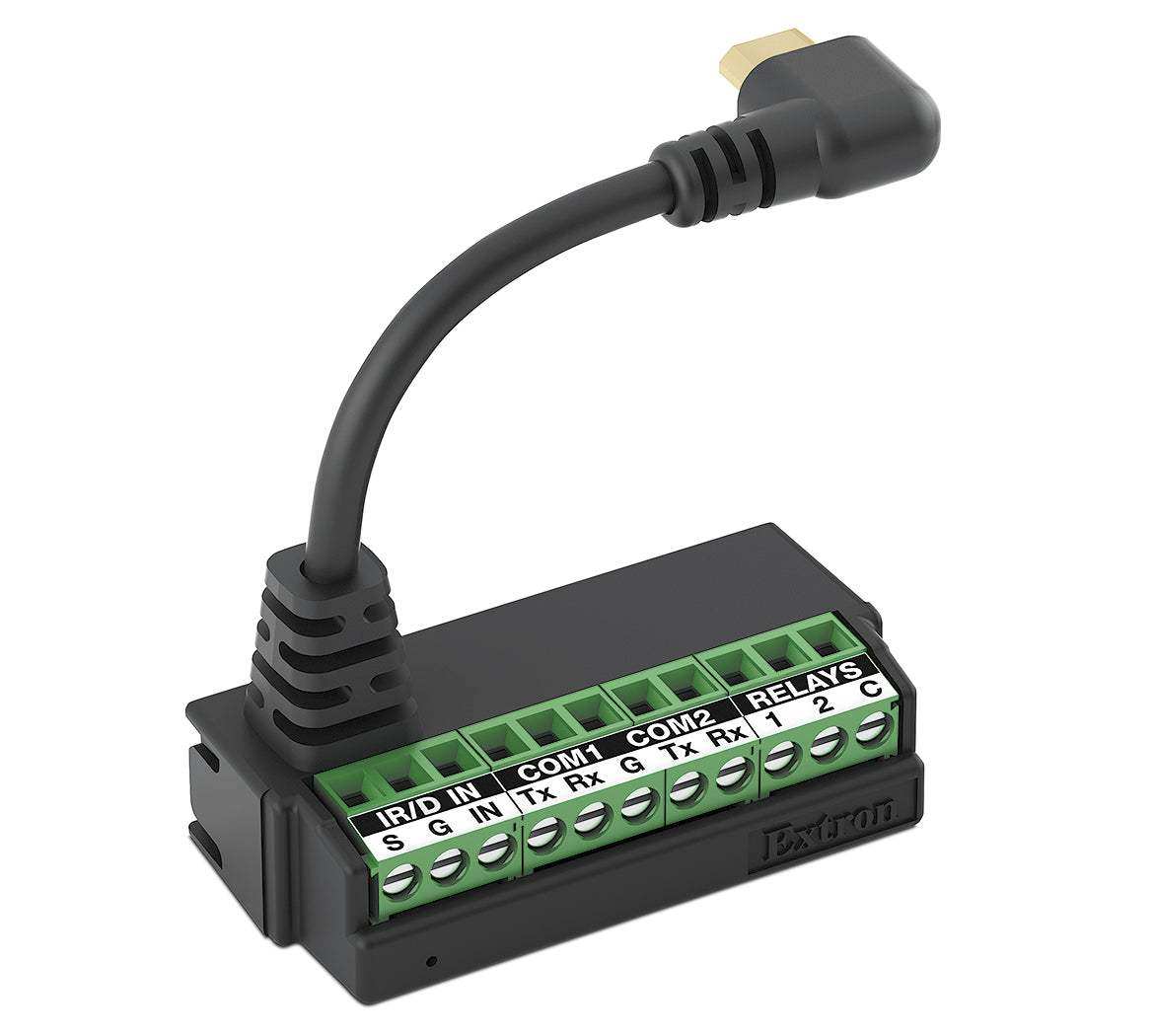

The TLCA 1 features two bidirectional serial ports, one digital input, one IR port, and two relays for control of sources, directly at the touchpanel. The included adapter allows the Micro-B connector to change to a USB-A connector, so that the TLCA 1 can be used with wall mount, tabletop, and Cable Cubby TouchLink Pro touchpanels. It is designed to be used with the TLP Pro 525, TLP Pro 725, TLP Pro 1025 Series and TLP Pro 300M TouchLink Pro touchpanels.

Features

• Transform your touchpanel into an all-in-one control system using LinkLicense for TLP Control Processor and the TLCA 1 TouchLink Control Port Expansion Adapter
• Two bidirectional RS-232 ports
• One digital input
• One IR port
• Two relays
• Saves space in equipment racks and simplifies system designs
• Fully customizable using Extron control system software — GUI Designer combined with Global Configurator Plus, Global Configurator Professional, or ControlScript programming.
• The included adapter allows the Micro-B connector to change to a USB-A connector for use with Cable Cubby and tabletop touchpanels
• Included bracket provides a means to securely attach the adapter to a Cable Cubby touchpanel

Specs

Also see our  Specs in PDF format

TLCA 1
USB
Connectors	(1) Male micro-B
Digital input
Quantity/type	1 digital input
Connector	(1) 3.5 mm direct insertion captive screw connector, 2 pole
Input voltage range	0 to 24 VDC, clamped at +30 VDC
Input impedance	≥10k ohms
Programmable pullup	1k ohms to +5 VDC
Threshold low to high	2.8 VDC
Threshold high to low	2.0 VDC
Serial
Quantity/type	2 bidirectional RS-232
Connector	(2) 3.5 mm direct insertion captive screw connector, 5 pole
Baud rate and protocol	300 to 115200 baud (9600 baud = default); 8 data bits (default) or 7 data bits 1 (default) or 2 stop bits; no parity (default), even, odd
NOTE     This port supports software flow control. The default is no flow control.
Relay
Quantity/type	2 normally open relays
Connector	(1) 3.5 mm direct insertion captive screw connector, 3 pole
Relay control contact rating	24 VDC, 1 A
IR
Quantity/type	TTL level (0 to 5 V) infrared (carrier or non-carrier) up to 300 kHz
Connector	(1) 3.5 mm direct insertion captive screw connector, 2 pole
IR output carrier frequency	30 kHz to 300 kHz
General
Power input requirements	USB
Ambient temperature/humidity	Storage: -4 to +140 °F (-20 to +60 °C) / 10% to 90%, noncondensing Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing
Cooling	Convection
Enclosure type	Plastic
Enclosure dimensions	0.47" H x 1.81" W x 0.91" D 6.7" H with USB cable fully extended
Mounting clip dimensions	0.59" H x 2.87" W x 1.71" D
Regulatory compliance	CE, C-Tick, FCC Class B, ICES, RoHS, VCCI, WEEE
Warranty	3 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(5379-D3)
