Extron SY VGAM-RGBHV Male to 5 BNC Male Mini High Resolution Cables 6" (15 cm)
Extron SY VGAM-RGBHV Male to 5 BNC Male Mini High Resolution Cables 6" (15 cm) is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron SY VGAM-RGBHV Male to 5 BNC Male Mini High Resolution Cables...

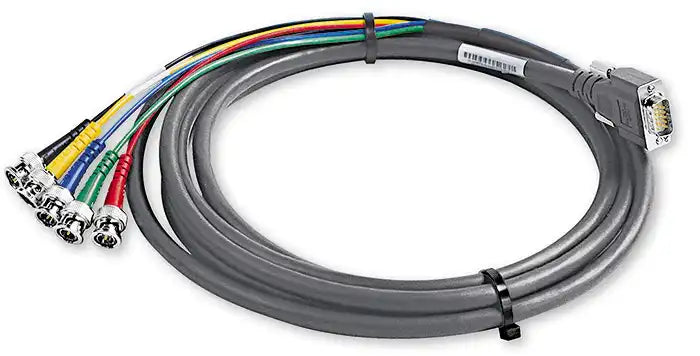

The Extron SY VGAM-RGBHV Series cables are premium breakout assemblies that convert a standard 15-pin HD VGA male connector to five color-coded male BNC connectors for analog RGBHV video signals. Constructed with Extron's MHR-5 mini high-resolution cable, these assemblies provide excellent analog video performance with low crosstalk, minimal attenuation, and strong EMI/RFI rejection. The reduced diameter and enhanced flexibility of the MHR-5 cable make it easier to route through conduits, furniture, tight racks, or installation pathways compared to conventional coax breakout cables.
These cables are designed to connect VGA-equipped sources—such as computers, laptops, graphics workstations, or media players—to professional AV equipment featuring BNC inputs, including projectors, monitors, switchers, distribution amplifiers, scalers, and matrix switchers. They deliver sharp, high-resolution analog video in classrooms, conference rooms, control centers, broadcast facilities, and presentation environments. The 15-pin HD male plugs directly into VGA outputs, while the five 75 ohm BNC male connectors (R, G, B, H, V) ensure secure, professional-grade termination with color-coding for accurate signal assignment.
Features Chart
| Feature | Benefit |
|---|---|
| 15-pin HD Male to 5 BNC Male Breakout | Connects VGA sources directly to BNC-terminated AV equipment |
| Extron MHR-5 Mini High-Resolution Cable | Delivers superior analog RGBHV quality with reduced noise and crosstalk |
| Smaller Diameter & High Flexibility | Simplifies installation in tight spaces, conduits, or furniture |
| Color-Coded BNC Connectors (R,G,B,H,V) | Enables fast, accurate RGBHV signal assignment and error prevention |
| 75 Ohm BNC Male Connectors | Provides impedance-matched, reliable professional connections |
| High-Quality Molded VGA Connector | Ensures durable, secure fit and consistent signal integrity |
| NEC CL2 Rated | Suitable for in-wall or general building installations |
| Plug-and-Play Design | No additional adapters or setup required for efficient AV deployment |
Specifications Table
| Specification | Details |
|---|---|
| Connector A | 15-pin HD Male (VGA) |
| Connector B | Five 75 ohm BNC Male (color-coded R, G, B, H, V) |
| Cable Type | Mini High Resolution (MHR-5) |
| Conductor Gauge | Optimized for MHR-5 high-res coax |
| Shielding | Triple shielding per conductor |
| Compliance | NEC CL2 rated |
| Applications | Analog RGBHV from VGA source to BNC display/equipment |
| Compatibility | Standard VGA outputs; BNC-terminated AV devices |
Compare Chart
| Aspect | Extron SY VGAM-RGBHV Male | Extron SY VGAM-RGBHVF Female | Kramer VGA to 5 BNC Male |
|---|---|---|---|
| Connector A | 15-pin HD Male | 15-pin HD Male | VGA Male typical |
| Connector B | 5 BNC Male | 5 BNC Female | 5 BNC Male |
| Cable Construction | MHR-5 mini high-res | MHR-5 mini high-res | Standard coax |
| Flexibility/Diameter | Smaller, more flexible | Smaller, more flexible | Varies |
| Rating | NEC CL2 | NEC CL2 | Often CL2 or plenum |
| Primary Use | VGA output to BNC inputs | VGA output to BNC outputs | General VGA breakout |
| Color-Coded BNC | Yes | Yes | Yes |
| Extron Optimization | Yes | Yes | No |
FAQ
- What is the main function of the SY VGAM-RGBHV cables? They break out analog RGBHV video from a VGA male connector (source side) to five BNC male connectors for connection to professional AV equipment with BNC inputs.
- How are the BNC connectors identified? They are color-coded for red (R), green (G), blue (B), horizontal sync (H), and vertical sync (V) to ensure correct and efficient signal patching.
- What installation benefits does the MHR-5 cable provide? Its smaller diameter and superior flexibility make it easier to pull through conduits, tight furniture, or confined spaces without compromising performance.
- Is this cable suitable for in-wall use? Yes, it is NEC CL2 rated, allowing installation in walls or general building spaces per applicable electrical codes.
- What analog resolutions are supported? These cables handle standard and extended analog VGA resolutions (up to 1920x1200 or equivalent) with high signal fidelity in professional applications.
- Can these cables be used in reverse (BNC male to VGA)? No, they are designed for VGA source output to BNC equipment input; reverse use is not recommended due to connector gender and signal considerations.
