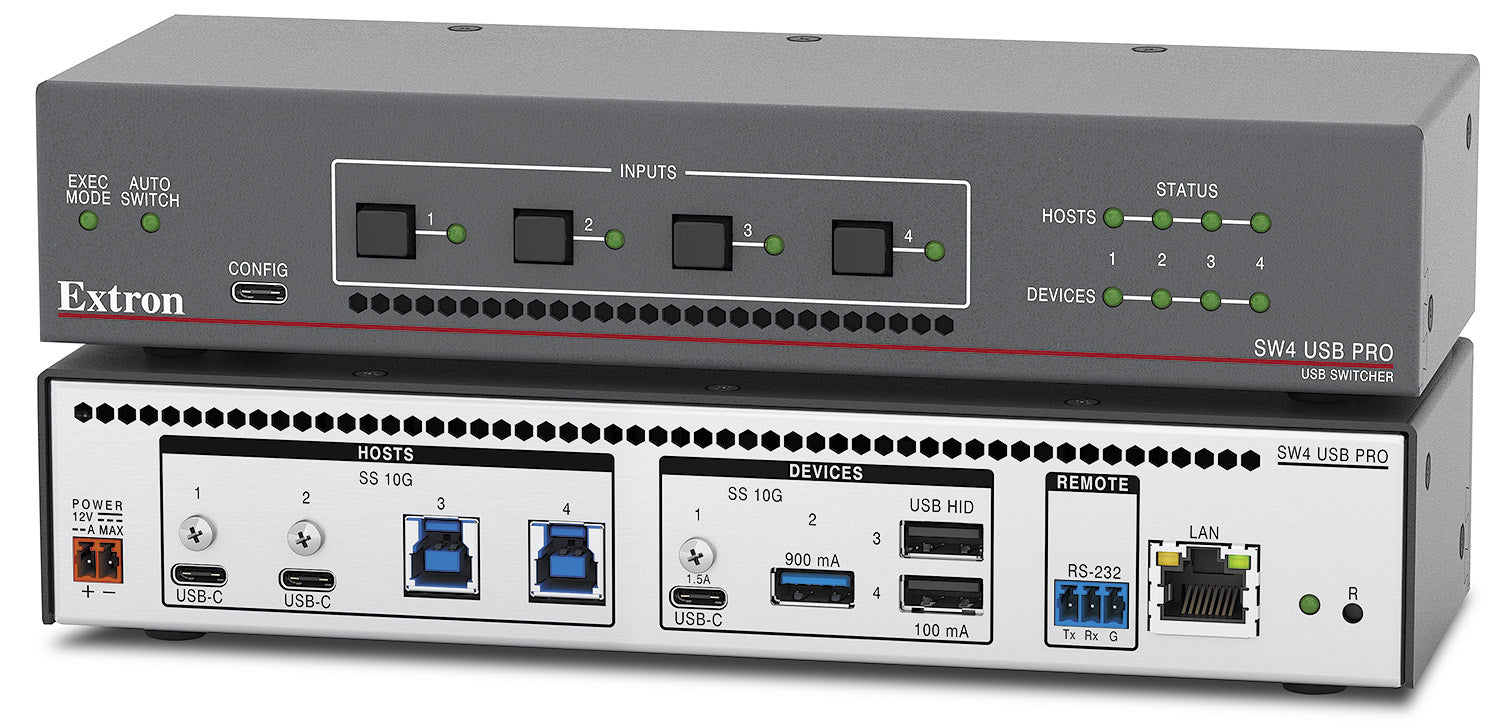

Extron SW4 USB Pro Four Input USB 10G Switcher

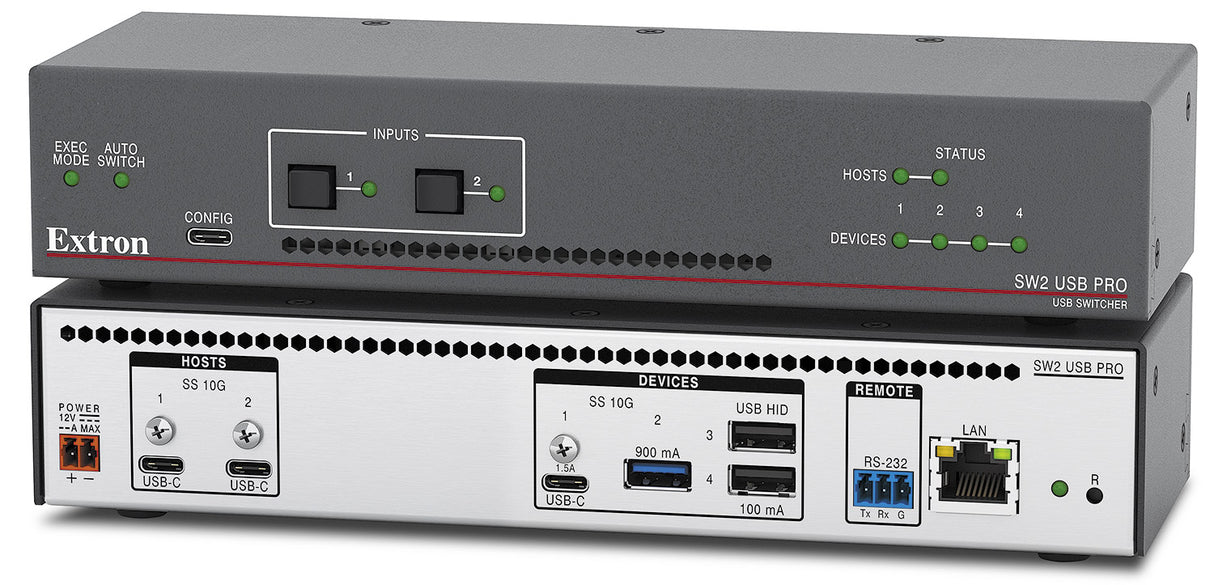

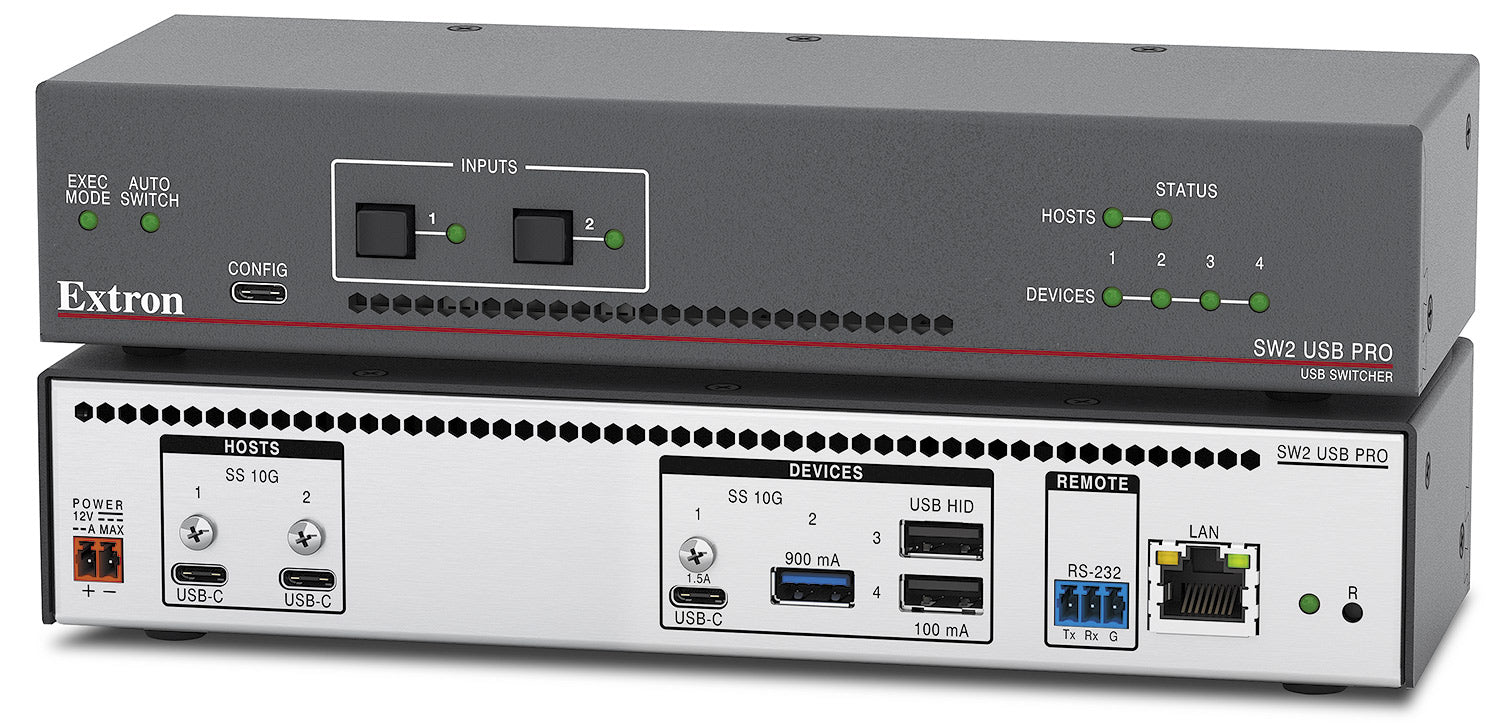

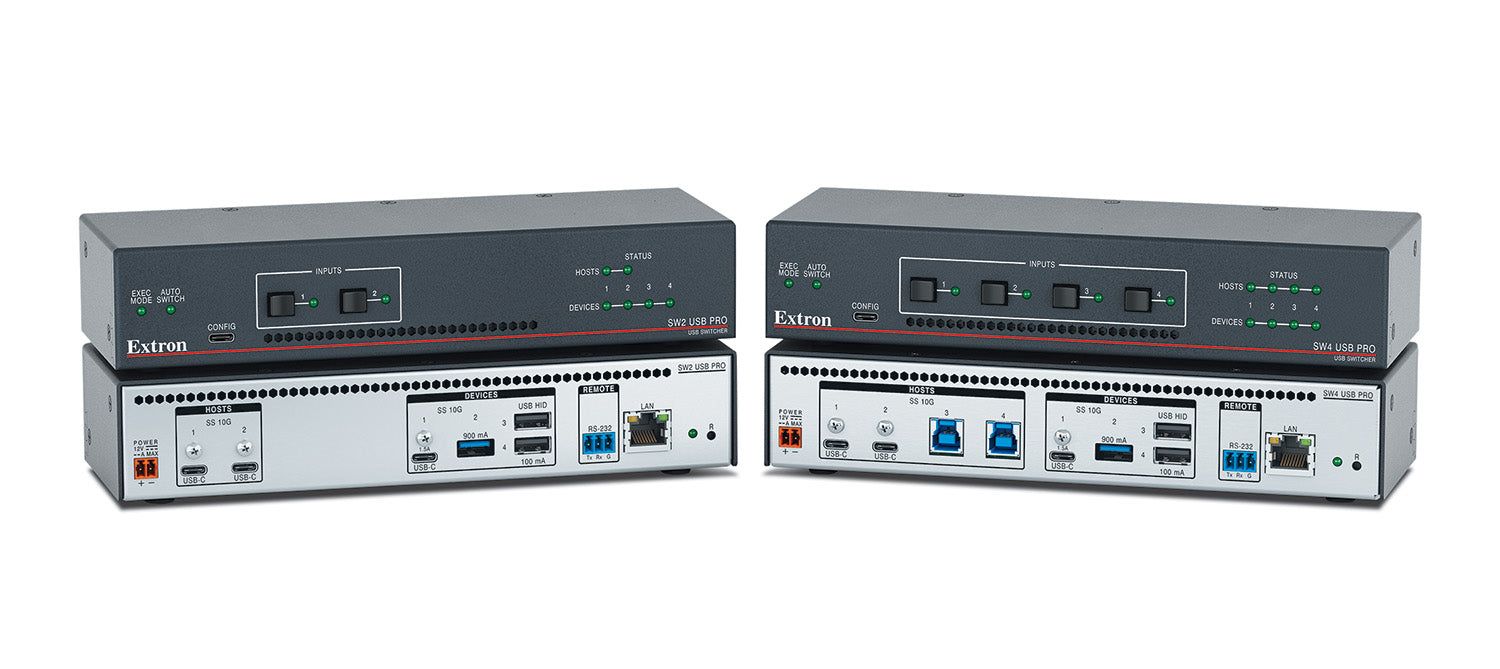

The Extron SW2 USB Pro and SW4 USB Pro are two- and four-input USB switchers that facilitate USB 3 compatible switching between multiple host devices and multiple USB peripherals. They provide integrator-friendly solutions for USB‑C and Thunderbolt hosts and peripherals with data rates up to USB 10Gbps. HID peripheral ports support hotkey input switching via a connected keyboard. SW USB Pro switchers also support auto and manual host and peripheral switching and control via RS‑232 or Ethernet. They feature Host and Peripheral Emulation Mode, which provides "keep alive" functionality by continuously mimicking host and keyboard/mouse communications within the switcher. This emulation eliminates the need for enumeration and reduces the chance of failed device communications throughout the switching process.

SW USB Pro Series switchers act as active USB hubs, supplying power to attached devices. In addition, the switchers are USB 3 compatible including USB 5Gbps and USB 10Gbps rates, and are backward-compatible with all previous USB data rate specifications. The SW USB Pro Series incorporates rack-mountable, 1U, half-rack width enclosures for simplified integration and includes an external, universal power supply for worldwide power compatibility.

Features

• Outputs: One female USB‑C, two female USB Type A (2.0), and one female USB Type A (3.0) connectors
• USB 10Gbps and USB 5Gbps compatible — Supports newer USB 3 speed devices and is backwards compatible with all prior USB versions.
• Four port output hub with USB‑C and Type A connections — Enables simultaneous connection to multiple peripheral devices with USB‑C or Type A connections such as cameras, mass storage devices, keyboards, mice, or other peripherals.
• Hot Key, Auto, and manual switching capability — Provides multiple ways to switch between hosts to ensure easy integration and control for many AV environments .
• Supports selectable Host and Peripheral emulation — Offers increased system reliability by emulating uninterrupted connection between host and keyboard/mouse devices connected to HID ports. This feature enables devices to "keep alive" when switching between inputs.
• Front panel selection buttons and status indicators — Facilitates easy control and troubleshooting from front panel.
• RS‑232 and Ethernet control — Provides control for pro AV environments.
• Front panel security lockout — Prevents unauthorized use in non-secure environments. In lockout mode, a special button combination is required to operate the switcher from the front panel.
• Includes LockIt^® Plus cable lacing brackets — Securely fastens USB‑C^® cables to a device, eliminating risk of disconnection.
• Rack-mountable, 1U half rack width metal enclosure
• External Extron Everlast™ power supply included — Provides worldwide power compatibility with high‑demonstrated reliability and low power consumption
• Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty
• Extron recommends the USBC Pro Series cable for use with this product.
• Extron recommends the USBC cable for video and data applications under 6 feet (1.8 m).
• TAA Compliant version available — Please inform your local Extron representative if your order requires compliance with TAA regulations.
