Extron SW2 HD 8K – Two Input 8K HDMI Switcher with Audio De-embedding

Product Overview

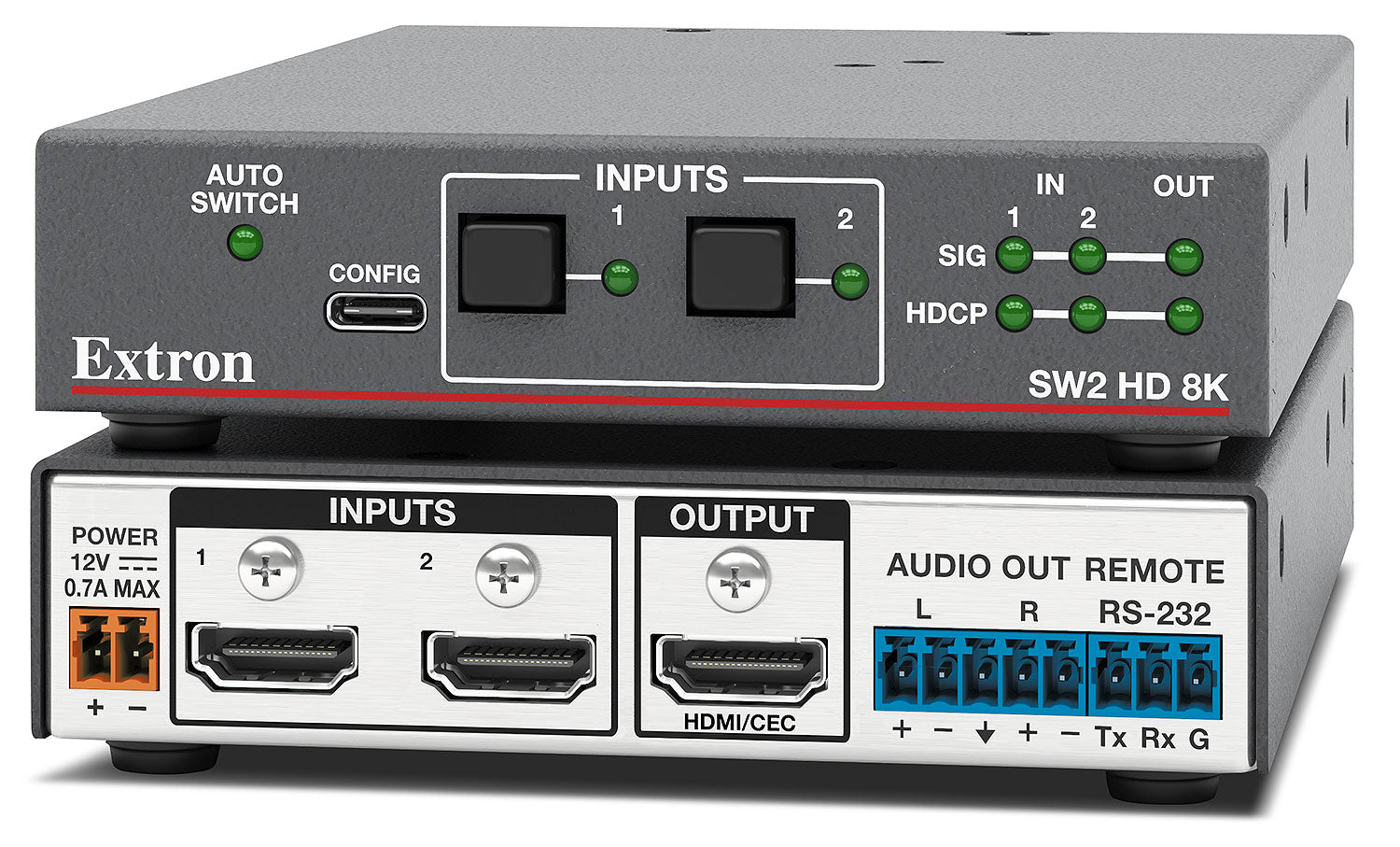

SW2 HD 8K, part number 60-1985-01. The Extron SW2 HD 8K is a two-input 8K HDMI switcher with analog audio de-embedding, built for rooms where two sources feed one display and the audio has to reach a separate sound system. It supports resolutions to 8K/60 at data rates up to 48 Gbps, including 5K for Microsoft Teams Front Row, dynamic HDR, Deep Color to 12-bit, 3D, and HD lossless audio formats. EDID Minder Plus manages EDID negotiation continuously and Key Minder verifies HDCP compliance so switching stays fast and predictable. An analog audio output sends the extracted stereo signal to a DSP, amplifier, or sound system.

Product Description

Two-input switching sounds trivial until the sources are a modern laptop and a room PC, the display is 8K-capable, and the audio has to land in a DSP rather than the display speakers. That combination is where inexpensive switchers produce black screens on source change and HDCP renegotiation delays that users read as a broken room.

The SW2 HD 8K handles HDMI 2.1 at 48 Gbps with a 1.2 GHz maximum pixel clock, covering resolutions from 640x480 through 7680x4320. High frame rate operation reaches 1080p at 240 Hz, and 8K at 60 Hz is supported at 4:2:0 chroma sampling. Ultra-wide and 5K formats including 2560x1080, 3440x1440, 3840x1440, and 3840x1600 are supported for extended desktop and Teams Front Row layouts.

Two Extron technologies do the reliability work. EDID Minder Plus continuously manages EDID communication between the connected sources and the display, so a laptop does not renegotiate its output every time the switcher changes input. Key Minder continuously verifies HDCP compliance, which is what keeps switching quick rather than producing the multi-second black screen that comes from a full re-authentication on every change.

Audio de-embedding is the other reason this device gets specified over a passive switch. The analog stereo output extracts audio from the selected HDMI signal and sends it to a sound system, DSP, or amplifier, so program audio routes properly instead of coming out of display speakers. HDR support covers HDR10, HDR10+, and Dolby Vision, and the unit is HDCP 2.3 compliant throughout.

Key Features

• Two-input HDMI switching — Switches between two HDMI sources to a single display with predictable, fast source changes.
• 8K/60 support — Handles resolutions up to 7680x4320 at 60 Hz with data rates to 48 Gbps and a 1.2 GHz pixel clock.
• Analog audio de-embedding — Extracts two-channel analog audio from the selected HDMI signal for routing to a DSP, amplifier, or sound system.
• EDID Minder Plus — Continuously manages EDID negotiation between sources and display so laptops hold a stable output format.
• Key Minder HDCP verification — Continuously verifies HDCP compliance for fast switching without full re-authentication delays.
• Ultra-wide and 5K formats — Supports 2560x1080, 3440x1440, 3840x1080, 3840x1440, and 3840x1600, including 5K for Microsoft Teams Front Row.
• Full HDR support — Passes HDR10, HDR10+, and Dolby Vision for accurate contrast and color on capable displays.
• High frame rate operation — Supports up to 240 fps at 1080p for simulation, esports, and sports analysis applications.
• HDCP 2.3 compliant — Maintains protected content paths across both inputs and the output.

Typical Applications

• Conference room
• Boardroom
• Huddle room
• Training room
• Commercial meeting space
• Multi-purpose room
• All-hands room
• Broadcast studio

Technical Specifications

Specifications sourced from Extron product documentation.

Frequently Asked Questions

What does audio de-embedding actually give me?

It pulls the two-channel audio out of the selected HDMI stream and presents it on an analog output, so program audio can be routed to a DSP, amplifier, or ceiling speaker system instead of playing through display speakers. That is usually a requirement in any room with a designed sound system.

Will switching cause a long black screen?

EDID Minder Plus and Key Minder are specifically intended to prevent that. EDID Minder Plus holds stable EDID negotiation with the sources and Key Minder continuously verifies HDCP, so source changes do not require a full re-authentication cycle.

Does it support Microsoft Teams Front Row?

Yes. 5K resolution support at 5120x2880 and the ultra-wide formats used by Teams Front Row layouts are within its supported range.

Is 48 Gbps cable required?

For 8K and high frame rate formats, yes. Use certified 48 Gbps ultra high speed HDMI cable such as the Extron HD 8K series on both the input and output side; standard high speed cable will not reliably carry these data rates.

Can it be rack mounted?

Extron offers rack mounting options for its compact switching products. Confirm the specific mounting kit for this model with us when you order so the rack elevation is correct.

What is the availability?

Extron lists this model as shipping in September 2026. Contact us for current lead time and project quantity reservations.

What warranty applies?

Extron provides a manufacturer warranty. Creation Networks coordinates warranty and RMA handling for equipment purchased through us.
