Extron SpeakerCable 16 16 AWG Speaker Cable Non-Plenum 1000' (305 m) spool
Extron SpeakerCable 16 16 AWG Speaker Cable Non-Plenum 1000' (305 m) spool is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron SpeakerCable 16 16 AWG Speaker Cable Non-Plenum 1000' (3...

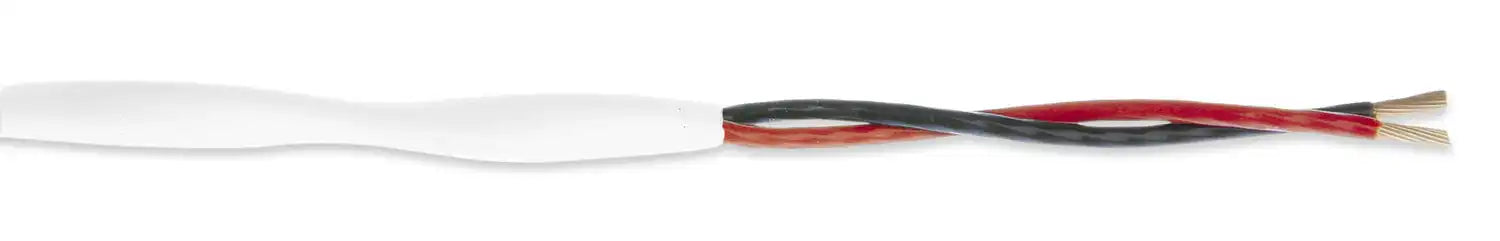

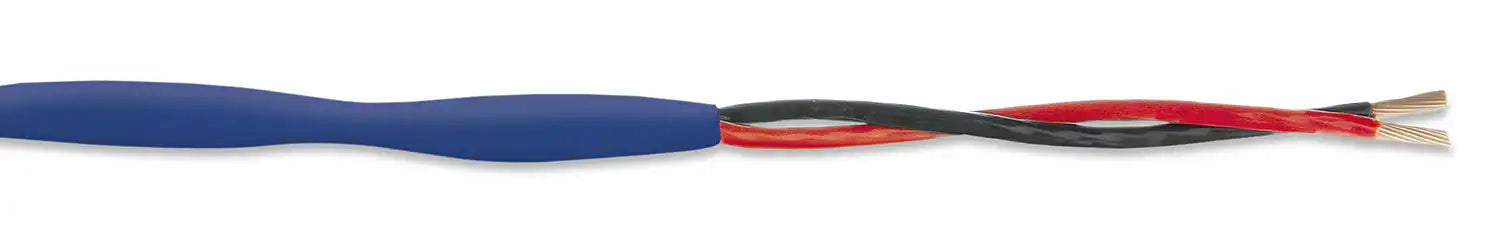

Extron SpeakerCable 16 is a professional-grade 16 AWG two-conductor speaker cable supplied on a 1000-foot spool. This unshielded cable is designed for reliable audio signal transmission in distributed sound systems and AV installations. It features oxygen-free copper conductors for excellent conductivity and low signal loss, paired with a flexible PVC jacket that simplifies pulling through conduit, raceways, or tight spaces. Sequential foot markings on the jacket aid precise measurement and cutting during deployment.
This speaker cable is ideal for conference rooms, classrooms, background music systems, small auditoriums, and general paging applications where moderate power and distance are required. It supports standard ceiling speakers, surface-mount speakers, and zone amplifiers with minimal voltage drop over typical run lengths, making it suitable for clean, interference-resistant audio distribution in architectural AV environments.
Features Chart
| Feature | Benefit |
|---|---|
| 16 AWG oxygen-free copper conductors | Offers low DC resistance and good current capacity for clear audio delivery |
| Two-conductor design | Provides straightforward positive/negative wiring for standard speaker connections |
| Flexible PVC jacket | Makes installation easier through conduit, walls, or furniture raceways |
| Sequential foot markings | Simplifies accurate length measurement, cutting, and inventory tracking on-site |
| 1000-foot spool | Supplies sufficient length for multi-room or large-area installations without splicing |
| Unshielded construction | Cost-effective solution for typical indoor speaker runs with low EMI exposure |
| Balanced performance | Suitable for moderate-power applications with acceptable voltage drop over distance |
| Professional-grade quality | Ensures consistent, long-term reliability in AV audio systems |
Specifications Table
| Specification | Details |
|---|---|
| Conductor Gauge | 16 AWG (2 conductors) |
| Conductor Material | Oxygen-free copper, stranded |
| Jacket Material | Flexible PVC |
| Overall Diameter | Approximately 0.24 inches (6.1 mm) |
| Length | 1000 feet (305 m) spool |
| Color | Black |
| Type | Unshielded, two-conductor speaker cable |
| Signal Type | Speaker-level audio |
| Temperature Rating | 75°C (167°F) |
Compare Chart
| Aspect | Extron SpeakerCable 16 | Extron SpeakerCable 14 | Extron SpeakerCable 12 |
|---|---|---|---|
| Gauge | 16 AWG | 14 AWG | 12 AWG |
| Conductor Count | 2 | 2 | 2 |
| Spool Length | 1000 ft | 1000 ft | 500 ft / 1000 ft variants |
| Primary Use | General-purpose / shorter runs | Medium to high-power runs | High-power, very long runs |
| Resistance (approx.) | Higher | Lower | Lowest |
| Current Capacity | Medium | High | Highest |
| Flexibility | Excellent | Good | Moderate |
| Ideal For | Small rooms, background music | Conference rooms, classrooms | Large venues, subwoofers |
FAQ
- What gauge is this speaker cable? It is 16 AWG, offering excellent flexibility and sufficient current capacity for most standard AV audio installations.
- Is this cable shielded? No, it is unshielded (two-conductor only), which is typical and cost-effective for indoor speaker runs where electromagnetic interference is minimal.
- What length is supplied? The spool contains 1000 feet (305 meters) of cable, with sequential foot markings for easy measuring and cutting.
- Does it support long cable runs? Yes, 16 AWG is suitable for moderate-length runs; for longer distances or higher power, consider 14 AWG or 12 AWG variants.
- Can it be used in plenum spaces? This is standard PVC-jacketed cable; for air-handling (plenum) spaces, use plenum-rated cable variants or consult local codes.
- Is it compatible with Extron audio products? Yes, it is designed for use with Extron amplifiers, ceiling speakers, surface-mount speakers, and other professional audio equipment.
