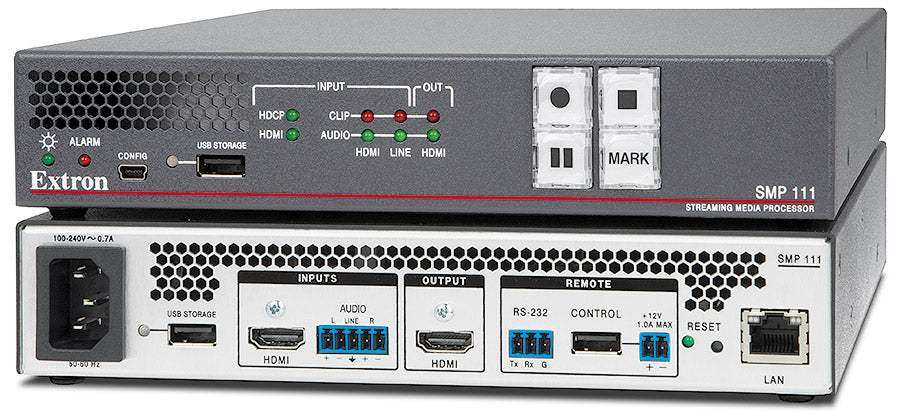

Extron SMP 111 Single Channel H.264 Streaming Media Processor

Product Overview

The Extron SMP 111 is a single-channel H.264 recording and streaming media processor for capturing and distributing AV presentations as live streams and on-demand recordings. It accepts HDMI with embedded audio, analog audio, or an RTP/RTSP virtual input for IP camera sources, and can record and stream simultaneously at independent resolutions and bit rates. Available from Creation Networks.

Product Description

The SMP 111 captures HDMI video and embedded or analog audio and outputs H.264-encoded streams via RTSP, RTMP, RTP, or HLS transport protocols. Recording and streaming are independent — each can be configured with its own resolution (512x288 through 1920x1080) and bit rate, allowing simultaneous 1080p recording to local storage and a lower-bandwidth stream for distribution. Recordings are saved in MP4 or M4V format to internal solid state storage, USB drives connected at the front or rear panel, or a defined network storage directory. The SMP 111 enriches recordings with embedded metadata (title, creator, subject, date), JPEG thumbnail captures at user-defined intervals, and chapter marks settable during live sessions for fast navigation during playback. Extron scaling adapts source signals of varying resolutions for consistent output quality. The unit is configured and controlled via a web browser over Ethernet or via RS-232 serial connection.

Key Features

• Simultaneous Record and Stream — Record and live-stream at independent resolutions and bit rates from a single input simultaneously.
• H.264 Encoding at 512x288 through 1920x1080 — Flexible resolution options from mobile-optimized to full 1080p for storage and streaming.
• HDMI and Analog Audio Input — Accepts HDMI with embedded audio plus a separate analog audio input for microphone or line-level sources.
• Virtual RTP/RTSP Input — Accepts encoded IP camera streams or other networked sources as a virtual input channel.
• MP4/M4V Recording with Metadata — Output files include embedded metadata fields (title, creator, subject, description, date) for easier cataloging and search.
• Chapter Marks and JPEG Thumbnails — Set chapter marks during recording and auto-capture thumbnail images at configurable intervals for efficient post-session navigation.
• Multiple Storage Destinations — Save recordings to internal SSD, front or rear USB drives, or a network share directory.
• Multiple Streaming Protocols — Supports RTSP, RTMP, RTP, and HLS for compatibility with a wide range of media servers and CDNs.
• Extron Scaling — Built-in scaler normalizes varying input resolutions for consistent output regardless of source.

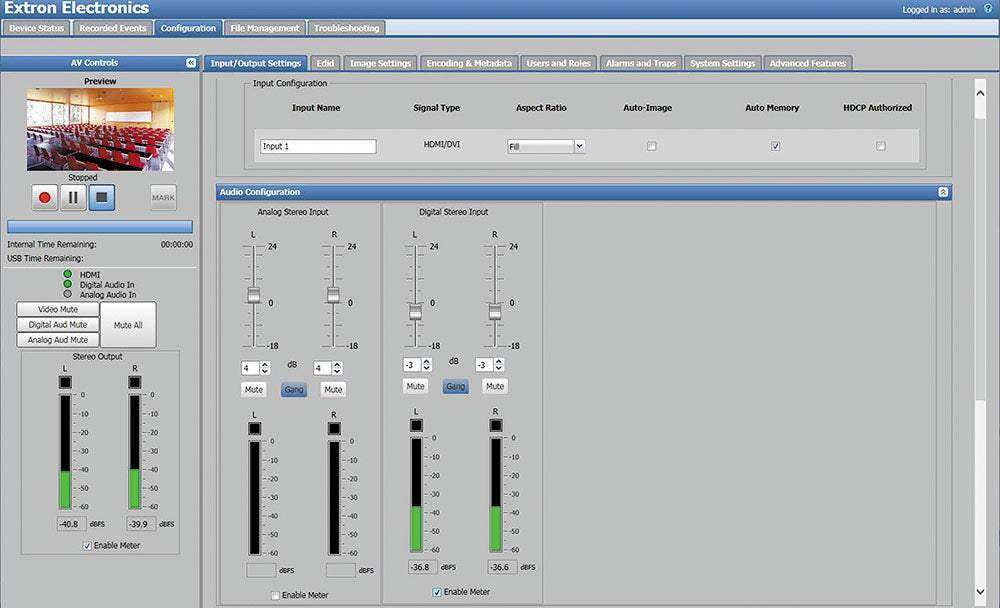

• Browser-Based Configuration — Full setup and monitoring via web interface over Ethernet; RS-232 serial control also supported.
• Compact 1U Half-Rack Enclosure — Space-efficient form factor for rack or shelf mounting.

Technical Specifications

Typical Application

The SMP 111 is deployed in lecture halls, training rooms, conference centers, and houses of worship where a single AV source needs to be simultaneously recorded for on-demand access and streamed live to remote viewers. The metadata, chapter mark, and thumbnail features make it particularly well suited to academic and corporate environments where recordings are indexed in a content management system or learning management system for later retrieval.

Spec Sheet PDF Download

Download the Extron SMP 111 Spec Sheet (PDF)
