Extron SMK 3 Surface Mount Kit for TLP Pro 1025M and TLS 1025M
Extron SMK 3 Surface Mount Kit for TLP Pro 1025M and TLS 1025M - Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron SMK 3 Surface Mount Kit for TLP Pro 1025M and TLS 1025M

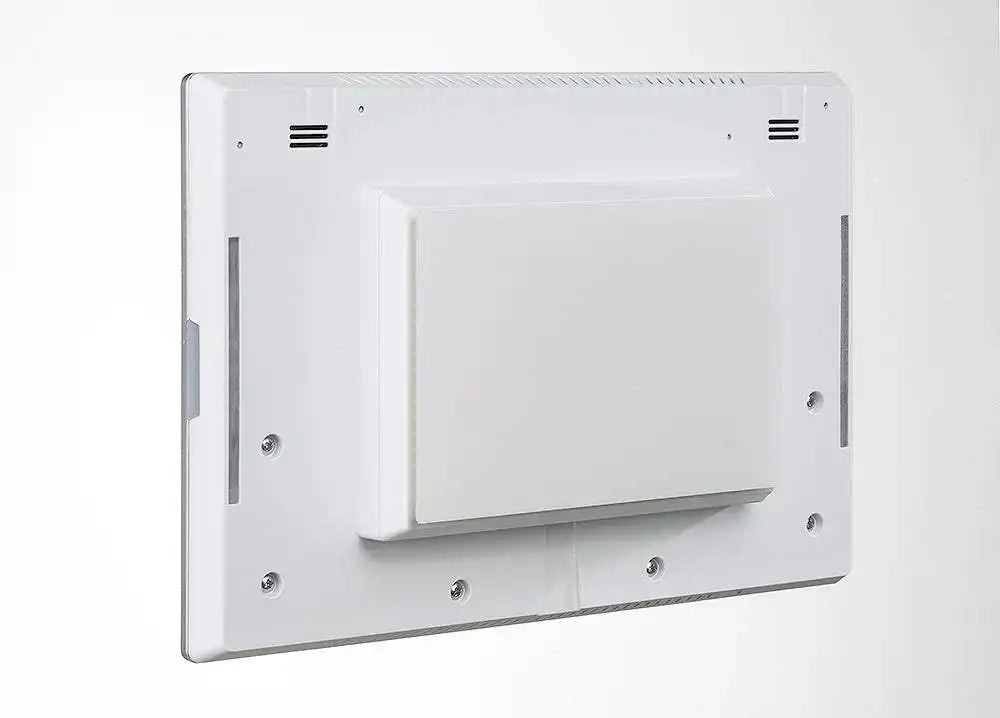

The Extron SMK 3 is a surface mount kit specifically designed for the TLP Pro 1025M and TLS 1025M. It allows either touchpanel to be mounted securely on a wall or other flat surface, including glass. From outside the room, the low-profile design of the SMK 3 maintains the sleek, stylish appearance of the touchpanel; while inside, the included glass overlay provides a clean discreet look. The SMK 3 includes a number of mounting accessories that aid in installation.
Features
- Used to securely mount a TLP Pro 1025M or TLS 1025M on a wall or other flat surface, including glass
- Kit includes black, pre-adhered adhesive and paper template to simplify alignment and installation
- Special design allows the LED lights on either side of touchpanel to still be visible after mounting
- Includes a glass-adhered overlay that provides a clean, inconspicuous appearance from inside the room
- Includes four knock-outs for convenient and discreet Ethernet cable pass-thru
- Flat Ethernet cable included, 10.0’ x 0.29” x 0.10” (3.1m x 7.4mm x 2.6mm)
Specs
Also see our Specs in PDF format
| SMK 3 | |||
| General | |||
|---|---|---|---|
| |
Mounts to glass, masonry, and other flat surfaces | ||
| |
 |
||
| |
4.08" H x 5.93" W x 0.34" D (104 mm H x 151 mm W x 8.6 mm D) |
||
| |
0.09 lbs (0.04 kg) | ||
| |
High impact plastic | ||
| |
CE, RoHS, WEEE | ||
| |
3 years parts and labor | ||
|
|||
| (4286-D1) | |||
| Shipping Dimensions and Weights | ||||
|---|---|---|---|---|
| Part # | Height | Width | Depth | Weight |
| 70-1140-32 | 1.0" (2.5 cm) | 8.0" (20.3 cm) | 10.0" (25.4 cm) | 0.44 lbs (0.2 kg) |
| 70-1140-33 | 1.0" (2.5 cm) | 8.0" (20.3 cm) | 10.0" (25.4 cm) | 0.44 lbs (0.2 kg) |
