Extron SMD 202 H.264 Player and Decoder

Product Description

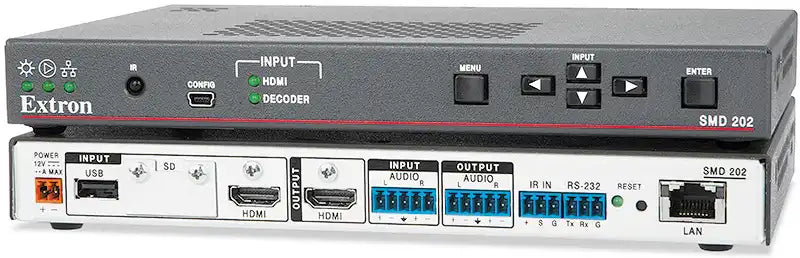

The Extron SMD 202 H.264 Player and Decoder is a compact, high-performance media player and live stream H.264 streaming media decoder for commercial AV applications. It can present a locally connected HDMI source, decode a live H.264 stream from the network, or play back media files from internal memory, a removable SD card, USB storage, or network shares. Advanced scaling, aspect ratio management, and an interactive on-screen display make the SMD 202 a flexible decoding endpoint for IPTV, digital signage, and multi-channel AV distribution systems.

As an H.264 player and decoder, the SMD 202 decodes H.264 video and AAC audio across the Baseline, Main, and High profiles up to Level 4.2 at bit rates up to 40 Mbps and streaming resolutions up to 1080p/60. It supports a wide range of pull and push streaming methods — including RTP/RTSP, RTSP interleaved, HTTP tunneled, native RTP, and MPEG-2 Transport Streams over RTP or UDP, with SAP/SDP session announcement — making it compatible with Extron encoders, third-party H.264 encoders, and IP cameras. For file playback, the SMD 202 reads MP4, M4V, M4A, and TS container formats from internal memory, SD card, USB, or SMB 2/3 network shares, with seamless transitions, playlists, channel lists, still-image presentation, and closed-caption and subtitle rendering.

The SMD 202 scales output from 640x480 to 1920x1200 including 1080p, with EDID Minder and Key Minder ensuring reliable image quality and continuous HDCP authentication. It can be controlled via Ethernet, RS-232, IR, wired IR, front panel, or an embedded web interface, and supports encrypted secure streaming when paired with a compatible encoder. Pair the SMD 202 with the Extron SME 211 streaming media encoder for an end-to-end, optionally encrypted streaming solution, or browse the full Extron collection at Creation Networks.

Key Features

• Three-in-One Player and Decoder — The SMD 202 presents a local HDMI source, decodes a live H.264 stream, or plays back media files from internal, removable, or network storage.
• H.264 Decoding to 1080p/60 — The decoder supports H.264 Baseline, Main, and High profiles up to Level 4.2 at bit rates up to 40 Mbps and streaming resolutions up to 1080p/60.
• Broad Streaming Protocol Support — Pull methods (RTP/RTSP, RTSP interleaved, HTTP tunneled) and push methods (native RTP, MPEG-2 TS over RTP or UDP, with SAP/SDP) ensure compatibility with many encoders and IP cameras.
• Flexible Media File Playback — The SMD 202 plays MP4, M4V, M4A, and TS files carrying H.264 video and AAC audio from internal memory, SD card, USB storage, or SMB 2/3 network shares.
• Secure Stream Decoding — When paired with an Extron SME 211 secure source, the SMD 202 decodes end-to-end encrypted streams and supports HDCP-protected content using custom keys.
• Advanced Scaling and Aspect Ratio Control — Output scales from 640x480 to 1920x1200 including 1080p, with FILL, FOLLOW, and ZOOM aspect ratio modes and EDID-defined output configuration.
• EDID Minder and Key Minder — EDID Minder ensures sources power up and output reliably, while Key Minder authenticates and maintains continuous HDCP encryption to the connected display.
• Playlists, Channel Lists, and Seamless Transitions — Playlists and channel lists organize streams and files, with seamless transitions using fast-start MP4 or TS files and .m3u8 playlists.

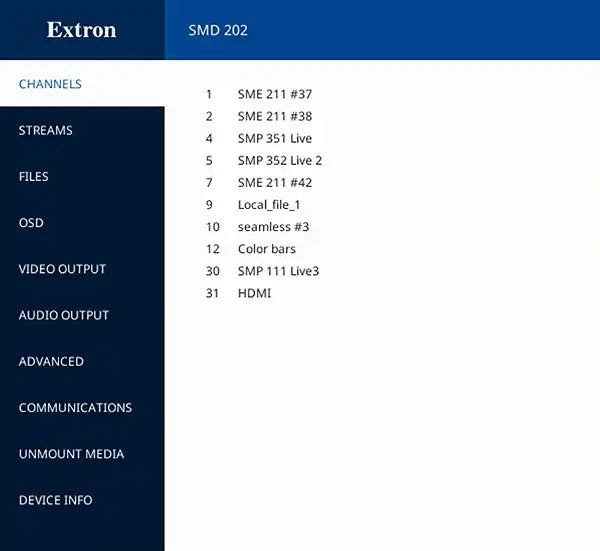

• Multi-Language On-Screen Display — An interactive OSD supports setup and source selection in nine languages, with closed-caption and subtitle rendering from timed text, SubRip, or WebVTT files.

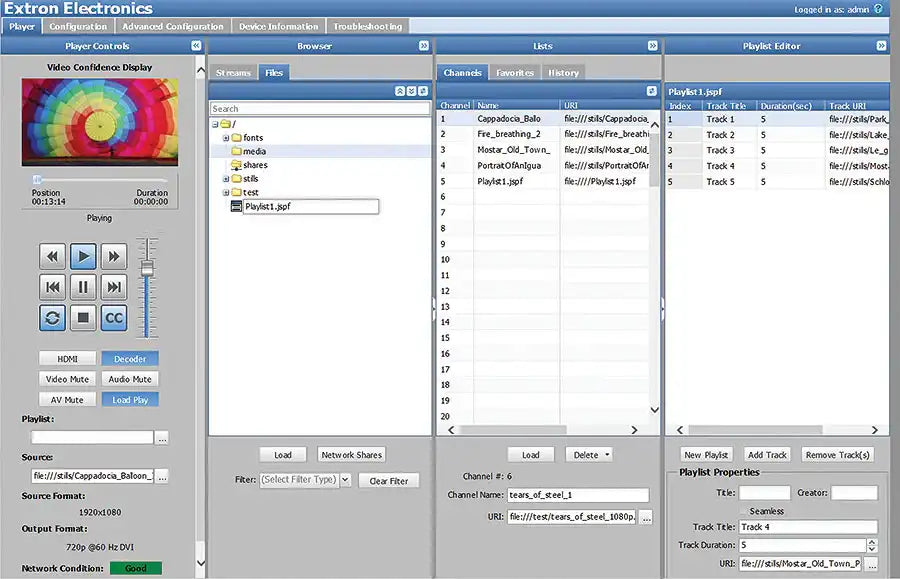

• Comprehensive Control Options — The SMD 202 is controllable via Ethernet, RS-232, IR, wired IR, front panel, or embedded web interface, with Ethernet-to-RS-232 pass-through and 802.1X authentication.

Technical Specifications

Frequently Asked Questions

What can the SMD 202 play and decode?

The SMD 202 can present a locally connected HDMI source, decode a live H.264 stream from the network, or play back MP4, M4V, M4A, and TS media files from internal memory, an SD card, USB storage, or SMB 2/3 network shares. It decodes H.264 video and AAC audio up to 1080p/60.

Which encoders and streams is the SMD 202 compatible with?

The SMD 202 supports H.264 Baseline, Main, and High profiles up to Level 4.2 and a wide range of pull and push protocols including RTP/RTSP, RTSP interleaved, HTTP tunneled, native RTP, and MPEG-2 TS. This makes it compatible with Extron encoders, third-party H.264 encoders, and many IP cameras.

What encoder should I pair with the SMD 202?

For an end-to-end streaming solution, pair the SMD 202 with the Extron SME 211 streaming media encoder. The SME 211 can also act as a secure source, generating custom keys so the SMD 202 decodes encrypted streams for sensitive or HDCP-protected content.

How is the SMD 202 controlled and integrated into an AV system?

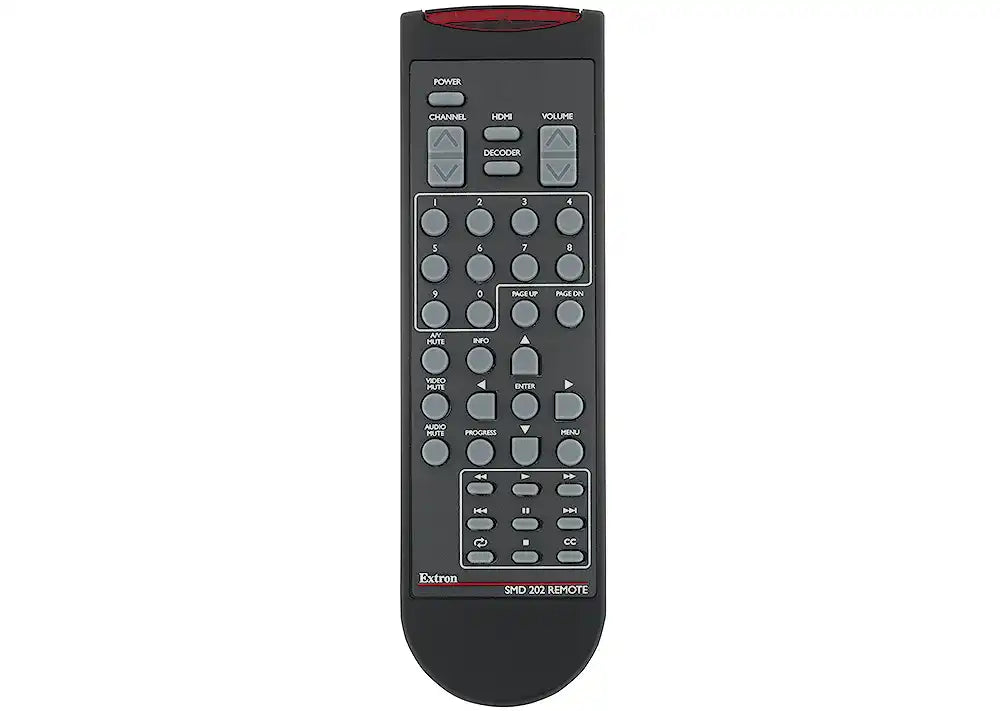

The SMD 202 supports control via Ethernet, RS-232, IR, wired IR, front panel buttons, the optional SMD 202 IR remote, and an embedded web interface. It also offers Ethernet-to-RS-232 pass-through for controlling a local display and supports 802.1X authentication for secure network integration.

What displays and resolutions does the SMD 202 support?

The SMD 202 scales its HDMI output from 640x480 to 1920x1200, including 1080p, and is compatible with HDMI and DVI displays. EDID Minder and Key Minder ensure reliable output and continuous HDCP authentication, with FILL, FOLLOW, and ZOOM aspect ratio modes for proper image presentation.

What warranty and support are included?

The SMD 202 carries a 3-year parts and labor warranty, and the included Extron Everlast power supply is covered for 7 years. Creation Networks provides AV system integration guidance and post-sales support; see the Extron collection for compatible encoders and accessories.
