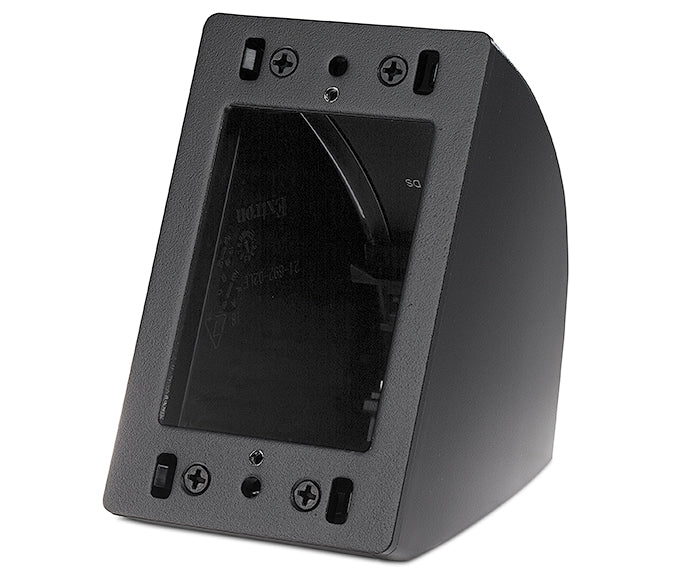

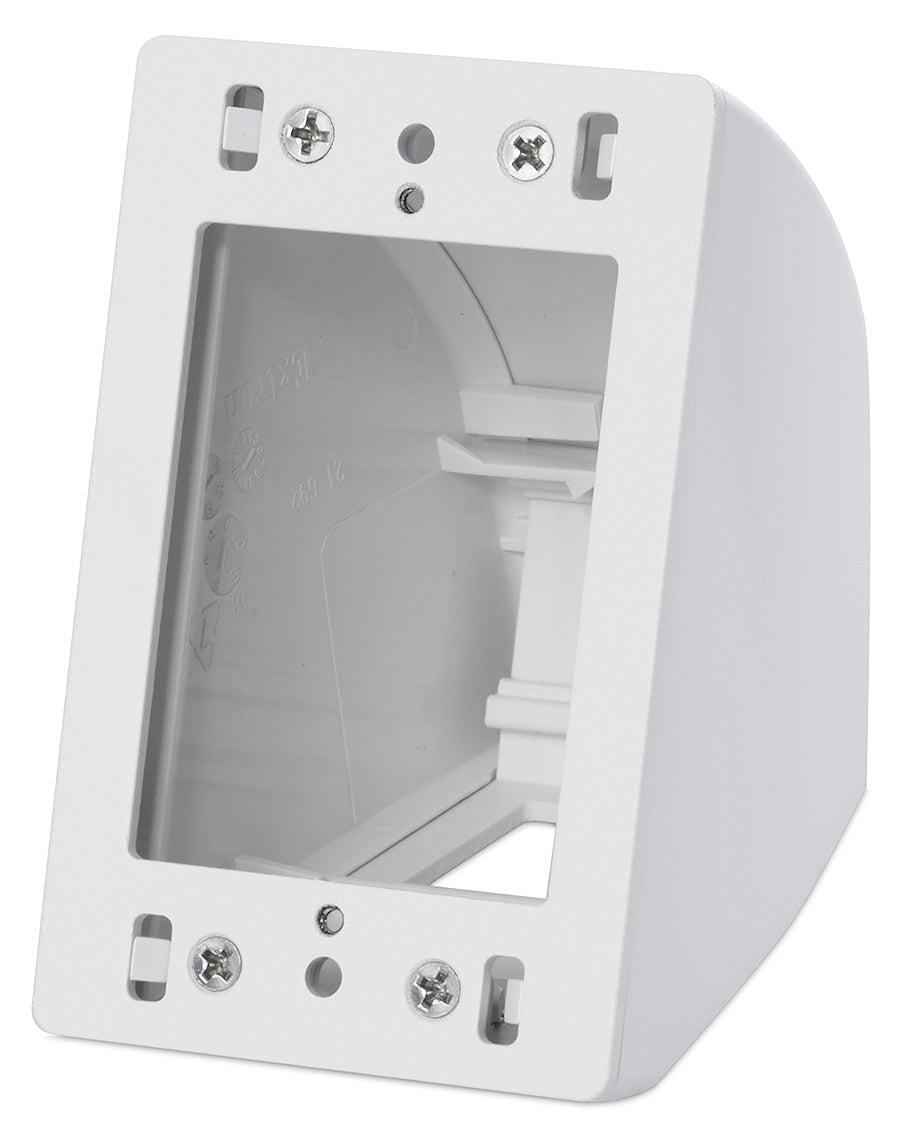

Extron SMB 111 One-gang, Black

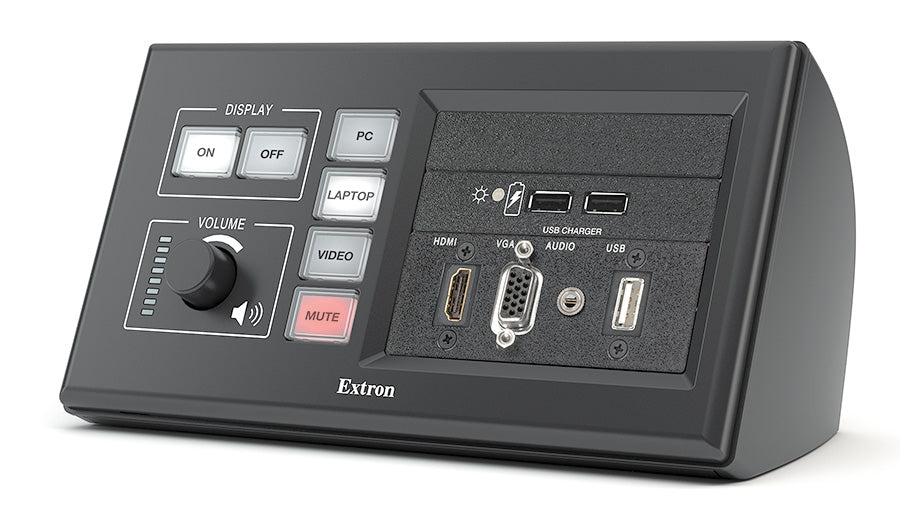

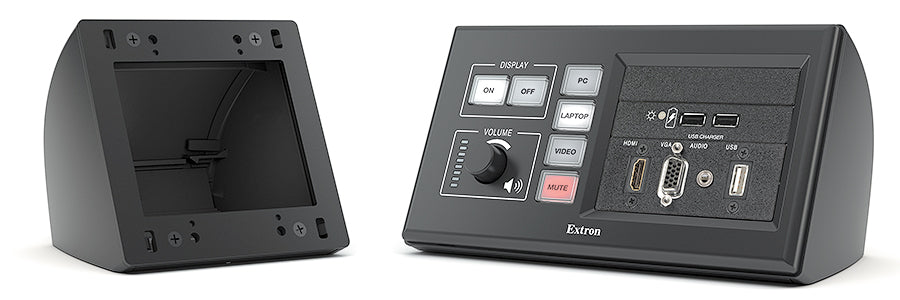

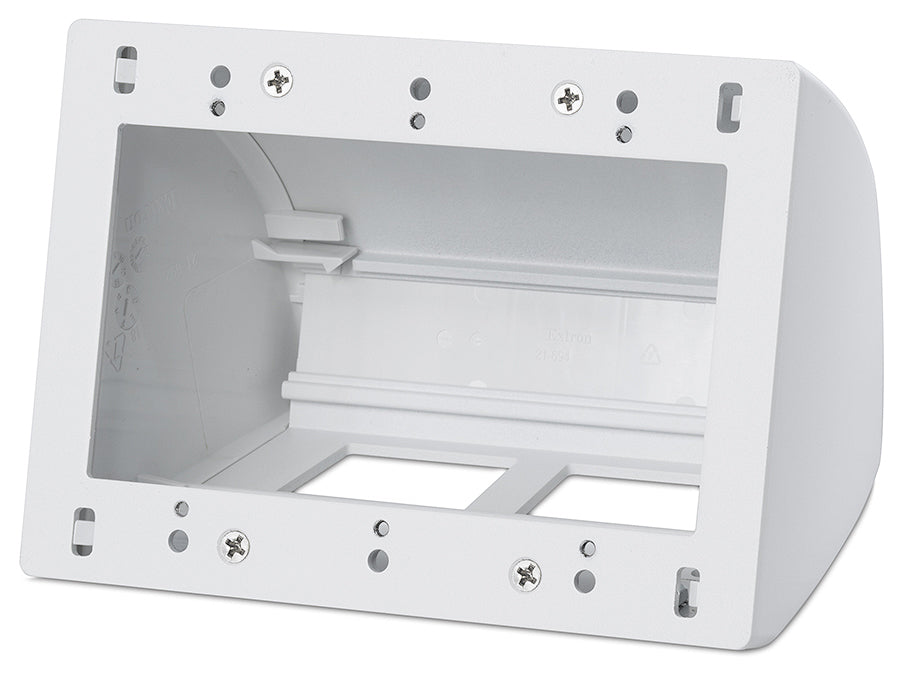

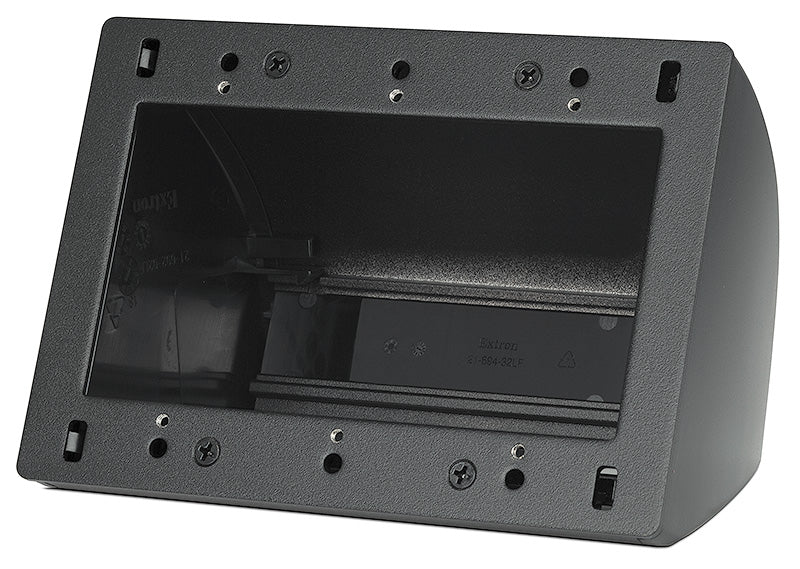

The Extron SMB 110 Series Surface Mount Boxes are designed for the external mounting of US‑gang Extron architectural products, including MediaLink^® Plus controllers with AAP™ AV Connectivity Module openings, WPD decorator-style wallplates with Pass‑through connectors, and other Extron US‑gang decorator-style wallplates and AAP modules. SMB 110 Series Surface Mount Boxes feature an elegant, contoured design that complements any environment, and can be surface mounted on lecterns, tabletops, and other flat surfaces for convenient access to connectors and controls. The optional SMB Table Clamp Kit secures SMB 110 boxes to table edges without marring the surface. Available in a durable black or white finish.

SMB Table Clamp Kit Compatibility

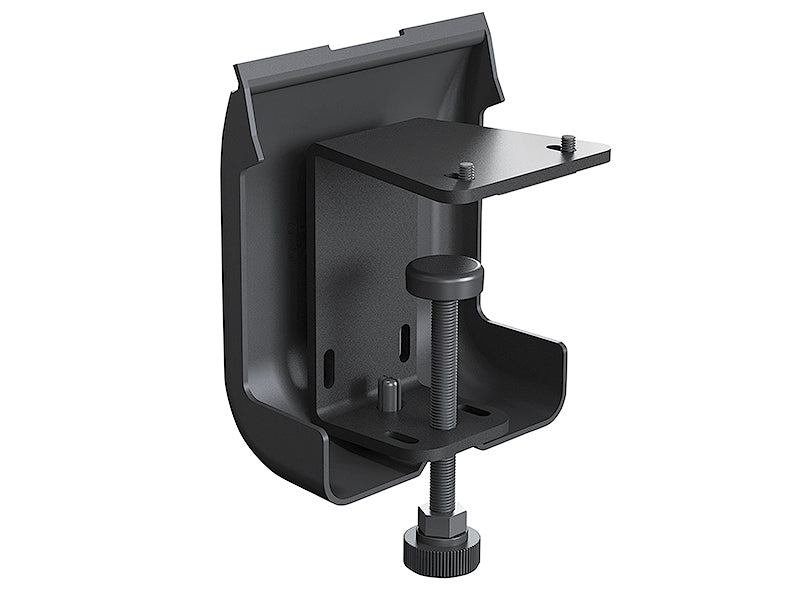

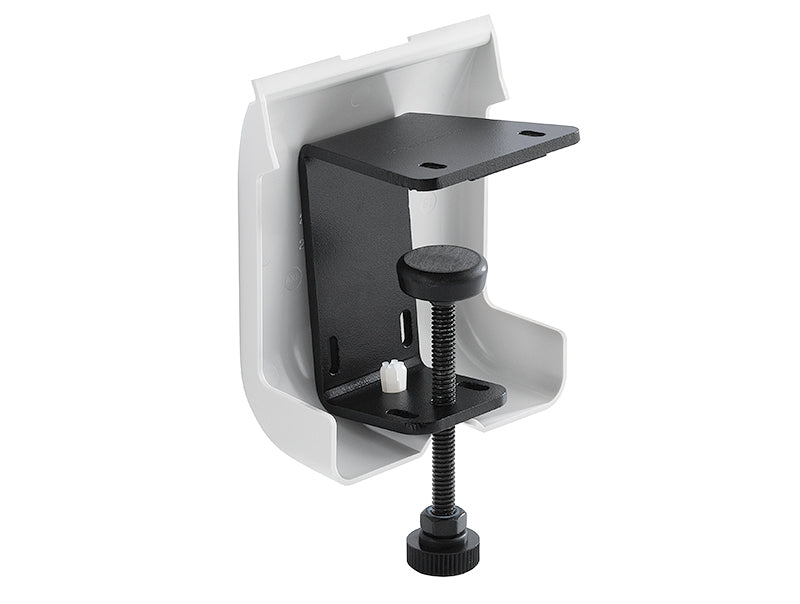

The SMB Table Clamp Kit includes a shield for cable management. Two clamps can be installed on boxes four-gang or wider.

Features

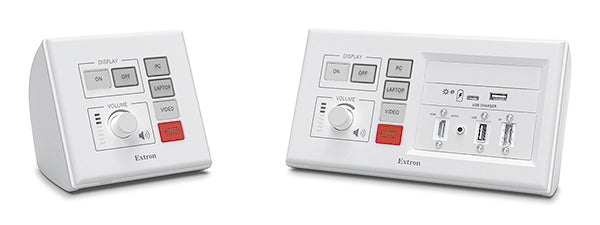

• Accepts standard US-gang size Extron architectural products — Compatible with MediaLink® Controllers, WPD Series, or other US-gang wallplates. Extron wallplates are sold separately.
• Contoured design complements any environment — Subtly blends in to most environments without being overtly obtuse.
• Suitable for tabletop and lectern applications — Provides control and connectivity at arm's reach.

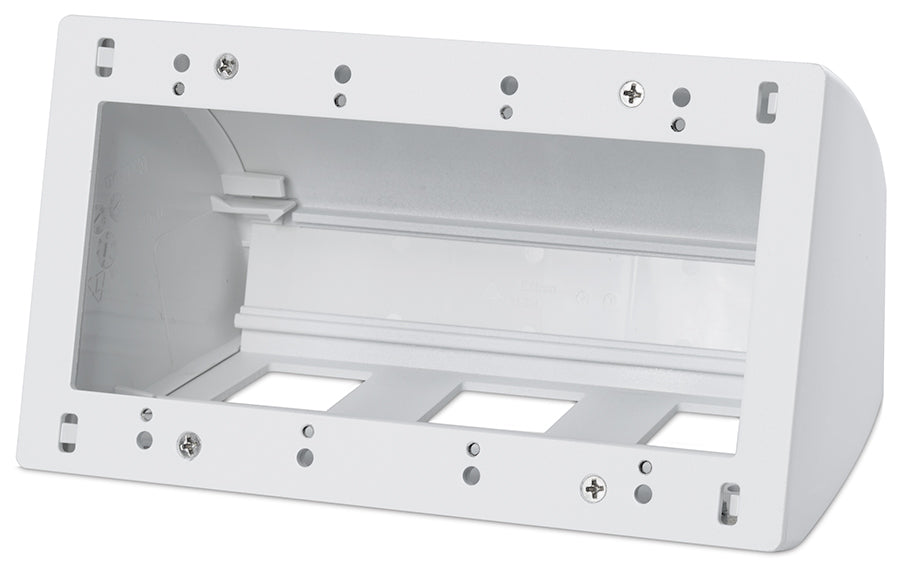

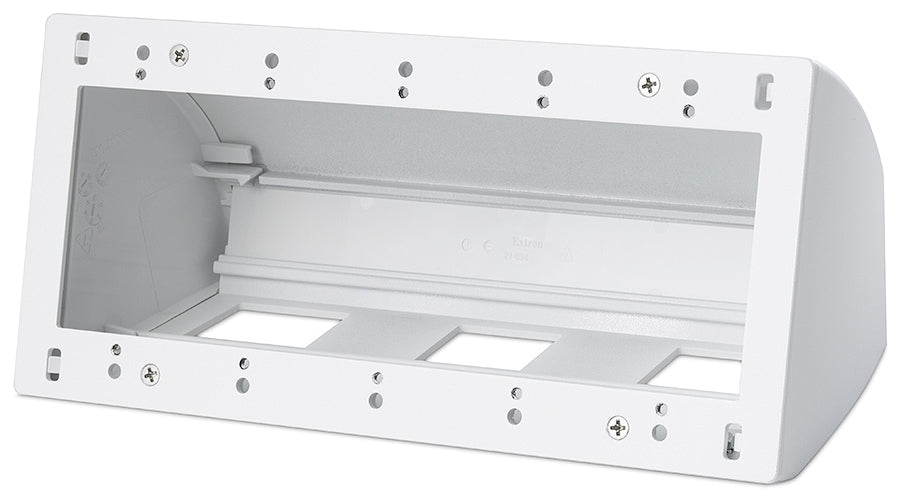

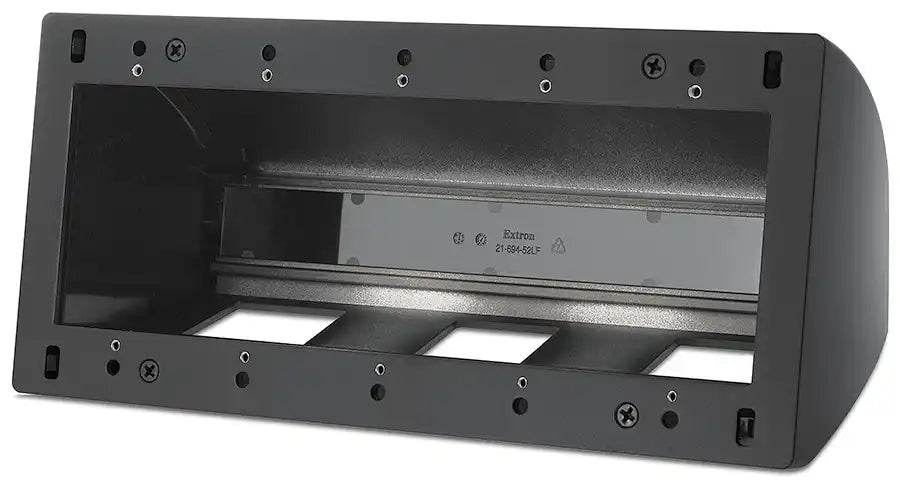

• Available in a one- to five-gang size
• Optional Table Clamp Kit secures the box without damaging the surface; part #70-1160-12 — Provides an alternate table edge mounting method. Boxes four-gang or wider are compatible with two kits for improved mounting.
• Available in a black or white finish

SMB 110 Series
General
Mounting	Enclosure can be placed on a table, surface mounted with the included wood screws, or clamped to a table with an optional Table Clamp Kit. **Table Clamp range is 0.38" to 2.00" (10 mm - 51 mm) Compatible with Extron US gang-size wallplates.
Enclosure type	Metal body, high impact plastic end caps.
Enclosure dimensions
SMB 111	2.90" W x  4.40" H x 4.35" D (1 gang) (74 mm W x 112 mm H x 111 mm D)

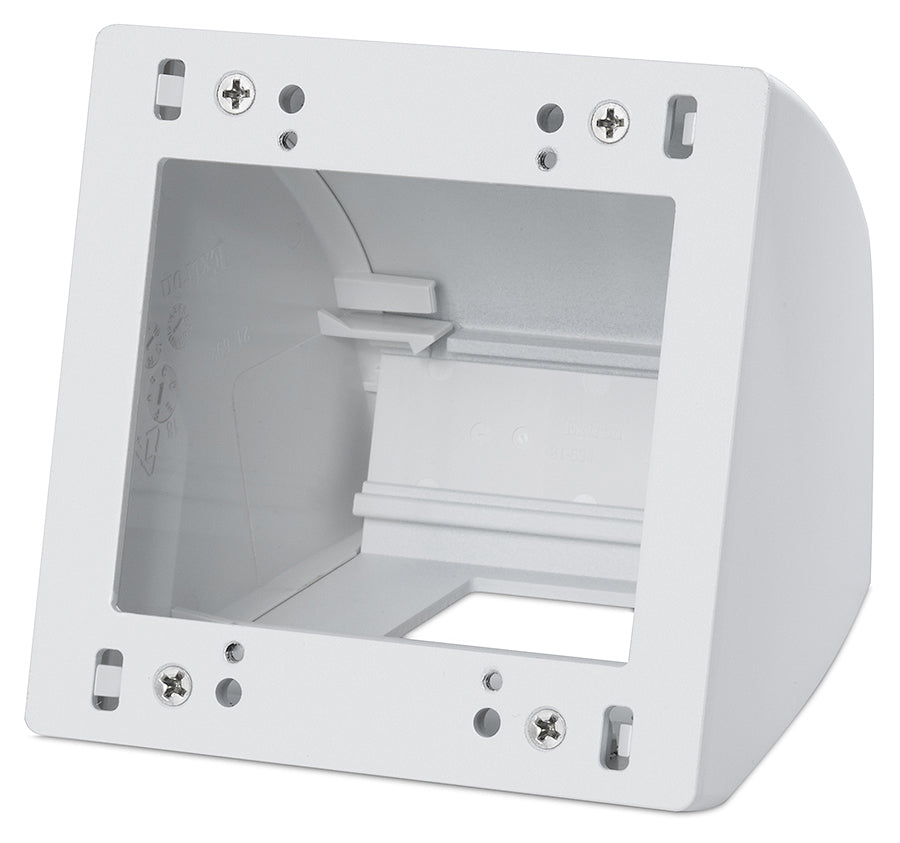

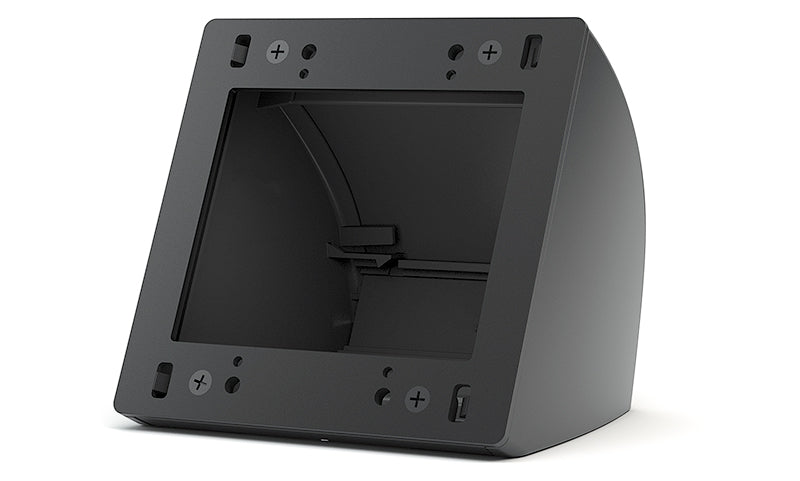

SMB 112	4.72" W x 4.40" H x 4.35" D (2 gang) (120 mm W x 112 mm H x 111 mm D)
SMB 113	6.53" W x 4.40" H x 4.35" D (3 gang) (166 mm W x 112 mm H x 111 mm D)

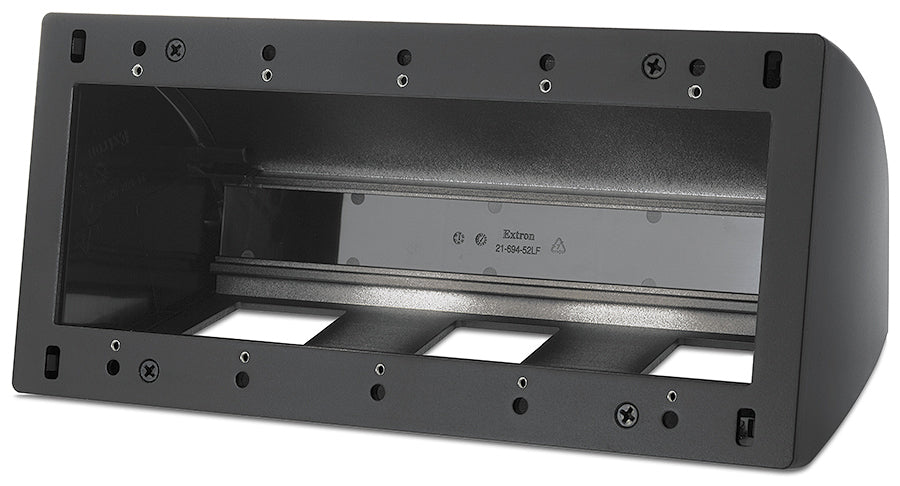

SMB 114	8.34" W x 4.40" H x 4.35" D (4 gang) (212 mm W x 112 mm H x 111 mm D)
SMB 115	10.16" W x 4.40" H x 4.35" D (5 gang) (258 mm W x 112 mm H x 111 mm D)
Front angle	115 degrees
Cable openings
SMB 111	1x 1.00" x 1.30" (25 mm x 33 mm)
SMB 112	1x 1.25" x 1.30" (32 mm x 33 mm)
SMB 113	2x 1.25" x 1.30" (32 mm x 33 mm)
SMB 114	3x 1.25" x 1.30" (32 mm x 33 mm)
SMB 115	3x 1.25" x 1.30" (32 mm x 33 mm)
All models	Rear slotted opening: 0.40" H (10 mm H) running the width of each enclosure
Product weight
SMB 111	0.5 lbs (0.3 kg)
SMB 112	0.7 lbs (0.4 kg)
SMB 113	0.9 lbs (0.4 kg)
SMB 114	1.1 lbs (0.5 kg)
SMB 115	1.3 lbs (0.6 kg)
Vibration	ISTA 1A in carton (International Safe Transit Association)
Regulatory compliance
Environmental	Complies with the appropriate requirements of RoHS, WEEE
Compliance	CE
Product warranty	3 years parts and labor
NOTE     Specifications are subject to change without notice.
