Extron SMA-1 Swivel Mount Adapter
Extron SMA-1 Swivel Mount Adapter is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron SMA-1 Swivel Mount Adapter

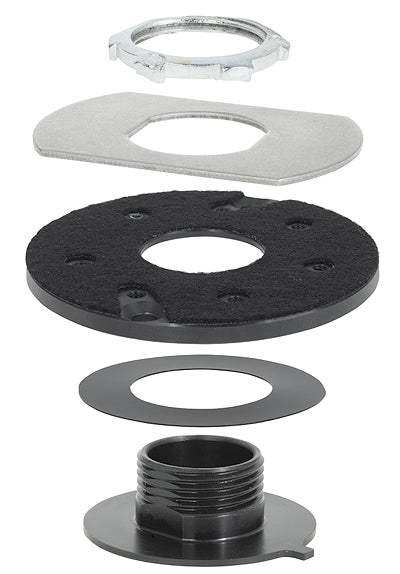

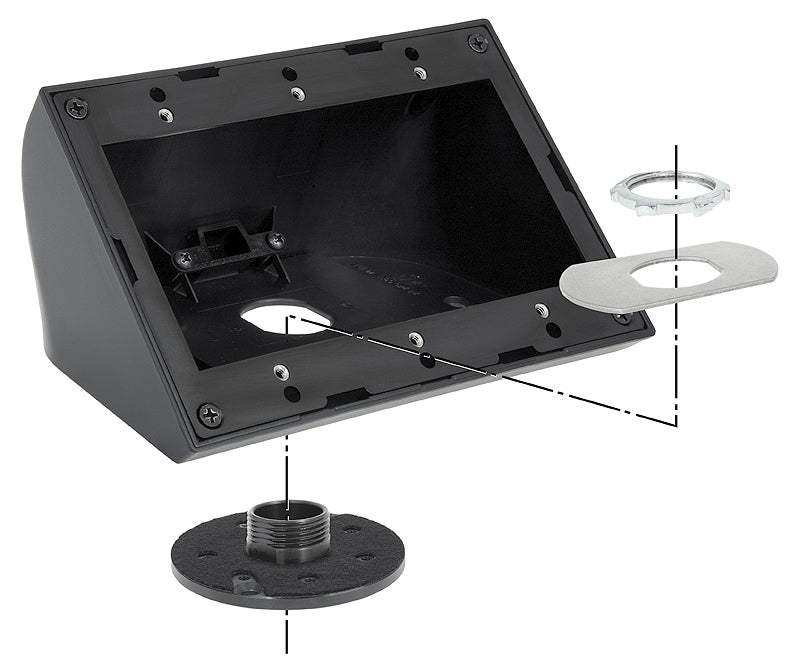

The SMA-1 Swivel Mount Adapter is designed for use with the SMB 1 and SMB 303 Surface Mount Boxes and select tabletop TouchLink and TouchLink Pro touchpanels. It provides a method for rotating the box to provide easy access for multiple users. The SMA-1 provides multiple stop points so the installer can precisely determine the degree of rotation for easy access and prevention of cable strain and tangling. The SMA-1 elevates the surface mount boxes or tabletop touchpanels slightly to prevent wear and damage to the surface on which it is mounted.
Features
- Provides swivel capability for the SMB 1 and SMB 303 and select tabletop TouchLink and TouchLink Pro touchpanels
- Multiple stopping points allow the installer to determine the amount of rotation
- Provides access to multiple users from a single location
- Elevates the surface mount boxes or tabletop touchpanels to prevent wear and damage to the surface on which it is mounted
Specs
Also see our Specs in PDF format
| SMA-1 | |||
| General | |||
|---|---|---|---|
| |
|||
| |
Flat surface mountable | ||
| |
The SMA-1 can be rotated horizontally ±180° from the installed position | ||
| |
Steel | ||
| |
0.7" H x 3.0" diameter (1.70 cm H x 7.6 cm diameter) |
||
| |
 |
||
| |
0.1 lb (<0.1 kg) | ||
| |
1 lbs (0.5 kg) | ||
| |
ISTA 1A in carton (International Safe Transit Association) | ||
| |
|||
| |
TBD | ||
| |
3 years parts and labor | ||
|
|||
| (8.0-060410-D1) | |||
| Shipping Dimensions and Weights | ||||
|---|---|---|---|---|
| Part # | Height | Width | Depth | Weight |
| 70-747-01 | 8.0" (20.3 cm) | 4.0" (10.2 cm) | 1.0" (2.5 cm) | 0.42 lbs (0.19 kg) |
