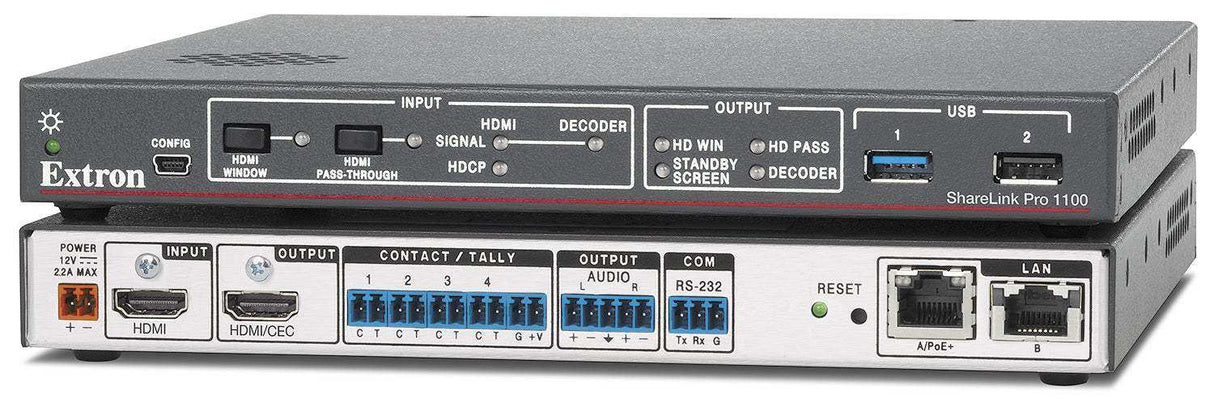

Extron ShareLink Pro 1100 Wired and Wireless Presentation System

Product Overview

The Extron ShareLink Pro 1100 is a 4K wired and wireless presentation system designed for huddle rooms, meeting spaces, and collaboration environments. It enables any user to present content from a laptop, tablet, or smartphone on the room display, supports simultaneous content from up to four devices including one wired HDMI source, and integrates professional moderator controls for managed collaboration. Available from Creation Networks.

Product Description

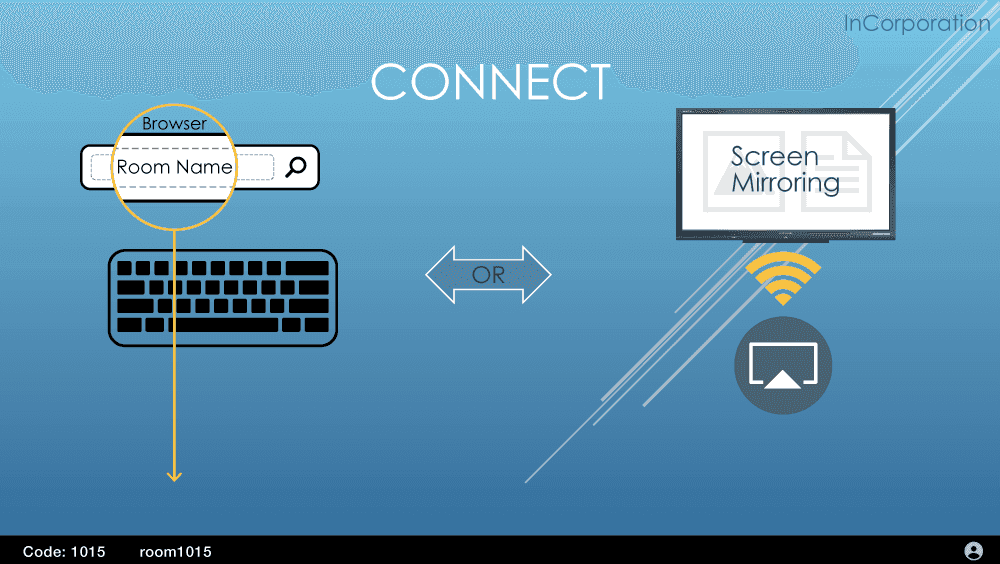

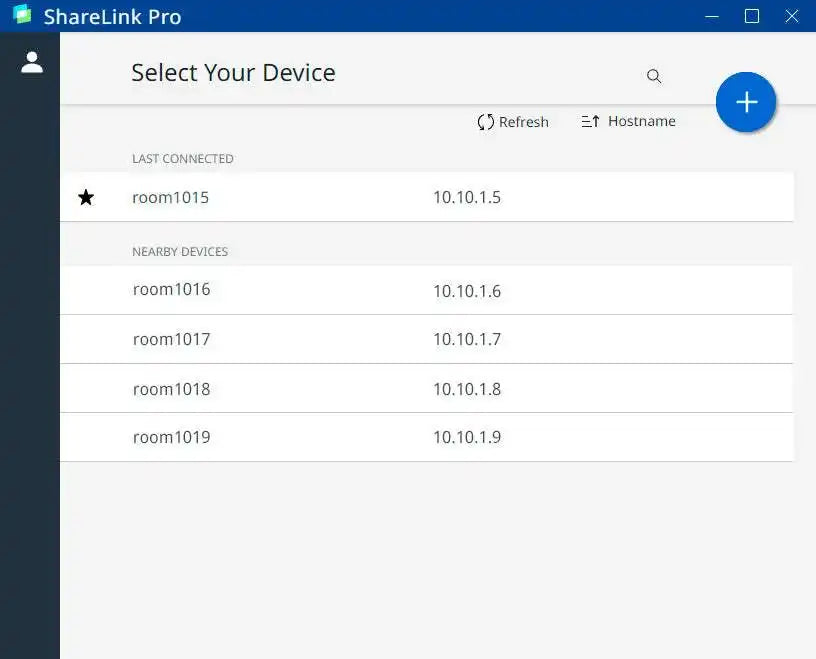

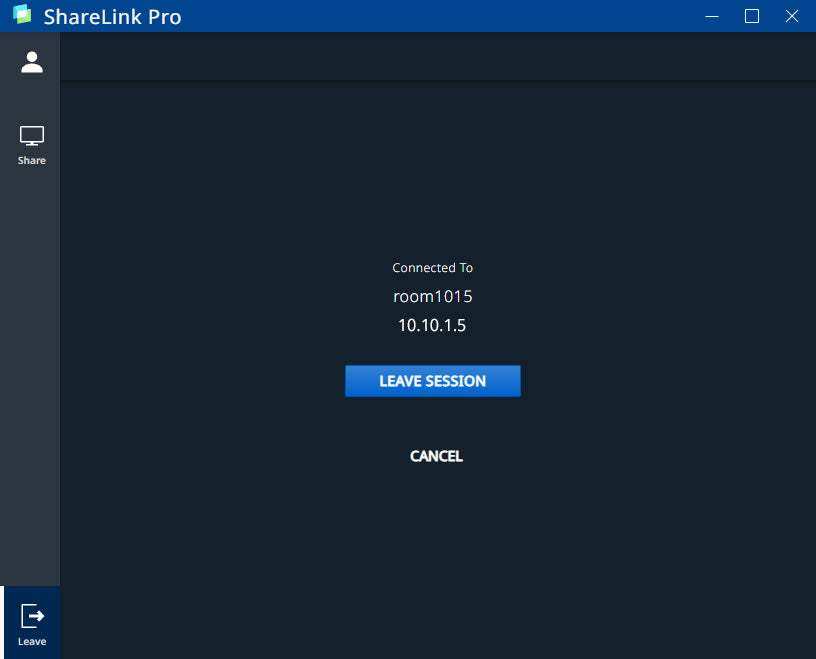

The ShareLink Pro 1100 bridges wired and wireless device collaboration in a single unit. Wireless participants connect using the ShareLink app for Mac and Windows computers or Apple and Android mobile devices. A wired HDMI input accepts direct laptop connections, Show Me cables with a front-panel Share button, or fixed sources such as a document camera or dedicated UC computer running Zoom or Teams. Up to four content streams display simultaneously at resolutions up to 1080p per source; the HDMI output supports display connections at up to 4K. Dual Ethernet ports support network segmentation for more secure enterprise deployments. Collaboration and moderator modes allow open sharing or admin-controlled source selection. When deployed across a campus, the ShareLink Pro 1100 integrates with Extron GlobalViewer Enterprise for centralized device management and monitoring.

Key Features

• Wired and Wireless Presentation in One Unit — HDMI input for wired sources plus wireless connectivity for Mac, Windows, iOS, and Android devices in a single unit.

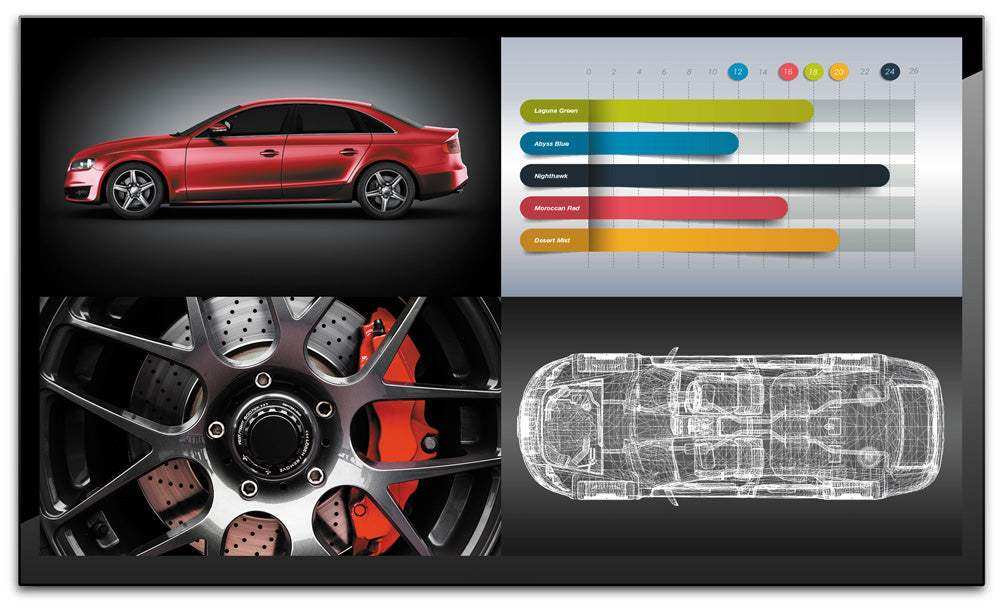

• Up to Four Simultaneous Sources — Display content from up to four devices at the same time, each at up to 1080p resolution.
• 4K HDMI Output — Outputs to the room display at resolutions up to 4K for compatibility with modern 4K panels and projectors.
• Show Me Cable Support — Wired sources using Show Me cables can initiate sharing directly from a Share button at the cable, without interacting with software.

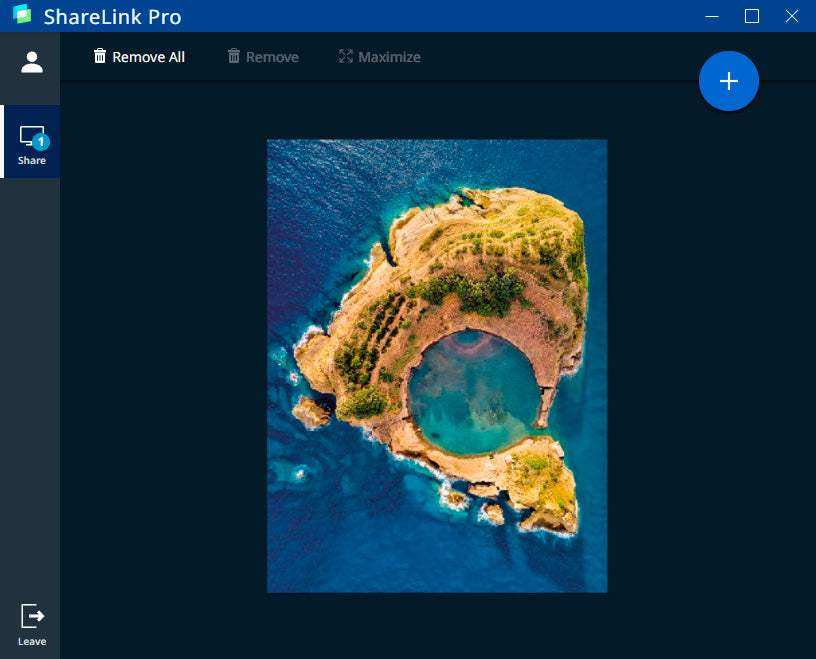

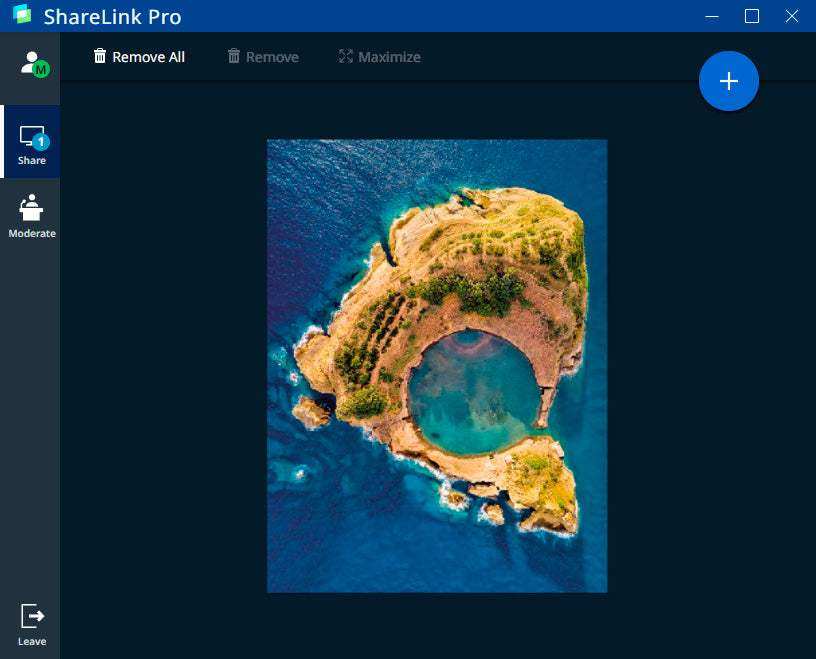

• Collaboration and Moderator Modes — Open collaboration allows any participant to share; moderator mode gives an admin control over which sources appear on the display.
• Dual Ethernet Ports for Network Segmentation — Separate network interfaces allow AV traffic isolation from the corporate LAN for enhanced security.

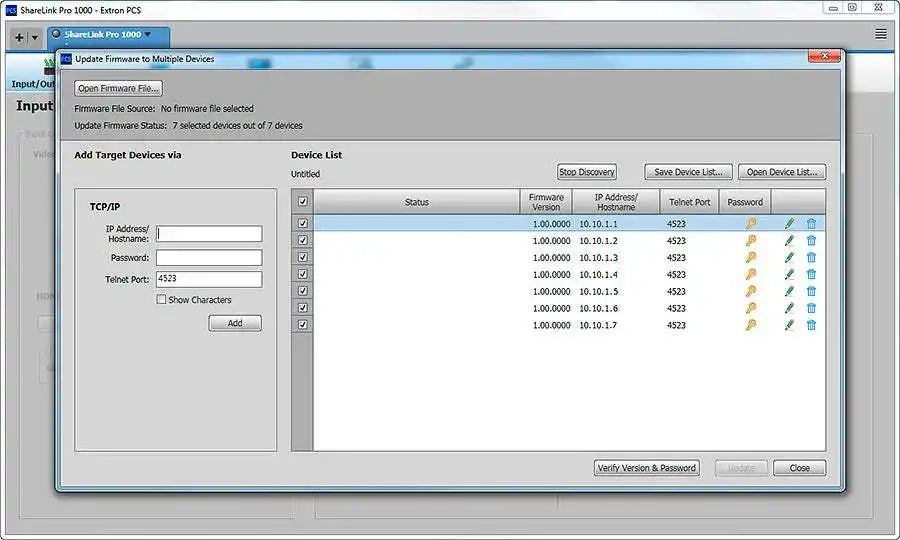

• GlobalViewer Enterprise Integration — Supports centralized management, monitoring, and status reporting across multiple ShareLink Pro 1100 units via Extron GVE software.
• Guest Access via HDMI Input — Guest presenters can connect over HDMI without requiring access to the internal wireless network.
• Cable Cubby and Retractor Compatibility — Works with Extron Cable Cubby enclosures and Retractor cable management for clean, accessible table-mount deployments.
• Compact Form Factor — Small footprint for discreet under-display, rack, or furniture mounting.

Technical Specifications

Typical Application

The ShareLink Pro 1100 is deployed in huddle rooms, small conference rooms, and open collaboration spaces where both wired and wireless device presentation is required. It is well suited for enterprise and higher education environments where guest access over HDMI eliminates the need to add guests to the internal network, and where network segmentation via dual Ethernet is a security requirement. Moderator mode supports instructor-led training rooms and managed boardroom environments.

Spec Sheet PDF Download

Download the Extron ShareLink Pro 1100 Spec Sheet (PDF)
