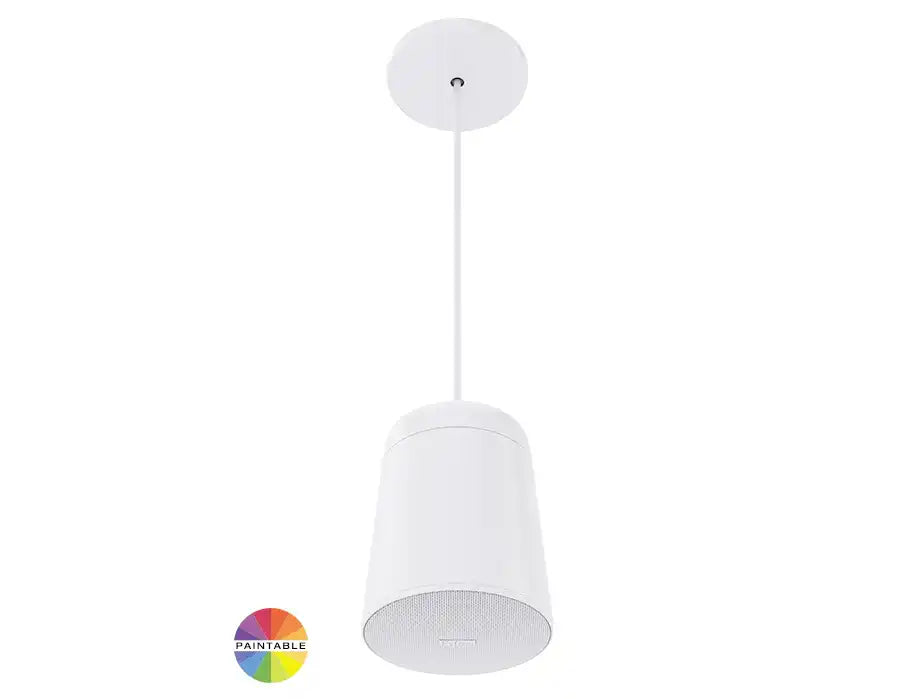

Extron SF 3PT 3" Pendant Speaker Pair - White - Removable Grille

The Extron SF 3PT is a pendant loudspeaker with a 3” (76 mm) full-range driver for speech reinforcement and music playback in high-ceiling and open-ceiling applications. Taking inspiration from modern pendant lighting, the SF 3PT offers an architecturally clean, patent pending design that complements the aesthetic of contemporary interiors. The SF 3PT is available in black or white and is paintable to fit in with any décor. Included with the SF 3PT is Extron’s exclusive PendantConnect™ PCC-1 speaker cable that combines the speaker wires and a steel safety cable within a single outer jacket, providing a finished installation that is clean and secure. The UL listed SF 3PT offers both direct 8 ohm and 70/100 volt operation and is voiced similarly to the Extron SF 3CT LP for consistency mixed ceiling environments.

The 3” (76 mm) full-range Extron driver provides a wide and smooth frequency range of 110 Hz to 20 kHz. The design reduces beaming of mid and high frequencies directly under the speaker for excellent voice clarity. A power rating of 32 watts continuous program also gives this speaker plenty of headroom for music reproduction.

The Pendant Speaker That Blends In

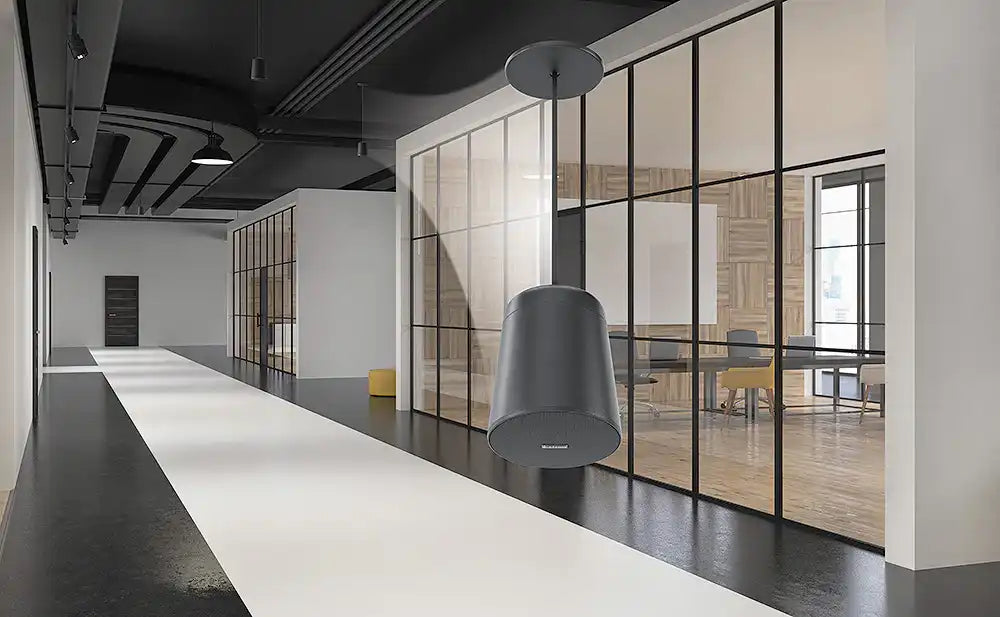

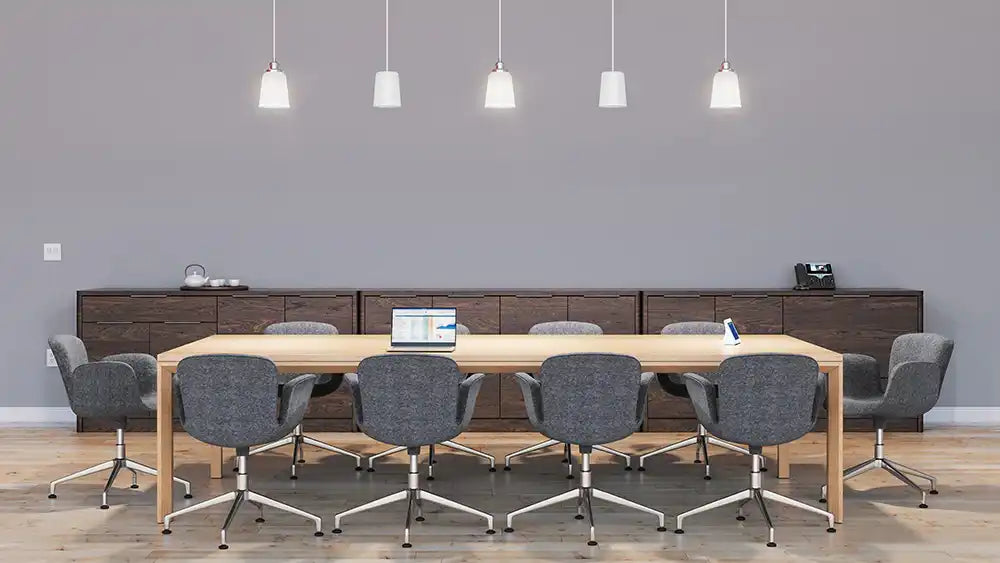

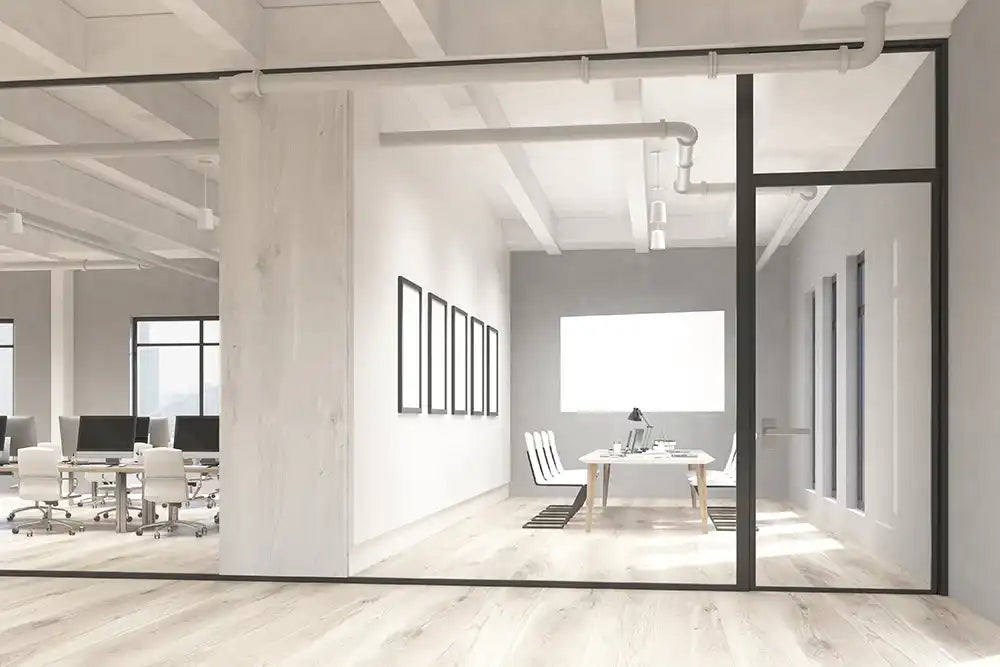

With the SF 3PT, Extron designers took the pendant speaker concept in a new direction. The simple enclosure of the SF 3PT, with its clean lines and concealed wiring connections, blends into the background alongside contemporary pendant lighting fixtures. This addresses the common requirement that installed speakers be invisible or architecturally complementary, without requiring modifications to existing structure.

Integrator-Friendly

The SF 3PT pendant speaker comes with everything needed for a finished installation, including 20 feet (6.1 m) of PendantConnect PCC-1 speaker cable, an Extron exclusive hybrid cable design incorporating the speaker wires and a steel safety cable into a single outer jacket, for a clean installation with only a single visible cable. Like the speaker itself, PendantConnect speaker cable is paintable.

To ease the process of wiring a pendant speaker in place by a single installer, the SF 3PT can be suspended from a ladder, or other temporary point, in the included protective bag while connections to the speaker and ceiling electrical box are made. Once installed, and the workplace is clear, the protective bag can be removed.

Voicing Consistency

The SF 3PT is voiced consistently with the Extron SF 3CT LP and SF 3C LP ceiling speakers to ensure smooth sonic transitions in applications when the listener moves between drop-ceiling and open-ceiling areas.

Features

• 3" (76 mm) full-range driver — Designed for speech reinforcement and music playback
• Frequency range: 110 Hz to 20 kHz
  116° conical dispersion
• 8 ohm direct or 70/100 volt operation —
  • 8 ohm direct
  • 70 volt: 16, 8, 4, 2, and 1 watt selectable
  • 100 volt: 16, 8, 4, and 2 watt selectable
• 16 watts continuous pink noise
  32 watts continuous program
• Architecturally clean, patent pending design using Extron exclusive PendantConnect speaker cable — Blends in well with contemporary pendant lighting fixtures for an aesthetically pleasing appearance, Includes 20' (6.1 m) length of PendantConnect speaker cable per pair
• Removable Grille — Facilitates painting
• Similar voicing to the Extron SF 3CT LP and SF 3C LP ceiling speakers — Allows smooth sonic transitions when using SF 3PT and SF 3CT LP or SF 3C LP speakers in mixed ceiling applications

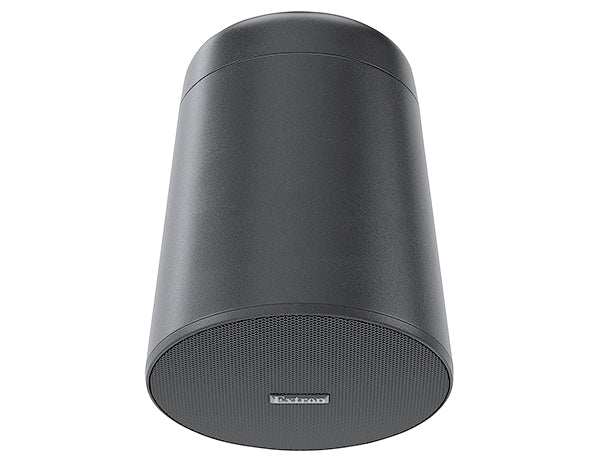

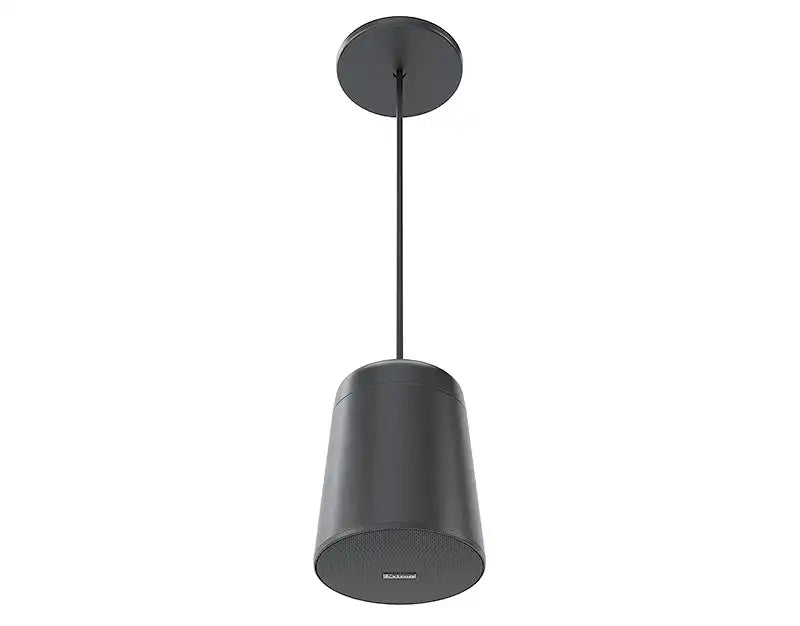

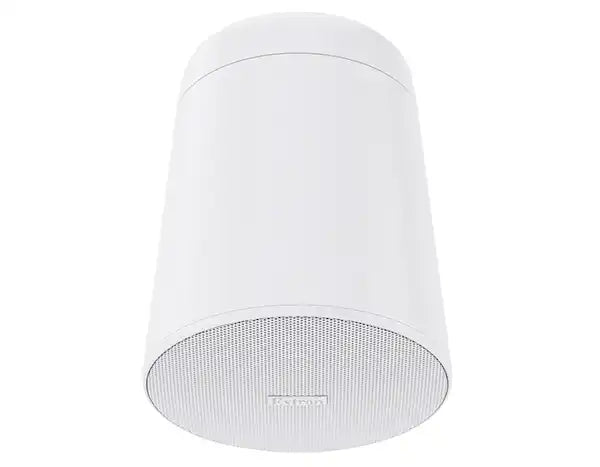

• Available in black or white and is paintable to fit in with any décor
• UL 1480A listed for safety
• Optional 20 foot (6.1 m) length of PendantConnect speaker cable —
  • Black: Part # 26-722-20
  • White: Part # 26-721-20
• Optional 500 foot (152 m) spool of PendantConnect speaker cable —
  • Black: Part # 22-271-02
  • White: Part # 22-270-02
• 5-year parts and labor warranty

• SF 3PT
  Audio/acoustic and electrical
  Speaker type	Pendant speaker with plastic enclosure
  Frequency range	110 Hz to 20 kHz, -10 dB, full space (per IEC 60268-5)
  Power capacity	16 W (rms) continuous pink noise (per IEC 60268-5) 32 W (rms) continuous program
  Rated maximum input voltage (MIV)	10 V (12.5 W at 8 ohms) (per AES2-2012)
  Maximum SPL	92 dB, 1 m (based on measured MIV) 94 dB, 1 m (calculated)
  Nominal sensitivity	82 dB SPL, 1 W, 1 m, full space
  Nominal impedance	8 ohms per speaker
  Nominal coverage angle	116° conical coverage (1 kHz to 4 kHz, weighted 2-4 kHz)
  Rotary switch taps	70V: 16 W, 8 W, 4 W, 2 W, 1 W, 8 ohms direct 100 V: null, 16 W, 8 W, 4 W, 2 W, 8 ohms direct
  Driver	(1) 3" (76 mm) paper cone
  Overload protection	Full range power limiter
  Input connector	(2) splicing connectors, 2 pole (2) splicing connectors, 3 pole, for 1 input and 1 loop-through
  General
  Package	2 speakers (1 pair)
  Included accessories	Setup guide, 2 mounting plates, 2 mounting plate covers, 2 2-pole splicing connectors, 2 3-pole splicing connectors, 20' (6.1 m) pendant cable
  Ambient temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
  Mounting	Ceiling hangable with included hardware
  Enclosure type
  Enclosure materials	High-impact, fire-resistant (UL94V-0) plastic
  Enclosure design	Plastic, tapered cylindrical
  Grille material	Steel
  Enclosure outer dimensions	6.83" H x 5.31" diameter (174 mm H x 135 mm diameter)
  Product weight	2.7 lbs (1.2 kg) each 3.6 lbs (1.6 kg) with mounting plate/cover and 10' (3.1 m) of PendantConnect cable
  Regulatory compliance
  Safety	CE, UL 1480A UL 1480A listed for commercial and professional audio systems
  Environmental	RoHS, WEEE
  Product warranty	5 years parts and labor
  NOTE     All nominal levels are at ±10%.
  NOTE     Specifications are subject to change without notice.
  (4183_D4)

  Shipping Dimensions and Weights
  Part #	Height	Width	Depth	Weight
  60-1736-12	10.25" (26.0 cm)	10.25" (26.0 cm)	13.25" (33.7 cm)	8.6 lbs (3.9 kg)
  60-1736-13	10.75" (27.3 cm)	10.38" (26.4 cm)	13.25" (33.7 cm)	8.6 lbs (3.9 kg)
  60-1736-03	9.0" (22.9 cm)	13.0" (33.0 cm)	9.63" (24.5 cm)	6.5 lbs (2.95 kg)
