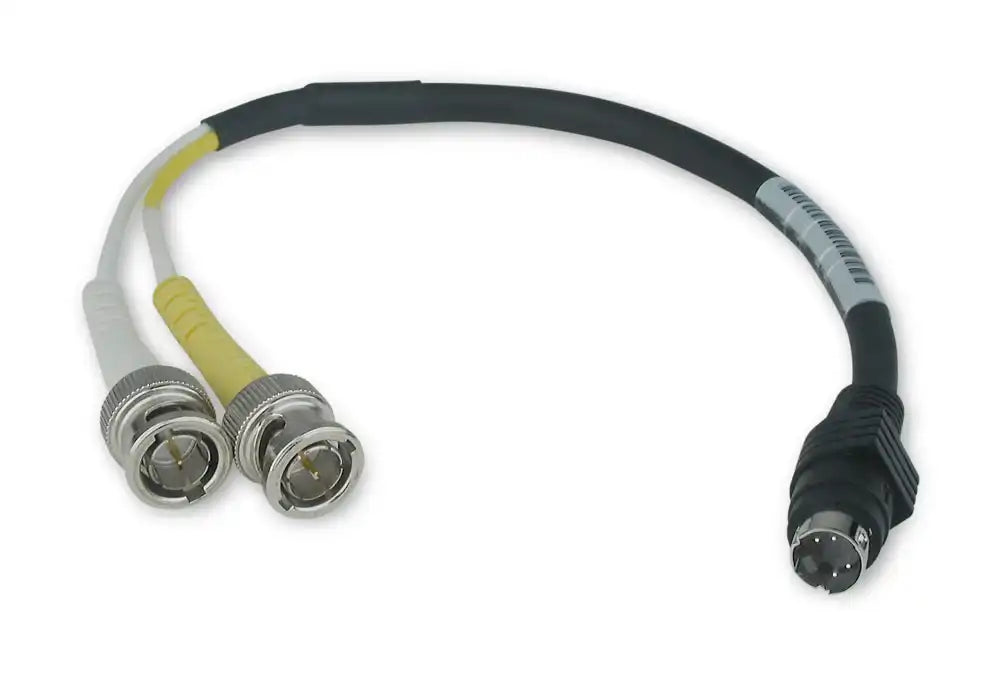

Extron S-Video to 4-pin Male - 2 BNC Female - 8" (20 cm)
The Extron S-Video to BNC adapters convert standard 4-pin mini-DIN S-Video connectors to separate BNC connectors for luminance (Y) and chrominance (C) signals. These high-quality cable adapters enable seamless routing of S-Video sources into professional AV equipment such as switchers, distribution amplifiers, scalers, matrix switchers, and other devices that utilize BNC inputs. They are particularly useful in legacy or mixed-signal installations where S-Video outputs from cameras, VCRs, DVD players, or media players need to interface with BNC-terminated systems in classrooms, conference rooms, broadcast facilities, control rooms, and presentation environments.
Available in various lengths and gender combinations (e.g., mini-DIN male to dual BNC male or female variants), the adapters maintain excellent signal integrity for clear, high-quality S-Video transmission without degradation or additional converters. Their robust construction and precise impedance matching ensure reliable performance in demanding AV setups requiring clean Y/C separation and compatibility with professional BNC infrastructure.
Features Chart
| Feature | Benefit |
|---|---|
| 4-pin Mini-DIN to Dual BNC Conversion | Separates S-Video Y and C signals for BNC-compatible equipment |
| High-Quality Cable Adapters | Ensures reliable, low-loss transmission of S-Video signals |
| Various Lengths Available | Provides flexibility for different installation distances |
| Multiple Gender Combinations | Accommodates diverse source-to-input configurations |
| Precise Y/C Signal Separation | Maintains color accuracy and picture quality in professional systems |
| Plug-and-Play Design | Simplifies integration without additional hardware or power |
| Professional AV Construction | Built for durability in commercial and institutional environments |
| Compatible with Extron Switchers/DA's | Ideal for routing into Extron matrix switchers and distribution amps |
Specifications Table
| Specification | Details |
|---|---|
| Connector A | 4-pin Mini-DIN (S-Video, male or female variants) |
| Connector B | Two BNC (Y and C, male or female depending on model) |
| Cable Type | S-Video to BNC breakout/adapter cable |
| Signal Type | S-Video (Y/C separated) |
| Available Variants | Different lengths (e.g., 8", 1', 3') and genders |
| Applications | Routing S-Video into BNC-equipped switchers, DAs |
| Compatibility | S-Video sources; BNC-terminated AV devices |
| Construction | High-quality shielded cable with molded connectors |
Compare Chart
| Aspect | Extron S-Video to BNC Adapters | Kramer S-Video to BNC Cables | Atlona S-Video Breakout |
|---|---|---|---|
| Connector Options | Mini-DIN to dual BNC (Y/C) | Mini-DIN to dual BNC | Mini-DIN to BNC variants |
| Length Flexibility | Multiple lengths/genders | Fixed or various lengths | Typically short adapters |
| Signal Quality | High-quality professional | Professional grade | Standard to pro |
| Gender Combinations | Various (male/female) | Common male to male/female | Limited variants |
| Primary Use | Extron switcher/DA routing | General S-Video to BNC | Consumer/prosumer bridging |
| Shielding/Construction | Robust shielded | Shielded | Standard |
| Installation Ease | Plug-and-play | Plug-and-play | Plug-and-play |
| AV Optimization | Extron ecosystem | General | General |
FAQ
- What is the purpose of the S-Video to BNC adapters? They convert 4-pin mini-DIN S-Video connectors to separate BNC connectors for Y and C signals, allowing connection to BNC-based AV equipment.
- What lengths and variants are available? Adapters come in different lengths (such as 8", 1', 3') and gender combinations (e.g., mini-DIN male to dual BNC male or female) to suit various setups.
- What signals do these adapters support? They handle standard S-Video (Y/C) signals, separating luminance and chrominance for routing into switchers or amplifiers.
- Are these adapters suitable for long runs? They are optimized for short to medium adapter runs; for extended distances, use appropriate Extron bulk cable or extenders.
- Do they require any power or active conversion? No, they are passive adapters with no external power needed.
- What equipment are they compatible with? They work with S-Video sources and any AV devices featuring BNC inputs, especially Extron switchers, distribution amplifiers, and matrix switchers.
