Extron RWM 1 Recessed Wall Mount Kit for TLP Pro 525M, TLC Pro 526M, and TLS 525M
Extron RWM 1 Recessed Wall Mount Kit for TLP Pro 525M, TLC Pro 526M, and TLS 525M is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron RWM 1 Recessed Wall Mount Kit for TLP Pro 525M, TLC Pro 526M...

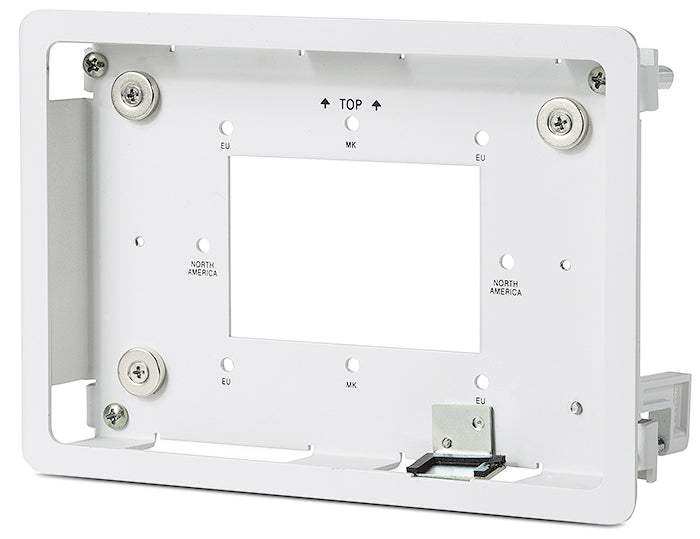

The Extron RWM 1 is a recessed wall mount kit for the TLP Pro 525M, TLC Pro 526M, and TLS 525M that allows the touchpanels to be installed securely within a wall. When mounted into an RWM 1, the touchpanel surface lies slightly above the surrounding area. This allows the side LEDs to be visible for easy occupancy verification, while creating an elegant, aesthetically-pleasing installation.
Features
- Used to securely mount a TLP Pro 525M, TLC Pro 526M, or TLS 525M in a wall
- Provides an elegant, aesthetically pleasing installation
- Four locking arms provide secure installation in walls with thicknesses from 1/2 inch to 1 inch
- Downloadable paper cutout template for easy installation
- Touchpanel can be removed for maintenance
- Use the RWM 1 in drywall or furniture openings previously cut for TLP 350MV, TLP Pro 320M, TLP Pro 520M, or TLC Pro 521M — Wall openings will need to be enlarged to accept the RWM 1.
- Allows integration and installation of a junction box for conduit runs
Specs
Also see our Specs in PDF format
| RWM 1 | |||
| General | |||
|---|---|---|---|
| |
Mounts into walls Wall thickness range 0.50" to 1.00" |
||
| |
Metal, painted white | ||
| |
 |
||
| |
4.65" H x 6.57" W x 2.32" D (118 mm H x 167 mm W x 59 mm D) |
||
| |
4.15" H x 6.07" W (105 mm H x 154 mm W) |
||
| |
TBD lbs (TBD kg) | ||
| |
|||
| |
CE, RoHS, WEEE | ||
| |
ISTA 1A in carton (International Safe Transit Association) | ||
| |
3 years parts and labor | ||
|
|||
| (4262-D1) | |||
| Shipping Dimensions and Weights | ||||
|---|---|---|---|---|
| Part # | Height | Width | Depth | Weight |
| 70-1141-13 | 4.5" (11.4 cm) | 7.25" (18.4 cm) | 6.25" (15.9 cm) | 1.0 lbs (0.45 kg) |
