Extron PS 128 12 VDC, 96 W Rack Mountable Power Supply is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.

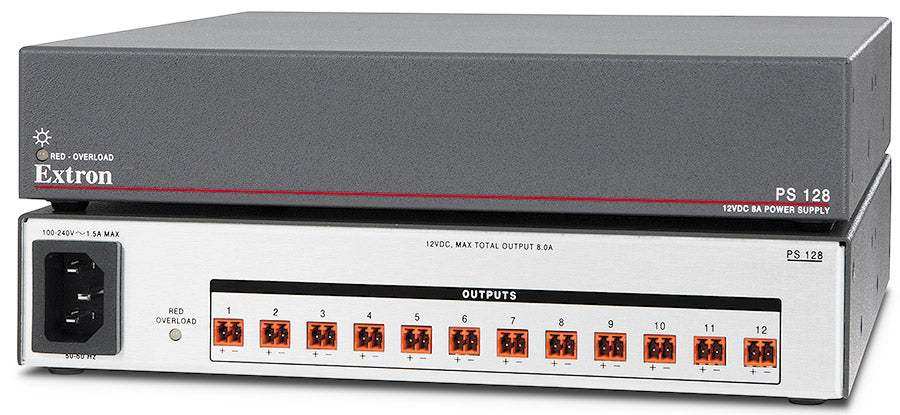

The Extron PS 128 is a 12 VDC, 8 A rack-mountable power supply capable of providing 96 W of power. Designed by Extron, this energy efficient power supply offers high reliability with a MTBF - Mean Time Between Failure rate in excess of 182,000 hours. The PS 128 features 12 VDC, 8 A to 12 captive-screw ports with no-per port current limitations. It is a half-rack wide, 1U high rack mountable enclosure with threaded inserts for mounting directly on an Extron rack shelf or under-table mount. A front and back panel LED provides status indication for power and overload for troubleshooting.
Features
- Provides 12 outputs with 8 amps at 12 VDC — Reduces number of power supplies, providing power consolidation and centralized power management.
- Mean Time Between Failure in excess of 182,000 hours (20.8 years) — Extron designed for high durability and reliability.
- Convection cooled — Eliminates fan noise with fewer components susceptible to failure.
- Rack mountable — Integration-friendly power supply mounts directly to Extron basic or universal rack shelf products, or with under table mounts.
- Power and overload status indicator on front and rear panel — Provides visual confirmation that the power supply is operating properly, whether mounted on a rack and seen from the rear, or under a table surface and seen from the front.
- No per-port current limitations — Each port handles a variety of Extron products regardless of their power draw.
- Energy efficient — Low power consumptions reduces operational costs.
- Extron Everlast™ power supply — Provides worldwide power compatibility, with high-demonstrated reliability and low power consumption for reduced operating cost
- Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty
- TAA Compliant version available — Please inform your local Extron representative if your order requires compliance with TAA regulations.
PS 128 | |||
General | |||
---|---|---|---|
|
12 VDC, regulated; 8 A maximum; 96 watts, total for all 12 outputs | ||
|
|||
|
100 VAC to 230 VAC, 50-60 Hz | ||
|
6.6 watts at 115 VAC 5.8 watts at 230 VAC |
||
|
109.0 watts at 115 VAC 106.4 watts at 230 VAC |
||
|
Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +104 °F (0 to +40 °C) / 10% to 90%, noncondensing |
||
|
Convection, no vents | ||
|
44.5 BTU/hr | ||
|
|||
|
Yes, with optional 1U rack shelf | ||
|
Yes, with optional under-desk mounting kit | ||
|
Yes, with optional mounting kit | ||
|
Metal | ||
|
1.66" H x 8.68" W x 10.0" D (1U high, half rack wide) (4.2 cm H x 22.1 cm W x 21.6 cm D) (Depth excludes connectors.) |
||
|
3 lbs (1.4 kg) | ||
|
ISTA 1A in carton (International Safe Transit Association) | ||
|
|||
|
CE, c-UL, NEC section 300.22 (C), UL Meets UL 60950-1 and IEC 60950-1 |
||
|
CE, CISPR 22 Class B, C-tick, EN55022 Class B, FCC Class B, ICES Class B, VCCI Class B | ||
|
Complies with the appropriate requirements of RoHS, WEEE | ||
|
3 years parts and labor | ||
|
7 years parts and labor | ||
|
|||
|
|||
(4098-D2) |
Shipping Dimensions and Weights | ||||
---|---|---|---|---|
Part # | Height | Width | Depth | Weight |
60-1580-02 | 5.25" (13.3 cm) | 13.5" (34.3 cm) | 14.5" (36.8 cm) | 4.33 lbs (1.96 kg) |
