Extron PS 125 Eight output, 12 VDC 5.0 Amp

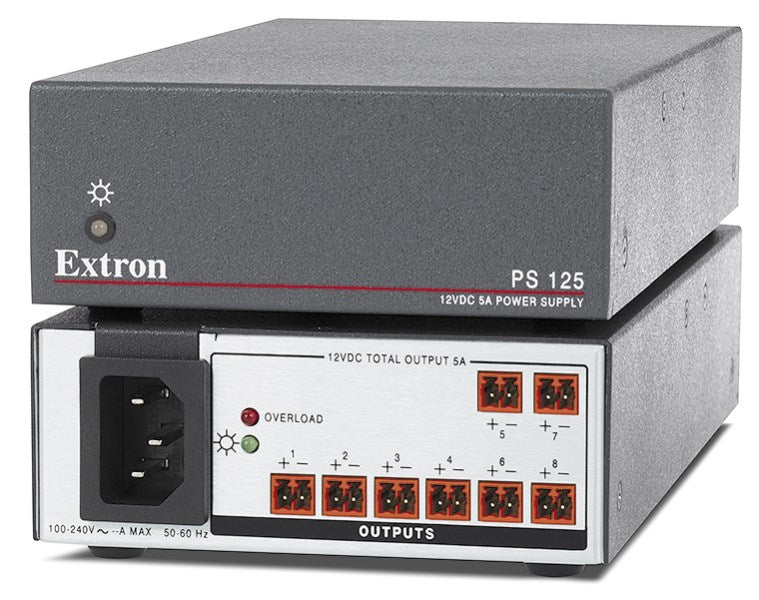

The Extron PS 125 is a multiple output, 12 VDC, 60 W 1U high, quarter rack width, rack mountable power supply. The PS 125 delivers up to 5 Amps of total current to eight two‑pin captive-screw connectors. It provides power consolidation and centralized power management by accommodating up to eight devices from a single supply. Since there are no per‑port current limitations, this allows each connected device to receive appropriate power based on individual load requirements. Power and overload status LEDs on the front and back panels provide visual status for troubleshooting. Designed and manufactured by Extron, this high-performance Everlast™ power supply exceeds industry standards for energy efficiency.
Features
- Provides eight 12 V outputs with 5 amps total current delivery — Reduces number of required power supplies by providing power consolidation and centralized power management.
- No per-port current limitations — Each port handles a variety of Extron products, regardless of their power draw.
- Power and overload status indicator on front and rear panels — Provides visual confirmation that the power supply is operating properly, whether mounted on a rack and seen from the rear or under a table surface and seen from the front.
- Gallium Nitride components improve power efficiency and reduce operating temperatures — Next-generation technology delivers better product performance and longer lifespan.
- Convection cooled — Eliminates fan noise with fewer components susceptible to failure.
- Universal IEC input easily accepts international power cords
- US-style Edison six‑foot (1.8‑m) detachable IEC cord included
- Rack-mountable 1U, quarter rack width, metal enclosure — Integration-friendly power supply mounts directly to Extron basic or universal rack shelf products and under-table mounts.
- External Extron Everlast™ power supply — Provides worldwide power compatibility, with high-demonstrated reliability and low power consumption for reduced operating cost.
- Extron Everlast Power Supply is covered by a 7‑year parts and labor warranty
| PS 125 | |||
| General | |||
|---|---|---|---|
| |
12 VDC, regulated; 5 A maximum; 60 watts, total for all 8 outputs | ||
|
|||
| |
100 VAC to 240 VAC, 50-60 Hz | ||
| |
0.13 watts at 115 VAC 0.17 watts at 230 VAC |
||
| |
66.72 watts at 115 VAC 65.86 watts at 230 VAC |
||
| |
Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing |
||
| |
Convection, no vents | ||
| |
34.4 BTU/hr | ||
| |
|||
| |
Yes, with optional 1U rack shelf | ||
| |
Yes, with optional under-desk mounting kit | ||
| |
Metal | ||
| |
1.75" H x 4.3" W x 8.5" D (1U high, quarter rack wide) (4.4 cm H x 11.0 cm W x 21.6 cm D) (Depth excludes connectors.) |
||
| |
1.2 lbs (0.5 kg) | ||
| |
CE, c-UL, PSE, UL, CISPR 22 Class B, C-tick, EN55022 Class B, FCC Class B, ICES Class B, VCCI Class B, Complies with the appropriate requirements of RoHS, WEE | ||
| |
7 years parts and labor | ||
|
|||
|
|||
| (5147-D1) | |||
| Shipping Dimensions and Weights | ||||
|---|---|---|---|---|
| Part # | Height | Width | Depth | Weight |
| 60-1954-01 | 3.0" (7.6 cm) | 7.5" (19.1 cm) | 10.5" (26.7 cm) | 1.92 lbs (0.87 kg) |
