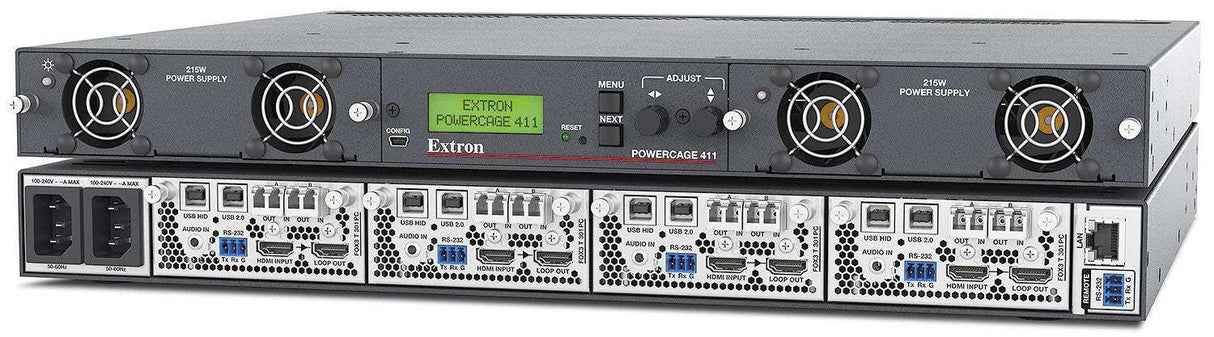

Extron PowerCage 411 Modular Power Enclosure for FOX3 Fiber Optic Extenders

Product Description

The Extron PowerCage 411 is a compact 1U, four-slot modular power enclosure that powers, manages, and mounts up to four Extron FOX3 Series fiber optic extender boards in a single rack space. As a centralized PowerCage enclosure for FOX3 fiber optic extenders, it removes the need for individual power supplies and consolidates transmitters and receivers into one managed chassis, simplifying integration for matrix-switched systems and multi-device workstations. Dual redundant, hot-swappable power supplies and active thermal management support continuous 24/7 operation in mission-critical commercial AV installations.

The modular, field-upgradeable design lets an integrator add, replace, or upgrade FOX3 boards at any time without powering down the system, and unpopulated slots provide room for future growth without additional rack space. A mixture of FOX3 transmitter and receiver boards can be installed to distribute signals to and from equipment racks, sources, and displays. Independent board power control allows each of the four slots to be powered on or off remotely, which streamlines maintenance and commissioning.

The PowerCage 411 provides local and remote management through a front-panel USB configuration port, a front-panel LCD display with real-time status indicators, a rear-panel RS-232 serial port, and an Ethernet control port with SNMP monitoring and secure SSH communication. Front-to-rear airflow with variable-speed fans keeps noise low while cooling each module. Housed in a 1U enclosure, it mounts in a rack, lectern, or under a desk and is well suited to command-and-control rooms, broadcast facilities, and large campus deployments. Browse the full Extron collection at Creation Networks for compatible FOX3 boards and fiber accessories.

Key Features

• Four-Slot Modular Enclosure — The PowerCage 411 accommodates up to four Extron FOX3 Series fiber optic extender boards in a single 1U rack space.
• Compact 1U Rack-Mountable Design — The space-saving 1U enclosure reduces required rack space and mounts in a rack, lectern, or under a desk.
• Field-Upgradeable, Hot-Swappable Boards — FOX3 modules can be added, replaced, or upgraded at any time without powering down the system for continuous operation.
• Dual Redundant Hot-Swappable Power Supplies — Primary and backup power supplies with dual AC power inputs provide reliability for 24/7 mission-critical applications.
• Independent Board Power Control — Each of the four slots can be powered on or off remotely for efficient maintenance and commissioning.
• Front-Panel LCD Display And Controls — A front-panel LCD with real-time status indicators reports power, communication, and installed board model per slot without a connected computer.
• Ethernet Monitoring With SNMP And SSH — Ethernet control supports proactive monitoring over LAN, WAN, or the internet with SNMP support and encrypted SSH communication.
• Active Thermal Management — Front-to-rear airflow with variable-speed fans cools each module while keeping noise levels low.
• Multiple Control Interfaces — Front-panel USB, rear-panel RS-232, and Ethernet ports enable configuration and control of the enclosure and installed modules.
• Everlast Power Supply Warranty — The internal Extron Everlast power supply is covered by a 7-year parts-and-labor warranty.

Technical Specifications

Frequently Asked Questions

What does the PowerCage 411 do?

It is a 1U, four-slot modular power enclosure that powers, mounts, and manages up to four Extron FOX3 Series fiber optic extender boards in a single rack space, eliminating individual power supplies for each extender.

Which modules are compatible?

The enclosure accepts single-slot Extron FOX3 Series fiber optic transmitter and receiver boards. A mixture of transmitter and receiver boards can be installed to distribute signals to and from equipment racks, sources, and displays.

Can boards be swapped without downtime?

Yes. The modular, field-upgradeable design supports hot-swappable boards and power supplies, so modules can be added, replaced, or upgraded without powering down the system, which is important for 24/7 mission-critical applications.

How is it monitored and controlled?

The PowerCage 411 provides a front-panel USB port and LCD display, a rear-panel RS-232 serial port, and an Ethernet control port with SNMP monitoring and secure SSH communication for local and remote management.

What power redundancy does it offer?

It includes dual redundant, hot-swappable power supplies and dual AC power inputs, allowing connection to a primary and a backup AC source for continuous operation in 24-hour environments.

Does Creation Networks provide support?

Yes. The enclosure is sold through Creation Networks with the Extron Everlast power supply 7-year warranty and AV integration support to help select the correct FOX3 boards for your system.
