Extron One XTP DTP Punchdown Jack White

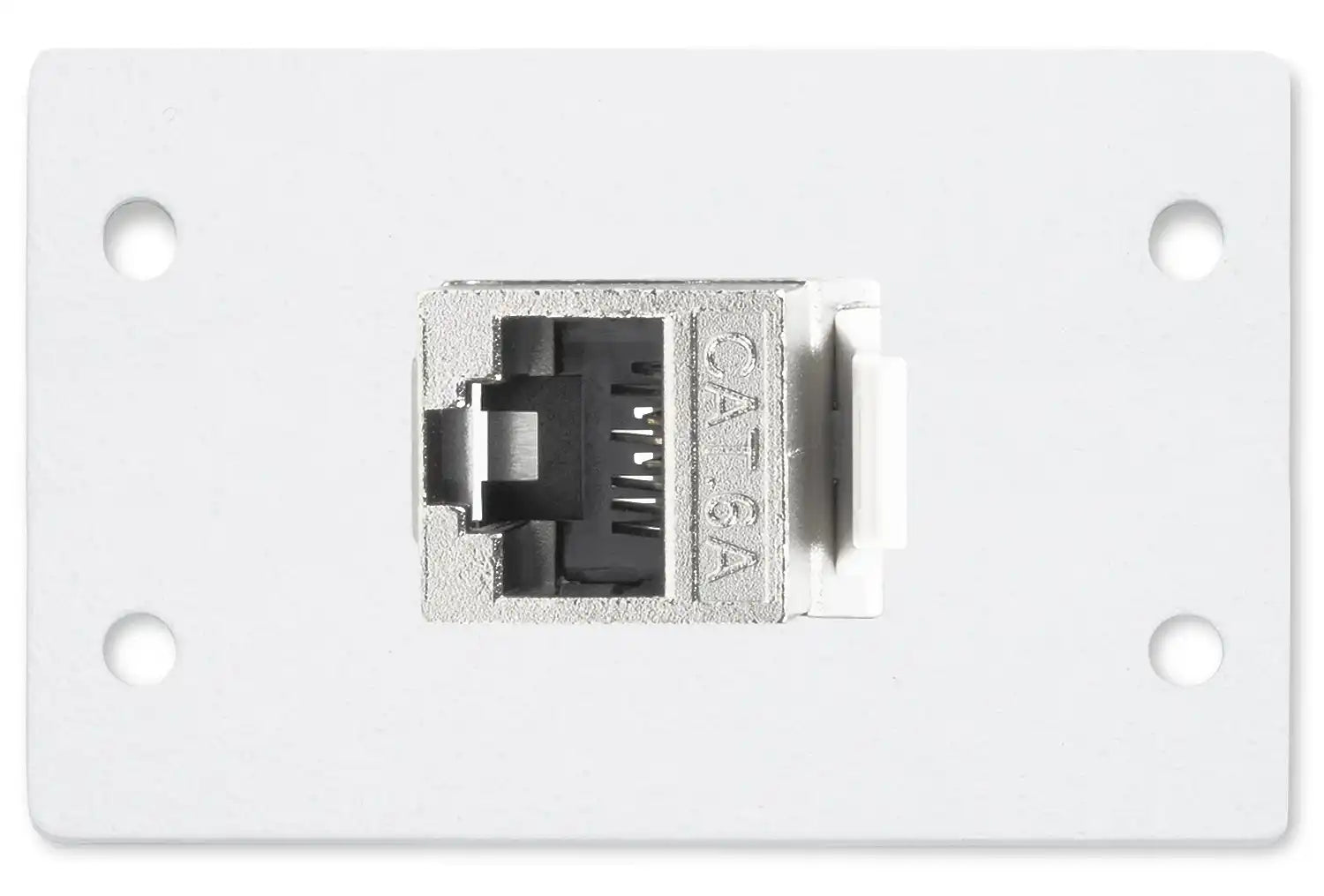

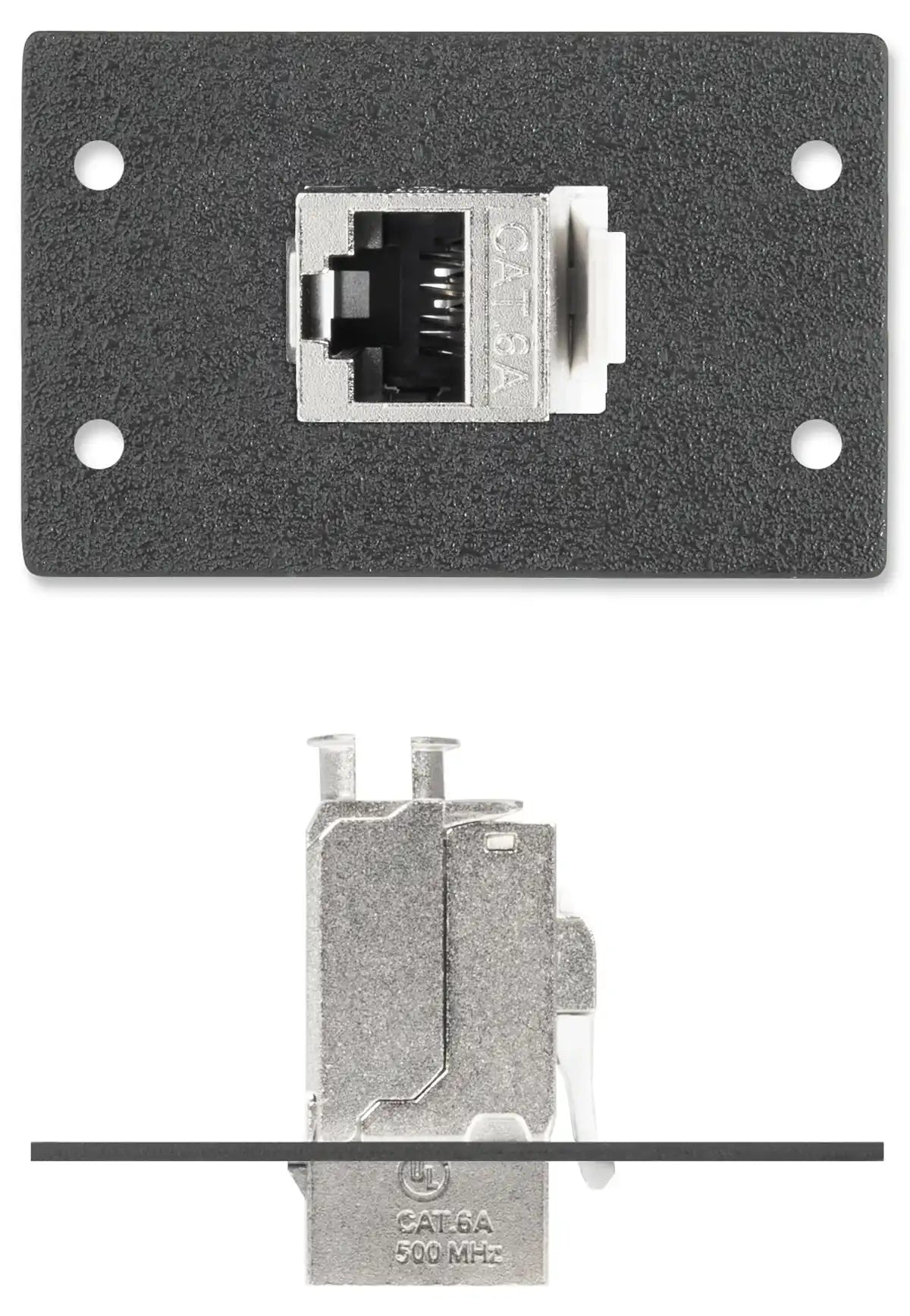

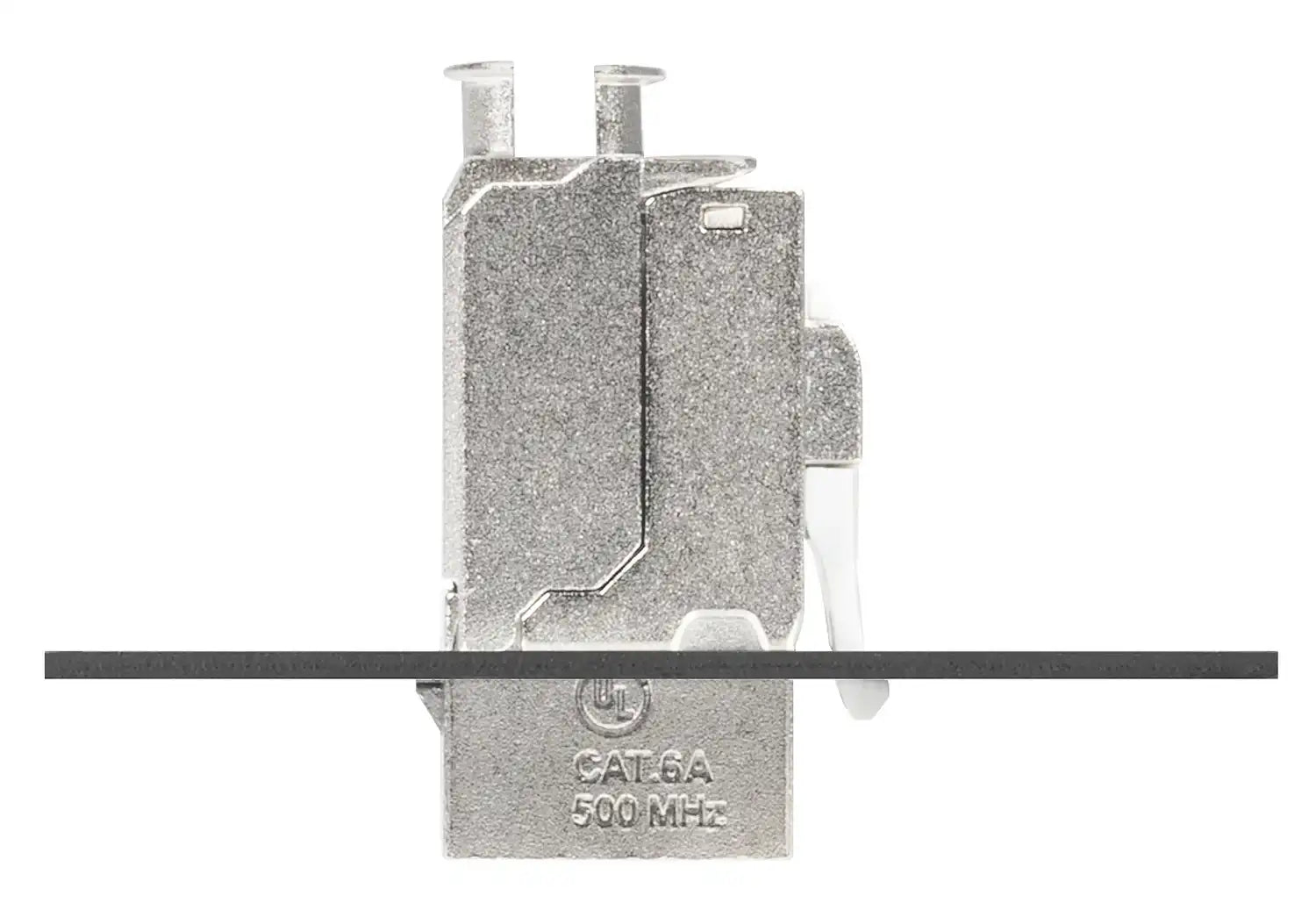

The Extron One XTP DTP Punchdown Jack is a mini AV connectivity module designed as a shielded RJ-45 keystone-style punchdown jack for use with Extron XTP DTP 22 and XTP DTP 24 shielded twisted pair cables. It provides reliable termination points for high-performance signal transmission in XTP Systems and DTP Systems, supporting extended-distance AV, control, and power delivery over CAT 6A infrastructure. This jack ensures optimal performance in professional environments with high EMI/RFI, making it suitable for wallplates, floor boxes, furniture, or AAP mounting frames in classrooms, conference rooms, and large-scale installations.
Engineered for shielded cable compatibility, it features a snap-in keystone design for easy integration into standard AV connectivity solutions. The punchdown termination supports TIA/EIA 568A/B wiring standards, delivering robust connectivity for digital video, audio, Ethernet, and bidirectional RS-232/IR control signals without signal degradation over recommended distances.
Features Chart
| Feature | Benefit |
|---|---|
| Shielded RJ-45 punchdown jack | Provides secure, high-performance termination for shielded twisted pair cables in EMI-prone environments |
| Designed for XTP DTP 22 and XTP DTP 24 cables | Ensures optimum signal integrity and maximum transmission distances in Extron systems |
| Keystone-style snap-in design | Allows quick and easy installation into wallplates, AAP modules, or similar frames |
| Compatible with CAT 6A infrastructure | Supports high-bandwidth applications including 4K/8K video and high-speed data |
| TIA/EIA 568A/B wiring standards | Enables standard, reliable punchdown termination for consistent performance |
| Mini module form factor | Fits compact spaces in architectural AV setups like wall boxes or furniture |
| Fully shielded construction | Reduces interference for reliable signal transmission in professional installations |
| Punchdown IDC terminals | Simplifies field termination with standard 110-style tools for fast setup |
Specifications Table
| Specification | Details |
|---|---|
| Connector Type | Shielded RJ-45 punchdown jack (keystone style) |
| Cable Compatibility | Extron XTP DTP 22 and XTP DTP 24 shielded twisted pair cables (CAT 6A) |
| Wiring Standards | TIA/EIA 568A/B |
| Transmission Support | Optimized for XTP/DTP Systems (video, audio, control, power over distance) |
| Max Distance | Dependent on system (typically up to 330 ft / 100 m for 4K signals with recommended cable) |
| Enclosure Type | Keystone module (snap-in) |
| Mounting | Wallplates, AAP AV Connectivity Modules, junction boxes, or similar frames |
| Shielding | Fully shielded for EMI/RFI protection |
| Termination | Punchdown IDC (Insulation Displacement Connectors) |
| Regulatory Compliance | RoHS, typical Extron standards for AV connectivity |
Compare Chart
| Aspect | Extron One XTP DTP Punchdown Jack | Extron XTP DTP 24 Punch Down Jack | Leviton CAT 6A Shielded Keystone Jack |
|---|---|---|---|
| Cable Compatibility | XTP DTP 22/24 shielded | XTP DTP 22/24 shielded | General CAT 6A shielded |
| Shielding | Fully shielded | Fully shielded | Shielded |
| Design | Mini keystone snap-in | Standard keystone | Standard keystone |
| Optimized for Extron Systems | Yes (XTP/DTP) | Yes (XTP/DTP) | No (general use) |
| Termination Type | Punchdown IDC | Punchdown IDC | Punchdown IDC |
| EMI/RFI Protection | High (shielded for pro AV) | High | High |
| Mounting Flexibility | Wallplates, AAP frames | Wallplates, frames | Standard keystone mounts |
| AV Signal Focus | High-speed digital AV/control | High-speed digital AV/control | General networking/AV |
FAQ
- What cables is the One XTP DTP Punchdown Jack compatible with? It is specifically designed for Extron XTP DTP 22 and XTP DTP 24 shielded twisted pair cables (CAT 6A).
- What type of termination does it use? It features punchdown IDC terminals compatible with standard 110-style punchdown tools for easy field installation.
- Is it suitable for high-EMI environments? Yes, its fully shielded design provides excellent protection against electromagnetic and radio frequency interference.
- What mounting options are available? The keystone snap-in style fits into wallplates, AAP AV Connectivity Modules, junction boxes, or similar architectural frames.
- Does it support 4K or higher resolutions? When used with compatible XTP/DTP transmitters/receivers and recommended cable, it supports high-bandwidth signals including 4K video over extended distances.
- What wiring standard should be followed? Use TIA/EIA 568A or 568B wiring configuration for consistent performance and compatibility with Extron systems.
