Extron NBP VC2 EU Network Button Panel with Dual Volume Control Flex55 and EU, Black and White, Dual Vol
Extron NBP VC2 EU Network Button Panel with Dual Volume Control Flex55 and EU, Black and White, Dual Vol is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron NBP VC2 EU Network Button Panel with Dual Volume Control Fle...

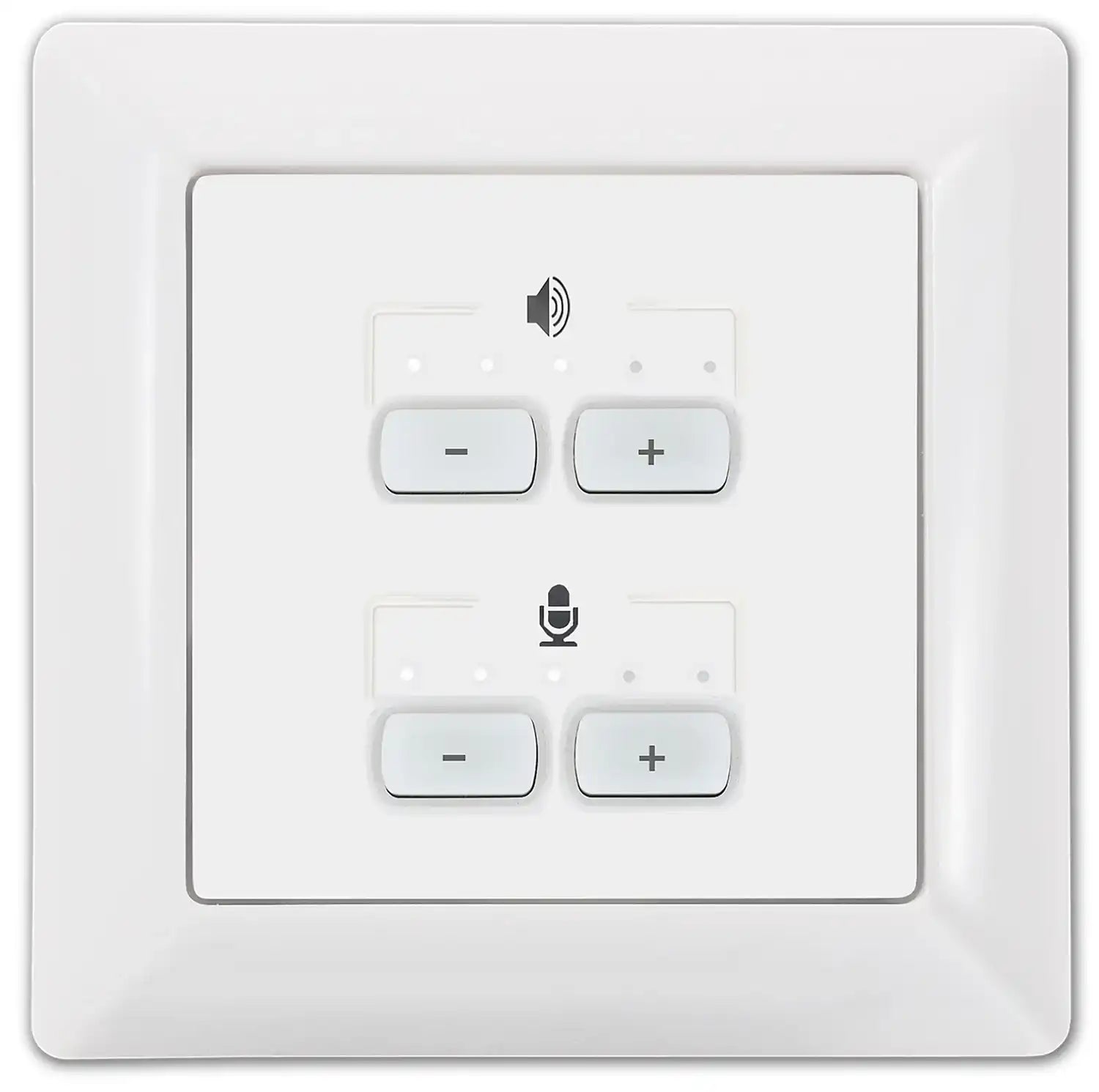

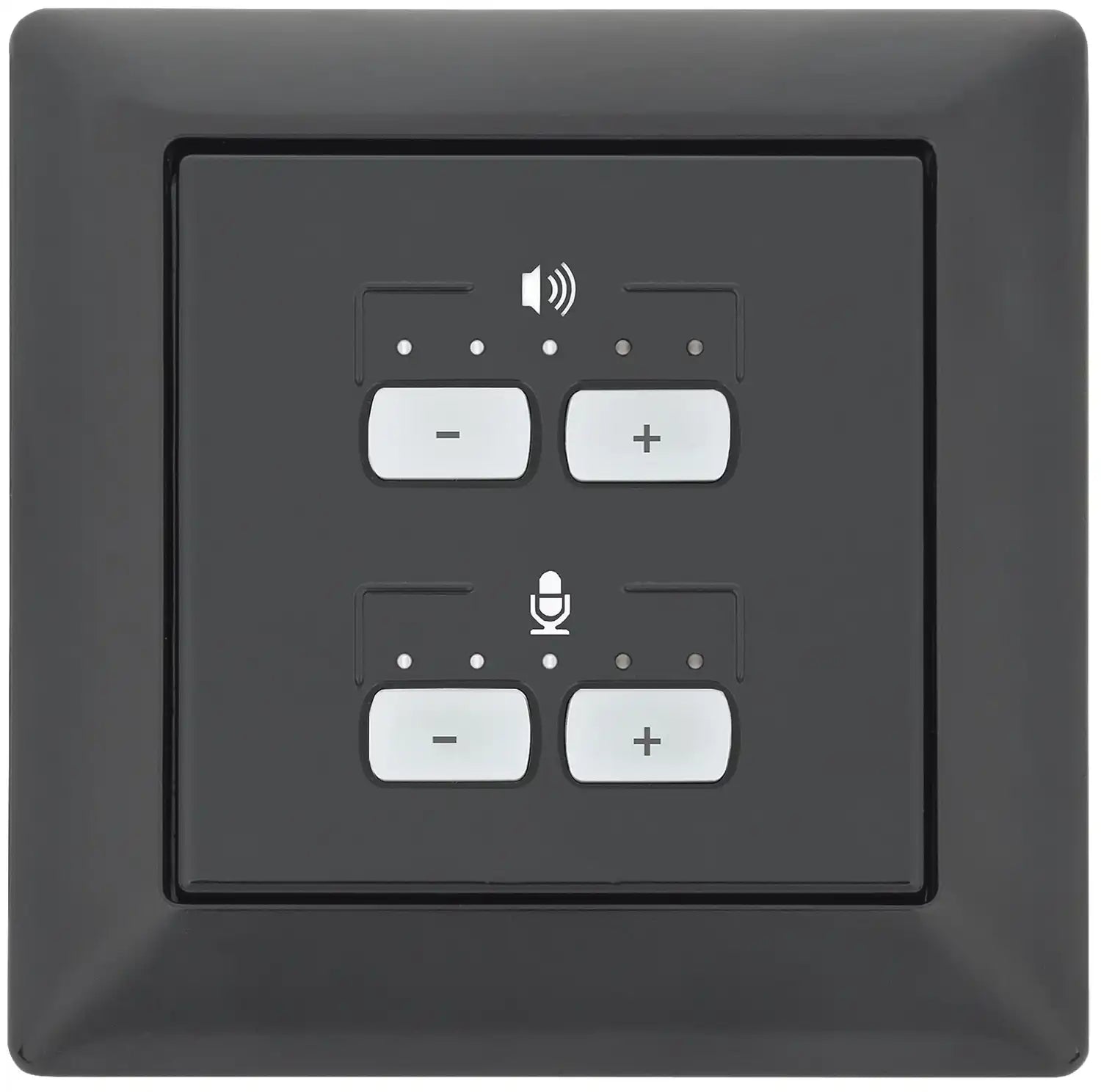

The Extron NBP VC2 EU is a fully customizable network button panel serving as a dedicated AV control interface for Extron systems, providing precise room-level management of program volume and microphone levels. Connected over standard Ethernet to a compatible control processor, it enables incremental adjustments to audio sources and mic input, along with mute functions for both, ensuring intuitive operation in professional presentation environments. Four backlit, soft-touch buttons offer clear visibility in low-light conditions, with bright LEDs delivering at-a-glance level indication for volume and microphone settings.
Powered via PoE, the panel simplifies installation by combining data and power over a single cable run. It supports worldwide deployment through compatibility with EU one-gang junction boxes, Flex55 modules, mounting kits, and enclosures. Buttons are fully customizable using Extron's Custom Button Builder software for tailored labels and command assignments specific to room requirements.
This panel is ideal for classrooms, conference rooms, boardrooms, lecture halls, and huddle spaces where separate control of program audio and microphone levels enhances usability and audio clarity during presentations, discussions, or meetings, integrating seamlessly with Extron IPCP Pro, IPL Pro, or workspace automation platforms.
Features Chart
| Feature | Benefit |
|---|---|
| Dual volume control (program and microphone) | Allows independent adjustment of main audio and mic levels |
| Four backlit, soft-touch customizable buttons | Enables tailored functions with easy visibility in varied lighting |
| Bright LEDs for level indication | Provides instant visual feedback on current volume and mic settings |
| Volume adjustment buttons with LEDs | Offers precise incremental control with confirmation |
| Microphone adjustment and mute buttons with LEDs | Ensures clear mic level management and mute status indication |
| Standard Ethernet connectivity | Integrates reliably into network-based AV control systems |
| PoE powered | Eliminates separate power supplies for simplified cabling |
| EU and Flex55 compatibility | Fits standard EU junction boxes and Extron modular mounting solutions |
Specifications Table
| Specification | Details |
|---|---|
| Buttons | 4 backlit, soft-touch, customizable |
| Controls | Volume adjustment buttons, microphone adjustment buttons, mute buttons |
| Indicators | Bright LEDs for volume and microphone level indication |
| Connectivity | 1 female RJ-45 (Ethernet/LAN/PoE) |
| Power | PoE (IEEE 802.3af Class 3 compliant) |
| Power Consumption | Device: 2.0 watts; Device + PoE injector: 2.8 watts |
| Thermal Dissipation | Device: 6.8 BTU/hr; Device + PoE injector: 9.5 BTU/hr (approximate from series) |
| Mounting | EU one-gang junction boxes; Flex55 modules, frames, enclosures, kits |
| Customization | Custom Button Builder software |
| Form Factor | One-gang EU style |
| Operating Temperature | +32 to +122 °F (0 to +50 °C) |
| Weight | 0.2 lbs (0.1 kg) |
Compare Chart
| Aspect | Extron NBP VC2 EU | Extron NBP VC1 EU | Extron NBP 108 EU |
|---|---|---|---|
| Primary Focus | Dual volume (program + mic) + mute | Single volume + mute | 8 general customizable buttons |
| Buttons | 4 backlit soft-touch | 1 backlit soft-touch + rotary knob | 8 backlit soft-touch |
| Volume Control | Buttons with LED indication | Rotary knob + 5 LEDs | Configurable (no dedicated) |
| Microphone Control | Dedicated adjustment + mute | None | Configurable |
| Level Indication | LEDs for both volume and mic | 5 LEDs for volume | None inherent |
| Power Source | PoE | PoE | PoE |
| Form Factor | One-gang EU/Flex55 | One-gang EU/Flex55 | One-gang EU/Flex55 |
| Customization | Full via Custom Button Builder | Mute button via Custom Builder | Full button labeling/functions |
FAQ
- What does dual volume control mean on the NBP VC2 EU? It manages program audio (main system sound) and microphone levels separately for balanced audio in presentations or discussions.
- How are levels adjusted and monitored? Dedicated buttons increment/decrement levels, with bright LEDs showing current settings for both volume and microphone at a glance.
- Is the panel powered over the network? Yes, it uses PoE via the Ethernet connection, reducing cabling and simplifying installation.
- Can buttons be customized for specific commands? Yes, Extron's Custom Button Builder software allows full customization of labels and assigned functions.
- What mounting options are supported? It fits standard EU one-gang junction boxes and Extron Flex55 modules, kits, and enclosures for flexible global installations.
- How does it integrate with AV systems? It connects to Extron control processors over Ethernet to execute configured commands for volume, mic control, mute, and other AV functions.
