Extron NBP VC1 EU Network Button Panel with Volume Control

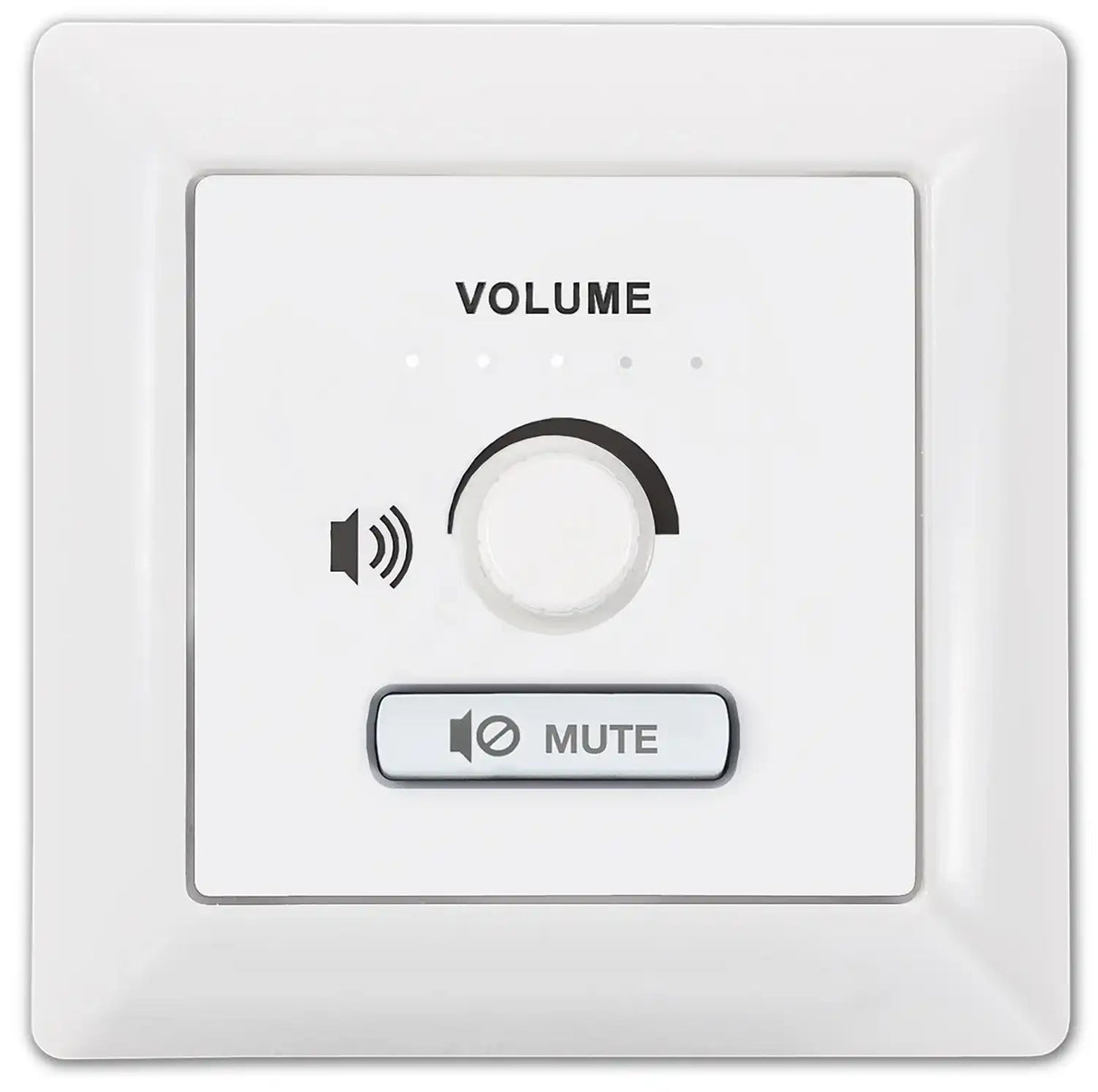

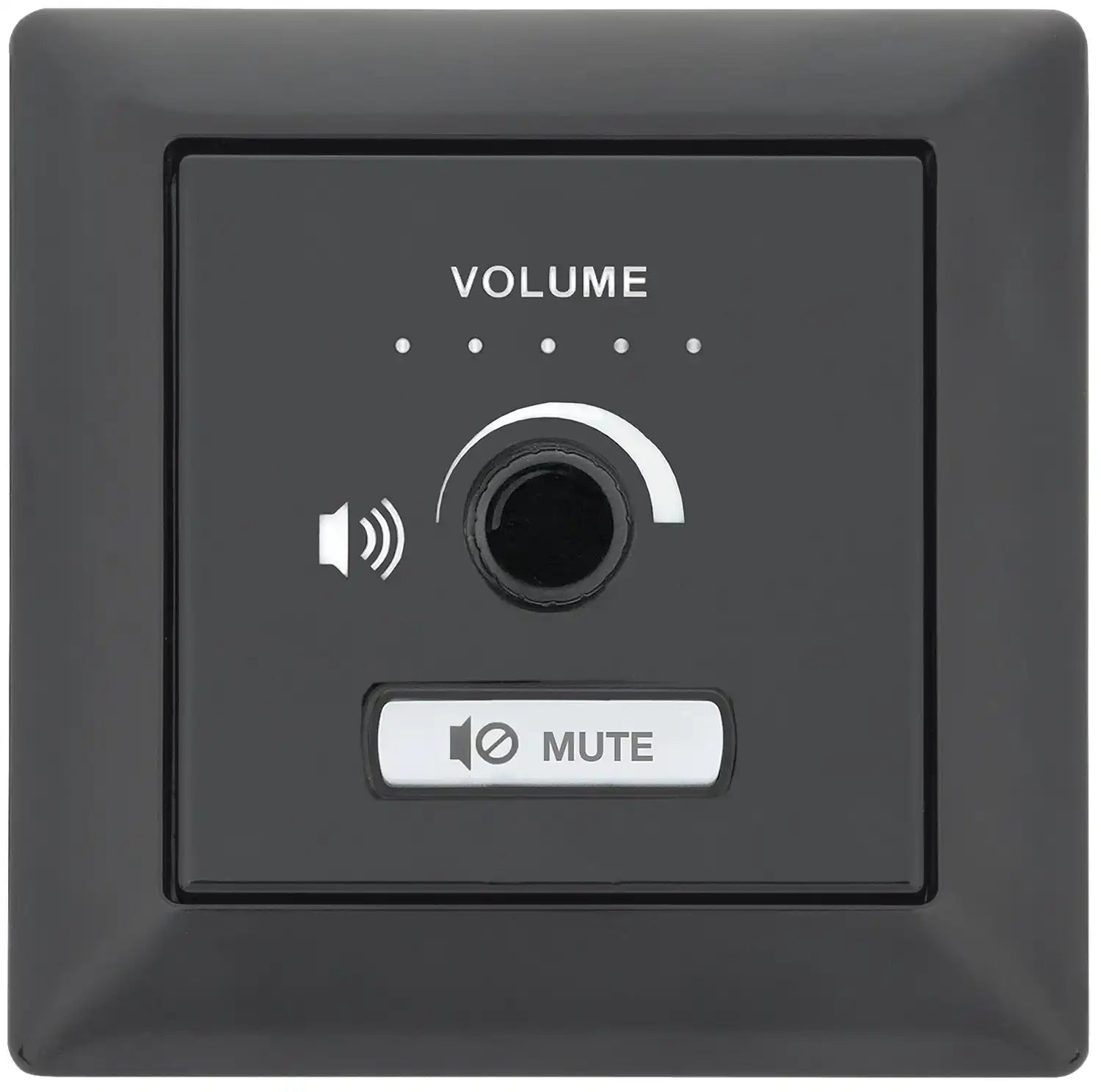

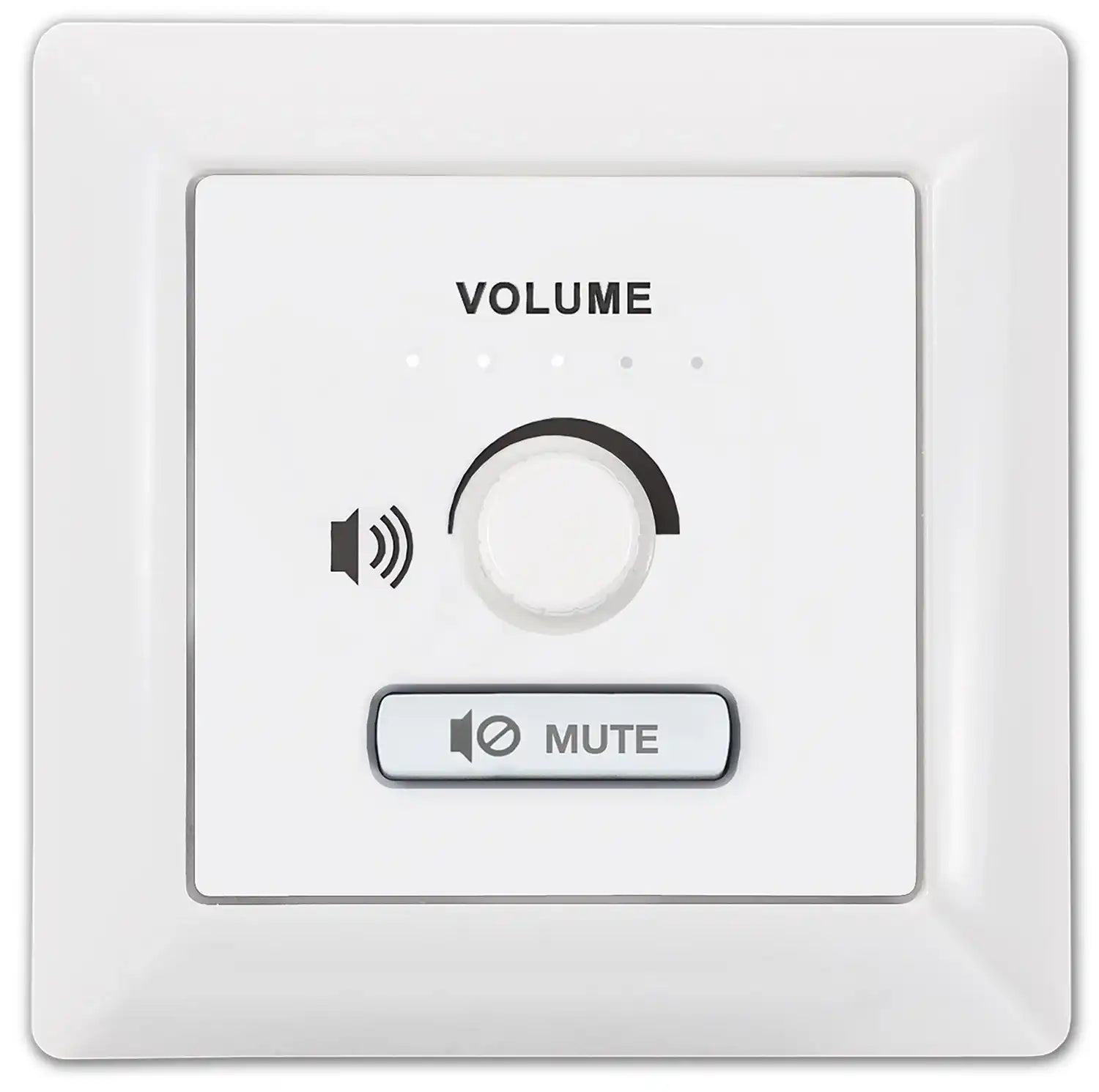

The Extron NBP VC1 EU is a fully customizable network button panel designed as a dedicated volume control interface for Extron AV control systems. Connected via standard Ethernet to a compatible control processor, it provides precise room-level audio adjustment with a rotary volume control knob for smooth, incremental changes and a dedicated mute function. Five bright LEDs offer clear visual indication of current volume levels at a glance, while the dual-color illuminated soft-touch mute button confirms status effectively.

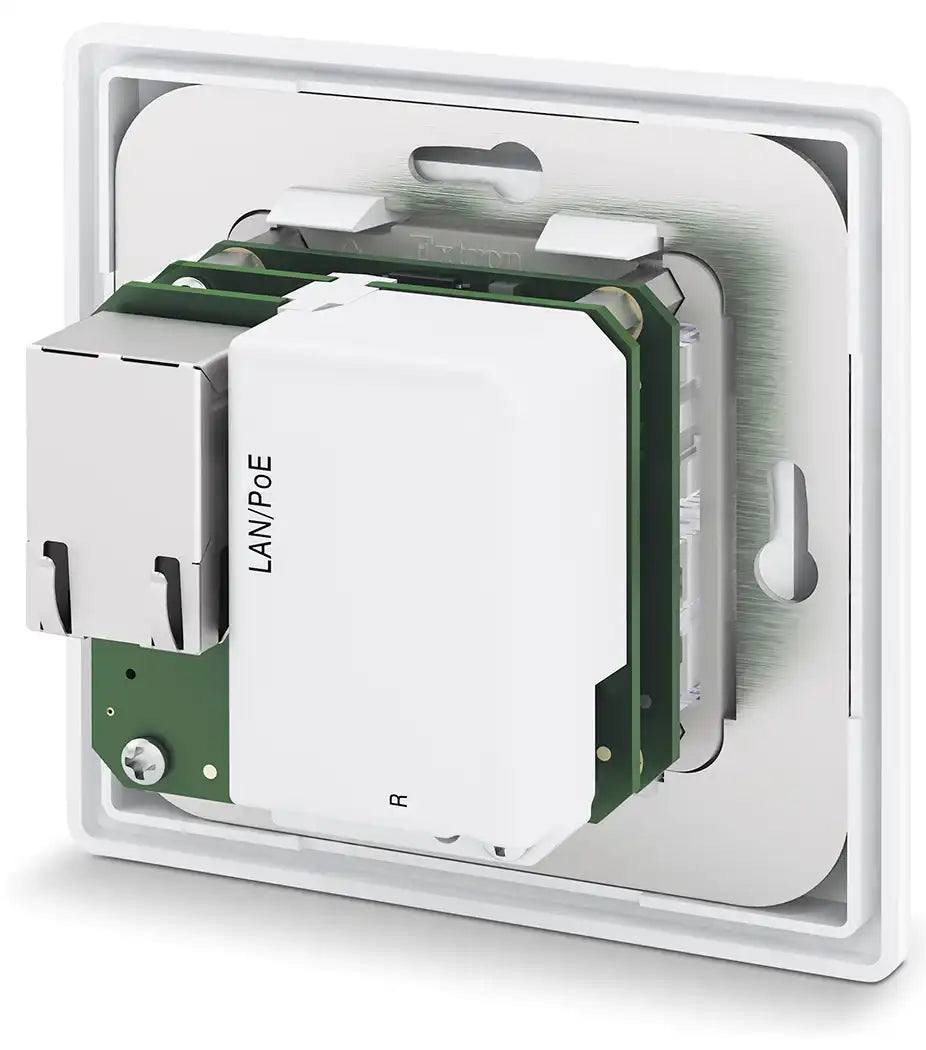

Powered conveniently over Ethernet (PoE), the panel eliminates separate power requirements and supports worldwide installations through compatibility with EU one-gang junction boxes, Flex55 modules, mounting kits, and enclosures. The backlit soft-touch mute button is customizable using Extron’s Custom Button Builder software for tailored labeling and functionality integration.
This panel is ideal for classrooms, conference rooms, boardrooms, lecture halls, and huddle spaces where straightforward, wall-mounted volume management enhances user experience without complex interfaces, integrating seamlessly with Extron IPCP Pro, IPL Pro, or workspace automation systems.
Features Chart
| Feature | Benefit |
|---|---|
| Rotary volume control knob | Delivers smooth, precise audio level adjustments |
| Five bright LEDs for volume indication | Provides instant at-a-glance feedback on current system volume |
| Dual-color illuminated mute button | Offers clear visual confirmation of mute status with backlighting |
| One customizable backlit soft-touch button | Allows tailored mute or additional functions via Custom Button Builder |
| Standard Ethernet connectivity | Integrates reliably into existing networks for control processor link |
| PoE powered | Simplifies installation by using network cable for both data and power |
| EU and Flex55 compatibility | Fits standard EU junction boxes and Extron modular mounting systems |
| Compact one-gang form factor | Enables discreet, professional wall mounting in AV environments |
Specifications Table
| Specification | Details |
|---|---|
| Controls | Rotary volume knob; 1 backlit soft-touch mute button (customizable) |
| Indicators | 5 bright LEDs (volume level); dual-color illumination on mute button |
| Connectivity | Standard Ethernet (LAN/PoE port) |
| Power | PoE (Power over Ethernet) |
| Mounting | EU one-gang junction boxes; Flex55 modules, frames, enclosures, mounting kits |
| Customization | Custom Button Builder software for button labeling and functions |
| Form Factor | One-gang EU style |
| Thermal Dissipation | Device: 5.6 BTU/hr; Device + PoE injector: 8.0 BTU/hr |
| Operating Temperature | +32 to +122 °F (0 to +50 °C) |
| Compatibility | Extron control processors (IPCP Pro, IPL Pro series); network-based AV systems |
Compare Chart
| Aspect | Extron NBP VC1 EU | Extron NBP 104 EU | Extron NBP VC2 EU |
|---|---|---|---|
| Primary Control Focus | Volume knob + mute | 4 general buttons | Dual volume + buttons |
| Buttons/Knobs | 1 customizable button + rotary knob | 4 backlit buttons | Multiple buttons + dual knobs |
| Volume Indication | 5 LEDs + knob | None | LEDs (likely similar) |
| Power Source | PoE | PoE | PoE |
| Form Factor | One-gang EU/Flex55 | One-gang EU/Flex55 | Larger EU/Flex55 |
| Customization | Button via Custom Builder | Full button labeling | Full button labeling |
| Audible Feedback | Not specified (mute illumination) | Built-in speaker (some models) | Not specified |
| Use Case | Dedicated volume control | General AV commands | Advanced volume + controls |
FAQ
- What is the main function of the NBP VC1 EU? It provides dedicated, precise volume control and mute for AV systems when integrated with an Extron control processor over Ethernet.
- How is volume adjusted and monitored? Use the rotary knob for smooth changes, with five LEDs displaying current level for quick visual reference.
- Does the mute button provide status feedback? Yes, it features dual-color illumination to clearly indicate whether audio is muted or active.
- How is the panel powered and connected? It uses PoE via a standard Ethernet cable, combining power and network connectivity in one run.
- Is it suitable for EU installations? Yes, it mounts in standard one-gang EU junction boxes and works with Extron Flex55 systems for flexible worldwide deployment.
- Can the mute button be customized? Yes, Extron’s Custom Button Builder software allows labeling and function assignment tailored to the room or application.
