Extron NBP 200 3-Gang, Black and White, 10 Button

The Extron NBP 200 Network Button Panel is a fully-customizable AV system control interface for Extron Pro Series control systems and HC 400 Series products. Network Button Panels connect to a control processor using standard Ethernet. These customizable, easy-to-use control panels work in conjunction with a control processor to perform a wide variety of AV system functions such as display On/Off, input switching, volume control, and much more. The NBP 200 features 10 dual-colored backlit buttons for easy operation in low-light environments and a control knob with LED indicators for controlling various functions on virtually any device. Network Button Panels feature the convenience of PoE. The NBP 200 mounts in a three-gang junction box and includes black and white faceplates and mud ring.

Features

• Fully customizable Network Button Panel integrates easily with an Extron Pro Series control system or HC 400 Series collaboration systems

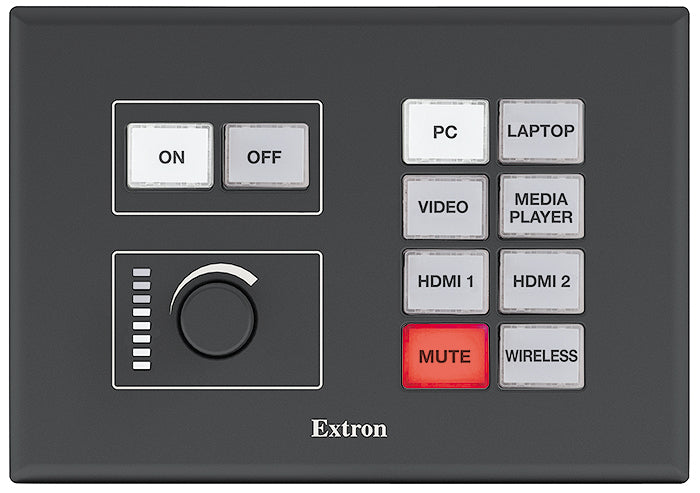

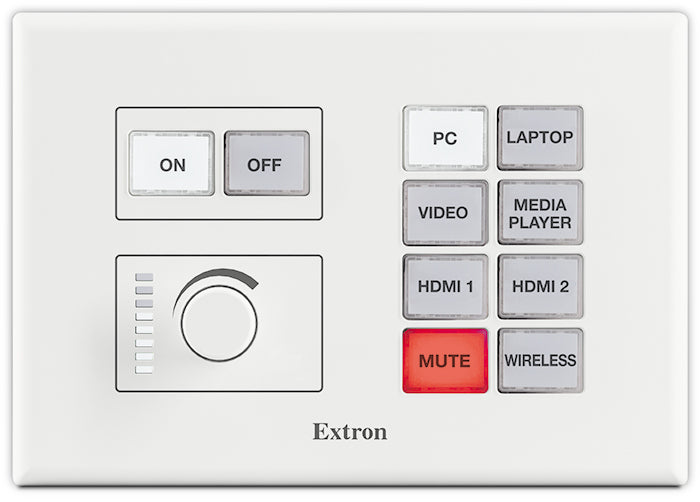

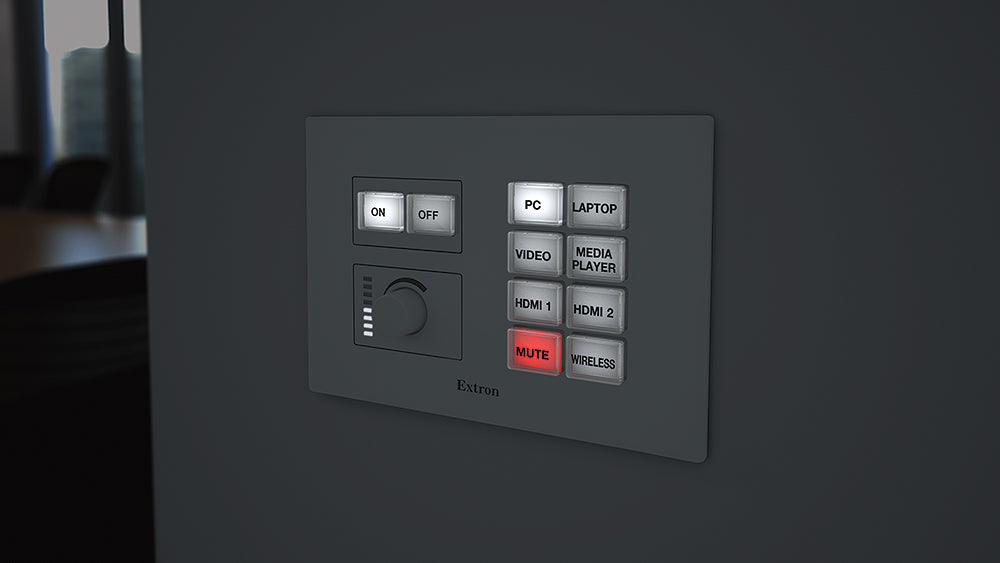

• Ten dual-color, customizable, backlit buttons
• Compatible with all Extron IP Link Pro control processors and HC 400 Series systems
• Network Button Panels use standard Ethernet connectivity

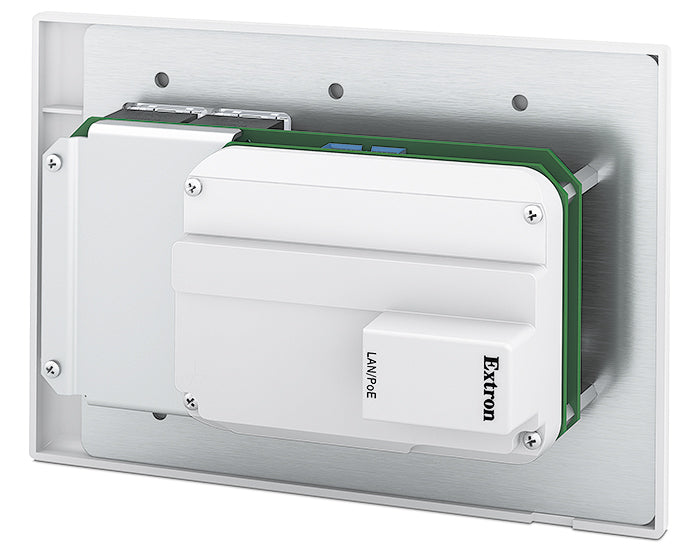

• PoE powered — 802.3af Power over Ethernet allows this button panel user interface to receive power and communication over a single Ethernet cable, eliminating the need for a local power supply.
• Control knob with LED indicators can be used for volume, or for controlling specific functions on virtually any device that supports Ethernet, RS-232, or IR

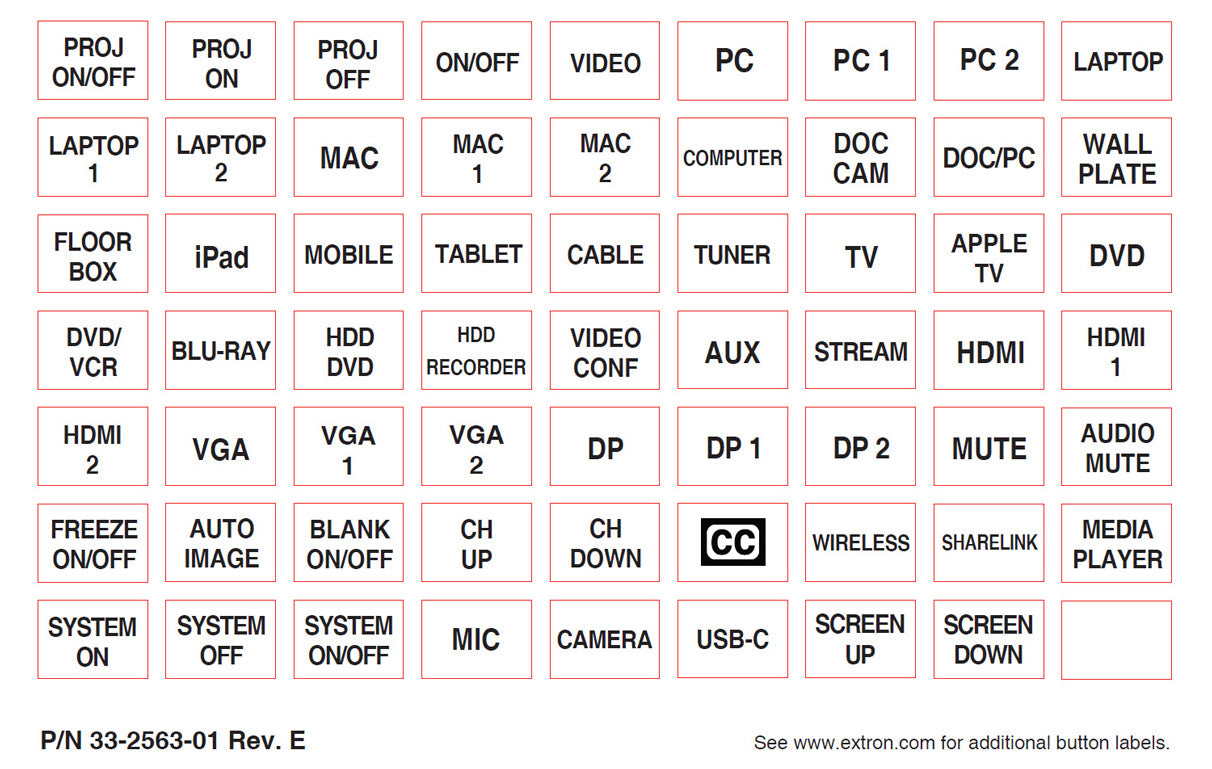

• Removable button caps make changing labels in the field easy — Label each button to clearly indicate its function. Labels can be quickly changed and don't require programming or engraving.
• Fully customizable using Extron control system software — Configurable using Global Configurator Plus, Global Configurator Professional, or programmable using ControlScript.
• Library of Pro Series device drivers and modules for use with Global Configurator and ControlScript programming, respectively — Start and execute projects quickly using Extron Global Configurator device drivers and Extron device modules to control various display and source devices, such as projectors, flat-panel displays, and Blu-ray players. Extron offers fully tested Ethernet, serial, and IR device drivers and modules.
• Section 508 Compliant — Meets or exceeds accessibility standards for Electronic Information Technology. For more information about Extron's Commitment to Accessibility please see our Accessibility Page.
• Supports the Extron Control App
• Includes black and white, three-gang faceplates and mud ring
• TAA Compliant version available — Please inform your local Extron representative if your order requires compliance with TAA regulations.

Network Button Panels — US Gang Series
Memory
SDRAM	512 MB
Flash	512 MB
Software
Configuration software	Global Configurator® Plus and Professional
Programming software	Global Scripter® ControlScript® Deployment Utility and ControlScript Extension for VS Code
Control apps	Extron Control
Resource management software	GlobalViewer® Enterprise
Utilities	Toolbelt, embedded web page
Ethernet
Network interface controllers (NICs)	1
Connector	1 female RJ-45 connector
Data rate	10/100Base-T, half/full duplex with autodetect
Protocols	DHCP, DNS, HTTP (redirect), HTTPS, ICMP, IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
Default settings	Link speed and duplex level = autodetected IP address = 192.168.254.253 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = off DNS = 127.0.0.1
General
Power supply	Not included
Power input requirements	Power over Ethernet (PoE) (complies with PoE 802.3af, class 3)
Power consumption — Power injector (PI 115)
NBP 50
Device	2.1 watts
Device and PoE injector	4.3 watts
NBP 100
Device	2.2 watts
Device and PoE injector	3.9 watts
NBP 200
Device	3.0 watts
Device and PoE injector	4.0 watts
Ambient temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, no vents
Thermal dissipation
NBP 50
Device	7.1 BTU/hr
Device and PoE injector	14.6 BTU/hr
NBP 100
Device	7.3 BTU/hr
Device and PoE injector	13.3 BTU/hr
NBP 200
Device	10.0 BTU/hr
Device and PoE injector	13.5 BTU/hr
Mounting
Rack mount	No
Furniture or wall mount
NBP 50, NBP 100	Yes, in a standard US 2-gang electrical junction box or mud ring
NBP 200	Yes, in a standard US 3-gang electrical junction box or mud ring
Enclosure type	Plastic faceplate and high-impact plastic rear enclosure
Enclosure dimensions
NBP 50, NBP 100
Faceplate	4.50" H x 4.60" W x 0.30" D (114 mm H x 117 mm W x 8.6 mm D)
Device	2.63" H x 3.50" W x 1.85" D (67 mm H x 89 mm W x 47 mm D) (Depth excludes faceplate, buttons, and knob. Fits most 2 gang US boxes or mud rings. Allow depth in the wall or furniture for device and cable clearance.)
NBP 200
Faceplate	4.50" H x 6.42" W x 0.30" D (114 mm H x 163 mm W x 7.6 mm D)
Device	2.73" H x 5.18" W x 1.85" D (69 mm H x 132 mm W x 47 mm D) (Depth excludes faceplate, buttons, and knob. Fits most 3 gang US boxes or mud rings. Allow depth in the wall or furniture for device and cable clearance.)
Product weight
NBP 50	0.7 lb (0.3 kg)
NBP 100	1.2 lb (0.5 kg)
NBP 200	1.6 lb (0.7 kg)
Regulatory compliance	CE, C-Tick, c-UL, FCC Class A, ICES, UL, VCCI Complies with the appropriate requirements of RoHS, WEEE, and Section 508 of the Rehabilitation Act (29 U.S.C. 794d).
Product warranty	3 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(6250-D5)
