Extron NAVigator Entry Level Version for 16 Endpoints

Product Description

The Extron NAVigator Entry Level System Manager for 16 Endpoints is a secure, browser-managed appliance that serves as the central AV-over-IP system manager for Extron NAV Pro AV over IP systems. As the configuration, monitoring, and control hub of a NAV deployment, the NAVigator gives commercial AV integrators a single point of administration for encoders, decoders, and KVM endpoints across the network. The entry-level model manages up to 16 NAV endpoints out of the box and scales to 48, 96, or 240 devices through optional LinkLicenses, while multiple NAVigator units can operate together to support thousands of endpoints across an enterprise or campus.

Operating as a NAV system manager, the NAVigator turns a distributed network of encoders and decoders into an IP-based video, audio, and USB matrix that retains integration-friendly features from Extron conventional matrix switchers, including Key Minder, EDID Minder, and audio and USB breakaway. Two independent LAN ports separate AV traffic from the management network, supporting secure network isolation for installations with strict data-segregation requirements. Native integration with Extron Pro Series control systems provides end-to-end encrypted control of every attached NAV endpoint.

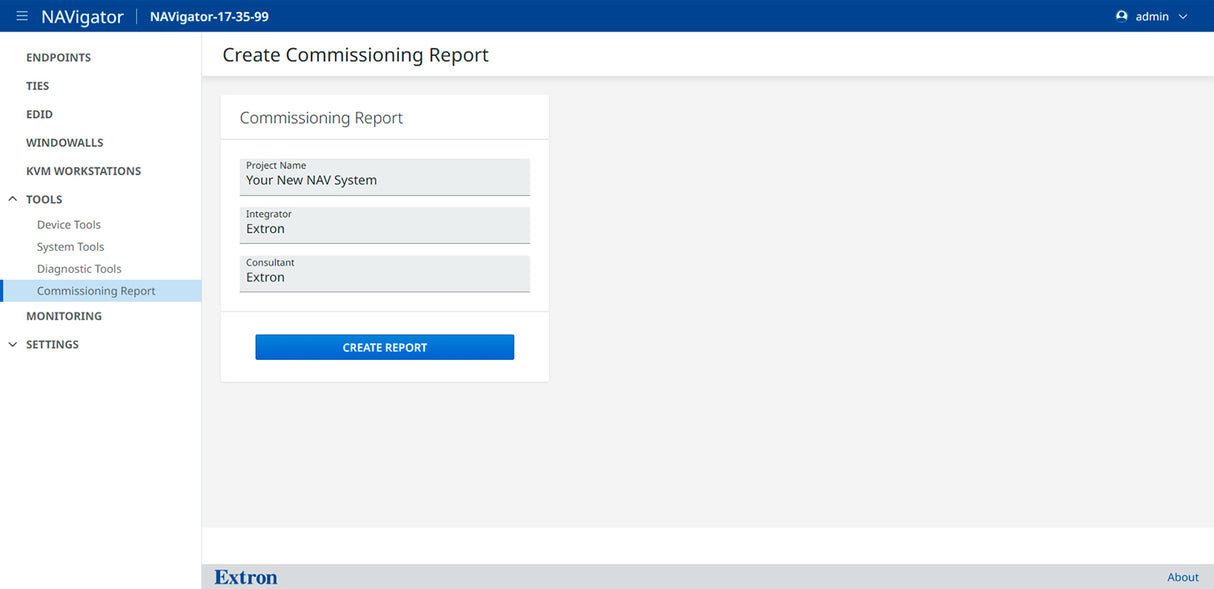

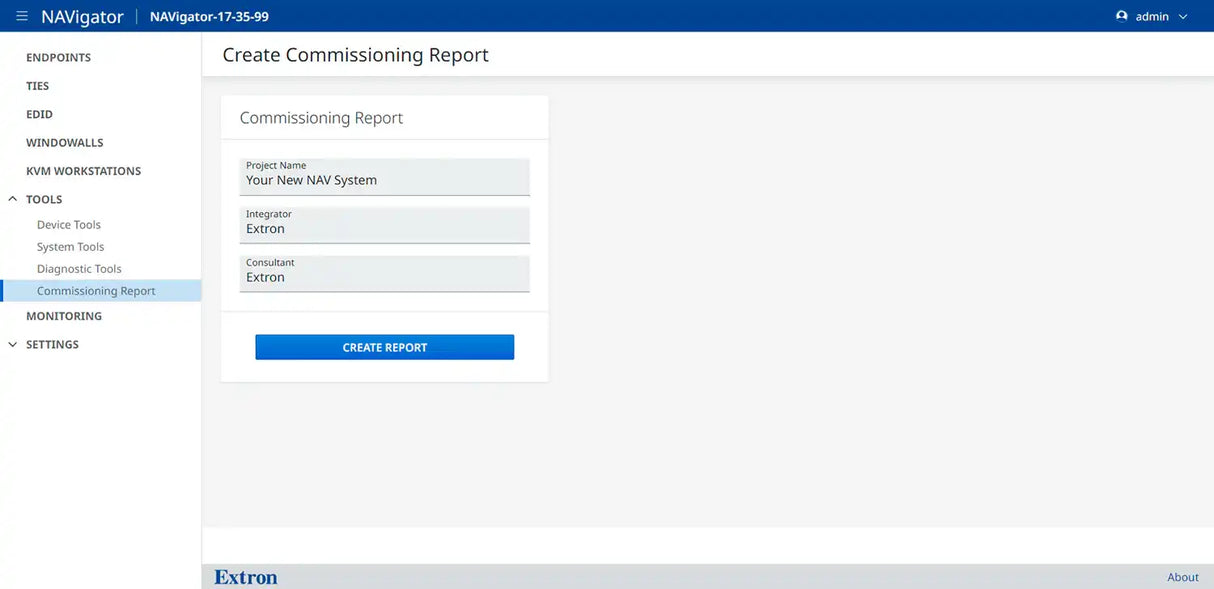

Typical deployments include enterprise meeting spaces, command-and-control rooms, higher-education campuses, courtrooms, and government facilities where centralized management, encrypted AV distribution, and high availability are required. The NAVigator supports browser-based commissioning, bulk firmware updates, automated backups, and redundancy with a failover unit, making it well suited to large-scale, future-ready AV-over-IP video distribution. Browse the full Extron collection at Creation Networks to build a complete NAV system.

Key Features

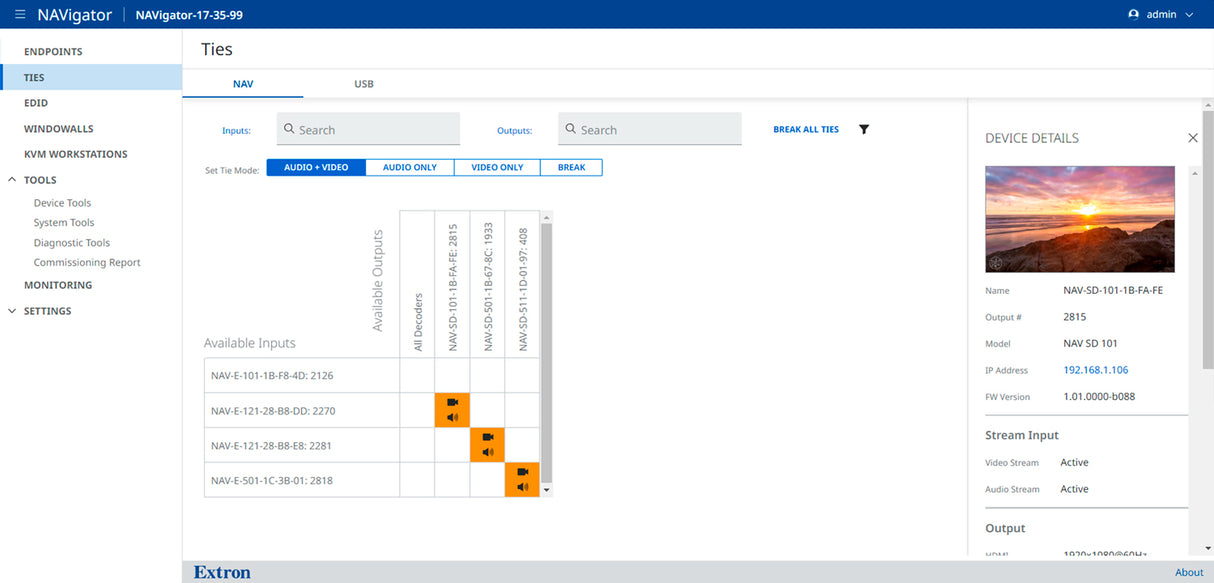

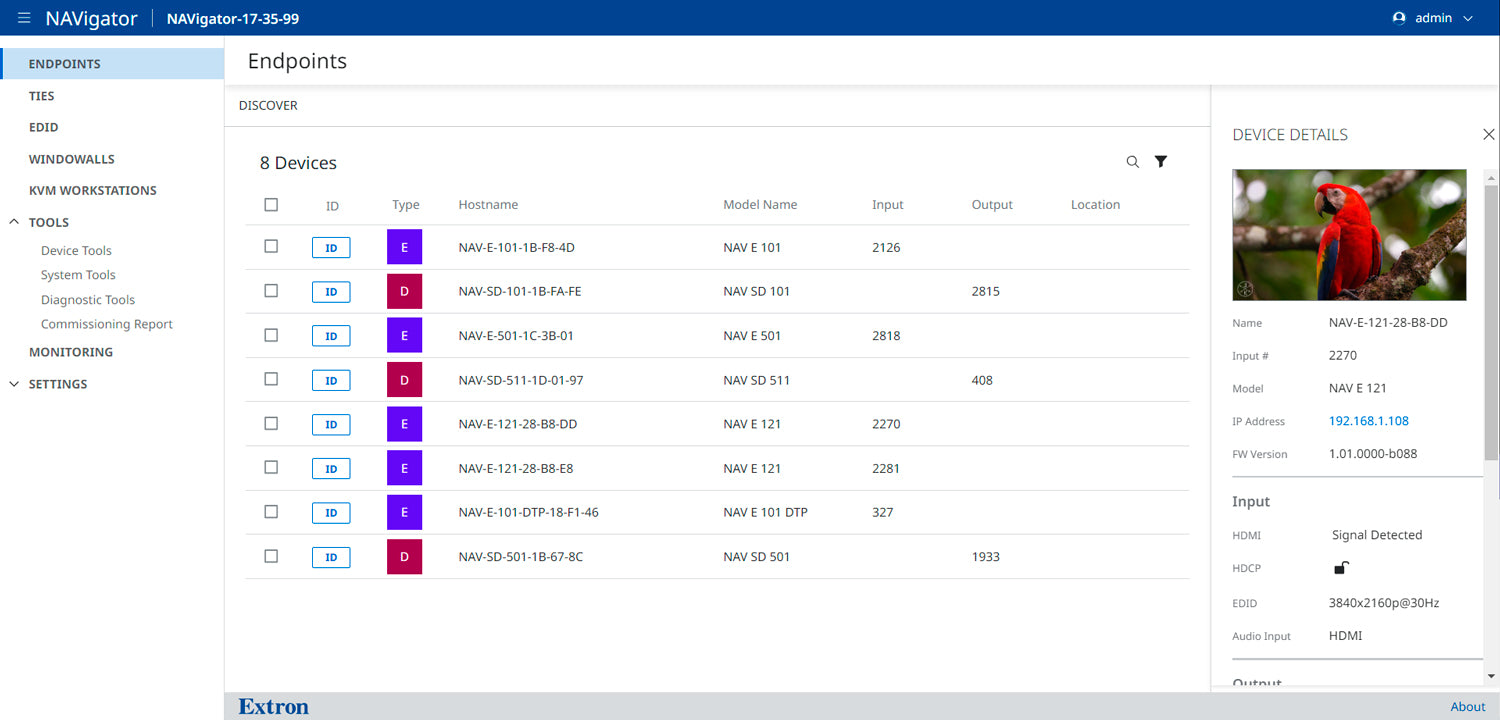

• Centralized AV-over-IP System Management — The NAVigator securely configures, monitors, controls, and troubleshoots a complete NAV Pro AV over IP system from a single browser-based interface.
• Scalable Endpoint Capacity — The entry-level unit manages 16 NAV endpoints and expands to 48, 96, or 240 devices with optional LinkLicenses, while multiple NAVigators combine to support thousands of endpoints.
• Dual Independent LAN Ports — Two isolated Gigabit Ethernet ports separate management and control from the AV network, enabling secure network isolation and flexible system design.
• End-to-End Encrypted Communication — All communication between the NAVigator and its endpoints is encrypted using SSH and AES-256, with SRTP protecting video and data streams.
• Enterprise Authentication and Access Control — Support for 802.1X port-based Network Access Control and Microsoft Active Directory simplifies user, group, and password management across the deployment.
• NAVigator Redundancy for High Availability — A backup NAVigator can take over automatically if the main unit fails, creating a high-availability NAV system for mission-critical installations.
• Bulk Firmware Updates and Automated Backup — Administrators can upgrade firmware on all endpoints in parallel and schedule automated backups of NAVigator configuration data from one interface.
• Pro Series Control Integration — The NAVigator integrates natively with Extron Pro Series control systems to deliver secure, encrypted control of every attached NAV endpoint.
• Power over Ethernet Support — The unit can be powered locally by the included Extron Everlast supply or remotely via PoE, eliminating the need for a local power supply.
• FIPS 140-2 and DoDIN APL Options — A CMVP-certified FIPS 140-2 cryptographic module and an available DoDIN APL Approved Product version meet stringent government security requirements.

Technical Specifications

Frequently Asked Questions

How many NAV endpoints can the entry-level NAVigator manage?

The entry-level NAVigator manages up to 16 NAV endpoints out of the box. Capacity can be expanded to 48, 96, or 240 endpoints with optional LinkLicenses, and multiple NAVigator units can work together to support thousands of endpoints across a large deployment.

Is the NAVigator required to run an Extron NAV system?

Yes. The NAVigator is the system manager required to configure, monitor, control, back up, and troubleshoot NAV Pro AV over IP encoders, decoders, and KVM endpoints. It is the central administration appliance for every NAV deployment.

How does the NAVigator secure AV traffic on the network?

The NAVigator encrypts all communication with its endpoints using SSH and AES-256, and SRTP protects video and data streams. It also supports 802.1X port-based network access control and Microsoft Active Directory, with FIPS 140-2 and DoDIN APL Approved Product options available for government installations.

Can the NAVigator integrate with a control system?

Yes. The NAVigator integrates natively with Extron Pro Series control systems for secure, end-to-end encrypted control of attached endpoints. An optional no-charge LinkLicense also enables third-party control systems to issue SIS commands to make and break NAV connections.

How is the NAVigator powered and mounted?

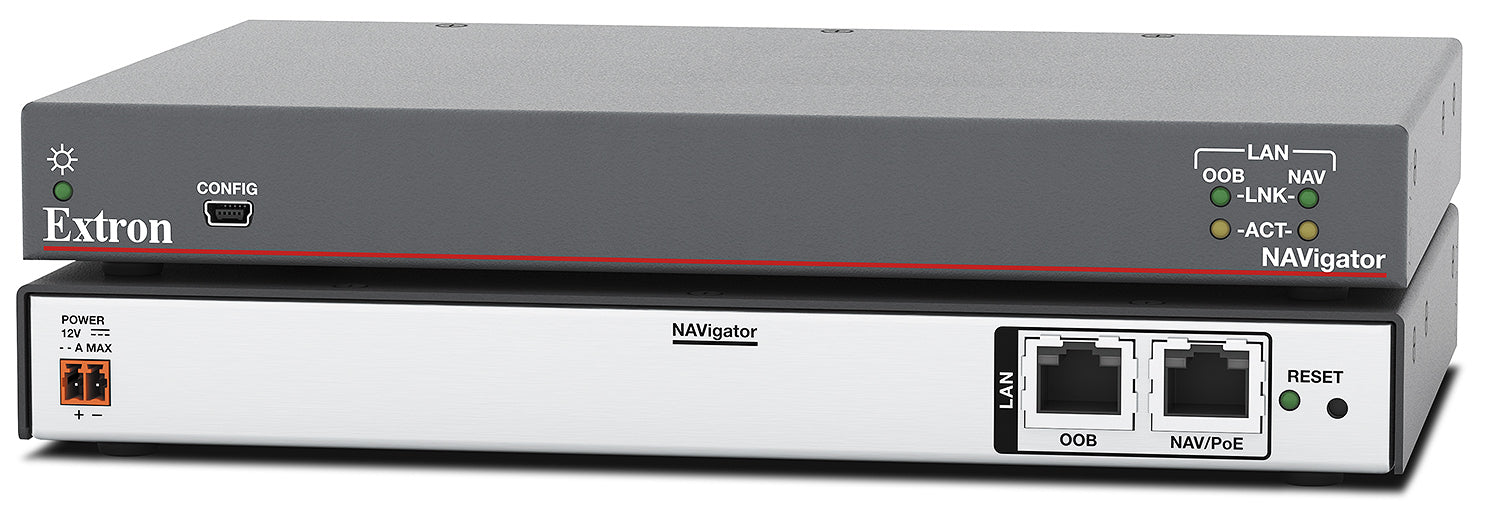

The NAVigator can be powered locally by the included Extron Everlast external power supply or remotely over the network using Power over Ethernet. Its half-rack, 1U-high metal enclosure mounts in a rack with an optional rack shelf or under a desk with an optional mounting kit.

What warranty and support are included?

The NAVigator carries a 3-year parts and labor warranty, and the Extron Everlast power supply is covered for 7 years. Creation Networks provides pre-sales AV system design guidance and post-sales support for NAV deployments; see the Extron collection for compatible endpoints.
