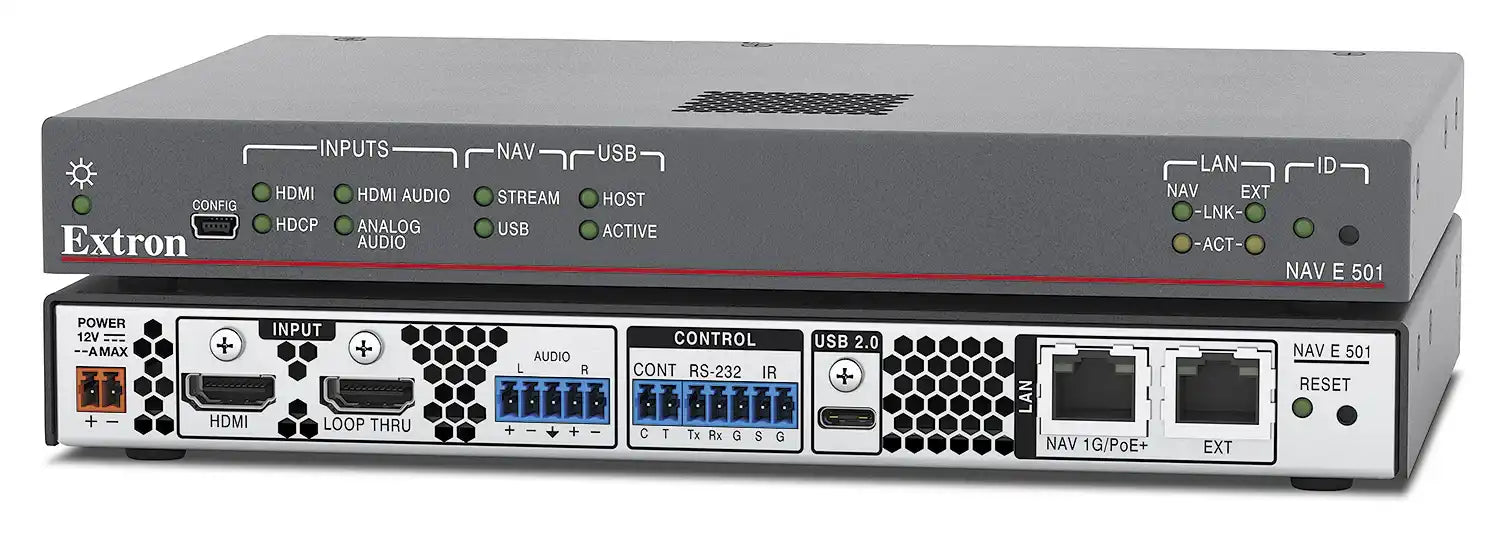

Extron NAV E 501 1G Pro AV over IP Encoder - HDMI, Ethernet, and USB

Product Description

The Extron NAV E 501 is a 1G Pro AV-over-IP encoder engineered to stream 4K/60 video with 4:4:4 chroma sampling, audio, USB 2.0, and Ethernet across standard 1 Gbps networks. Built on Extron's patented PURE3 codec, this commercial-grade encoder delivers visually lossless imagery at ultra-low latency and efficient bitrates, making it a dependable choice for AV integrators designing scalable AV-over-IP distribution systems. By transporting high-quality signals over 1000BASE-T copper infrastructure, the NAV E 501 supports flexible system design and long-distance transmission without the cost or complexity of proprietary cabling.

This 4K AV-over-IP HDMI encoder is purpose-built for corporate video distribution, command and control, education, and training environments where reliable signal delivery is essential. Because the NAV E 501 is fully interoperable with NAV 10 Gbps endpoints, it allows AV integrators to mix 1G and 10G hardware within a single deployment, scaling video distribution to thousands of endpoints. With built-in USB 2.0 extension, the encoder also serves demanding KVM applications, transporting keyboard, mouse, and peripheral data over the same network cable as video and audio. The NAV E 501 requires the NAVigator System Manager for centralized configuration, monitoring, and matrix switching control.

For the full Extron AV-over-IP lineup, browse the Extron collection at Creation Networks, including the 10G fiber encoders and 1G fiber scaling decoders that complete the NAV family.

Key Features

• 4K/60 4:4:4 AV-over-IP Encoding — The NAV E 501 encodes and streams 4K/60 video with full 4:4:4 chroma sampling, audio, USB, and Ethernet signals over standard 1 Gbps IP networks.
• PURE3 Codec — Extron's patented wavelet-based PURE3 codec delivers visually lossless video with ultra-low latency and tolerates the bursty traffic found on converged networks.
• Intelligent Selective Streaming — PURE3 ISS leverages periods of low-motion content to dramatically reduce bandwidth while maintaining lossless image quality.
• HDMI Input and Loop-Out — An HDMI input with local loop-out supports resolutions up to 4K/60 4:4:4 with HDCP 2.3 compliance for protected content.
• USB 2.0 Extension for KVM — Built-in USB 2.0 extension transports keyboard, mouse, and peripheral data over the network, making the encoder ideal for commercial KVM workstation applications.
• Ethernet LAN Expansion — A 1 Gbps RJ-45 expansion port lets Ethernet-enabled displays, cameras, and devices share the same cable as the NAV video, audio, and USB signals.
• 10G NAV Interoperability — The encoder streams natively to 10 Gbps NAV decoders, enabling mixed 1G and 10G AV-over-IP deployments across an enterprise.
• PoE+ Power — The NAV E 501 can be powered directly over a PoE+ compliant switch or injector, eliminating the need for a local power supply at the endpoint.
• Enterprise Security — Support for 802.1X network access control, SRTP stream encryption, and a certified FIPS 140-2 module protects sensitive AV signals on shared networks.
• Centralized Management — The required NAVigator System Manager provides centralized configuration, monitoring, diagnostics, and IP-based matrix switching for the entire NAV deployment.

Technical Specifications

Frequently Asked Questions

Does the NAV E 501 require the NAVigator System Manager?

Yes. The NAV E 501 requires the Extron NAVigator System Manager for centralized configuration, monitoring, and IP-based matrix switching. The NAVigator is a purpose-built appliance that manages NAV endpoints, handles quick switching, and performs bulk firmware upgrades across the deployment.

Is the NAV E 501 compatible with 10 Gbps NAV endpoints?

Yes. The NAV platform offers full interoperability between 1 Gbps and 10 Gbps hardware. The NAV E 501's 1G video stream can be decoded by 10G NAV decoders, allowing AV integrators to build mixed-bandwidth AV-over-IP systems within a single managed deployment.

Can the NAV E 501 be powered without a local power supply?

Yes. The encoder supports PoE+ and can receive power directly from a PoE+ compliant network switch or injector. An external Extron Everlast power supply is also included for installations where PoE is not available.

What network infrastructure does the NAV E 501 need?

The NAV E 501 operates over standard 1 Gbps (1000BASE-T) copper Ethernet using CAT 5e/6/6a/7 cabling for distances up to 328 feet (100 m). Because PURE3 tolerates converged network traffic, it does not require a dedicated isolated network, though network design should follow Extron's deployment guidelines.

Is the NAV E 501 suitable for KVM applications?

Yes. With built-in USB 2.0 extension and HID peripheral emulation, the NAV E 501 supports keyboards, mice, and mass storage devices, making it well suited for commercial KVM workstation deployments managed through the NAVigator.

What warranty and support are available?

Extron NAV products are backed by Extron's commercial warranty, and the included Everlast power supply carries a 7-year parts and labor warranty. For purchasing, lead times, and integration support, contact the Creation Networks team.
