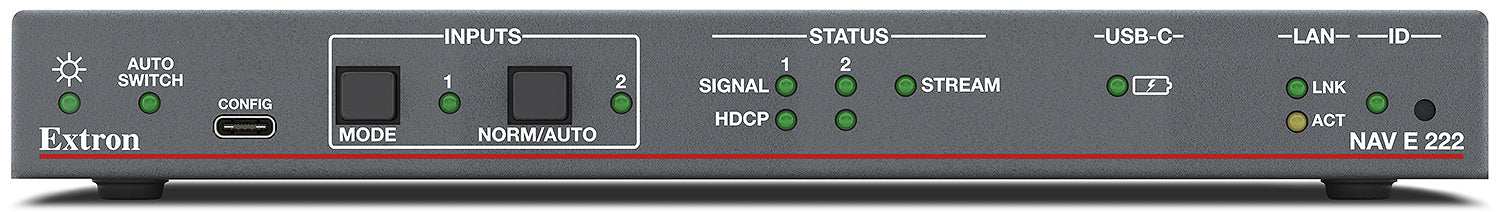

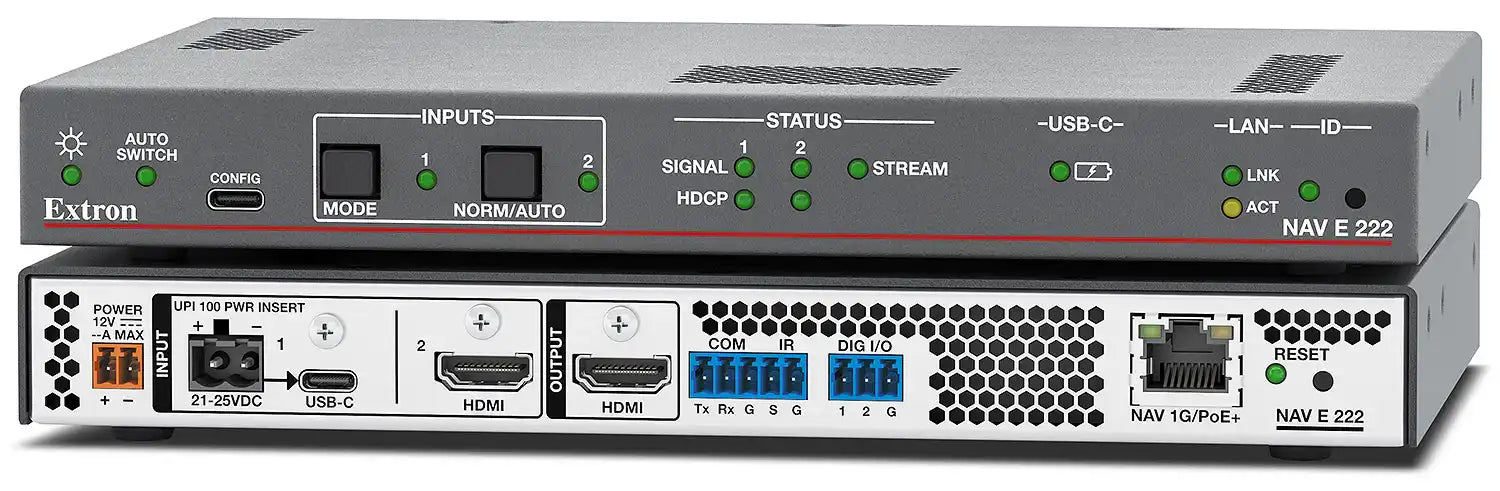

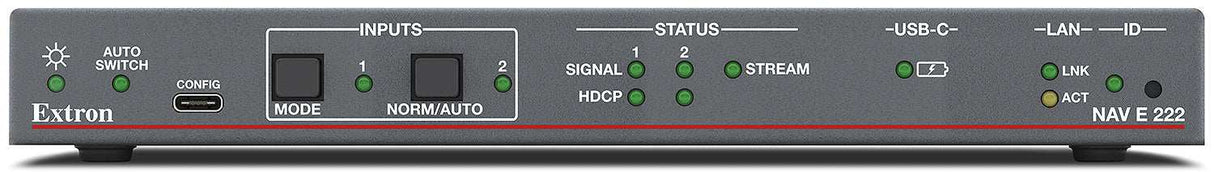

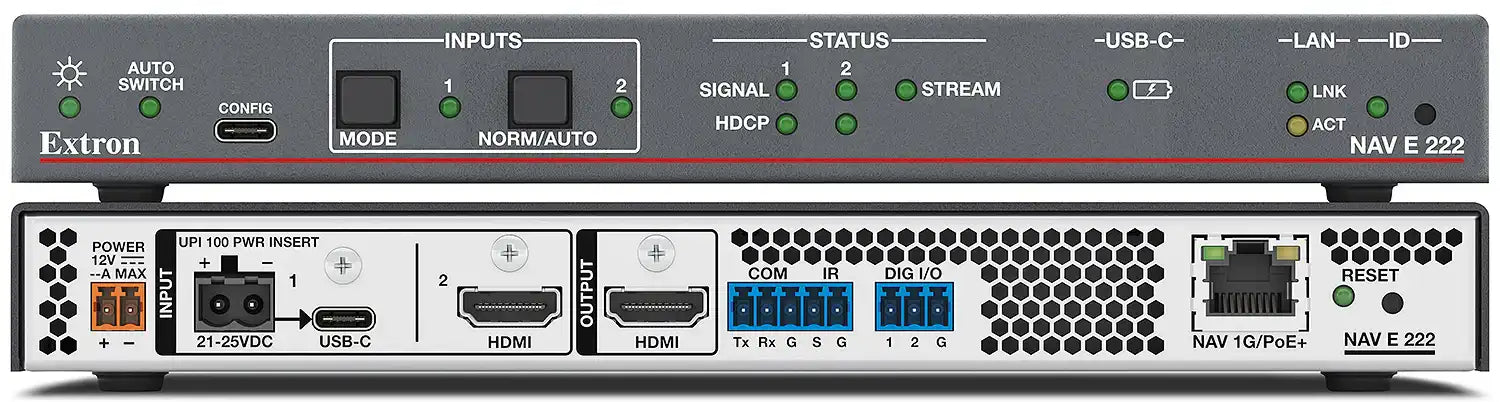

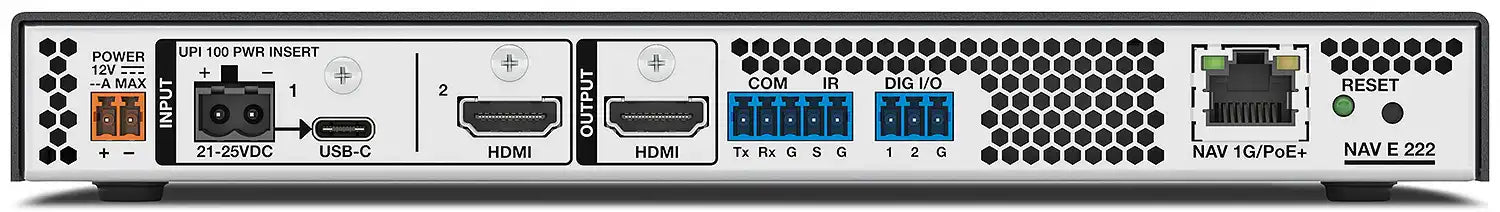

Extron NAV E 222 1G Pro AV over IP Switching Encoder with USB-C and HDMI

The NAV E 222 is a two-input switching Pro AV over IP encoder that streams real-time, high-quality video and audio signals over 1 Gbps Ethernet at low bitrates from a USB-C or HDMI® source. Versatile input switching modes are configurable as auto or manual switching. The encoder can power and charge a connected USB-C device with up to 100 watts using the optional UPI 100 power inserter. The NAV E 222 is compatible with NAV® endpoints, increasing scalability for large deployments. Support for embedded digital USB-C, HDMI, and AES67 audio over IP standard, facilitates flexible integration with Extron DMP Plus DSPs or other IP-enabled audio components. Purpose-built to support demanding professional AV applications, the highly scalable and powerful NAV platform enables secure deployment of AV signals to thousands of endpoints.

PURE3 Codec

NAV encoders and decoders utilize the latest evolution of the Extron PURE3 codec. This patented, wavelet-based compression technology offers improved network resiliency. The PURE3 codec tolerates bursty network traffic found on converged networks while exceeding the performance characteristics of standards-based compression systems. Others rely on delicate third-party codecs that fail when exposed to unpredictable network traffic. Those codecs require costly isolated networks, but PURE3 is the ONLY codec designed for the Pro AV industry that delivers robust, pristine video on converged or isolated networks. With sub-frame latency, PURE3 processes video signals with 4:4:4 color quantization, while maintaining the original source quality and native resolution. PURE3 Intelligent Selective Streaming is an exclusive Extron technology that leverages periods of low motion in streamed content to enhance streaming performance. The PURE3 codec also features advanced error concealment, providing high immunity to network errors such as bit errors, jitter, out-of-order, and dropped data packets. PURE3 error concealment provides robust picture delivery without the increased latency or bandwidth typically introduced by other error correction schemes.

1 Gbps Ethernet

Designed for 1 Gbps Ethernet networks, the NAV E 222 streams high quality video and audio, delivering an accurate reproduction of original source content. By using standard 1000Base-T 1 Gbps copper Ethernet infrastructure, the NAV E 222 facilitates flexible system design and cost-effective streaming over large distances. The NAV E 222 can be remotely powered with PoE+ powering over a PoE-compliant network switch or injector, eliminating the need for external power supplies. Ideal for corporate video distribution, command and control, education, or training applications, the NAV E 222 is a perfect solution for any installation where reliable, high-quality AV over IP video distribution is desired.

HDCP 2.3

The NAV E 222 is fully compliant with HDCP 2.3 for transmission of UHD content encrypted with the HDCP standard. It also features Extron Key Minder® to enhance and simplify the integration of HDMI-equipped devices. For HDMI signals with protected content, Key Minder authenticates and maintains continuous HDCP encryption to support quick and reliable transmission across a network infrastructure. If the HDCP-encrypted content is streamed to a non-compliant display, the receiver sends a full-screen green signal, providing immediate visual feedback that the protected content cannot be viewed on the display.

Interoperability with AES67

The NAV platform supports the AES67 standard for transmission of audio over IP networks, facilitating integration with Extron DMP Plus DSPs or other IP-enabled audio components. The AES67 standard provides interoperability between the predominant network audio over IP protocols in use today. The use of this standard enables AV integrators to add audio networking technology more easily into a variety of applications, ensuring reliable performance and flexibility in the distribution of audio signals.

Quick and Reliable Switching

NAV systems are not limited to video extension and distribution. Multiple encoders and decoders can be deployed together to create an IP-based video and audio matrix. NAV Pro AV over IP solutions provide the flexibility of an IP-based system, with the integration-friendly video and audio switching features found in Extron conventional matrix switchers, such as Key Minder, EDID Minder®, and USB and audio breakaway. Design an IP-based switching system with multiple endpoints and an Extron Pro Series control system for secure switching. The NAVigator System Manager enhances matrix switching capabilities, featuring advanced control and enterprise-level system monitoring.

Priority Routing enables users to create custom tags to ensure that data is properly segregated, and endpoints are more easily located. Users can assign multiple tags to an endpoint using NAVigator software. Used in conjunction with an Extron control system, tags can be leveraged to classify, segregate, or quickly locate endpoints. Priority Routing is useful in systems with multiple security classification levels or in applications that manage many rooms over an enterprise or campus.

Easy Setup and Configuration

The NAV E 222 features a built-in, user-friendly web interface for easy access to network settings, bitrate adjustments, and other parameters from a standard web browser. In addition to the web interface, the NAV E 222 supports configuration from Extron PCS – Product Configuration Software. Deployments will benefit from the required NAVigator System Manager, a powerful, secure, purpose-built appliance for centralized management and control of NAV systems.

Security

The NAV System is secure by design. All NAV endpoints support 802.1X port-based Network Access Control. When applied, 802.1X authentication requires that all devices are approved before network access is granted. Video and data streams are also encrypted with SRTP - Secure Real-Time Transport Protocol. NAV systems work natively with Extron Pro Series control systems, which feature an IP Link Secure Platform Interface that encrypts all commands from control processor to endpoint. Together, NAV and Extron Pro Series control systems create the most secure and reliable Pro AV over IP solution on the market. With the NAVigator System Manager, all communication between the manager and endpoints is encrypted with SSH – Secure Shell protocol. The highly secure nature of the NAV E 222 ensures peace of mind for any modern Pro AV application running over a network.

System Monitoring and Control

The NAVigator System Manager turns the NAV system into a powerful and flexible IP‑based matrix solution. The NAVigator is a purpose‑built appliance with an intuitive, user‑friendly interface for centralized management and control of NAV deployments. In addition to easy setup, configuration, and quick switching, the NAVigator includes extensive features for monitoring, diagnostics, and troubleshooting NAV systems. It also enables simultaneous configuration, bulk firmware upgrades, backup, and restoration of multiple NAV endpoints from a single browser. An optional NAVigator LinkLicense is available to enable third-party control of NAV systems. These third-party control systems can use SIS commands* to make and break NAV connections in addition to various other functions. Extron Pro Series control systems integrate with the NAVigator System Manager to provide secure, end‑to‑end encrypted control of all NAV endpoints, however the IP Link Expansion Ports such as the RS‑232, IR, and Digital I/O ports on NAV endpoints are controlled exclusively by the Extron Pro Series control system.

*The third-party control LinkLicense does not enable control of IP Link Expansion Ports.

Pro Series Control

All NAV endpoints have a built-in Pro Series control port for RS‑232, effectively expanding Extron Pro Series control systems beyond the physical location of the control processor. This unique Extron feature eliminates the need for additional control processors at the endpoints. NAV Pro Series control ensures cost-effective, encrypted control of devices anywhere the network can reach. NAV is an ideal solution for any application requiring device control, flexible video and audio switching, and reliable transmission of high-quality content over long distances.

Scalability

The NAV platform has nearly limitless extensibility and scalability. A single NAVigator System Manager can support up to 240 NAV endpoints and multiple NAVigators can work together to support thousands of NAV endpoints. Any NAV encoder can deliver flawless video to one, or all NAV decoders over the IP network.

Features Chart

Specifications Table

Compare Chart

FAQ

• What is the NAV E 222 best used for? Encoding two HDMI sources (e.g., laptops, media players, or switchers) into uncompressed SDVoE streams for zero-latency, pixel-perfect distribution over fiber/CATx in control rooms, medical imaging, broadcast, simulation, or high-end presentation systems.
• Does it compress video? No — SDVoE technology transmits uncompressed 4K/60 4:4:4 signals with zero frame latency.
• How far can signals be transmitted? Up to 100 m (330 ft) on multimode fiber or CATx cable (with appropriate transceivers/receivers).
• Is audio de-embedding supported? Yes — embedded HDMI audio from each input can be extracted and routed separately if needed.
• How is it controlled? Front-panel buttons for basic operation, plus RS-232, Ethernet (IP control), or integration with Extron NAV Pro Series management software.
• Is it rack-mountable? Yes — half-rack width with included rack ears for mounting in standard 19-inch racks (side-by-side with another half-rack device).
