Extron NAV D 121 1G Pro AV over IP Compact Decoder - HDMI

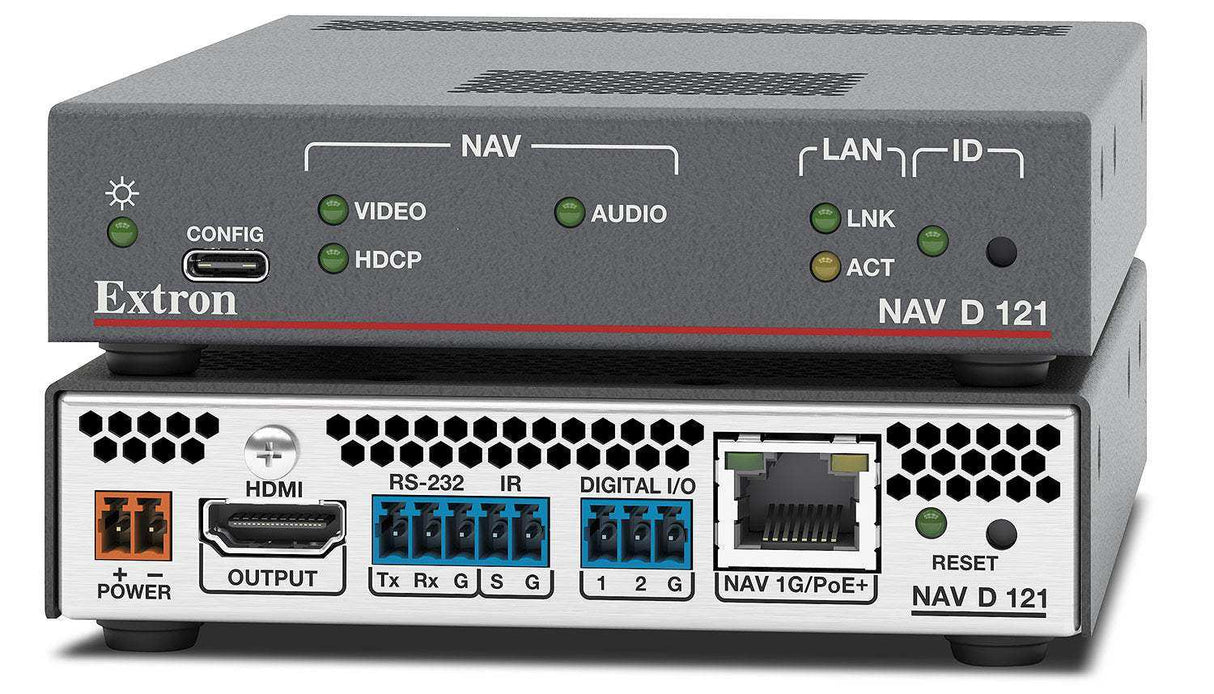

The NAV D 121 is a compact Pro AV over IP decoder that receives real-time, high-quality video and audio signals over 1 Gbps IP networks at low bitrates. Utilizing Extron’s patented PURE3® codec, it delivers groundbreaking performance with high quality video at resolutions up to 4K/60 with 4:4:4 chroma sampling and ultra-low latency. The NAV D 121 is compatible with NAV® endpoints, increasing scalability for large deployments. It also features an HDMI output with RS-232, Digital I/O, and IR ports to extend control system reach beyond the physical location of the processor, eliminating the need for additional control processors at the endpoints. Purpose-built to support demanding professional AV applications, the highly scalable and powerful NAV platform enables secure deployment of AV signals to thousands of endpoints.

PURE3 Codec

NAV encoders and decoders utilize the latest evolution of the Extron PURE3 codec. This patented, wavelet-based compression technology offers improved network resiliency. The PURE3 codec tolerates bursty network traffic found on converged networks while exceeding the performance characteristics of standards-based compression systems. Others rely on delicate third-party codecs that fail when exposed to unpredictable network traffic. Those codecs require costly isolated networks, but PURE3 is the ONLY codec designed for the Pro AV industry that delivers robust, pristine video on converged or isolated networks. With sub-frame latency, PURE3 processes video signals with 4:4:4 color quantization, while maintaining the original source quality and native resolution. PURE3 Intelligent Selective Streaming is an exclusive Extron technology that leverages periods of low motion in streamed content to enhance streaming performance. The PURE3 codec also features advanced error concealment, providing high immunity to network errors such as bit errors, jitter, out-of-order, and dropped data packets. PURE3 error concealment provides robust picture delivery without the increased latency or bandwidth typically introduced by other error correction schemes.

1 Gbps Ethernet

Designed for 1 Gbps IP networks, the NAV D 121 receives high quality video and audio, delivering an accurate reproduction of original source content. By using standard 1000Base-T 1 Gbps copper Ethernet infrastructure, the NAV D 121 facilitates flexible system design and cost-effective streaming over large distances. The NAV D 121 can be remotely powered with PoE+ powering from a PoE-compliant network switch or PoE injector, eliminating the need for external power supplies. Ideal for corporate video distribution, command and control, education, and training applications, the NAV D 121 is a perfect solution for any installation where reliable, high-quality AV over IP video distribution is desired.

HDCP 2.3

The NAV D 121 is fully compliant with HDCP 2.3 for transmission of UHD content encrypted with the HDCP standard. It also features Extron Key Minder® to enhance and simplify the integration of HDMI-equipped devices. For HDMI signals with protected content, Key Minder authenticates and maintains continuous HDCP encryption to support quick and reliable transmission across a network infrastructure. If HDCP-encrypted content is streamed to a non-compliant display, the receiver sends a full-screen green signal, providing immediate visual feedback that the protected content cannot be viewed on the display.

Quick and Reliable Switching

NAV systems are not limited to video extension and distribution. Multiple encoders and decoders can be deployed together to create an IP-based video and audio matrix. NAV Pro AV over IP solutions provide the flexibility of an IP-based system, with the integration-friendly video and audio switching features found in Extron conventional matrix switchers, such as Key Minder, EDID Minder®, and USB and audio breakaway. Design a IP-based switching system with multiple endpoints and an Extron Pro Series control system for secure switching. The NAVigator System Manager enhances matrix switching capabilities, featuring advanced control and enterprise-level system monitoring.

Priority Routing enables users to create custom tags to ensure that data is properly segregated, and endpoints are more easily located. Users can assign multiple tags to an endpoint using NAVigator software. Used in conjunction with an Extron control system, tags can be leveraged to classify, segregate, or quickly locate endpoints. Priority Routing is useful in systems with multiple security classification levels or in applications that manage many rooms over an enterprise or campus.

Easy Setup and Configuration

The NAV D 121 features a built-in, user-friendly web interface for easy access to network settings and other parameters from a standard web browser. In addition to the web interface, the NAV D 121 supports configuration from Extron PCS – Product Configuration Software. Deployments will benefit from the NAVigator System Manager, a powerful, purpose-built appliance for centralized configuration, management, and control of NAV systems.

Security

All NAV endpoints support 802.1X port-based Network Access Control. When applied, 802.1X authentication requires that all devices are approved before network access is granted. Support for Microsoft® Active Directory simplifies user management and group authentication, helping to maintain strong security policies. Furthermore, SRTP - Secure Real-Time Transport Protocol ensures encryption, message authentication, and data integrity of video and data streams. NAV systems work natively with Extron Pro Series control systems, which feature a Secure Platform Interface that encrypts all commands from control processor to endpoint. Together, NAV and Extron Pro Series control systems create the most secure and reliable Pro AV over IP solution on the market. With the NAVigator System Manager, all communication between the manager and endpoints is encrypted with SSH – Secure Shell protocol. The highly secure nature of the NAV D 121 ensures peace of mind for any modern Pro AV application running over a network.

System Monitoring and Control

The NAVigator System Manager turns the NAV system into a powerful and flexible IP‑based matrix solution. The NAVigator is a purpose‑built appliance with an intuitive, user‑friendly interface for centralized management and control of NAV deployments. In addition to easy setup, configuration, and quick switching, the NAVigator includes extensive features for monitoring, diagnostics, and troubleshooting NAV systems. It also enables simultaneous configuration, bulk firmware upgrades, backup, and restoration of multiple NAV endpoints from a single browser. An optional NAVigator LinkLicense is available to enable third-party control of NAV systems. These third-party control systems can use SIS commands* to make and break NAV connections in addition to various other functions. However, Extron Pro Series control system integration with the NAVigator is required to control Secure Platform Devices on NAV endpoints such as RS‑232 and IR control ports. The NAVigator System Manager acts as a centralized communication bridge for secure, end‑to‑end AES encrypted control of all attached devices.

*The third-party control LinkLicense does not enable control of SPD devices.

Pro Series Control

NAV endpoints have built-in Pro Series control ports such as RS‑232, Digital I/O, and IR effectively expanding Extron Pro Series control systems beyond the physical location of the control processor. This unique Extron feature eliminates the need for additional control processors at the endpoints. NAV Pro Series control ensures cost-effective, encrypted control of devices anywhere the network can reach. NAV is an ideal solution for any application requiring device control, flexible video and audio switching, and reliable transmission of high-quality content over long distances.

Scalability

The NAV platform is the only solution featuring seamless, complete interoperability between 1 Gbps and 10 Gbps encoders and decoders. NAV leverages the PURE3 codec, making it possible to stream video from 1 Gbps encoders to 10 Gbps decoders or reduce bitrates from 10 Gbps encoders so that streams can be readily decoded by 1 Gbps decoders. This flexibility ensures reliable delivery of superior quality video with ultra-low latency across your entire enterprise.

Features

• Compact and economical 4K/60 @ 4:4:4 decoder — Receives visually lossless 4K/60 4:4:4 video, audio, and control over 1 Gbps IP networks.
• PURE3® codec delivers improved network resiliency — The patented PURE3 codec delivers lossless 4K/60 4:4:4 video with ultra-low latency and efficient bit rates. PURE3 tolerates the bursty network traffic found on converged networks. It is the ONLY codec designed for the Pro AV industry that delivers robust, pristine video on converged or isolated networks.
• HDMI output with HDCP 2.3 at resolutions up to 4K/60 @ 4:4:4 — HDMI 2.0 output specification features include data rates up to 18 Gbps, video resolutions up to 4K/60 with 4:4:4 chroma sampling, deep color up to 10 bit, and two-channel LPCM audio.
• Configurable Power Priority — Selects PoE or line power priority for power management and redundancy.
• PURE3 Intelligent Selective Streaming reduces bandwidth requirements  — ISS is an exclusive Extron technology that leverages periods of low motion video content to achieve extremely low bitrates while maintaining lossless video performance. ISS significantly reduces the bandwidth required for low motion video such as presentations and spreadsheets allowing more streams over converged networks without sacrificing video quality.
• Confidence Preview — Stream preview available in the encoder, decoder, or NAVigator browser interface.
• Interoperable with 1 and 10 Gbps NAV® endpoints — 1 Gbps video can be readily decoded by 10 Gbps decoders for greater compatibility in mixed 1 Gbps/10 Gbps solutions. While 10 Gbps encoders will reduce the stream below 1 Gbps when tied to a 1 Gbps decoder.
• HDCP 2.3 compliant — Ensures display of content-protected media and interoperability with other HDCP-compliant devices.
• PoE+ compatibility eliminates the need for a local power supply — PoE+ enables receipt of power and AV signals over a single Ethernet cable, eliminating the need for bulky local power supplies.
• SRTP stream encryption — SRTP - Secure Real-Time Transport Protocol ensures encryption, message authentication, and data integrity for video and data streams.
• Priority Routing — Assign custom tags to end points using NAVigator software. Tags can be used to further classify endpoints, easily locate them on the network, or apply rules for routing with an Extron control system.
• 802.1X port-based Network Access Control — Supports 802.1X port-based authentication, requiring that all devices are approved before network access is granted.
• Certified FIPS 140-2 module — Extron cryptographic module meets NIST and CCS guidelines and is certified by CMVP to the FIPS 140-2 information processing standard in order to ensure protection of sensitive data.
• Active Directory support — Integrates with Microsoft® Active Directory, simplifying user management, group authentication, and helping to maintain strong security policies.
• Error concealment — Offers high immunity to network errors, ensuring reliable transmission of high-quality imagery with the ability to conceal errors even during incidents of heavy packet loss.
• Embedded web interface — Intuitive, user-friendly embedded web interface simplifies device configuration, setup, and system operation.
• EDID Minder® automatically manages EDID communication between connected devices — EDID Minder ensures that all sources power up properly and reliably output content for display.
• Key Minder® continuously verifies HDCP compliance for quick, reliable switching — Key Minder authenticates and maintains continuous HDCP encryption between input and output devices to ensure quick and reliable switching in professional AV environments, while enabling simultaneous distribution of a single source signal to one or more displays.
• HDCP Visual Confirmation — When HDCP‑encrypted content is transmitted to a non‑HDCP compliant display, a full‑screen green signal is sent to the display for immediate visual confirmation that protected content cannot be viewed on that display.
• Supports embedded HDMI audio signals — Directly interfaces with common AV source signals for compatibility with most audio devices.
• Compatible with Show Me cables — Show Me cables and Retractors provide convenient connectivity, user input selection, and control of AV systems.
• Integrates with Pro Series control systems for secure, user-friendly external control — Designed to integrate directly with Extron Pro Series control systems for secure, encrypted RS‑232, Digital I/O, and IR control of external devices without the need for additional control processors.
• Secure Platform Interface — Working natively with NAV Systems, Extron Pro Series control systems offer flexible system management and matrix switching control via a Secure Platform Interface that encrypts all commands from control processor to endpoint. Together, NAV and Extron Pro Series control systems create the most secure and reliable Pro AV over IP solution on the market.
• Multicast filtering with IGMPv2/v3 — Supports multicast filtering for lower bandwidth consumption. Enables use of standard network equipment.
• One-button endpoint identification — Identify endpoints with an ID button and indicator for quick discovery of units on a network, simplifying diagnostics and installation.
• 1" (2.5 cm) high, quarter rack width metal enclosure — Compact, low-profile enclosure for discreet placement and concealment. Allows for 4 units on a 1U shelf for high density mounting.
• ZipClip® 200 included — Enables quick and secure mounting to rack rails, tables, shelves, and lecterns.
• Optional External Extron Everlast™ power supply PS 1220 (70-1259-01) — Provides worldwide power compatibility with high demonstrated reliability and low power consumption. Covered by a 7 year parts and labor warranty.

Specs

Also see our  Specs in PDF format

NAV D 121
specification
Frame rate2	24, 25, 30, 50, or 60 fps
Chroma sampling2	4:4:4, 4:2:2, or 4:2:0
Color bit depth2	8 or 10 bits per color
Signal Type	DVI v 1.0, HDMI v1.4 and v2.0, HDCP v1.4 and v2.3
Max. video data rate	18 Gbps (6 Gbps per color)
NOTE     14096 x 2160 @ 50-60 Hz is available only for HDMI connectors.
NOTE     2Subject to the maximum data rate limit. Use our calculator at www.extron.com/8Kdatarate to determine video parameters supported by this data rate.
Video input stream
Number/signal type	1 PURE3® digital video over IP
Connector	1 RJ-45 connector
Video processing
Digital sampling	8 or 10 bits per color; 600 MHz pixel clock maximum
Compression	PURE3
Latency	<1 frame (encode/decode)
NOTE     Indicates minimum end-to-end latency. Network and video processing dependencies may apply.
Video output
NOTE     Appropriate DVI-D to HDMI or DisplayPort to HDMI cables or adapters are required for DVI or DisplayPort signal output.
Number/signal type	1 digital HDMI video
Connectors	1 female HDMI type A
Resolution range	Up to 4K (4096x2160 at 60 Hz) and UHD (3840x2160 at 60 Hz)
Standards	DVI v1.0, HDMI v1.4 and v2.0, HDCP v1.4/v2.3
Formats	RGB and YCbCr digital video
Audio
Sampling rate	48 kHz
Bit depth	24 bit
Audio input stream
Number/signal type	1 audio over IP LPCM
Connector	1 RJ-45 connector
Audio output
Number/signal type	1 digital stereo, de-embedded from HDMI
Connectors	1 female HDMI (shared with video output)
Supported formats	LPCM (2 channel)
Network interconnection (NAV)
Connector type	1 RJ-45 female
Ethernet standards	1GbE (802.3ab), 10/100/1000 Base-T, half/full duplex with autodetect.
Termination	Auto-MDIX, TIA/EIA T568B
Power over Ethernet (PoE)	Complies with IEEE 802.3at Type 2 (PoE+), class 4
Protocols
Streaming	SRTP (AES-128) on video and audio
Transport	Multicast UDP
All supported	DHCP, HTTPS, IGMPv2/v3, IPv4, IPv6, PTPv2, QoS, SSH, TCP, UDP
Security	AES-256, 802.1X, Active Directory authentication
Signal transmission distance	330' (100 m) using CAT 5e/6/6a/7 cables
Communications - external devices
Serial
Quantity/type	1 bidirectional RS-232
Connector	(1) 3.5 mm captive screw connector, 5 pole (shared with IR port)
Baud rate and protocol	300 to 115200 baud (9600 baud = default) 8 (default) or 7 data bits 1 (default) or 2 stop bits no parity (default), even or odd parity
Pin configuration	Tx, Rx, and Gnd
IR control
Quantity/type	1 TTL level (0 to 5 V) infrared (carrier and non-carrier) up to 300 kHz
Connector	(1) 3.5 mm captive screw connector, 5 pole (shared with RS-232)
Pin configuration	S = signal and G = Gnd
IR output carrier frequency	30 kHz to 300 kHz
Digital I/O
Connector	(1) 3.5 mm captive screw connector, 3 pole
Digital inputs
Input voltage range	0 to 24 VDC, clamped at +30 VDC
Input impedance	>10k ohm
Programmable pullup	1k ohm to +5 VDC
Threshold low to high	2.8 VDC
Threshold high to low	2.0 VDC
Digital outputs	250 mA sink from 24 VDC max
Pin configuration	1, 2 = Digital I/Os 1 and 2; 3 = Gnd
USB configuration port
Quantity/type	1 front panel USB Type C
Standard	Ethernet over USB
General
Power supply	External Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 2.0 A, 24 watts
NOTE     Each 1G endpoint can be powered either locally by an external power supply or remotely using optional PoE+.
Power consumption
Device	13.3 watts
Device and power supply	15.0 watts
PoE	Complies with IEEE 802.3at type 2 (PoE+), class 4
Ambient temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +104 °F (0 to +40 °C) / 10% to 85%, noncondensing
Cooling	Fan, air flows from top to rear
Thermal dissipation – 12 VDC Power Supply
Device	44.5 BTU/hr
Device and power supply	50.3 BTU/hr
Device with PoE	51.5 BTU/hr
Mounting
Rack mount	Yes, with optional rack shelf
Furniture mount	Yes, with optional under desk mounting kit
Enclosure type	Metal
Enclosure	1.00" H x 4.3" W x 6.00" D (quarter rack wide) (25 mm H x 109 mm W x 152 mm D) (depth excludes connectors)
Product weight	0.8 lbs (0.38 kg)
Regulatory compliance	CE, c-UL UL,C-tick, FCC Class A, ICES, VCCI, Complies with the appropriate requirements of RoHS, WEEE
Product warranty	3 years parts and labor
Everlast power supply warranty	7 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(6294-D1)
