Extron MLM 100 AAP Four-Gang Wall Mounting Kit

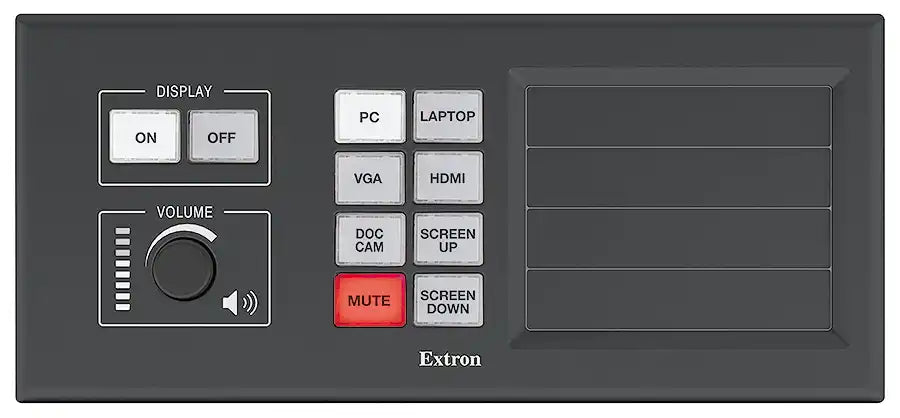

The Extron MLM 100 AAP (part #70-1193-01) is a four-gang wall mounting kit engineered to house the MLC Plus 100 Controller and EBP 100 eBUS Button Panel together with up to four single-space Architectural Adapter Plates (AAPs). It creates a unified, flush-mounted control and connectivity solution for wall installations in professional AV environments.
This kit simplifies multi-component wall assemblies by providing dedicated spaces for the controller, button panel, and AAPs in a single four-gang frame. It eliminates gaps, misalignment issues, and the need for custom fabrication, delivering a clean, factory-quality appearance that enhances the perceived professionalism of AV control points.

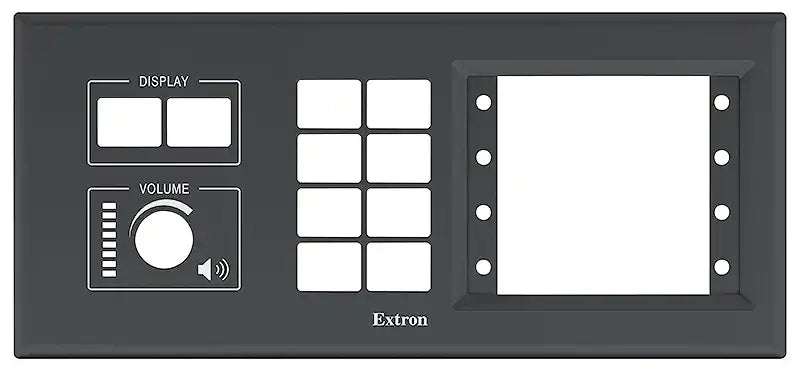

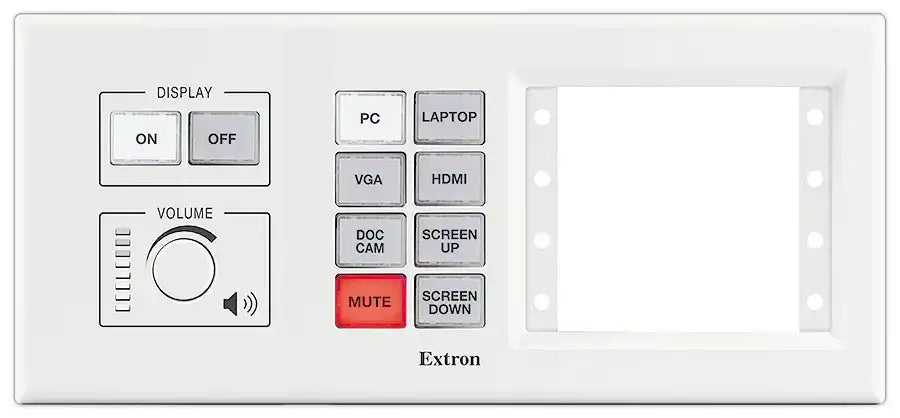

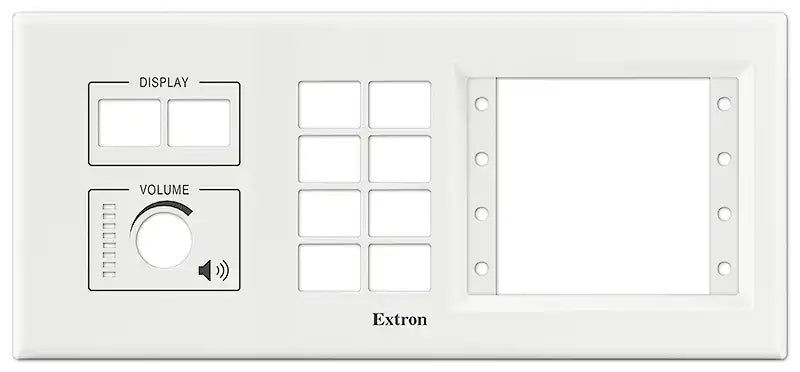

Constructed from durable materials with included black and white faceplates, the MLM 100 AAP offers flexibility to match surrounding trim or room aesthetics. The frame design ensures precise alignment of all components while maintaining structural integrity and easy access for wiring and servicing behind the wall.
Primary applications include boardrooms, classrooms, lecture halls, training facilities, and control rooms where the MLC Plus 100 and EBP 100 are combined with additional AAP connectivity (HDMI, VGA, USB-C, network, audio, or power inputs). It is ideal for environments requiring a single, cohesive wall plate that integrates control, eBUS buttons, and modular inputs without multiple separate boxes.
Compatibility is optimized for the Extron MLC Plus 100 Controller and EBP 100 eBUS Button Panel, with four single-space AAP openings supporting standard Extron AAP modules. The kit fits standard four-gang electrical boxes or compatible wall enclosures, integrating seamlessly within Extron's architectural control and connectivity ecosystem for complete wall-mounted solutions.
Installation is efficient: secure the mounting frame into a four-gang electrical box or compatible enclosure using appropriate fasteners, position the MLC Plus 100 and EBP 100 in their designated areas, install up to four AAPs in the openings, connect wiring as required, and attach either the black or white faceplate for a finished look. The kit includes all necessary hardware for secure alignment and attachment, supporting quick deployment and future reconfiguration.
Features Chart
| Feature | Benefit |
|---|---|
| Four-gang mounting frame | Houses MLC Plus 100, EBP 100, and up to four single-space AAPs in one assembly |
| Four single-space AAP openings | Enables flexible addition of AV, data, power, or control connectivity modules |
| Black and white faceplate options included | Provides aesthetic matching to wall trim, electrical plates, or room decor |
| Precise component alignment | Ensures flush, professional appearance without gaps or misalignment |
| Durable construction | Withstands daily use in high-traffic educational and corporate environments |
| Standard four-gang electrical box compatibility | Integrates with common wall boxes for code-compliant installations |
| Unified wall plate solution | Creates a single, cohesive control and input point instead of separate boxes |
| Complete hardware kit | Includes all fasteners and components for straightforward installation |
Specifications Table
| Specification | Details |
|---|---|
| Product Type | Four-gang wall mounting kit with AAP openings |
| Part Number | 70-1193-01 |
| Gang Size | Four-gang |
| AAP Openings | Four single-space |
| Compatible Devices | MLC Plus 100 Controller, EBP 100 eBUS Button Panel, single-space AAPs |
| Faceplate Colors | Black and white (both included) |
| Mounting | Standard four-gang electrical box or compatible enclosure |
| Material | Durable construction suitable for professional AV use |
Compare Chart
| Aspect | Extron MLM 100 AAP (70-1193-01) | Generic Four-Gang Wall Mounting Frame | Competitor Multi-Module Wall Mounting Kit |
|---|---|---|---|
| AAP Opening Count | Four dedicated single-space | Varies, often fewer or non-AAP specific | Limited or universal openings |
| Device Optimization | Precise fit for MLC Plus 100 & EBP 100 | General-purpose plates | Brand-specific or less tailored |
| Faceplate Options | Black and white included | Single color or unpainted | Often fixed or separate purchase |
| Installation Precision | Exact alignment for Extron components | Basic fit, potential gaps | May require shims or adjustments |
| Professional Finish | Flush, unified architectural look | Functional but less refined | Moderate aesthetics |
| Included Components | Faceplates + full hardware | Varies, hardware often separate | Hardware may be additional |
| AV Control Focus | Engineered for Extron MediaLink Plus & eBUS | General wall mounting | Less optimized for controllers |
| Durability | Built for high-traffic AV environments | Standard construction | Varies by manufacturer |
FAQ
- What is the Extron MLM 100 AAP (70-1193-01) used for? It is a four-gang wall mounting kit designed to house the MLC Plus 100 Controller, EBP 100 eBUS Button Panel, and up to four single-space AAPs in one assembly.
- How many AAP openings does the kit provide? It includes four single-space AAP openings for additional connectivity modules.
- What faceplate colors come with the kit? Both black and white faceplates are included for flexible aesthetic matching.
- Does it fit standard electrical boxes? Yes, it is compatible with standard four-gang electrical boxes or equivalent enclosures.
- Is mounting hardware included? Yes, the kit contains all necessary hardware for secure installation of the frame and faceplates.
- Why use the MLM 100 AAP for wall-mounted AV control? It creates a single, professional wall plate combining control, eBUS buttons, and AAP connectivity, delivering a clean, flush appearance without multiple separate boxes.
