Extron MLC Plus 200 White and Black Faceplates, 3-Gang

The MLC Plus 200 is an easy-to-use Ethernet controller designed for handling common AV functions such as display on/off, input switching, volume control, and Ethernet control of AV devices. The faceplate hides the mounting screws and, combined with its rounded corners and beveled edges, gives the controller a refined, stylish appearance. Along with the ten customizable and configurable buttons, the MLC Plus 200 features a remote volume control port for Extron MPA Series and select XTRA™ Series amplifiers. Power over Ethernet - PoE allows the MLC Plus 200 to receive power and communication over a single Ethernet cable. It mounts in a three-gang junction box, and includes black and white faceplates.

The MLC Plus 200 is configured using Extron Global Configurator Plus or Global Configurator Professional software. It also integrates seamlessly with Extron’s award-winning GlobalViewer® Enterprise software for complete AV resource monitoring, management, and control over a computer network. The MediaLink Plus family of controllers supports popular Web browsers and the Extron Control App.

Features

• Manage, monitor, and control AV devices using a standard Ethernet network
• Fully configurable using Global Configurator Plus or Global Configurator Professional
• Two bidirectional RS-232 ports — Captive screw serial ports that can communicate with two RS-232 serially controlled devices.
• Two relays for controlling room functions — Enables control of lighting, screen settings, and other device functions.
• One IR port for connecting up to two emitters — For one-way control of external devices.
• One digital input — Allows for a connection with a variety of devices, such as sensors, switches, and relays.
• Remote volume control port for Extron MPA Series and select XTRA™ Series amplifiers
• Volume control knob with LEDs for visual feedback — Control the volume of a device with RS-232, Ethernet, or IR; or remotely control the volume of Extron MPA and select XTRA™ Series amplifiers via the remote volume control port.
• Power over Ethernet allows the controller to receive power and communication over a single Ethernet cable, eliminating the need for a local power supply
• Supports Ethernet-controllable devices:
  • Up to 4 devices with GC Plus
  • Up to 8 devices with GC Pro

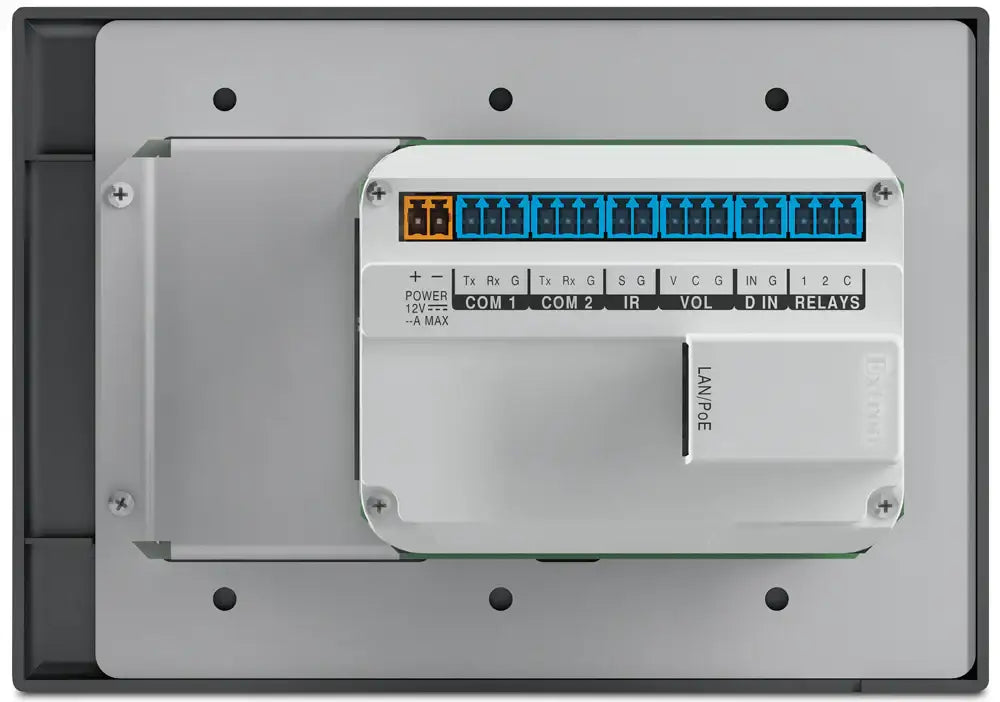

• Removable captive screw connectors — Provides quick and easy connection to the controller for easy installation and troubleshooting.
• Configurable buttons — Can be set up to control display power, input selection, volume, or any other IR/RS-232 command supported by the display.
• Dual color, field-labelable, backlit buttons —  Buttons illuminate red or white for ease of use in low-light environments. Pre-printed label sheets are included.
• Removable button caps — Make it easy to label each button to clearly indicate its function. Labels can be quickly changed in the field and don't require programming or engraving.
• Inactivity timer for display shutoff
• Supports the Extron Control App
• Extensive library of enhanced Extron Certified device drivers
• Section 508 Compliant — Meets or exceeds U.S. accessibility standards for Electronic Information Technology. For more information about Extron's Commitment to Accessibility please see our Accessibility Page.
• Flexible mounting options — Utilizing a standard electrical box or included mud ring, the MLC Plus 200 can be installed virtually anywhere, including walls, lecterns, or tables

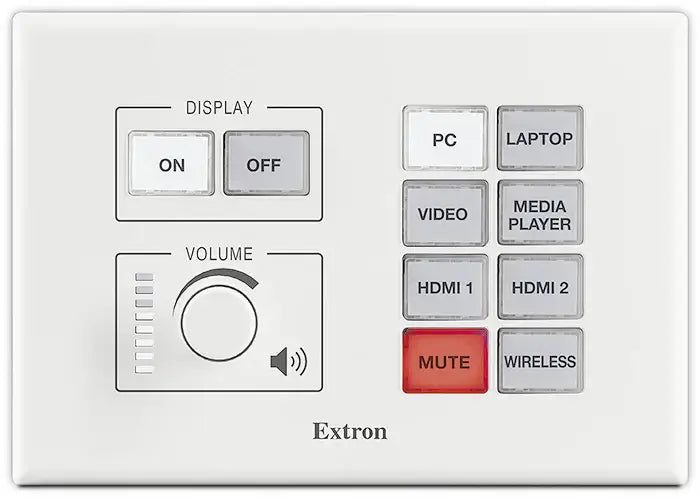

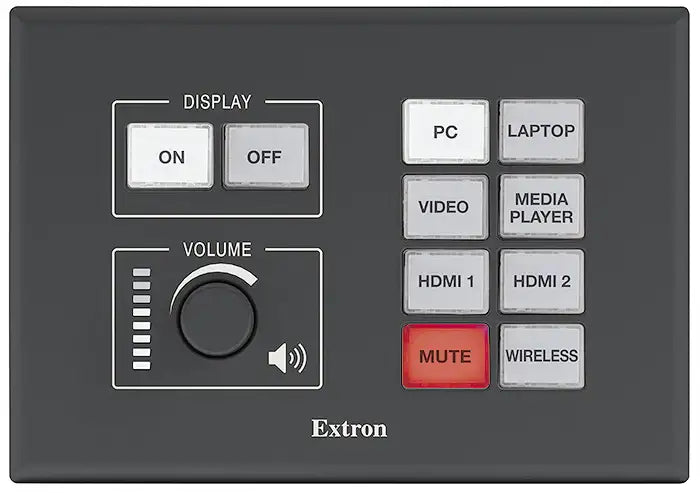

• Includes black and white three-gang, magnetically-attached faceplates
• Optional wallplate kit with decorator-style opening available, model MLM 200 D
• PoE injector or power supply sold separately — PS 1215 C (70-1174-01)
• TAA Compliant version available — Please inform your local Extron representative if your order requires compliance with TAA regulations.

MLC Plus 200
Memory
SDRAM	512 MB
Flash	512 MB
Software
Configuration software	Global Configurator® Plus and Professional
Control apps	Extron Control
Resource management software	GlobalViewer® Enterprise
Utilities	Toolbelt, embedded web page
Ethernet
Network interface controllers (NICs)	1
Connector	1 female RJ-45 connector
Data rate	10/100/1000Base-T, half/full duplex with autodetect
Protocols	ARP, DHCP, DNS, HTTP (redirect), HTTPS, ICMP, IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP
Default settings	Link speed and duplex level = autodetected IP address = 192.168.254.250 Subnet mask = 255.255.255.0 Gateway = 0.0.0.0 DHCP = off DNS: 127.0.0.1
Serial
Quantity/type	2 bidirectional RS-232
Connectors	(2) 3.5 mm captive screw connectors, 3 pole
Baud rate and protocol	300 to 115200 baud (9600 baud = default); 8 (default) or 7 data bits; 1 (default) or 2 stop bits; no parity (default), even, or odd parity
NOTE     These ports support software flow control. The default is no flow control.
Pin configurations
Serial, 3-pole captive screw	Pin 1 = Tx, 2 = Rx, 3 = Gnd
Digital input
Quantity/type	1 digital input
Connectors	(1) 3.5 mm captive screw connector, 2 pole
Digital input
Input voltage range	0 to 24 VDC, clamped at +30 VDC
Input impedance	17.5k ohms
Programmable pullup	1k ohms to +5 VDC
Threshold low to high	2.8 VDC
Threshold high to low	2.0 VDC
Pin configurations	1 = digital input, 2 = Gnd
IR
Quantity/type	1 TTL level (0 to 5 V) infrared (carrier and non-carrier) up to 300 kHz
Connectors	(1) 3.5 mm captive screw connector, 2-pole
Pin configurations	Pin 1 = signal, 2 = Gnd
IR output carrier frequency	30 kHz to 300 kHz
Relay
Quantity/type	2 normally open relays
Relay control connectors	(1) 3.5 mm captive screw connector, 3 pole
Relay control contact rating	24 VDC, 1 A
Volume control
Quantity/type	1 volume control (compatible with select Extron amplifiers)
Connectors	(1) 3.5 mm captive screw connector, 3 pole
Pin configuration	Pin 1 = ≤10 VDC reference voltage input, pin 2 = 0 to +10 VDC control voltage output, pin 3 = Gnd
Control voltage output range	0 to +10 VDC (±0.2 volts), adjustable
General
Power supply	External (not included) Input: 100-240 VAC, 50-60 Hz Output: 12 VDC, 0.5 A, 6 watts Or Power over Ethernet (PoE) (complies with PoE 802.3af, class 3), 48 VDC, 0.35 A, 16.8 watts
Power consumption
Device	2.2 watts, 12 VDC 4.0 watts, 48 VDC (PoE)
Device and power supply	3.2 watts, 100-240 VAC, 50-60 Hz
Device and PoE injector	5.3 watts, 100-240 VAC, 50-60 Hz
Ambient temperature/humidity	Storage: -40 to +158 °F (-40 to +70 °C) / 10% to 90%, noncondensing Operating: +32 to +122 °F (0 to +50 °C) / 10% to 90%, noncondensing
Cooling	Convection, no vents
Thermal dissipation
Device	7.4 BTU/hr (using 12 VDC) 13.6 BTU/hr (using 48 VDC, PoE)
Device and power supply	11.0 BTU/hr
Device and PoE injector	18.0 BTU/hr
Mounting
Rack mount	No
Furniture or wall mount	Yes, in a standard US 3-gang electrical junction box or mud ring
Enclosure type	Plastic faceplate and high-impact plastic rear enclosure
Enclosure dimensions
Faceplate	4.50" H x 6.42" W x 0.30" D (114 mm H x 163 mm W x 7.6 mm D)

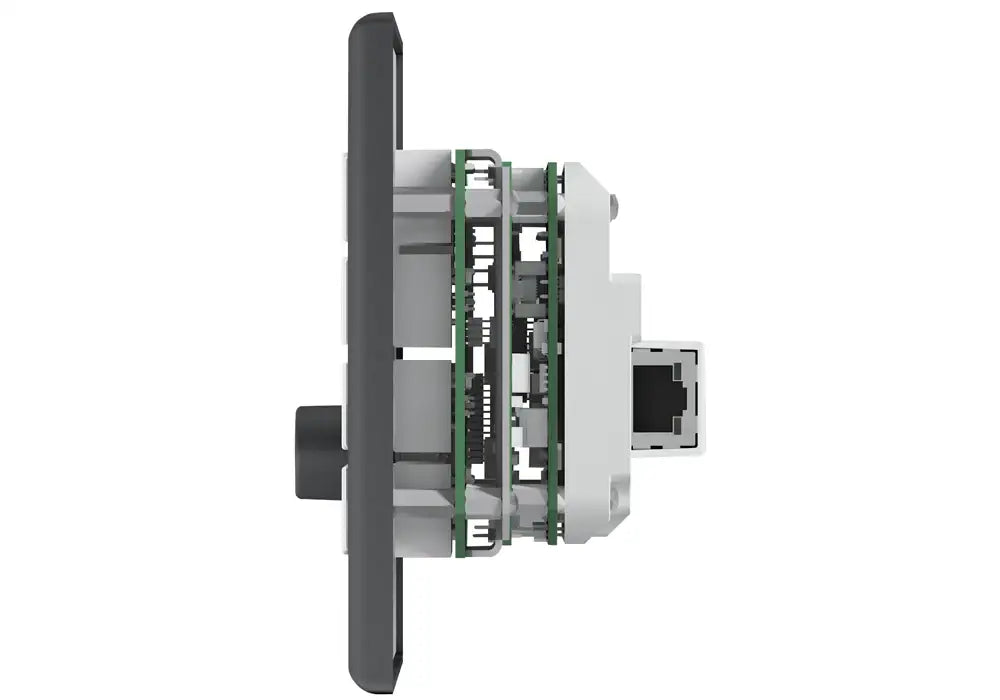

Device	2.73" H* x 5.18" W x 2.16" D (69 mm H* x 132 mm W x 55 mm D) (Depth excludes faceplate and buttons. Fits most 3 gang US boxes or mud rings. Allow at least 2.40" [61 mm] depth in the wall or furniture.)
Product weight	1.0 lb (0.5 kg)
Regulatory compliance	CE, C-Tick, c-UL, FCC Class A, ICES, UL, VCCI class A Complies with the appropriate requirements of RoHS, WEEE, and of Section 508 of the Rehabilitation Act (29 U.S.C. 794d).
Product warranty	3 years parts and labor
NOTE     All nominal levels are at ±10%.
NOTE     Specifications are subject to change without notice.
(6014-D4)
