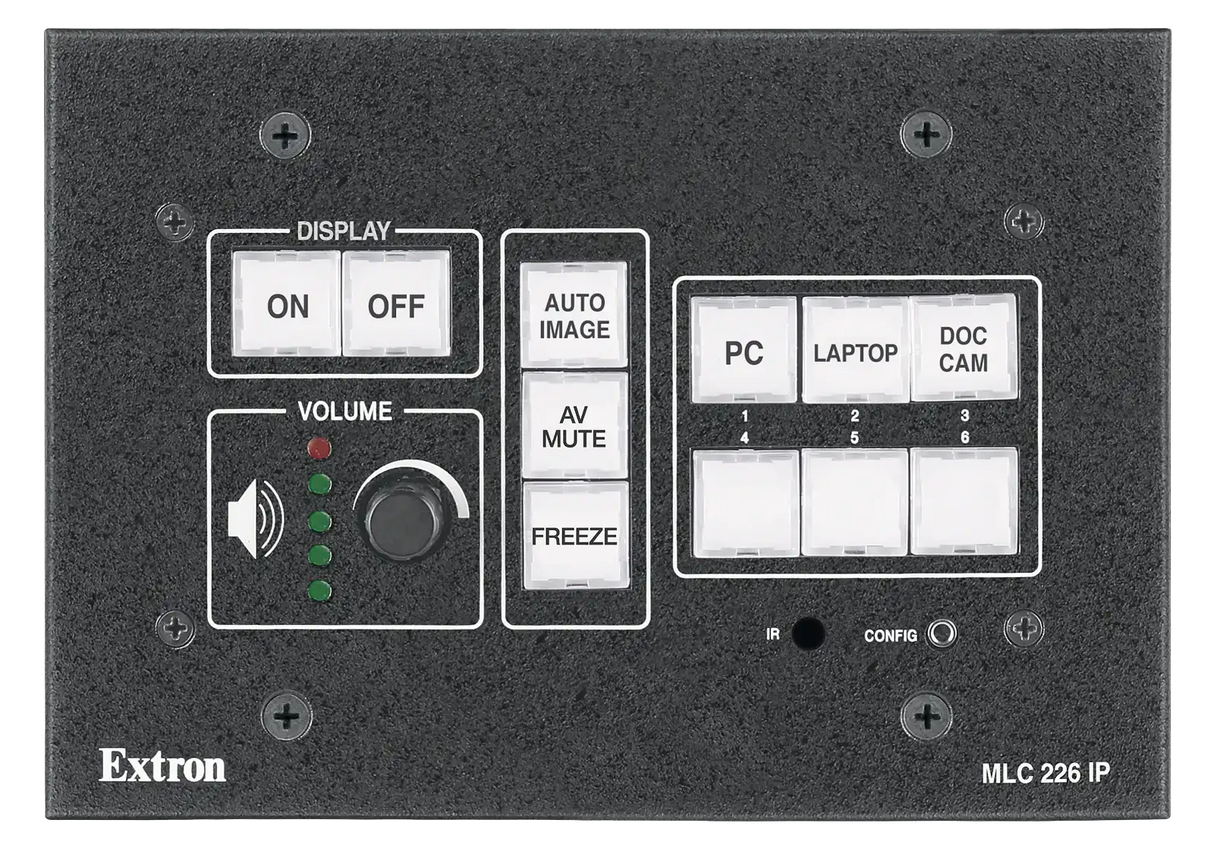

Extron MLC 226 IP Black and White Faceplates MediaLink Controllers

The Extron MLC 226 IP Series MediaLink Controllers deliver intuitive, Ethernet-enabled control for AV systems in professional presentation environments. Available in wall-mount and table-mount configurations, these controllers feature customizable backlit buttons, a volume knob with level indication, and integrated Ethernet connectivity for seamless integration with Extron control systems, third-party devices, and network-based AV infrastructure.

These controllers excel at simplifying room AV operation through a clean, user-friendly interface that supports source selection, volume adjustment, power on/off, and preset recall with minimal training. The IP Link Ethernet control engine enables remote monitoring, configuration, and firmware updates over the network, while built-in IR and RS-232 ports provide direct device control for displays, projectors, switchers, and other AV components.

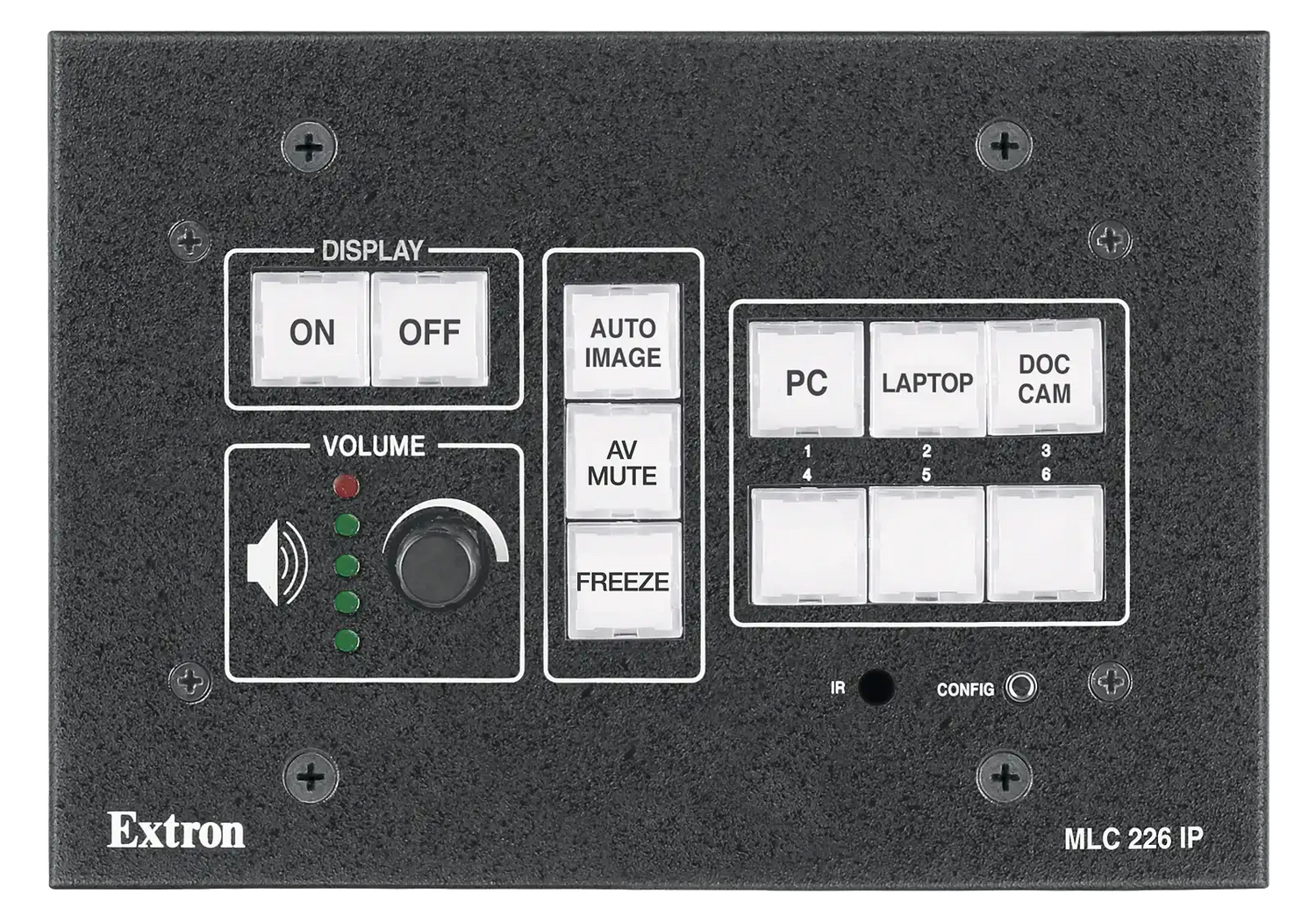

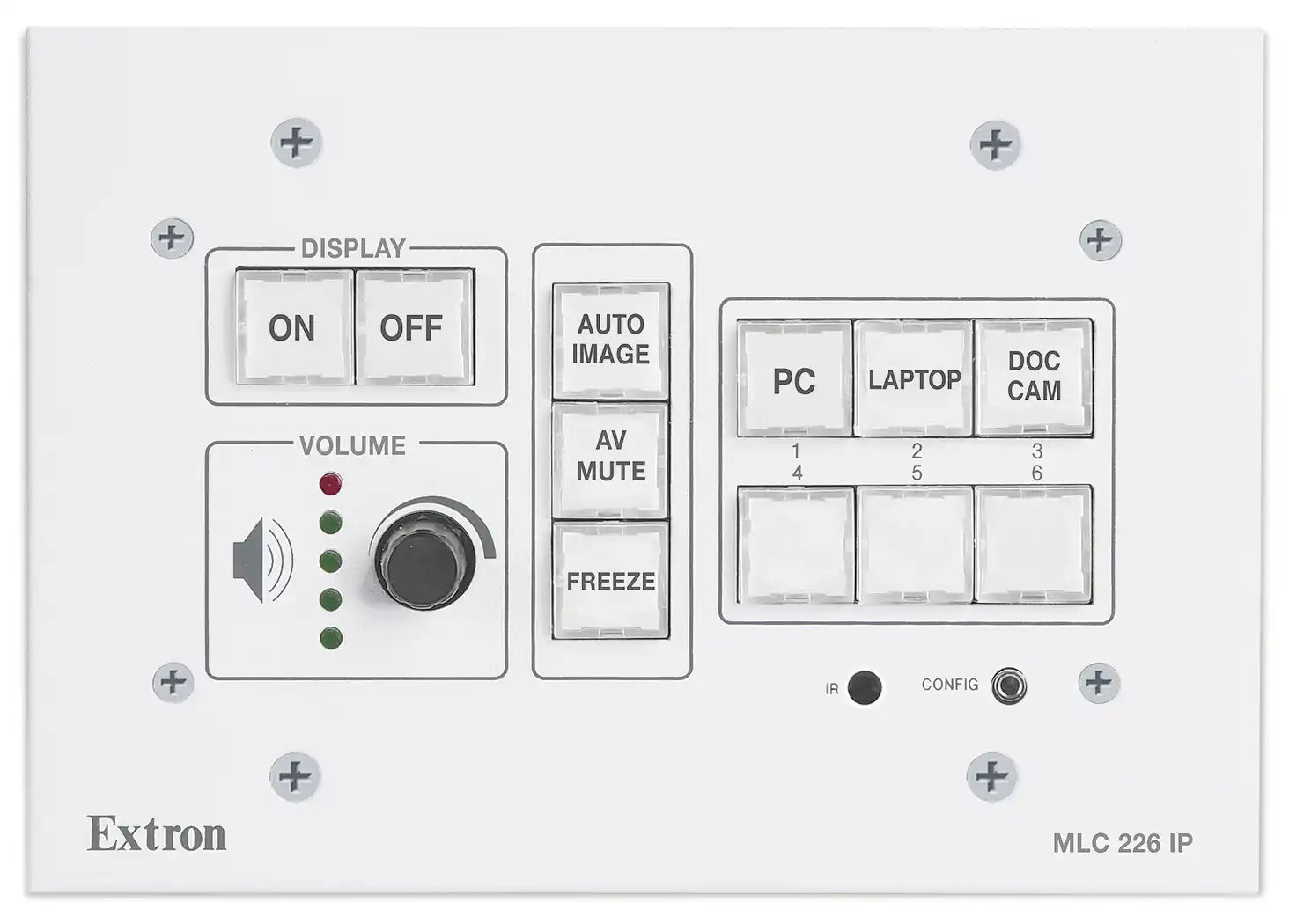

Constructed with durable plastic housings and illuminated buttons in a choice of white or black finishes, the MLC 226 IP Series offers reliable performance and an attractive appearance that blends into modern classrooms, conference rooms, and boardrooms. The backlit buttons provide clear visibility in low-light conditions, and customizable engraving options allow tailored labeling for specific room functions or branding.

Primary applications include classrooms, training rooms, lecture halls, conference rooms, and huddle spaces where simple, reliable AV control is required at the point of use. The controllers support Extron GlobalViewer Enterprise for centralized management of multiple rooms, making them ideal for campus-wide or enterprise AV deployments with consistent user experiences across locations.

Compatibility extends to a wide range of Extron and third-party AV devices via Ethernet, RS-232, IR, and digital I/O ports. The series integrates natively with Extron IPCP Pro Series control processors, DTP systems, matrix switchers, amplifiers, and display devices, while the built-in web interface and configurable macros enable advanced automation without additional hardware in many setups.

Installation is efficient: mount the controller in a standard single-gang electrical box (wall models) or surface/table enclosure, connect power via PoE or external supply, wire control ports to AV equipment, and configure via Ethernet using Extron's configuration software. The design supports daisy-chaining multiple controllers for multi-point control and facilitates easy field servicing or reconfiguration as AV needs evolve.

Features Chart

Specifications Table

Compare Chart

FAQ

1. What is the Extron MLC 226 IP Series used for? It provides simple, Ethernet-connected control of AV systems with backlit buttons and a volume knob for classrooms, conference rooms, and similar spaces.
2. Does the MLC 226 IP support Power over Ethernet? Yes, it can be powered via PoE (IEEE 802.3af) or an optional 12 VDC supply.

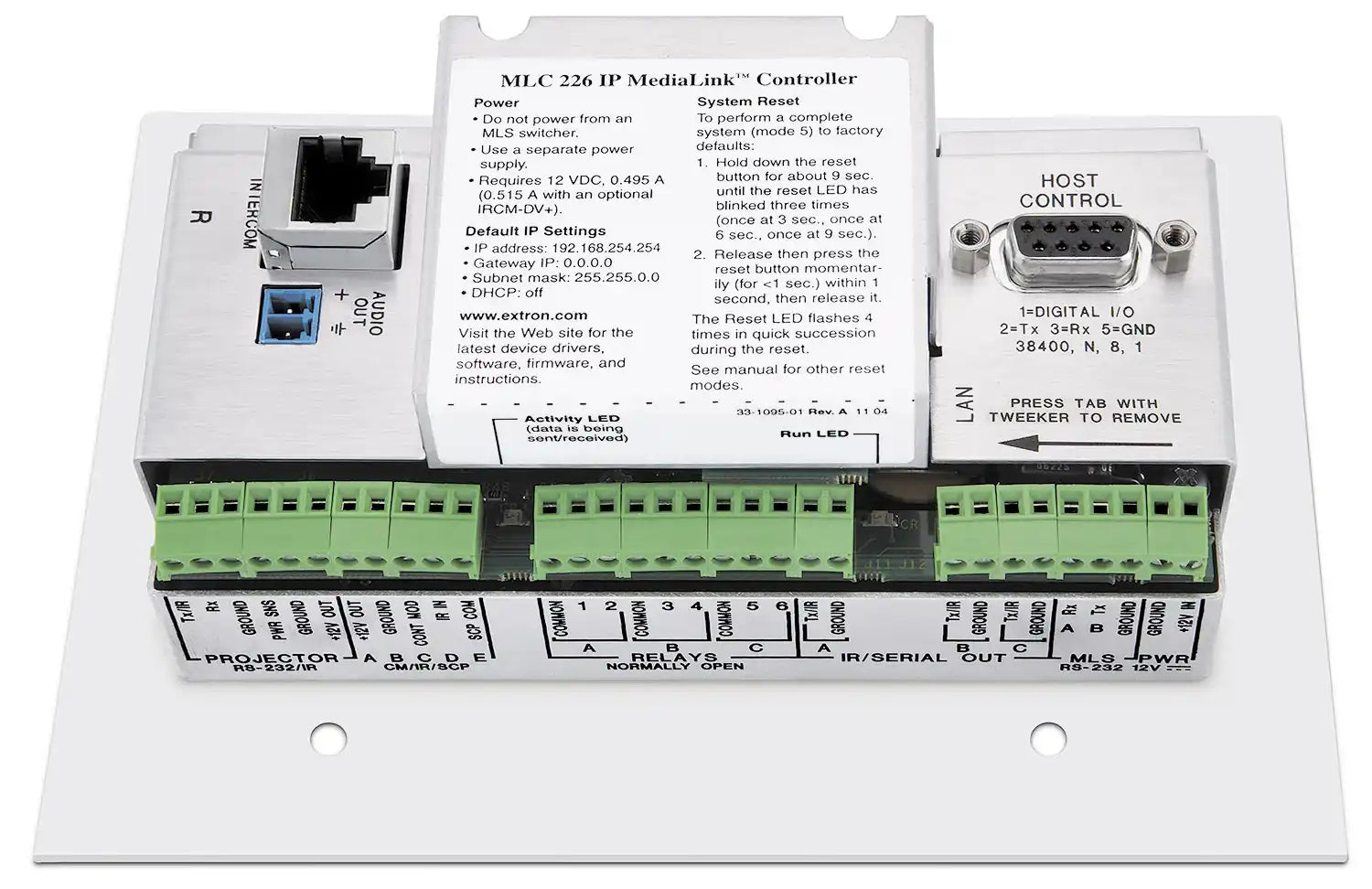

3. How many control ports are included? It features RS-232, IR, two digital I/O ports, and Ethernet for comprehensive device and network integration.
4. Can the buttons be customized? Yes, buttons are backlit and fully customizable via Extron Global Configurator software for specific functions or room labeling.
5. Is remote management available? Yes, the controllers integrate with Extron GlobalViewer Enterprise for centralized monitoring and control of multiple rooms.
6. What mounting options are supported? Wall-mount models fit standard single-gang electrical boxes; table-mount variants use surface enclosures for lectern or tabletop installation.
