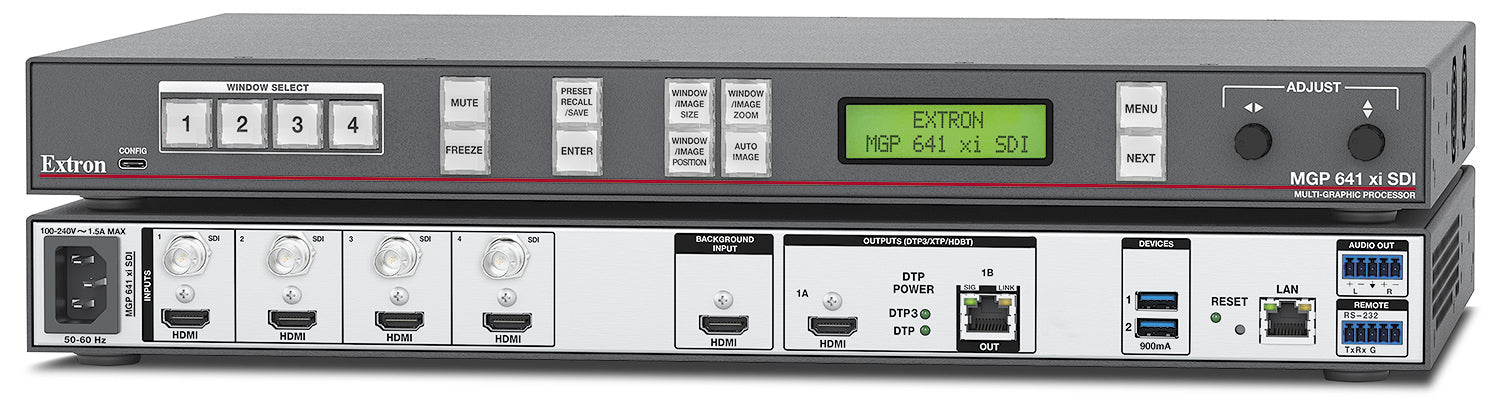

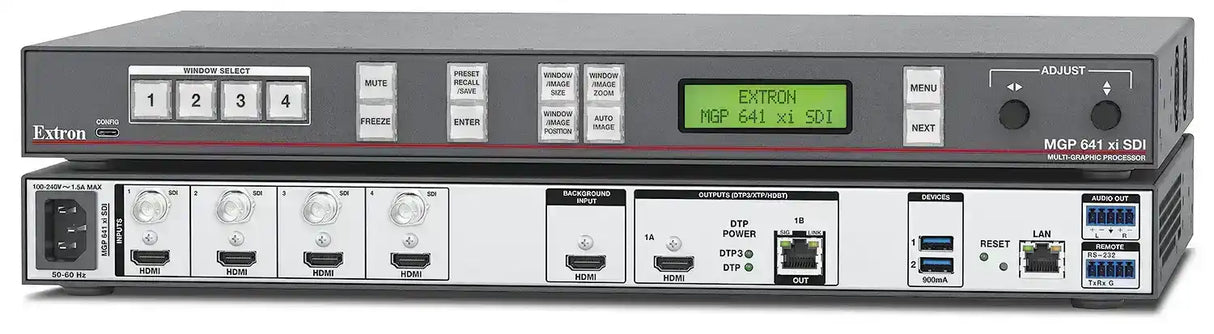

Extron MGP 641 xi Four Windows, with HDMI and 12G-SDI Inputs
Product Overview
The Extron MGP 641 xi is a four-window 4K/60 multi-window processor with four HDMI inputs and four 12G-SDI inputs, a live HDMI background input, simultaneous HDMI and DTP3 outputs (up to 330 ft over CAT 6A), Vector 4K scaling, 128 window presets, and optional on-screen annotation via LinkLicense. Available at Creation Networks.
Product Description

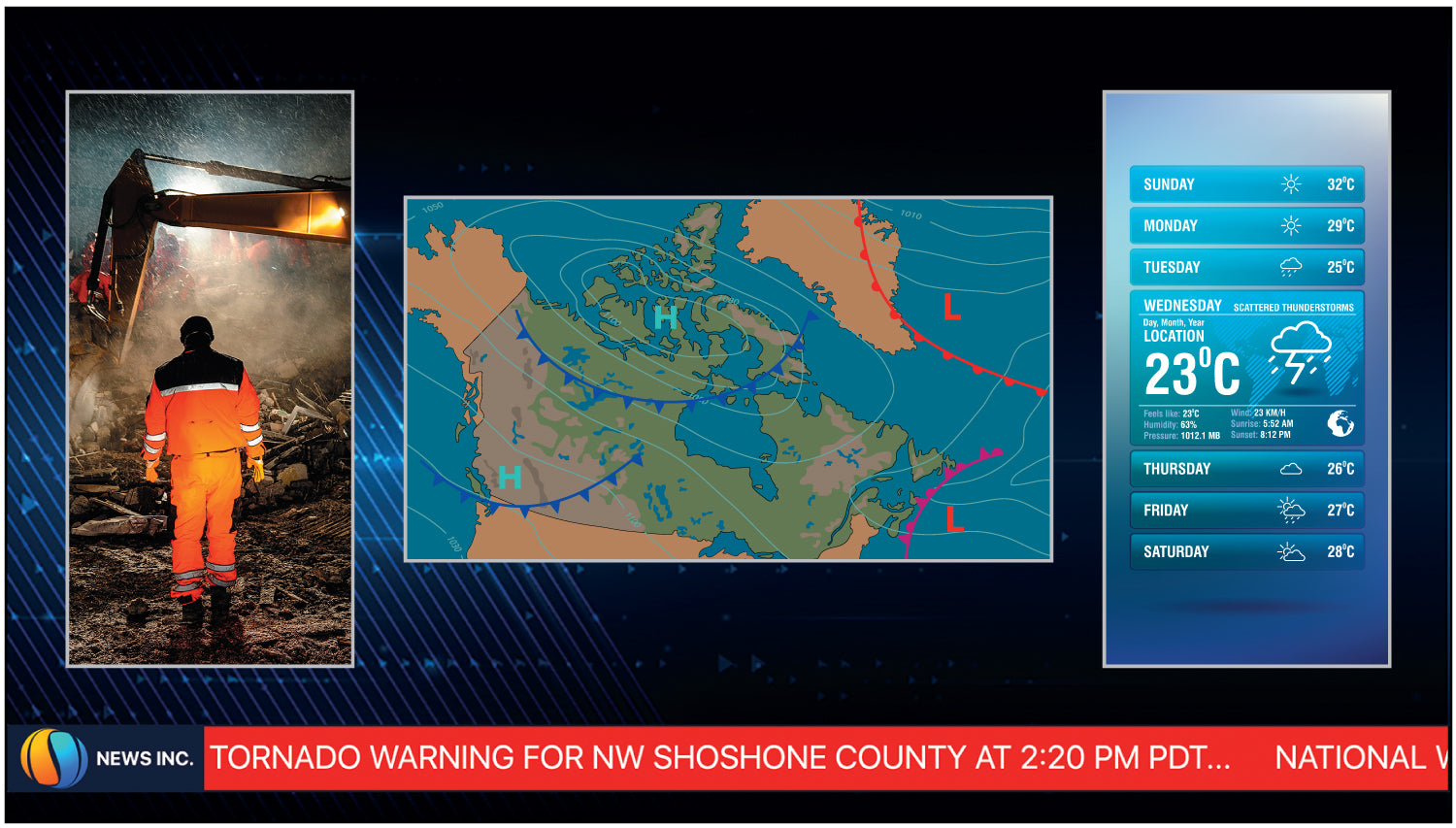

The MGP 641 xi (SDI model) provides four input channels — each with both HDMI and 12G-SDI connections — plus a dedicated HDMI live background input. All four windows display simultaneously over a live video, still image, or solid color background. HDMI inputs accept signals to 4K/60 at 4:4:4; 12G-SDI inputs handle 12G, 6G, 3G, HD, and SD-SDI signals up to 4K/60 at 4:2:2. The HDMI output supports 4K/60; the DTP3 output extends uncompressed 4K/60 to 330 feet over shielded CAT 6A. Up to four units cascade via the HDMI background input for up to 16 windows on one display. Optional LinkLicense adds live annotation. Available at Creation Networks.
Key Features
- Four 12G-SDI + Four HDMI Inputs — Each channel accepts HDMI 2.0 (HDCP 2.3, up to 4K/60 at 4:4:4) or 12G/6G/3G/HD/SD-SDI (up to 4K/60 at 4:2:2).
- HDMI Live Background Input — Dedicated non-scaled input for live video or still images behind all windows; up to 4K/60 landscape.
- 4K/60 HDMI + DTP3 Outputs — Simultaneous HDMI output and DTP3 extension up to 330 ft (100 m) over shielded CAT 6A; configurable DTP3, XTP, or HDBaseT.
- Vector 4K Scaling Engine — 30-bit, 10-bit per color; 600 MHz pixel clock; best-in-class upscaling and downscaling.
- 128 Window Presets — Store and recall size, position, priority, and border style; cut or animated transitions.
- Auto-Layout Mode — Full screen, side-by-side, pyramid, or quad-split based on active input signals.
- Cascade up to Four Units — Link via HDMI background input for up to 16 windows on one canvas.

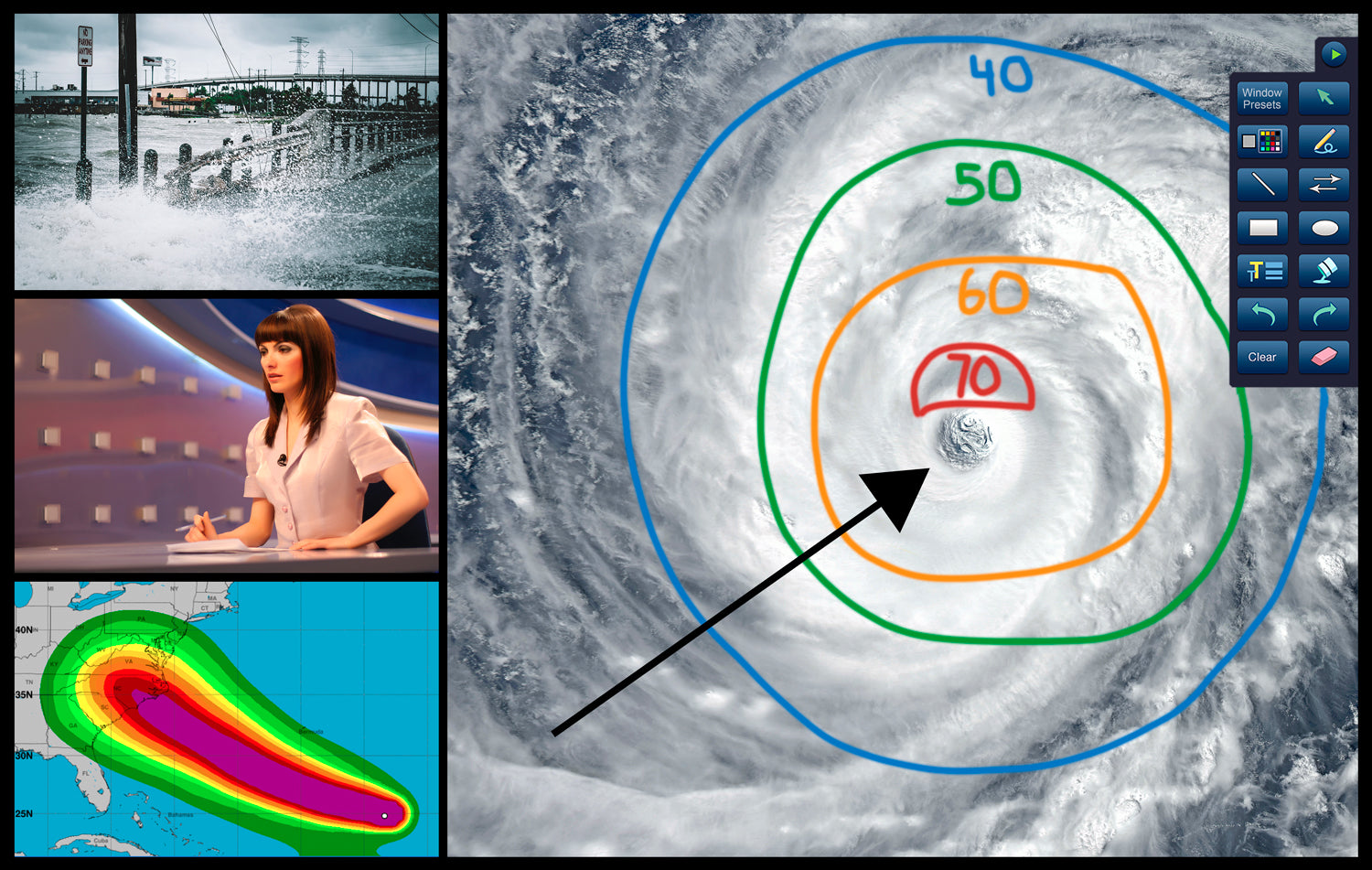

- Optional Live Annotation (LinkLicense) — Annotate over live video using touchscreen or mouse; capture to USB flash drive.
- Logo Keying — Up to 32 logo images with transparency, RGB key, and level key effects.
- SDI Audio Support — Embedded SDI audio up to 8 channels; LPCM 2-ch de-embedding to analog; bitstream pass-through.
- 1U Full-Rack Enclosure — 1.75" H x 17.5" W x 12.0" D; internal Everlast power supply.
Technical Specifications
| MGP 641 xi (SDI) — Technical Specifications (SKU 60-1574-12) | |
|---|---|
| Video inputs | 4 HDMI 2.0 (HDCP 2.3); 4 12G/6G/3G/HD/SD-SDI (BNC); 1 HDMI background; up to 4K/60 at 4:4:4 |
| SDI standards | SMPTE 259M-C, 292M, 424M, 2081, 2082; up to 4K/60 at 4:2:2 |
| Video outputs | 1 HDMI 2.0 (4K/60); 1 DTP3/XTP/HDBaseT RJ-45 (up to 4K/60 at 330 ft) |
| Video processing | 30-bit; 600 MHz pixel clock; Vector 4K scaling |
| Window presets | 128 presets; cut or animated transitions; auto-layout |
| Audio | LPCM 2-ch analog de-embed; SDI audio up to 8 ch; bitstream pass-through |
| Logos | Up to 32; BMP, JPG, PNG, TIFF |
| Control | Ethernet (Gigabit); RS-232; front-panel USB-C; VCS software; SIS protocol |
| Power | Internal Extron Everlast; 100–240 VAC |
| Enclosure | 1U, full rack; 1.75" H x 17.5" W x 12.0" D (44 x 445 x 305 mm) |
| Regulatory | CE, FCC Class A, c-UL, UL; RoHS/WEEE compliant |
| Product warranty | 3 years parts and labor; Everlast PSU 7 years |
Typical Application

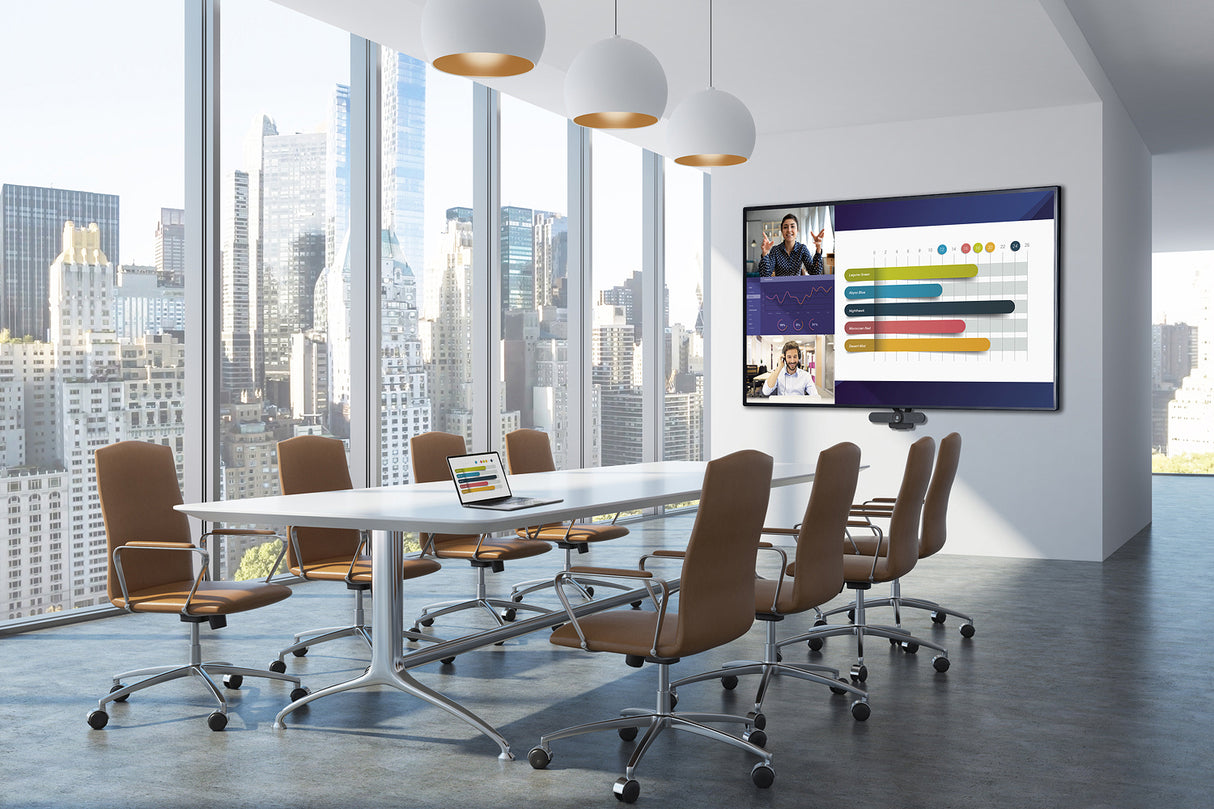

The MGP 641 xi (SDI) is deployed in broadcast-integrated conference rooms, operations centers, and live event venues where 12G-SDI cameras and HDMI sources must be composited in a four-window layout on a 4K display with DTP3 signal extension to a remote screen.
