Product Overview

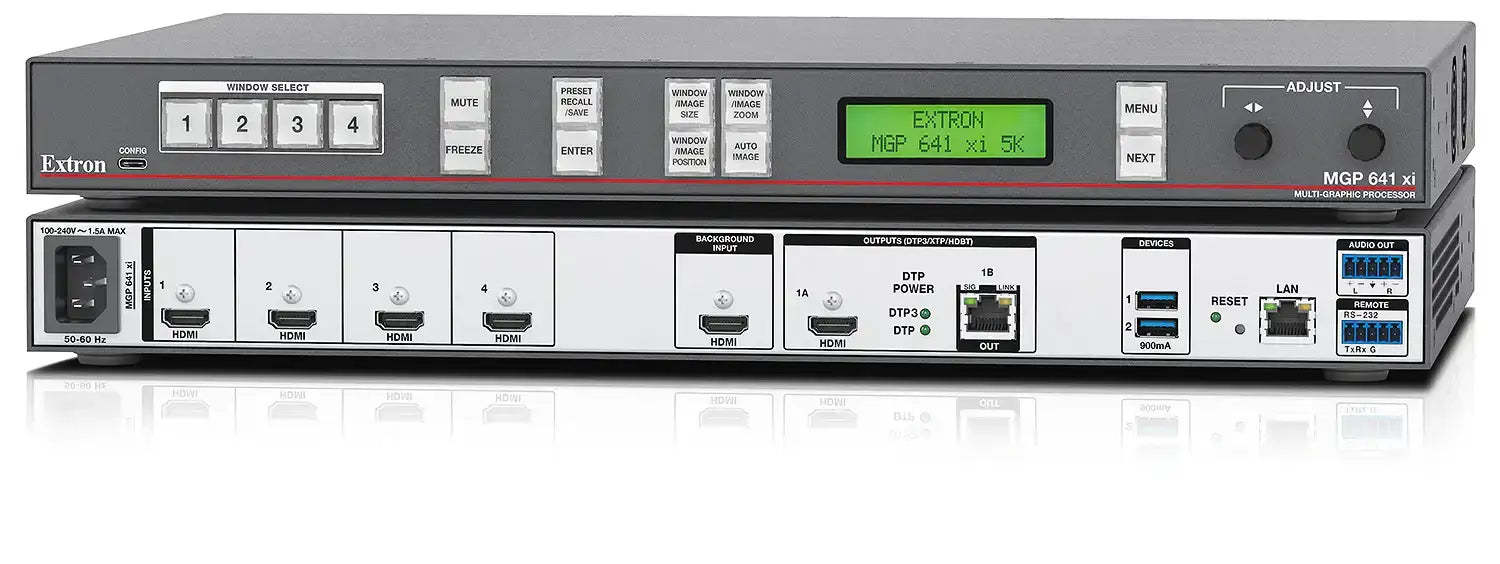

The Extron MGP 641 xi 5K SDI is a four-window multi-window processor that scales and presents up to four 5K HDMI or 12G-SDI source signals on a single display — including ultra-wide 21:9 and 32:9 ratios. It features Vector 4K scaling, a live HDMI background input, simultaneous HDMI and DTP3 outputs (up to 330 ft over CAT 6A), 128 window presets, and optional on-screen annotation via LinkLicense. Available at Creation Networks.
Product Description
The MGP 641 xi 5K SDI provides four independently selectable input channels — each with both an HDMI and a 12G-SDI connection — plus a dedicated HDMI live background input. All four windows can be displayed simultaneously over a live video, still image, or solid color background. Signals up to 5120x2880 (5K) are supported on HDMI inputs; 12G-SDI inputs handle 12G, 6G, 3G, HD, and SD-SDI signals up to 4K/60 at 4:2:2. The HDMI output supports resolutions up to 5120x2880; the DTP3 output extends uncompressed 4K/60 and 5K signals up to 330 feet over a single shielded CAT 6A cable and is configurable for DTP3, XTP, or HDBaseT. Up to four units can cascade via the HDMI background input for up to 16 windows on a single canvas. Auto-layout mode automatically reconfigures windows based on active inputs. EDID Minder manages EDID communication across all inputs. Optional LinkLicense adds live annotation over video. Available at Creation Networks.
Key Features
- Four 12G-SDI + Four HDMI Inputs — Each of the four input channels accepts HDMI (up to 5120x2880) or 12G/6G/3G/HD/SD-SDI (up to 4K/60 at 4:2:2); HDCP 2.3 on all HDMI paths.
- HDMI Live Background Input — Dedicated non-scaled input for live video or still images behind all windows; supports up to 5120x2880 at 30 Hz.
- 5K Output Resolution — HDMI output up to 5120x2880; DTP3 output up to 5K/30 and 4K/60 over 330 ft (100 m) of shielded CAT 6A.
- Vector 4K Scaling Engine — 30-bit, 10-bit per color; 600 MHz pixel clock; best-in-class upscaling and downscaling for 4:4:4 signals.
- Ultra-Wide Display Support — Output resolutions include 5120x1080, 5120x1440, 5120x2160, 5120x2560, and 5120x2880 for 21:9 and 32:9 displays.
- 128 Window Presets — Store and recall size, position, priority, and border style for all four windows; cut or animated transitions between presets.
- Auto-Layout Mode — Automatically arranges windows in full screen, side-by-side, pyramid, or quad-split based on active input signals.
- Cascade up to Four Units — Link via HDMI background input for up to 16 windows on a single display canvas.
- Optional Live Annotation (LinkLicense) — Draw, point, and annotate over live video using a touchscreen or mouse; capture and save annotated images to USB flash drive.
- Logo Keying — Up to 32 logo images (BMP, JPG, PNG, TIFF) with transparency, RGB key, and level key effects.
- Integrated Audio — De-embeds 2-ch PCM to balanced/unbalanced analog output; passes multi-channel bitstream; SDI embedded audio (up to 8 ch) supported on SDI model.
- 1U Full-Rack Enclosure — 1.75" H x 17.5" W x 12.0" D; 6.9 lbs (3.1 kg); internal Everlast power supply; 144 W.
Technical Specifications
| MGP 641 xi 5K SDI — Technical Specifications (SKU 60-1574-14) | |
|---|---|
| Video inputs | 4 HDMI 2.0 (HDCP 2.3); 4 12G/6G/3G/HD/SD-SDI (BNC); 1 HDMI background; all up to 5120x2880 |
| SDI standards | SMPTE 259M-C, 292M, 424M, 2081, 2082; 12G data rate; 4K/60 at 4:2:2 |
| Video outputs | 1 HDMI 2.0 (up to 5120x2880); 1 DTP3/XTP/HDBaseT RJ-45 (up to 4K/60 or 5K/30 at 330 ft) |
| Video processing | 30-bit, 600 MHz pixel clock; 1 billion colors (10-bit 4:4:4); Vector 4K scaling |
| Window presets | 128 presets; cut or animated transitions; auto-layout mode |
| Audio de-embedding | LPCM 2-ch to analog balanced/unbalanced; multi-channel bitstream pass-through; SDI embedded audio (up to 8 ch) |
| Logos | Up to 32; BMP, JPG, PNG, TIFF; transparency, RGB key, level key |
| USB device ports | 2 USB-A 3.2 (up to 5 Gbps); touchscreen or mouse for window control |
| Control | Ethernet (Gigabit); RS-232 (captive screw); front-panel USB-C; VCS software; SIS protocol |
| Power | Internal Extron Everlast; 100–240 VAC; 144 W |
| Enclosure | 1U, full rack; 1.75" H x 17.5" W x 12.0" D (44 x 445 x 305 mm); 6.9 lbs (3.1 kg) |
| Regulatory | CE, FCC Class A, c-UL, UL; RoHS/WEEE compliant |
| Product warranty | 3 years parts and labor; Everlast PSU 7 years |
Typical Application
The MGP 641 xi 5K SDI is deployed in broadcast studios, live event venues, command centers, and high-end conference facilities where 12G-SDI cameras and HDMI sources must be composited on a 5K or ultra-wide display in fully customizable window layouts with professional transition effects.
