Extron Medium Conference Room Bundle

The Extron Medium Conference Room Bundle is a pre-engineered Zoom Rooms audio system for conference rooms seating up to ten participants. Built around the Extron DMP 64 Plus C V AT digital matrix processor with integrated AEC, VoIP, and Dante AoIP, this bundle delivers the DSP processing, 70V amplification, plenum-rated ceiling speakers, and beamforming ceiling microphone coverage needed for a complete, code-compliant commercial conferencing installation.

Product Overview

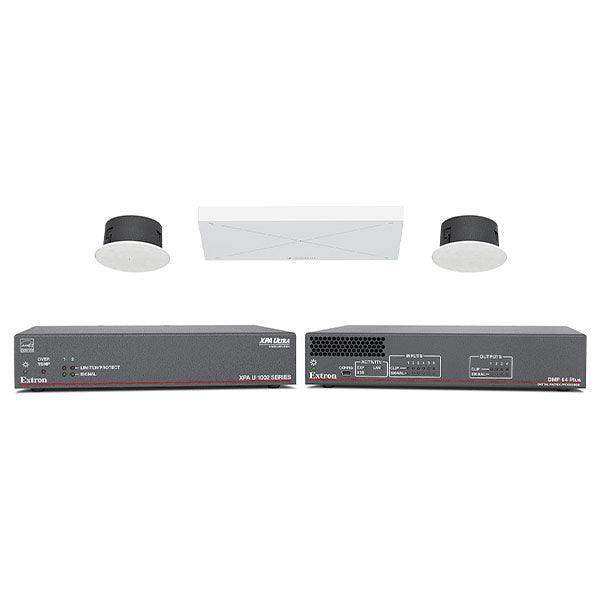

The Extron Medium Conference Room Bundle is a verified Zoom Rooms audio system for mid-size conference rooms accommodating up to ten participants. At the core, the DMP 64 Plus C V AT provides 6x4 digital matrix processing with acoustic echo cancellation, VoIP telephony, and Dante Audio over IP — giving integrators a single-device DSP solution for Extron Zoom Rooms deployments in corporate environments. The XPA U 1002-70V drives a pair of SF 3CT LP 3-inch plenum-rated ceiling speakers, while the Sennheiser TeamConnect Ceiling 2 beamforming ceiling microphone ensures consistent full-room voice pickup without table microphones. Plenum-rated speaker and Cat-6 network cabling, a 10-port PoE+ switch, and pre-configured DSP bundle files are included to support a rack-ready, code-compliant installation.

Product Description

This conference room audio bundle is configured for AV integrators deploying Zoom Rooms in corporate mid-size meeting spaces where clean two-way audio and controlled DSP performance are required. The DMP 64 Plus C V AT anchors the signal chain, and its integrated AEC coordinates with the Sennheiser TeamConnect Ceiling 2 to eliminate echo between ceiling speakers and the microphone array for consistent full-duplex intelligibility during Zoom Rooms sessions. Dante AoIP extends enterprise routing flexibility to other networked AV devices across the facility without additional interface hardware. The XPA U 1002-70V delivers 100W at 70V across two channels, providing appropriate drive levels for the included ceiling speaker pair in a 10-person meeting room. The Sennheiser TeamConnect Ceiling 2 uses adaptive beamforming to track active speakers and suppress ambient noise, removing the need for table or boundary microphones. Included 16 AWG plenum speaker cable and Cat-6 plenum network cable support code-compliant installation in commercial air-handling spaces, and pre-configured DSP files reduce on-site commissioning time. A Zoom Rooms Computer with camera and control interface is required and sold separately; view the full bundle at Creation Networks.

Key Features

• DMP 64 Plus C V AT DSP — 6x4 digital matrix processor with integrated AEC, VoIP telephony, and Dante AoIP for full audio signal management in conference room applications.
• Dante Audio over IP — Enables enterprise-level audio routing and device compatibility across networked AV infrastructure without additional hardware.
• XPA U 1002-70V Two-Channel Amplifier — Delivers 100 watts at 70 volts across two channels to drive ceiling speaker coverage throughout the meeting area.
• SF 3CT LP Plenum-Rated Ceiling Speakers — 3-inch full-range 70/100V ceiling speakers, supplied as a pair, rated for plenum air space installation to meet commercial building code requirements.
• Sennheiser TeamConnect Ceiling 2 Beamforming Microphone Array — Adaptive beamforming ceiling microphone tracks active speakers and rejects ambient noise, delivering consistent intelligibility without table microphones.
• Acoustic Echo Cancellation (AEC) — Integrated in the DMP 64 Plus C V AT, AEC eliminates feedback loops between loudspeakers and microphones for clear two-way audio in Zoom Rooms sessions.
• Pre-Configured DSP Bundle Files — Included setup files reduce programming and commissioning time for integrators deploying this system.
• Plenum-Rated Cabling Included — 16 AWG plenum speaker cable and Cat-6 plenum network cable are included for code-compliant installation in commercial spaces.
• 10-Port PoE+ Network Switch — Provides network connectivity and Power over Ethernet for connected AV and conferencing devices within the system.
• Zoom Rooms Compatible — System is pre-engineered and Extron-certified for Zoom Rooms deployment; supports single-display conferencing configurations.

Technical Specifications
