Extron MediaPort 200 HDMI and Audio to USB Scaling Bridge
Product Overview

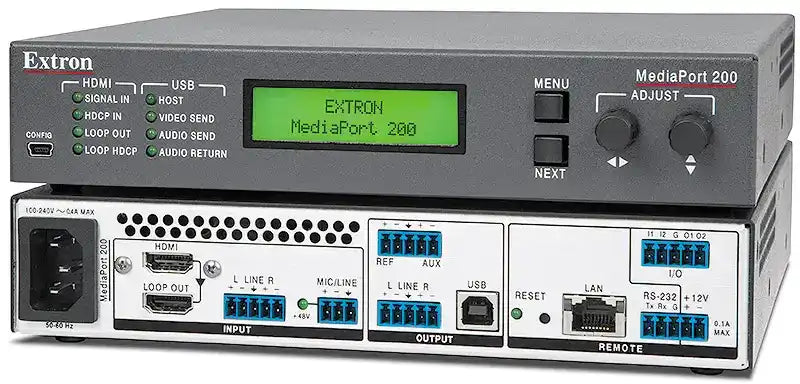

The Extron MediaPort 200 is an HDMI to USB scaling bridge that connects professional AV sources or systems to software codec conferencing applications via USB. It accepts HDMI input with HDCP-compliant loop-through, scales video to a USB 2.0 MJPEG stream, and provides 4x2 USB audio with integrated DSP including EQ, mixing, dynamics, and ducking. Compatible with Microsoft Teams, Zoom, WebEx, Google Meet, and other UC platforms via generic UVC/UAC USB drivers. Available at Creation Networks.
Product Description
The MediaPort 200 bridges professional AV systems with soft codec conferencing computers using a single USB connection. Scaling from 320x180 to 1080p/15 provides an MJPEG video stream optimized for soft codec requirements, with resolution groups dynamically controlled by the codec as it responds to CPU and bandwidth conditions. The 4x2 USB audio interface allows the MediaPort 200 to send a two-channel audio mix (mic, line, HDMI de-embedded) to the computer and receive four channels (program + far-end communications) from the computer — eliminating analog connections between the PC and the AV system. An AEC reference output delivers far-end audio to an external AEC-equipped DSP such as the DMP 128 Plus C for distributed echo cancellation. The integrated DSP provides parametric EQ, compression, limiting, ducking, and gain controls on all inputs and outputs. Passive convection cooling ensures silent operation in conference table or credenza installations. Available at Creation Networks.
Key Features
- HDMI to USB Scaling Bridge — Accepts HDMI signals up to 1080p/60 and 1920x1200; scales to USB MJPEG stream from 320x180 to 1080p/15 for soft codec delivery.
- HDCP-Compliant HDMI Input + Buffered Loop-Through — HDMI input passes to a local display, hardware codec, or AV system without a separate DA; both input and loop-through are HDCP-compliant.
- USB 2.0 UVC/UAC Plug-and-Play — Generic USB Video Class and USB Audio Class drivers; compatible with Windows, Mac, Linux; works with Teams, Zoom, WebEx, Google Meet, GoToMeeting, and other platforms.
- 4x2 USB Audio Interface — Sends a two-channel source mix to the computer; receives program + communications audio from the computer; eliminates analog PC audio connections.
- AEC Reference Output — Provides far-end audio to an external AEC-equipped DSP (e.g. DMP 128 Plus C) as a reference signal for distributed acoustic echo cancellation.
- Integrated Audio DSP — Parametric EQ, high/low pass filters, compression, limiter, ducking, gain; 9-band room EQ on USB and line outputs; 16 user presets.
- Mic/Line Input with 48V Phantom Power — Balanced/unbalanced mic or line input; -60 dBV to +4 dBu; -18 to +60 dB gain adjustment; condenser microphone support.
- Audio Ducking — Automatically lowers program audio when mic or far-end USB audio is detected.
- HDMI Audio De-Embedding — Extracts two-channel PCM audio from HDMI input into the DSP for processing and USB delivery.

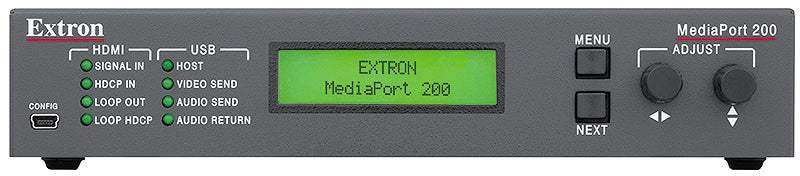

- Front Panel LCD and LEDs — LCD menu display for local configuration; LEDs for HDMI signal presence, HDCP status, USB host/video/audio status.

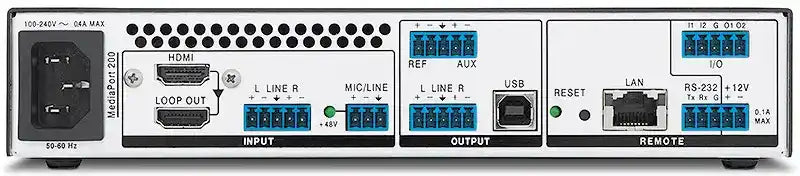

- Multiple Control Options — Ethernet (Gigabit), RS-232, front-panel USB mini-B; digital I/O (2 in / 2 out) for mic activation, muting, and preset recall; +12V remote power for LED mic status.
- Compact Silent 1U Half-Rack Enclosure — 1.66" H x 8.68" W x 9.5" D; 2.3 lbs (1.4 kg); passive convection cooling; under-table or credenza mount.
Technical Specifications
| MediaPort 200 — Technical Specifications (SKU 60-1488-01) | |
|---|---|
| Video input | 1 HDMI 1.4 (HDCP 1.3); up to 1080p/60 and 1920x1200; 165 MHz pixel clock |
| Video loop-through | 1 HDMI (HDCP-compliant buffered); 200 mA device power |
| USB video output | MJPEG; 320x180 to 1080p; 15/24/30 fps; up to 60 Mbps; USB 2.0 high speed |
| Audio inputs | 1 HDMI de-embedded (PCM 2-ch); 1 stereo line (3.5 mm captive, 5-pole); 1 mic/line (3.5 mm, 3-pole); 2-ch USB from computer |
| Audio outputs | 1 stereo balanced/unbalanced (3.5 mm, 5-pole); 2 mono AEC ref/aux (3.5 mm, 5-pole); 2-ch USB to computer; HDMI loop embedded |
| DSP | 24-bit/48 kHz; parametric EQ; compression; limiting; ducking; mixing; 9-band room EQ; 16 user presets |
| Phantom power | +48 VDC ±10% on mic/line input; switchable |
| Control | Ethernet (10/100/1000); RS-232; USB mini-B (front panel); digital I/O (2 in / 2 out); +12V remote power 100 mA |
| Power | Internal Extron Everlast; 100–240 VAC; 18.9 W; passive cooling |
| Enclosure | 1U, half rack; 1.66" H x 8.68" W x 9.5" D (4.2 x 22.1 x 21.6 cm); 2.3 lbs (1.4 kg) |
| Regulatory | CE, FCC Class A, c-UL, UL; RoHS/WEEE compliant |
| Product warranty | 3 years parts and labor; Everlast PSU 7 years |
Typical Application
The MediaPort 200 is deployed in conference rooms, boardrooms, and lecture halls where a PC-based soft codec (Teams, Zoom, or WebEx) must interface with a professional AV system including PTZ cameras, boundary microphones, an AEC DSP, and sound reinforcement — via a single USB connection to the conferencing computer.
