Extron MAAP1XTPFTP24PDJ One XTP DTP 24 Punch Down Jack - CAT 6A MAAP Mini Module White
Extron MAAP1XTPFTP24PDJ One XTP DTP 24 Punch Down Jack - CAT 6A MAAP Mini Module White is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or just need expert advise? Give us a call at 1-888-230-3661 or LiveChat below. Purchasing 1 or 100, there may be greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron MAAP1XTPFTP24PDJ One XTP DTP 24 Punch Down Jack - CAT 6A MAA...

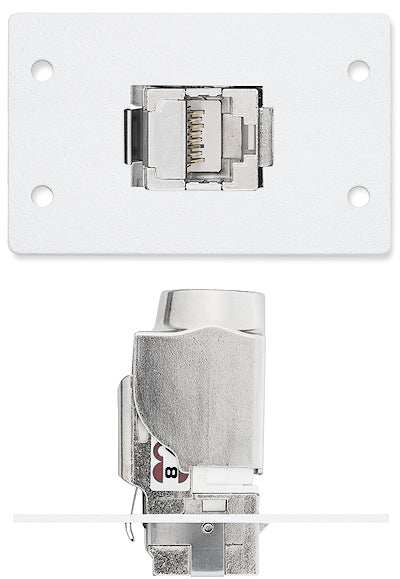

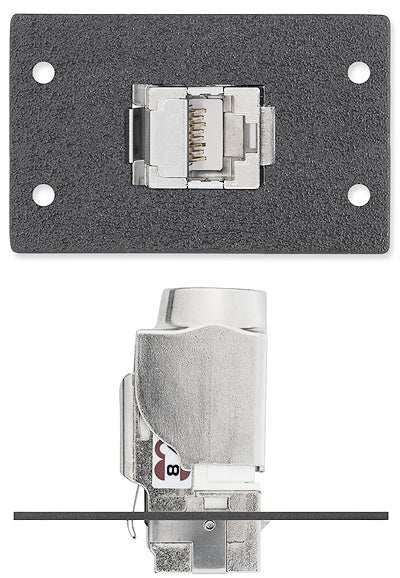

Extron MAAP1XTPFTP24PDJ is a single-space MAAP Mini AV Connectivity Module featuring one XTP DTP 24 shielded RJ-45 punch down jack. This passive installation module enables secure, permanent termination of Extron XTP DTP 22 and XTP DTP 24 Shielded Twisted Pair Cable for high-speed AV signal distribution. Optimized for CAT 6A performance, it maintains signal integrity in XTP Systems and DTP Systems infrastructure without active electronics or power requirements. The mountable metal plate construction provides robust, durable integration into architectural environments.
This module is ideal for conference rooms, classrooms, control rooms, lecterns, table boxes, and wall-mounted applications requiring fixed termination points for shielded twisted pair cable runs carrying high-bandwidth video, audio, control, and data signals. It supports clean, behind-the-scenes wiring in Extron MAAP-compatible frames, select interfaces, and enclosures, making it suitable for modular setups needing reliable, high-performance connectivity in professional AV installations.
Features Chart
| Feature | Benefit |
|---|---|
| Single-space MAAP Mini form factor | Compact fit into Extron interfaces, MAAP frames, and compatible enclosures for space-efficient designs |
| XTP DTP 24 shielded RJ-45 punch down jack | Allows permanent termination of Extron XTP DTP shielded twisted pair cables for high-speed signal transmission |
| CAT 6A compatible | Supports optimized performance for XTP and DTP systems with shielded cable infrastructure |
| Punch down termination | Enables secure, tool-based wiring for reliable fixed connections without loose ends |
| Mountable metal plate | Ensures professional durability, secure mounting, and vibration resistance in architectural setups |
| No power or active components | Simplifies installation with fully passive design for maintenance-free operation |
| MAAP Mini series compatibility | Integrates seamlessly with Extron's compact architectural connectivity ecosystem |
| Shielded cable optimization | Engineered for Extron XTP DTP 22/24 cables to minimize interference in high-bandwidth AV applications |
Specifications Table
| Specification | Details |
|---|---|
| Connector Type | One XTP DTP 24 shielded RJ-45 punch down jack |
| Cable Compatibility | Extron XTP DTP 22 and XTP DTP 24 Shielded Twisted Pair Cable |
| Form Factor | Single Space MAAP Mini module |
| Mounting | Mountable metal plate |
| Type | Installation / Punch down |
| Compatibility | Select Extron interfaces, MAAP AV connectivity mounting frames, MAAP-compatible products |
| Signal Type | High-speed shielded twisted pair termination (optimized for XTP/DTP systems) |
| Size | Single Space |
Compare Chart
| Aspect | Extron MAAP1XTPFTP24PDJ | Extron MAAP1XTPFTP24CO | Extron AAP2XTPFTP24CO |
|---|---|---|---|
| Connector Type | XTP DTP 24 RJ-45 punch down jack | XTP DTP 24 RJ-45 coupler (barrel) | Dual XTP DTP 24 RJ-45 couplers |
| Cable Support | XTP DTP 22/24 shielded | XTP DTP 22/24 shielded | XTP DTP 22/24 shielded |
| Form Factor | Single Space MAAP Mini | Double Space MAAP Mini | Double Space AAP |
| Mounting System | MAAP frames/enclosures | MAAP frames/enclosures | AAP frames/enclosures |
| Termination/Connection | Punch down (permanent) | Barrel coupler (extension) | Dual barrel couplers |
| Primary Use | Fixed shielded cable termination | In-line shielded cable extension | Multiple cable extensions |
| Ideal For | Permanent wired drops | Extend existing runs | Dual cable run extensions |
| Space Efficiency | High (single-space Mini) | Compact double-space Mini | Standard double-space |
FAQ
- What is the main purpose of this module? It provides a shielded RJ-45 punch down jack for permanent termination of Extron XTP DTP 22 and XTP DTP 24 Shielded Twisted Pair Cable in AV systems.
- Which mounting systems are compatible? It fits select Extron interfaces, MAAP AV connectivity mounting frames, wall boxes, table boxes, and other products accepting MAAP Mini modules.
- What cable types does it support? It is specifically designed for Extron XTP DTP 22 and XTP DTP 24 Shielded Twisted Pair Cables optimized for high-speed AV transmission.
- Does it require power or active components? No, it is a fully passive installation module with no electronics or power needs.
- Why use punch down instead of a coupler? Punch down offers permanent, secure termination for fixed cable runs, reducing the risk of disconnection compared to barrel couplers.
- Is it suitable for professional AV setups? Yes, the MAAP Mini design and CAT 6A-optimized compatibility ensure high-performance, reliable connectivity in conference rooms, classrooms, and architectural installations.
