Extron MAAP1XTPFTP24CO One XTP DTP 24 Coupler - CAT 6A MAAP Mini Module Black
Extron MAAP1XTPFTP24CO One XTP DTP 24 Coupler - CAT 6A MAAP Mini Module Black is backordered and will ship as soon as it is back in stock.
Shipping Availability*
Shipping Availability*
Free Ground Shipping on Most Orders Over $250.00
Looking for the best price or expert advice? Give us a call at 1-888-230-3661 or use the Live Chat below. Buying 1 or 100, you may qualify for greater savings beyond the advertised price.
Looking for a specific Extron product or custom AV solution? Our certified experts can source any Extron device to meet your project requirements. Please contact Creation Networks for a personalized quote or to learn more about our certified Extron design, programming, installation and maintenance services for conference rooms, auditoriums, training centers, and hybrid collaboration spaces. Creation Networks offers direct technical support during the initial Extron implementation and future support of Extron products as needed.
Extron MAAP1XTPFTP24CO One XTP DTP 24 Coupler - CAT 6A MAAP Mini Mo...

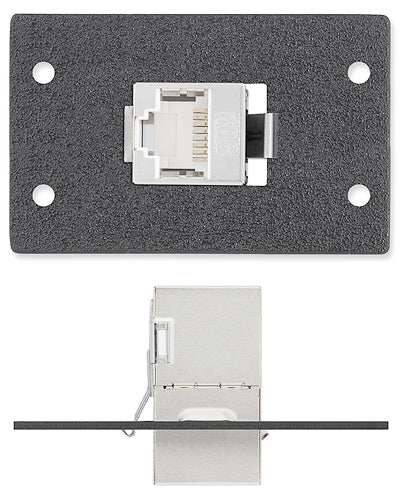

Extron MAAP1XTPFTP24CO is a double-space MAAP Mini AV Connectivity Module featuring one XTP DTP 24 shielded RJ-45 coupler (barrel/adapter type). This passive pass-through module is designed for extending Extron XTP DTP 22 and XTP DTP 24 Shielded Twisted Pair Cable runs in professional AV installations. It supports high-speed signal transmission optimized for XTP Systems and DTP Systems infrastructure, maintaining signal integrity over CAT 6A performance levels without active components or power requirements. The mountable metal plate construction ensures secure, durable integration into architectural environments.
This module is well-suited for conference rooms, classrooms, control rooms, lecterns, table boxes, and wall-mounted applications where extended shielded twisted pair cable connections are needed for high-bandwidth AV distribution, control, or data signals. It enables reliable in-line coupling of terminated XTP DTP cables, ideal for modular setups requiring clean, hidden connectivity points in Extron MAAP-compatible frames, select interfaces, and enclosures.
Features Chart
| Feature | Benefit |
|---|---|
| Double-space MAAP Mini form factor | Compact integration into Extron interfaces, MAAP frames, and compatible enclosures for space-efficient AV layouts |
| XTP DTP 24 shielded RJ-45 coupler | Provides reliable extension of Extron XTP DTP shielded twisted pair cables for high-speed signal transmission |
| CAT 6A compatible | Supports optimized performance for XTP and DTP systems with shielded cable infrastructure |
| Barrel/adapter pass-through | Enables direct in-line coupling of terminated cables without signal degradation or active processing |
| Mountable metal plate | Ensures professional durability, secure mounting, and vibration resistance in architectural setups |
| No power or active components | Simplifies installation with fully passive design for reliable, maintenance-free operation |
| MAAP Mini series compatibility | Fits seamlessly into Extron's compact architectural connectivity ecosystem for modular flexibility |
| Shielded cable optimization | Engineered for Extron XTP DTP 22/24 cables to maintain high-bandwidth AV, control, and data signals |
Specifications Table
| Specification | Details |
|---|---|
| Connector Type | One XTP DTP 24 shielded RJ-45 coupler (barrel/adapter) |
| Cable Compatibility | Extron XTP DTP 22 and XTP DTP 24 Shielded Twisted Pair Cable |
| Form Factor | Double Space MAAP Mini module |
| Mounting | Mountable metal plate |
| Type | Barrel/Adapter, Pass-through |
| Compatibility | Select Extron interfaces, MAAP AV connectivity mounting frames, MAAP-compatible products |
| Signal Type | High-speed shielded twisted pair pass-through (optimized for XTP/DTP systems) |
| Size | Double Space |
Compare Chart
| Aspect | Extron MAAP1XTPFTP24CO | Extron AAP2XTPFTP24CO (dual variant) | Extron MAAP1XTPFTP24PDJ (punch down example) |
|---|---|---|---|
| Connector Type | One XTP DTP 24 RJ-45 coupler | Two XTP DTP 24 RJ-45 couplers | One XTP DTP 24 punch down jack |
| Cable Support | XTP DTP 22/24 shielded | XTP DTP 22/24 shielded | XTP DTP 22/24 shielded |
| Form Factor | Double Space MAAP Mini | Double Space AAP | Single Space MAAP Mini |
| Mounting System | MAAP frames/enclosures | AAP frames/enclosures | MAAP frames/enclosures |
| Termination/Connection | Barrel coupler (extension) | Dual barrel couplers | Punch down termination |
| Primary Use | In-line shielded cable extension | Dual in-line extensions | Fixed cable termination |
| Ideal For | Single cable run extension | Multiple cable extensions | Permanent wired drops |
| Space Efficiency | Compact double-space Mini | Standard double-space | Higher single-space efficiency |
FAQ
- What is the main purpose of this module? It serves as an in-line coupler for extending Extron XTP DTP 22 and XTP DTP 24 Shielded Twisted Pair Cable runs in AV infrastructure.
- Which mounting systems are compatible? It fits select Extron interfaces, MAAP AV connectivity mounting frames, wall boxes, table boxes, and other products accepting MAAP Mini modules.
- What cable types does it support? It is specifically designed for Extron XTP DTP 22 and XTP DTP 24 Shielded Twisted Pair Cables optimized for high-speed transmission.
- Does it require power or active components? No, it is a fully passive barrel/adapter module with no electronics or power needs.
- Why use shielded twisted pair couplers? Shielding reduces interference for reliable high-bandwidth signals in XTP and DTP systems over extended distances.
- Is it suitable for professional AV setups? Yes, the MAAP Mini design and optimized compatibility ensure durable, high-performance connectivity in conference rooms, classrooms, and architectural installations.
