Extron IPCP Pro 255Q xi IPCP Pro xi Control Proc., LL UI Upgrade
Product Description

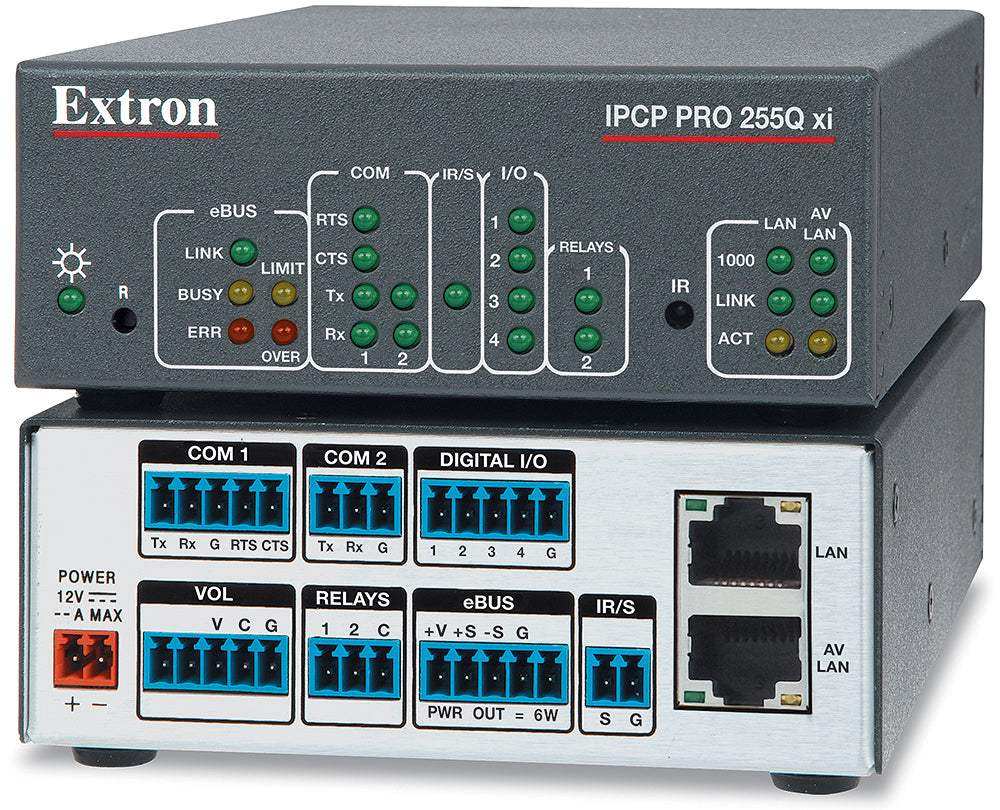

The Extron IPCP Pro 255Q xi control processor is a compact, quad-core IP Link Pro control processor built for centralized AV control in commercial spaces that require an isolated, secure AV network. This LL UI Upgrade configuration ships with Extron LinkLicense to extend the user-interface capabilities of your Extron Pro Series control system. A quad-core processor with 2 GB of RAM and 8 GB of Flash, four times the memory of prior multi-network IP Link Pro processors, delivers faster project uploads, quicker runtime performance, and headroom for more sophisticated control programs.
What sets this quad-core control processor apart is its dual Gigabit Ethernet design: one LAN port for the corporate network and a dedicated AV LAN port that isolates connected AV devices from outside intrusion or interference. The AV LAN includes a built-in DHCP server that automatically distributes IP addresses and network parameters to local AV devices, streamlining system setup. The LAN-to-AV-LAN path still permits discovery, management, and firmware updates for Extron devices using PCS, DSP, and XTP Configurator, while restricting other Ethernet traffic.
A full set of control interfaces, two serial ports, an IR/serial port, four digital I/O ports, two relays, an eBUS port, and a remote volume control port, lets a single unit manage displays, projectors, switchers, lighting, screens, and audio amplifiers. Deployment uses Global Configurator Plus, Global Configurator Professional, or Extron ControlScript and Global Scripter, with GlobalViewer Enterprise for centralized AV resource monitoring across the enterprise. If your deployment does not require a dedicated AV LAN, compare the single-core, single-port IPCP Pro 250 xi in our Extron control processor collection.
Key Features
- Quad-Core Processor with Expanded Memory — A quad-core processor with 2 GB of RAM and 8 GB of Flash, four times the memory of prior multi-network models, increases project upload speed and runtime performance for sophisticated control programs.
- Dual Gigabit Ethernet with Isolated AV LAN — Two 10/100/1000Base-T ports separate the corporate LAN from a dedicated AV LAN, securing connected AV devices from outside intrusion or interference.
- Built-In AV LAN DHCP Server — The AV LAN DHCP server automatically distributes IP addresses and network configuration parameters to connected AV devices, streamlining system setup and management.
- Broad Endpoint Compatibility — The processor supports Extron TouchLink Pro touchpanels, Network Button Panels, eBUS button panels, and IPL EXP expansion interfaces for flexible user-interface design.
- Comprehensive Control I/O — Two serial ports, one IR/serial port, four configurable digital I/O ports, two relays, and a remote volume control port allow one unit to control displays, projectors, lighting, screens, and select Extron amplifiers.
- LinkLicense UI Upgrade Included — This configuration includes Extron LinkLicense to expand the user-interface capabilities of the Pro Series control system.
- Secure Industry-Standard Protocols — Support for HTTPS, SSH, SFTP, SMTP, NTP, and IEEE 802.1X authentication meets the network security requirements of enterprise and education environments.
- Building Management System Integration — The processor supports BACnet, KNX, and DALI for centralized monitoring and control of HVAC, lighting, power, and security systems.
- Central Deployment Architecture — As the primary control processor, the unit automatically distributes system files, configurations, and programs to touchpanels, secondary processors, and button panels as they come online.
- Compact Quarter-Rack Enclosure — A 1U-high, quarter-rack-width metal enclosure with convection cooling installs in racks with an optional shelf or under furniture with an optional bracket kit.
- Extron Everlast Power Supply — The included external Everlast power supply provides worldwide power compatibility and is backed by a 7-year parts and labor warranty.
Technical Specifications
| Model | Extron IPCP Pro 255Q xi (IP Link Pro control processor) |
|---|---|
| Processor / Memory | Quad-core; 2 GB SDRAM, 8 GB Flash |
| Ethernet | 2 NICs: 1 LAN, 1 AV LAN; 2 female RJ-45, 10/100/1000Base-T half/full duplex with autodetect |
| AV LAN DHCP server | Built-in; distributes IP addresses and network parameters to connected AV devices (50-address default lease pool) |
| Ethernet protocols | ARP, DHCP, DNS, HTTP (redirect), HTTPS, ICMP, IEEE 802.1X, NTP, SFTP, SMTP, SNMP, SSH, TCP/IP, UDP/IP |
| Serial ports | 1 bidirectional RS-232/RS-422/RS-485 (5-pole captive screw); 1 bidirectional RS-232 (3-pole captive screw) |
| Baud rate | 300 to 115200 baud (9600 default) |
| IR/serial | 1 programmable: unidirectional RS-232 (±5 V) or TTL-level IR up to 300 kHz (2-pole captive screw) |
| Digital I/O | 4 configurable digital input/output (5-pole captive screw) |
| Relays | 2 normally open relays, rated 24 VDC, 1 A (3-pole captive screw) |
| eBUS | 1 eBUS control port (5-pole captive screw, uses 4 poles); 6 watts power output |
| Volume control | 1 control port (0 to +10 VDC adjustable) for select Extron amplifiers |
| Power supply | External Extron Everlast, included; input 100-240 VAC 50-60 Hz; output 12 VDC, 1.5 A, 18 W |
| Power consumption | 10.6 watts at 12 VDC (4.0 watts without eBUS) |
| Enclosure | Metal, 1U high, quarter-rack wide; convection cooled, no vents |
| Dimensions | 1.7" H x 4.3" W x 6.0" D (43 x 109 x 152 mm) |
| Weight | 0.8 lbs (0.4 kg) |
| Regulatory | CE, C-Tick, c-UL, FCC Class A, ICES, KC, UL, VCCI; RoHS, WEEE |
| Warranty | 3 years parts and labor (Everlast power supply: 7 years) |
Frequently Asked Questions
What is the AV LAN port on the IPCP Pro 255Q xi for?
The dedicated AV LAN port isolates connected AV devices from the corporate network, protecting them from outside intrusion or interference. It includes a built-in DHCP server that automatically assigns IP addresses to local AV devices, and it still permits discovery, management, and firmware updates of Extron devices from the LAN side.
How is the IPCP Pro 255Q xi configured and programmed?
The processor can be configured with Global Configurator Plus or Global Configurator Professional, or programmed with Extron ControlScript and Global Scripter. GlobalViewer Enterprise provides centralized AV resource monitoring and management across a network.
What user interfaces and endpoints does it support?
It supports Extron TouchLink Pro touchpanels, Network Button Panels, eBUS button panels, and IPL EXP expansion interfaces. This LL UI Upgrade configuration includes Extron LinkLicense to expand the control system's user-interface capabilities.
How does the 255Q xi differ from the IPCP Pro 250 xi?
The 255Q xi is a quad-core processor with 2 GB of RAM and dual Gigabit Ethernet ports, including a dedicated AV LAN with DHCP server. The IPCP Pro 250 xi is a single-core processor with one LAN port, suited to systems that do not require an isolated AV network.
Is the IPCP Pro 255Q xi rack-mountable?
Yes. The 1U-high, quarter-rack-width metal enclosure mounts in an equipment rack with an optional 1U rack shelf or under furniture with an optional bracket kit.
What warranty and support are included?
The IPCP Pro 255Q xi carries a 3-year parts and labor warranty, and the included Extron Everlast power supply is backed by a 7-year parts and labor warranty. Creation Networks provides commercial AV product support to assist with selection and integration.
