Extron IN9478D One RJ-45 Female to Punch Down - CAT 6 MAAP Mini Module

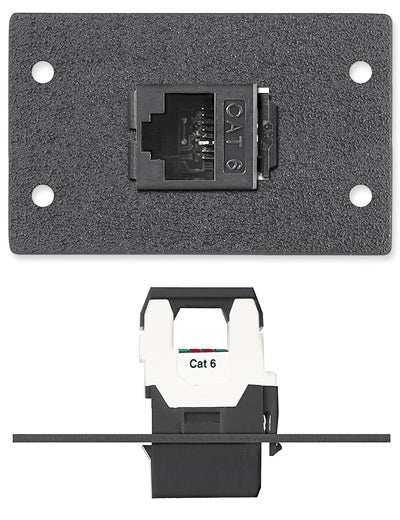

Extron IN9478D is a double-space MAAP Mini AV Connectivity Module with one RJ-45 female connector on the front connected to a rear punch down terminal block, rated for CAT 6 cabling. This passive installation module supports secure, permanent termination of high-performance network or data cables while offering an accessible RJ-45 jack for patch cords, devices, or extensions. The mountable metal plate construction provides durable, professional integration into architectural AV systems for clean and reliable connectivity.
This module excels in conference rooms, classrooms, control rooms, lecterns, table boxes, and wall-mounted applications requiring fixed Gigabit Ethernet or data connections as part of AV infrastructure. It facilitates efficient wiring for IP control networks, AV over IP solutions, high-speed data drops, or networked peripherals by enabling punch-down termination of incoming CAT 6 cabling and convenient front access. Compatible with Extron MAAP-compatible mounting frames, select interfaces, or enclosures, it serves as a passive pass-through solution that maintains CAT 6 signal integrity without power or active components.
Features Chart
| Feature | Benefit |
|---|---|
| Double-space MAAP Mini form factor | Accommodates higher-performance connectors in Extron interfaces, MAAP frames, and compatible enclosures for reliable layouts |
| RJ-45 female front connector | Provides easy access for RJ-45 patch cords, network devices, or extensions in AV environments |
| Rear punch down terminal block | Enables secure, tool-based permanent termination of CAT 6 cabling for stable fixed wiring |
| CAT 6 rated | Supports Gigabit Ethernet and higher data rates with reduced crosstalk for demanding AV network applications |
| Mountable metal plate | Ensures sturdy, vibration-resistant mounting and long-term durability in architectural settings |
| Pass-through installation type | Maintains direct signal path with no latency, power requirements, or active processing |
| MAAP Mini series compatibility | Integrates seamlessly with Extron's compact architectural connectivity lineup for flexible deployments |
| High-category performance | Delivers future-ready network integration for modern AV systems and control |
Specifications Table
| Specification | Details |
|---|---|
| Connector Type | One RJ-45 Female (front) to Punch Down terminal block (rear) |
| Cable Category | CAT 6 |
| Form Factor | Double Space MAAP Mini module |
| Mounting | Mountable metal plate |
| Type | Installation / Pass-through |
| Compatibility | Select Extron interfaces, MAAP AV connectivity mounting frames, MAAP-compatible products |
| Signal Type | RJ-45 pass-through (Ethernet/data up to CAT 6) |
| Size | Double Space |
Compare Chart
| Aspect | Extron IN9478D | Extron IN9477 | Extron IN9359D |
|---|---|---|---|
| Connector Type | RJ-45 Female to Punch Down | RJ-45 Female to Punch Down | RJ-45 Female to Punch Down |
| Cable Support | CAT 6 | CAT 6 | CAT 6 |
| Form Factor | Double Space MAAP Mini | Single Space MAAP Mini | Double Space MAAP Mini |
| Mounting System | MAAP frames/enclosures | MAAP frames/enclosures | MAAP frames/enclosures |
| Termination Method | Punch down (rear) | Punch down (rear) | Punch down (rear) |
| Primary Use | Fixed Gigabit network termination | Compact fixed Gigabit termination | Fixed Gigabit termination |
| Performance Level | Gigabit+ with better crosstalk | Gigabit+ | Gigabit+ |
| Ideal For | Permanent CAT 6 drops (larger space) | Space-limited permanent drops | High-performance fixed drops |
FAQ
- What is the primary function of this module? It provides an RJ-45 female jack with rear punch down terminals for terminating and extending CAT 6 network or data cables in professional AV installations.
- How does the punch down termination function? The rear block allows secure punch-down of incoming CAT 6 cabling, while the front RJ-45 connector accepts patch cords or devices.
- Which mounting systems are compatible? It fits select Extron interfaces, MAAP AV connectivity mounting frames, table boxes, wall plates, and other products accepting MAAP Mini modules.
- Does it require power or active components? No, it is a passive installation module with no electronics or power needs.
- Why use CAT 6 in this module? CAT 6 offers superior performance, reduced crosstalk, and support for higher data rates, making it optimal for Gigabit Ethernet and AV over IP applications.
- Is it suitable for high-traffic AV network setups? Yes, the CAT 6 rating and fixed punch-down design provide reliable, long-term data connectivity for conference rooms, classrooms, and professional AV environments.
