Extron IN1806 Six Input 4K/60 Seamless Presentation Switcher
Product Overview
The Extron IN1806 is a six-input 4K/60 seamless presentation switcher with one DisplayPort 1.2 and five HDMI 2.0 inputs — plus one HDMI output and one mirrored DTP2 output for signal extension up to 330 feet over shielded CATx. It incorporates Extron Vector 4K seamless scaling, ProDSP audio processing, seamless transition effects, logo keying, and HDMI loop-through. Available at Creation Networks.
Product Description
The IN1806 delivers six-input seamless switching with 4K/60 at 4:4:4 on all paths — without the bulk of a full matrix switcher. One DisplayPort and five HDMI inputs (including one with HDMI loop-through to a local display) route to one HDMI output and one DTP2 output that mirrors the HDMI for signal extension to a remote projector or display up to 330 feet over shielded CATx. Vector 4K scaling handles the full range from 640x480 through 4K/60. ProDSP processes analog audio with mic/line input, audio breakaway, and embedding/de-embedding. Seamless transitions (freeze/cut, freeze/fade, cut through black, fade through black) provide clean source changes. Logo keying enables company logos or full-screen backgrounds. EDID Minder, Key Minder, and SpeedSwitch ensure reliable HDCP handling. Control via Ethernet, RS-232, or USB. Available at Creation Networks.
Key Features
- Six-Input 4K/60 Seamless Switcher — One DisplayPort 1.2 and five HDMI 2.0 inputs; 4K/60 at 4:4:4; HDMI loop-through from one input to a local display.
- HDMI and DTP2 Mirrored Outputs — One HDMI output drives the local display; the DTP2 output mirrors the same signal for extension to a remote display up to 330 feet.
- DTP2 Extension to 330 Feet — Video, audio, and RS-232 on a single shielded CATx cable to DTP2 or DTP receivers; HDBaseT-compatible mode available.
- Vector 4K Scaling Engine — 30-bit precision; 640x480 through 4K/60 at 4:4:4; motion-adaptive deinterlacing for 1080i.

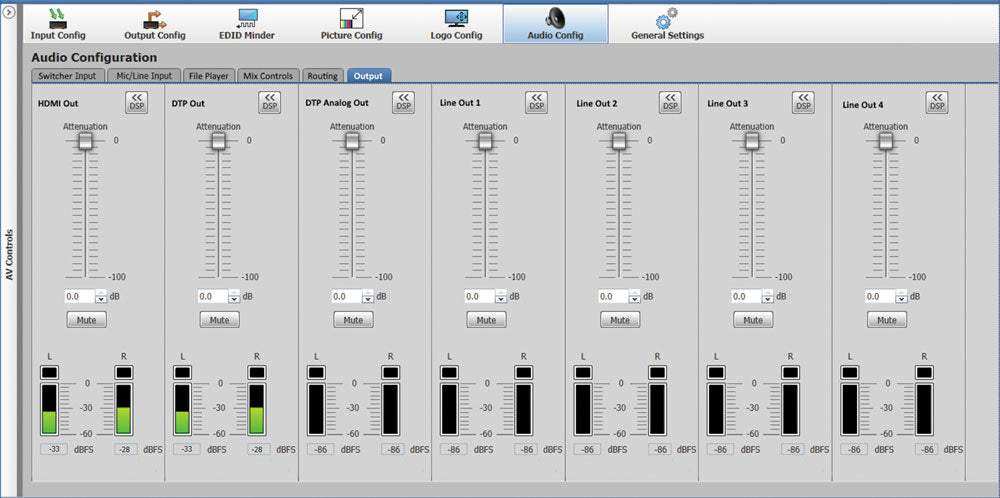

- ProDSP Audio Processing — Mic/line input with 48V phantom power; audio breakaway; HDMI audio embedding/de-embedding; S/PDIF output.
- Seamless Transition Effects — Freeze/cut, freeze/fade, cut through black, and fade through black on the scaled output.
- Logo Keying and Full-Screen Images — Overlay logos or show background images between presentations; BMP, JPG, PNG, TIFF formats.
- EDID Minder, Key Minder, SpeedSwitch — Reliable HDCP compliance and fast switching for protected content.
- Ethernet, RS-232, and USB Control — Multiple control interfaces for integration with room control systems.
Technical Specifications
| IN1806 — Technical Specifications (SKU 60-1663-01) | |
|---|---|
| Video inputs | 1 DisplayPort 1.2; 5 HDMI 2.0 (HDCP 2.2); 1 HDMI loop-through |
| Video outputs | 1 HDMI; 1 DTP2 (mirrored, configurable DTP or HDBaseT) |
| DTP2 distance | Up to 330 ft (100 m) over shielded CATx |
| Scaled resolutions | 640x480 through 4K/60 at 4:4:4 |
| Video standards | HDMI 2.0, DisplayPort 1.2, HDCP 2.2 |
| Audio | ProDSP; mic/line input with 48V phantom power; HDMI embedding/de-embedding; S/PDIF |
| Control | Ethernet; RS-232; front-panel USB mini-B |
| Power supply | Internal Extron Everlast; 100–240 VAC |
| Product weight | 5.3 lbs (2.4 kg) |
| Regulatory | CE, FCC Class A, c-UL, UL; RoHS/WEEE compliant |
| Product warranty | 3 years parts and labor; Everlast PSU 7 years |
Typical Application
The IN1806 is specified in conference rooms and lecture halls where up to six sources — including laptops via DisplayPort or HDMI — must switch cleanly to a local display and simultaneously extend to a ceiling-mounted projector or secondary display via DTP2.
